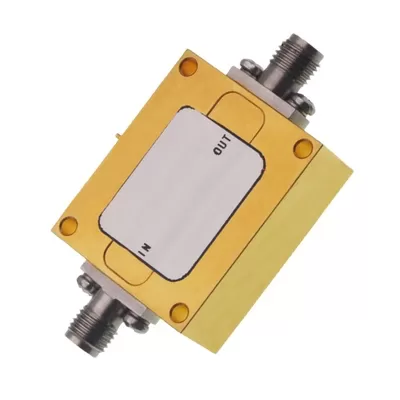

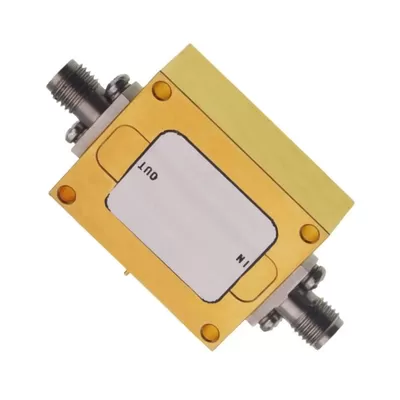

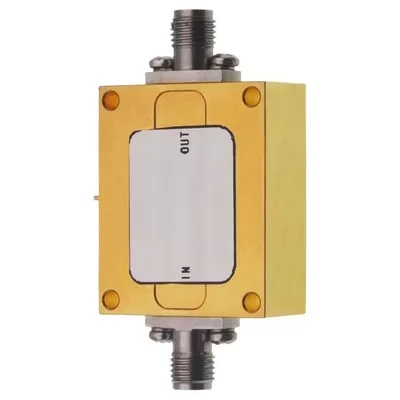

0.1-18 GHz 20 dB Low Noise Amplifiers for Test and Measurement Equipment with Low Noise Figure

Place of Origin：China

Brand Name：SWT

Model Number：SW-PA-10018000-20C

Price：

Product Description

0.1-18 GHz P1dB 20 dB Low Noise Amplifiers for Test and Measurement Equipment with Low Noise Figure

Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25℃
PARAMETER	MIN	TYPICAL	MAX	UNIT
Frequency Range	0.1		18	GHz
Small Signal Gain	20			dB
Small Signal Gain Flatness			±2	dB
Noise Figure			7	dB
Output Power 1dBcompression	20			dBm
VSWR input			2.3:1	dBm
VSWR output			2.3:1	Ratio
DC Power Supply		12		Volt
Current		295		mA

ENVIRONMENTAL RATINGS
PARAMETER	MIN	TYPICAL	MAX	UNIT
Max Input power			+20	dBm
Operating Temperature	-40		+85	℃
Non-operating Temperature	-55		+125	℃
Relative humidity (non-condensing)		95		%
Altitude (MIL-STD-810F)	10000		30000	feet
Shock / Vibration (MIL-STD-810F)		Airbone

MECHANICAL SPECIFICATIONS
PARAMETER	VALUE	LIMITS	UNIT
Dimensions	44.729.517	Max	Millimeter
Weight	80	Max	gram
RF Connectors Input	SMA-F
RF Connectors output	SMA-F
Impedance	50		Ohms
