0.1-20 GHz Wideband LNA 30dB Ultra Low Noise RF Amplifier for Electronic Warfare

Place of Origin：China

Brand Name：SWT

Model Number：SW-PA-010020000-30C

Price：

Product Description

0.1-20 GHz Wideband LNA 30dB Ultra Low Noise RF Amplifier for Electronic Warfare

Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25℃
PARAMETER	MIN	TYPICAL	MAX	UNIT
Frequency Range	0.1		20	GHz
Gain	30			dB
Gain Flatness		±2		dB
Noise Figure		4		dB
Output Power 1dB compression	+13			dBm
IP3				dBm
VSWR		2.0		Ratio
DC Power Supply		12		Volt
Current		220		mA

ENVIRONMENTAL RATINGS
PARAMETER	MIN	TYPICAL	MAX	UNIT
Max Input power			+10	dBm
Operating Temperature	-20		+60	℃
Non-operating Temperature	-40		+85	℃
Relative humidity (non-condensing)		95		%
Altitude (MIL-STD-810F)				feet
Shock / Vibration (MIL-STD-810F)

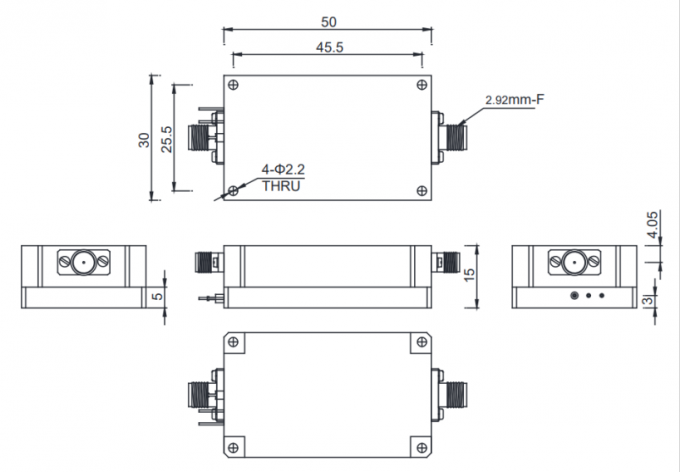

MECHANICAL SPECIFICATIONS
PARAMETER	VALUE	LIMITS	UNIT
Dimensions		Max	Millimeter
Weight	300	Max	gram
RF Connectors Input	2.92mm-F
RF Connectors output	2.92mm-F
Impedance	50		Ohms
