0.1-40 GHz 30dB Wideband LNA Low Noise Amplifier for Wideband Communication Systems

Place of Origin：China

Brand Name：SWT

Model Number：SW-PA-010040000-30C

Price：

Product Description

0.1-40 GHz 30dB Wideband LNA Low Noise Amplifier for Wideband Communication Systems

Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25℃
PARAMETER	MIN	TYPICAL	MAX	UNIT
Frequency Range	0.1		40	GHz
Small Signal Gain	28	30		dB
Small Signal Gain Flatness		±3		dB
Noise Figure		6		dB
Output Psat		19		dBm
Output IP3		27		dBm
Input VSWR		2:5:1		Ratio
Output VSWR		2:5:1		Ratio
DC Power Supply		12		Volt
Current		400		mA

ENVIRONMENTAL RATINGS
PARAMETER	MIN	TYPICAL	MAX	UNIT
Max Input power			0	dBm
Operating Temperature	-40		+60	℃
Non-operating Temperature	-40		+85	℃
Relative humidity (non-condensing)		95		%
Altitude (MIL-STD-810F)	10000		30000	feet
Shock / Vibration (MIL-STD-810F)		Airbone

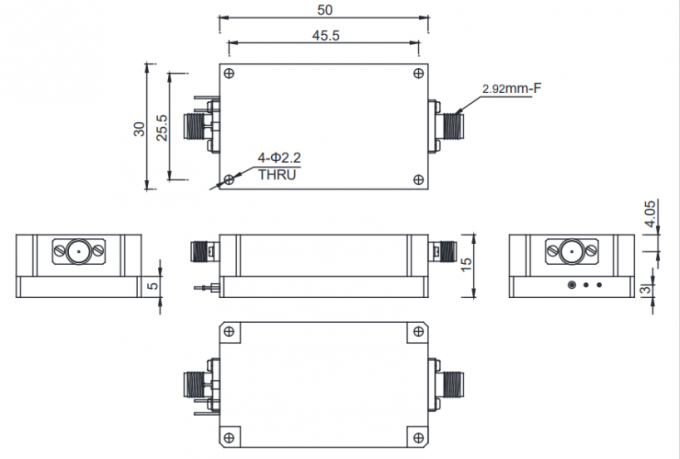

MECHANICAL SPECIFICATIONS
PARAMETER	VALUE	LIMITS	UNIT
Dimensions	503015	Max	Millimeter
Weight	50	Max	gram
RF Connectors Input	SMA-F
RF Connectors output	SMA-F
Impedance	50		Ohms
