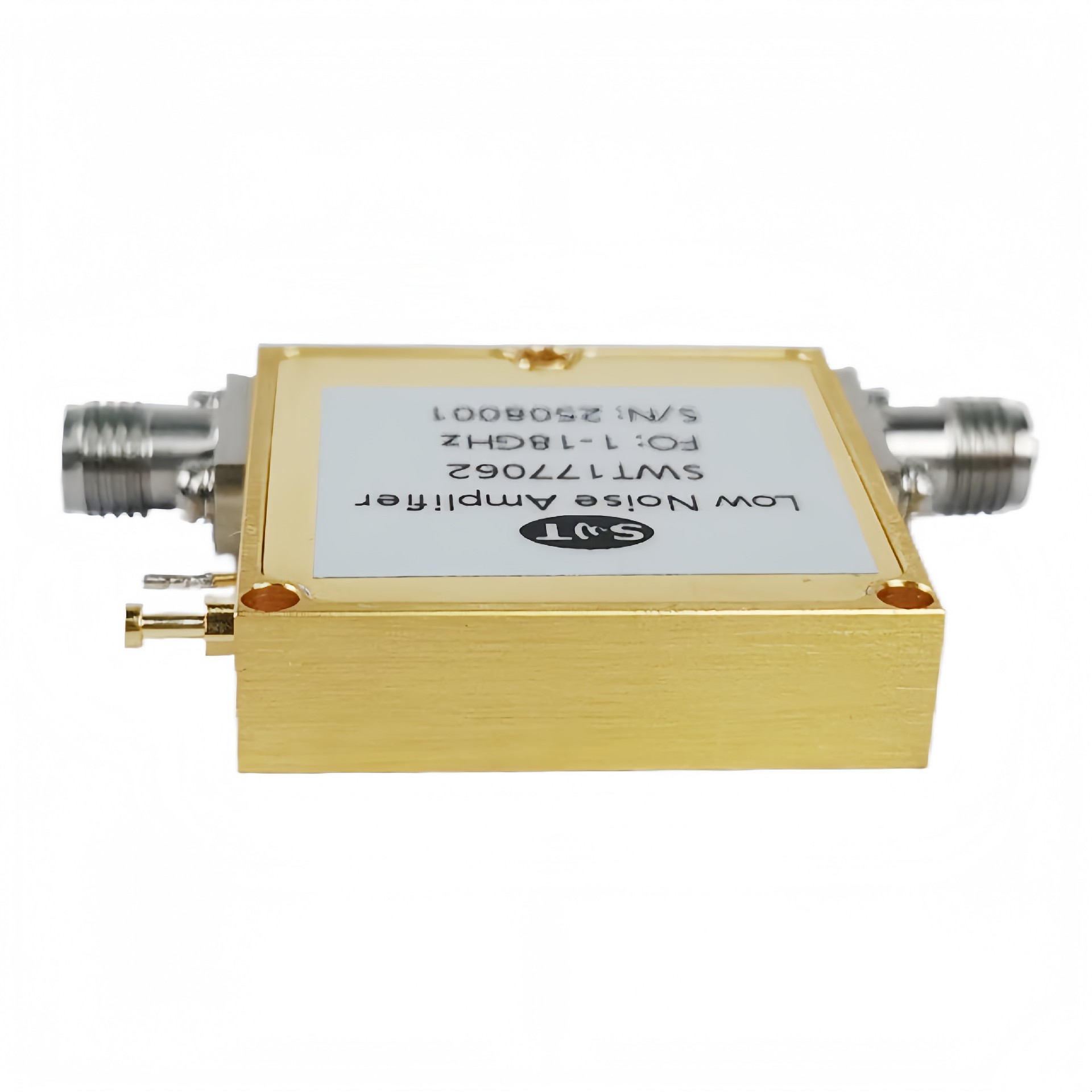

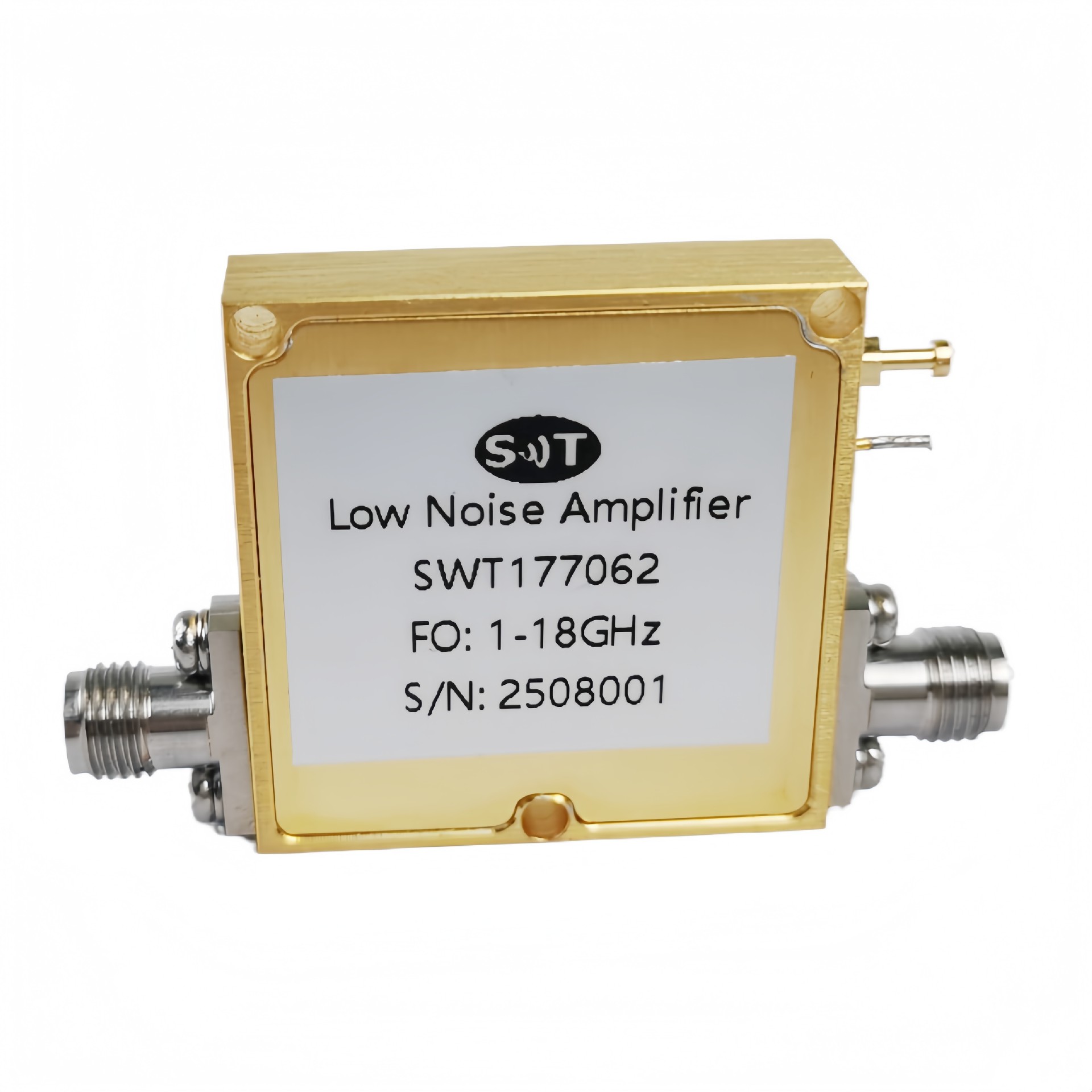

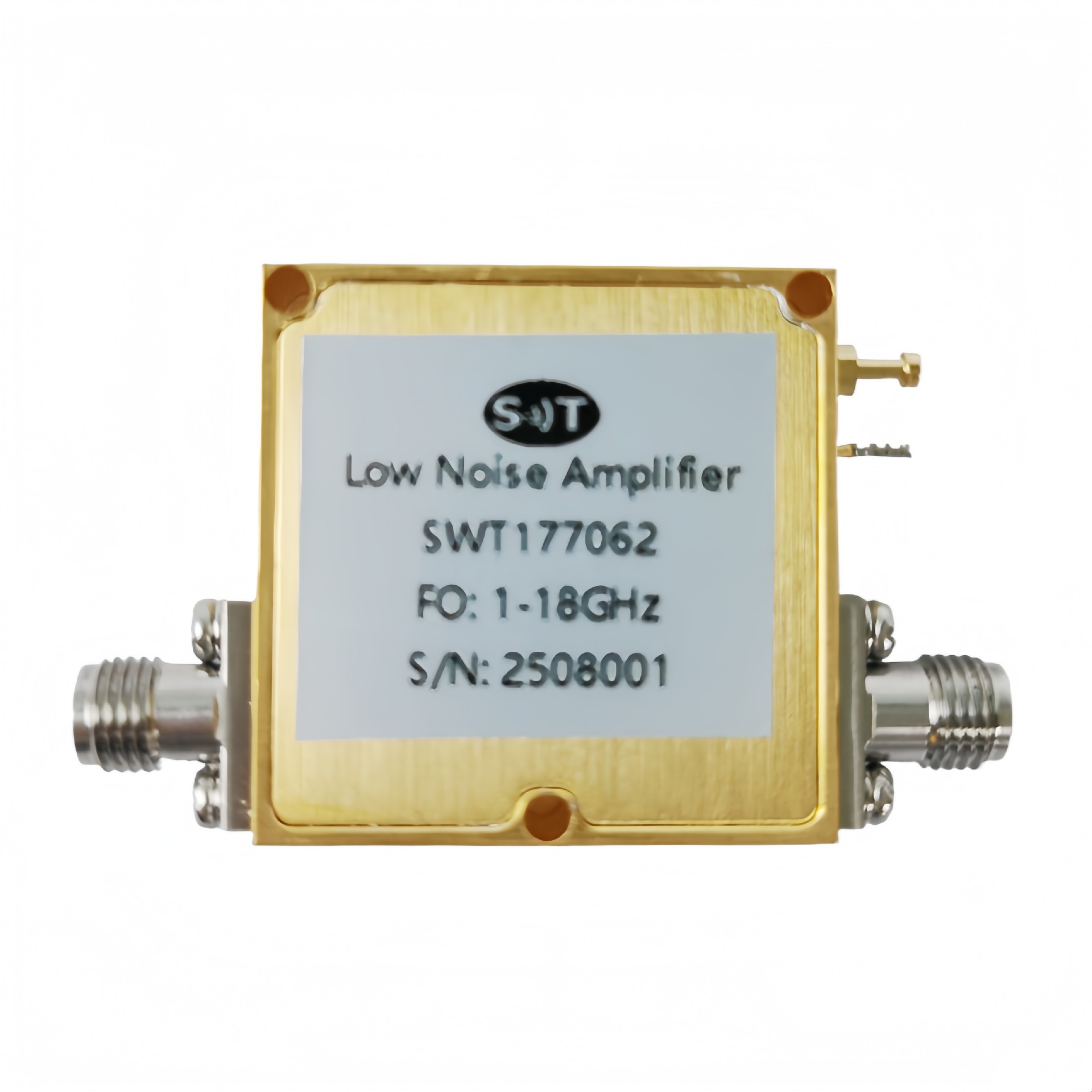

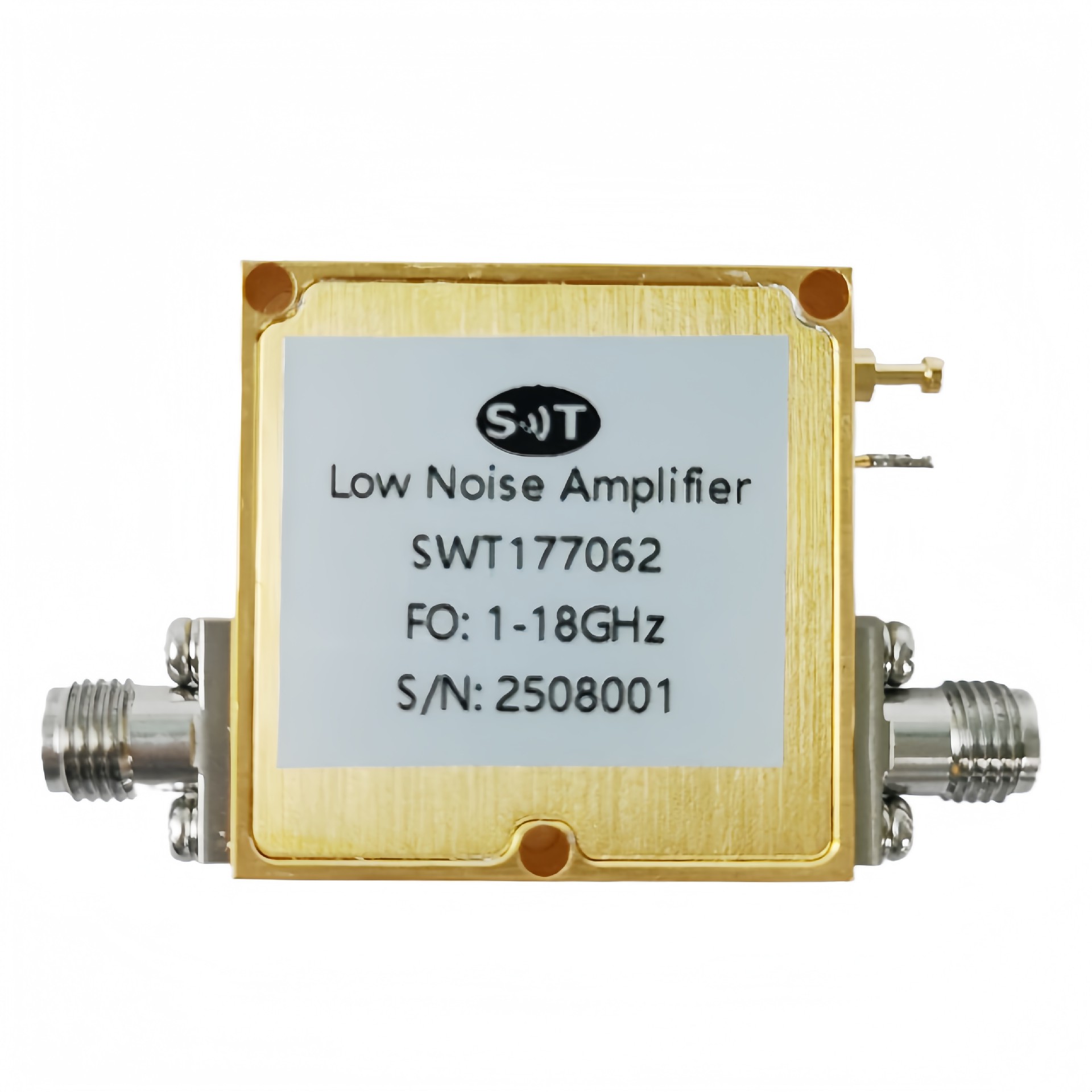

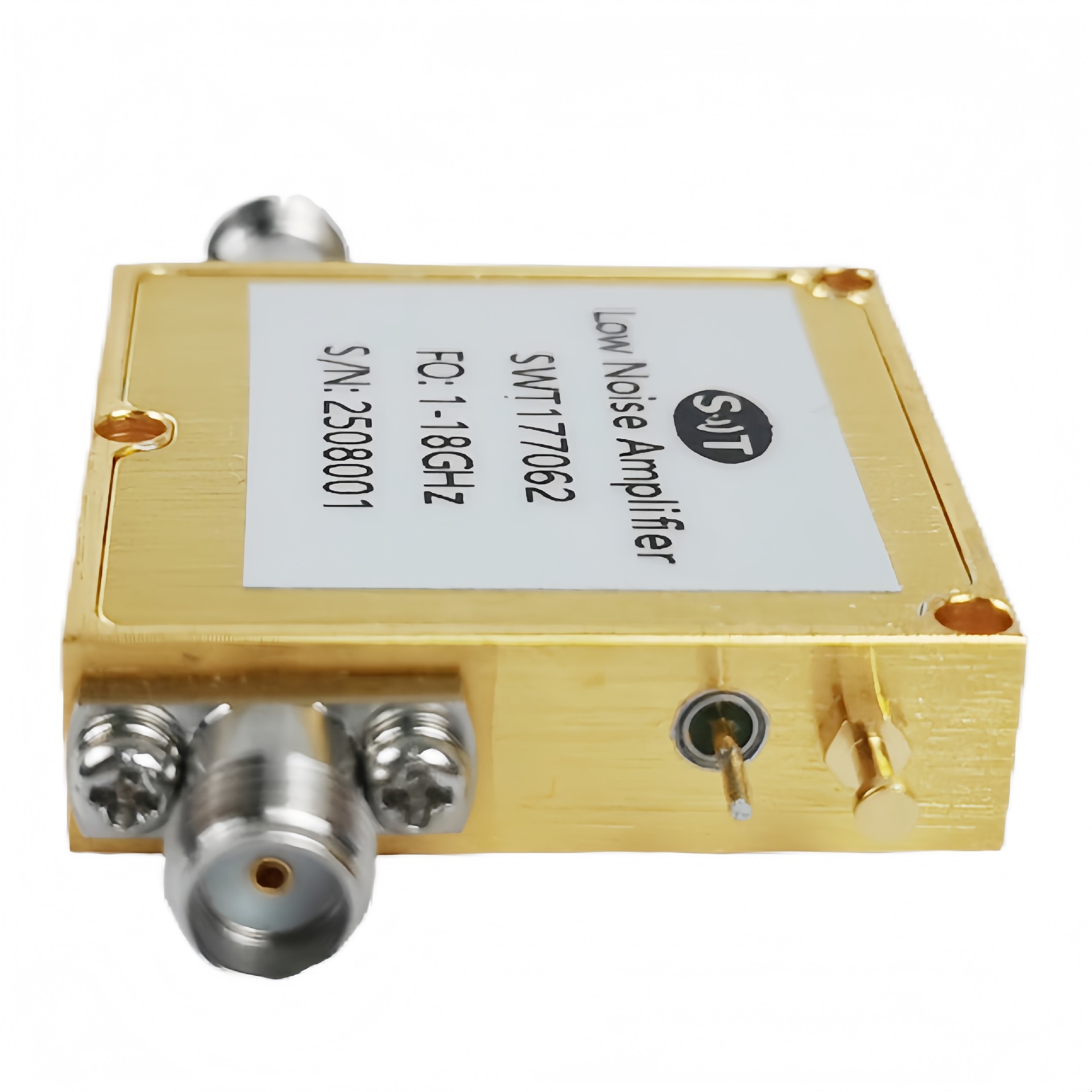

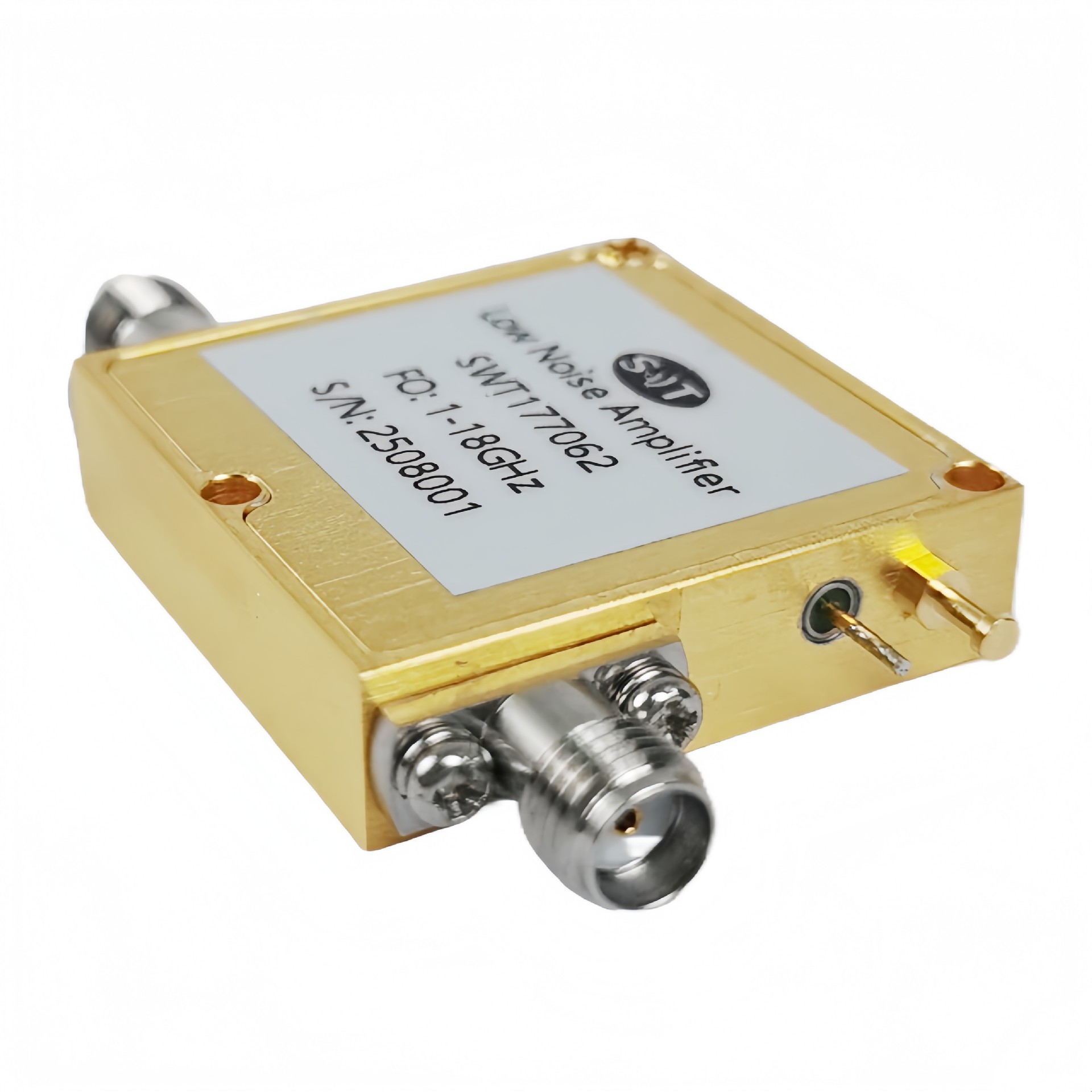

1-18 GHz 3W Low Noise Amplifier for Radar, Communication Systems and Low Noise Receivers

Place of Origin：China

Brand Name：SWT

Model Number：SWT177062

Price：Please Contact Customer Service

Product Description

SWT177062 is a broad band low noise amplifier with a typical small signal gain of 30 dB and a nominal noise figure of 2.5 dB across the frequency range of 1 to 18 GHz. The DC power requirementfor the amplifier is +12 VDC/250 mA. The input and output port configurations are both female SMA connectors. Other portconfigurations are available under different model numbers.

ECCN

EAR99

FEATURES

• Broad Band Performance

• State-of-the-Art Noise Figure

• High Gain

APPLICATIONS

• Radar Systems

• Communication Systems

• Low Noise Receivers

Electrical Specifications:

Parameter	Minimum	Typical	Maximum
Frequency	1 GHz		18 GHz
Gain		30 dB
Noise Figure		2.5 dB
Output P1dB		20 dBm
Output Psat		22 dBm
Input Return Loss		13 dB
Output Return Loss		13 dB
Operational RF Input Power			0 dBm
Damage RF Input Power			+18 dBm
DC Voltage		+12 VDC
DC Supply Current		250 mA
Specification Temperature		+25°C
Operating Temperature	0°C		+50°C

Item	Specification
Input Port	SMA (F) Connector
Output Port	SMA (F) Connector
Bias	Solder Pin
Case Material	Aluminum
Finish	Gold Plated
Weight	1.8 Oz
Size	1.18” (L) X 1.18” (W) X 0.32” (H)

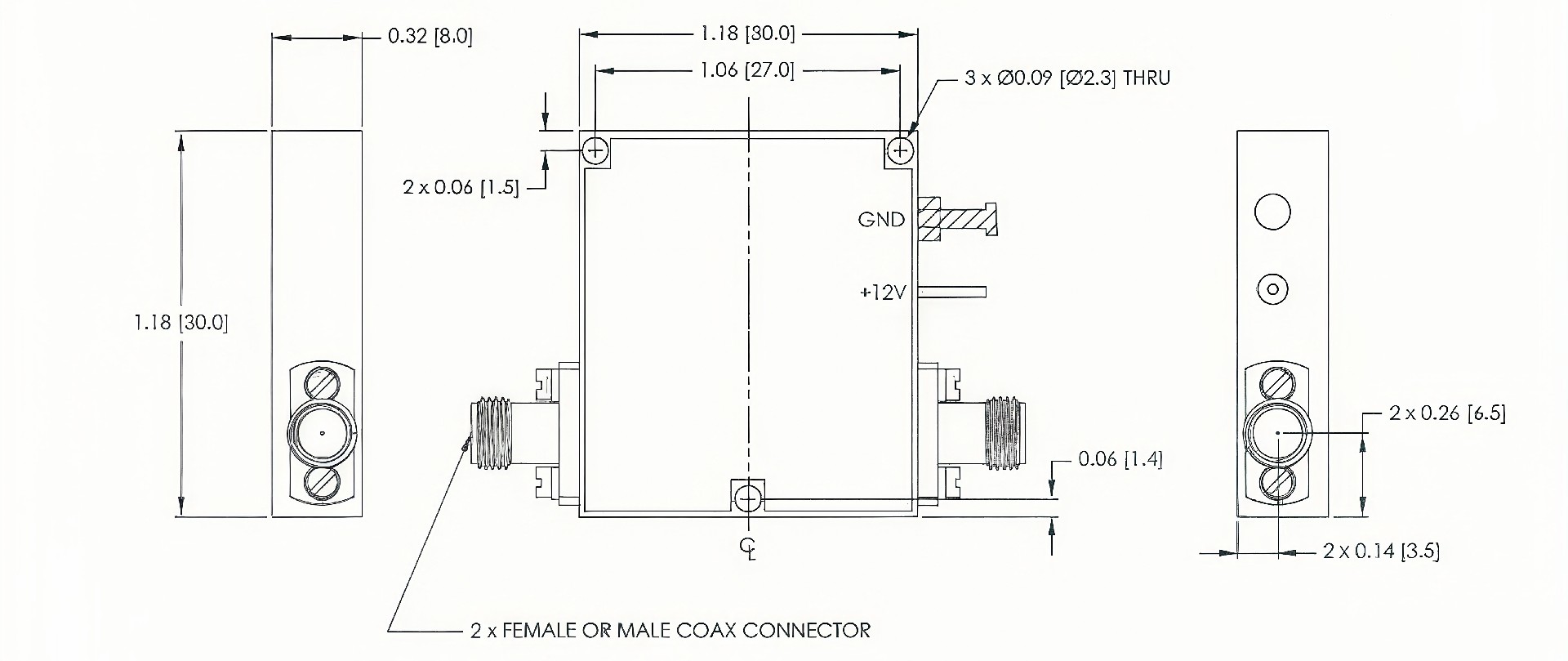

Outline	BL-ZC-8
