0.3~20GHz 15dB Gain High-Performance Low Noise Amplifier–Engineered for Radar Systems & Broadband Communication

Place of Origin：China

Brand Name：SWT

Model Number：SWT177062

Price：Please Contact Customer Service

Product Description

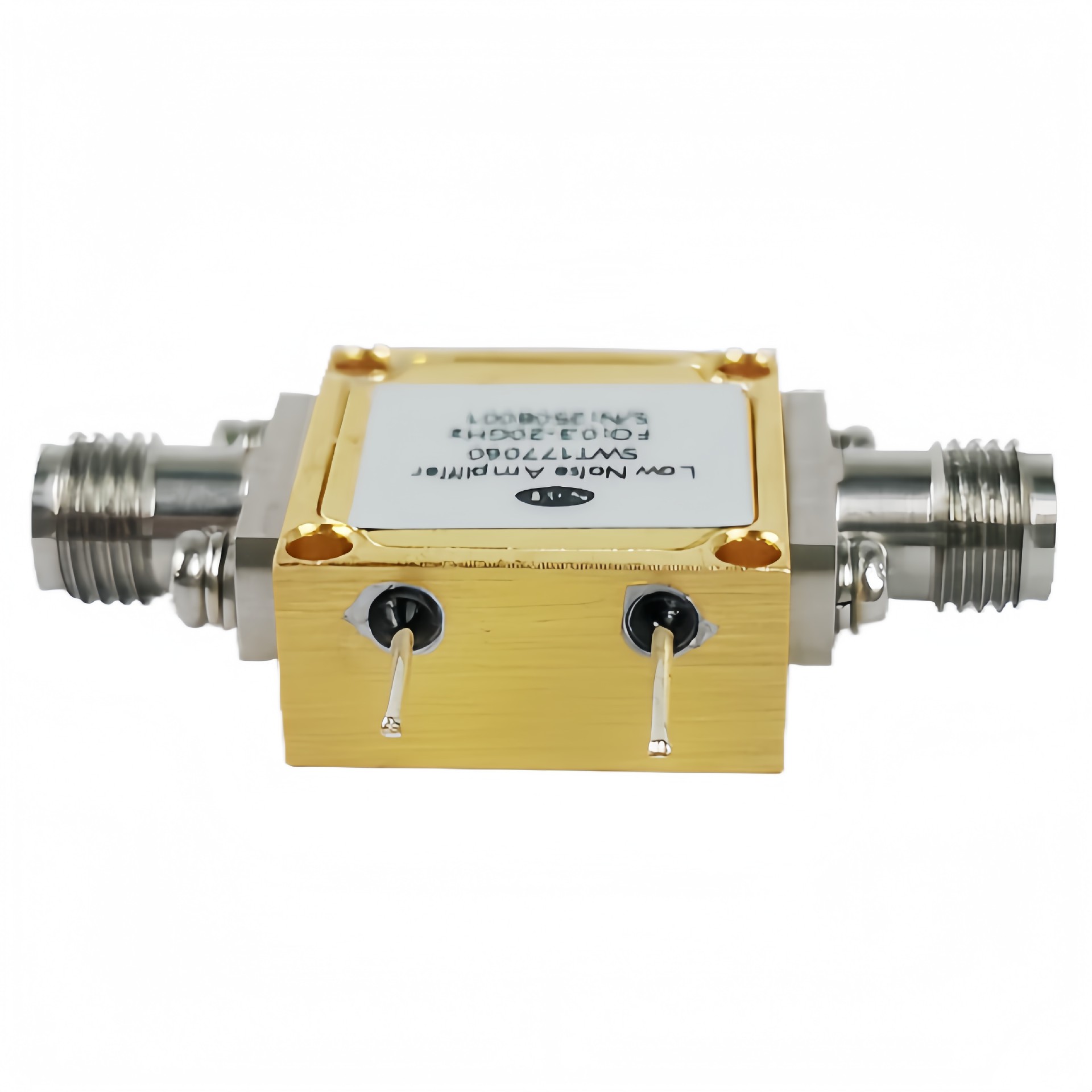

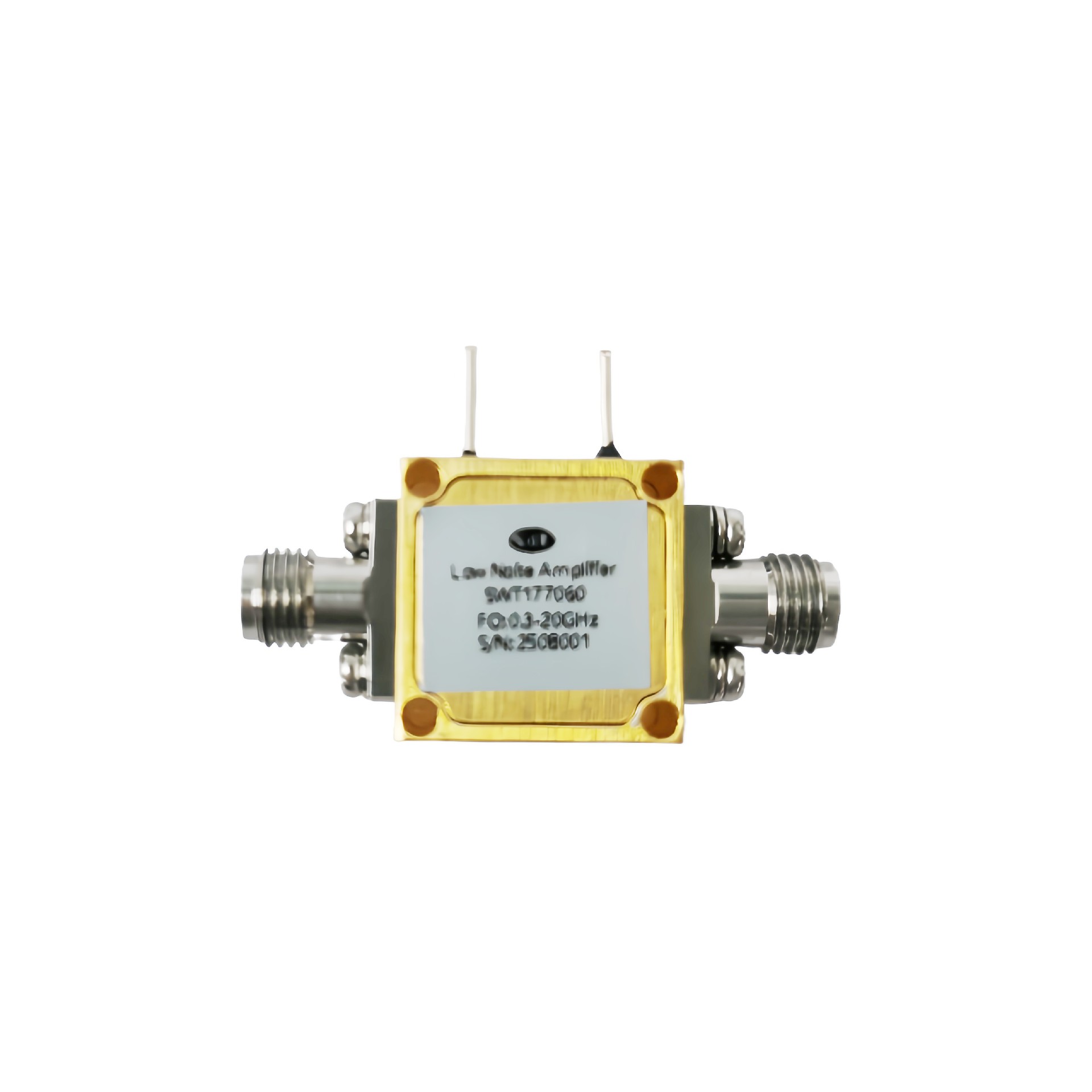

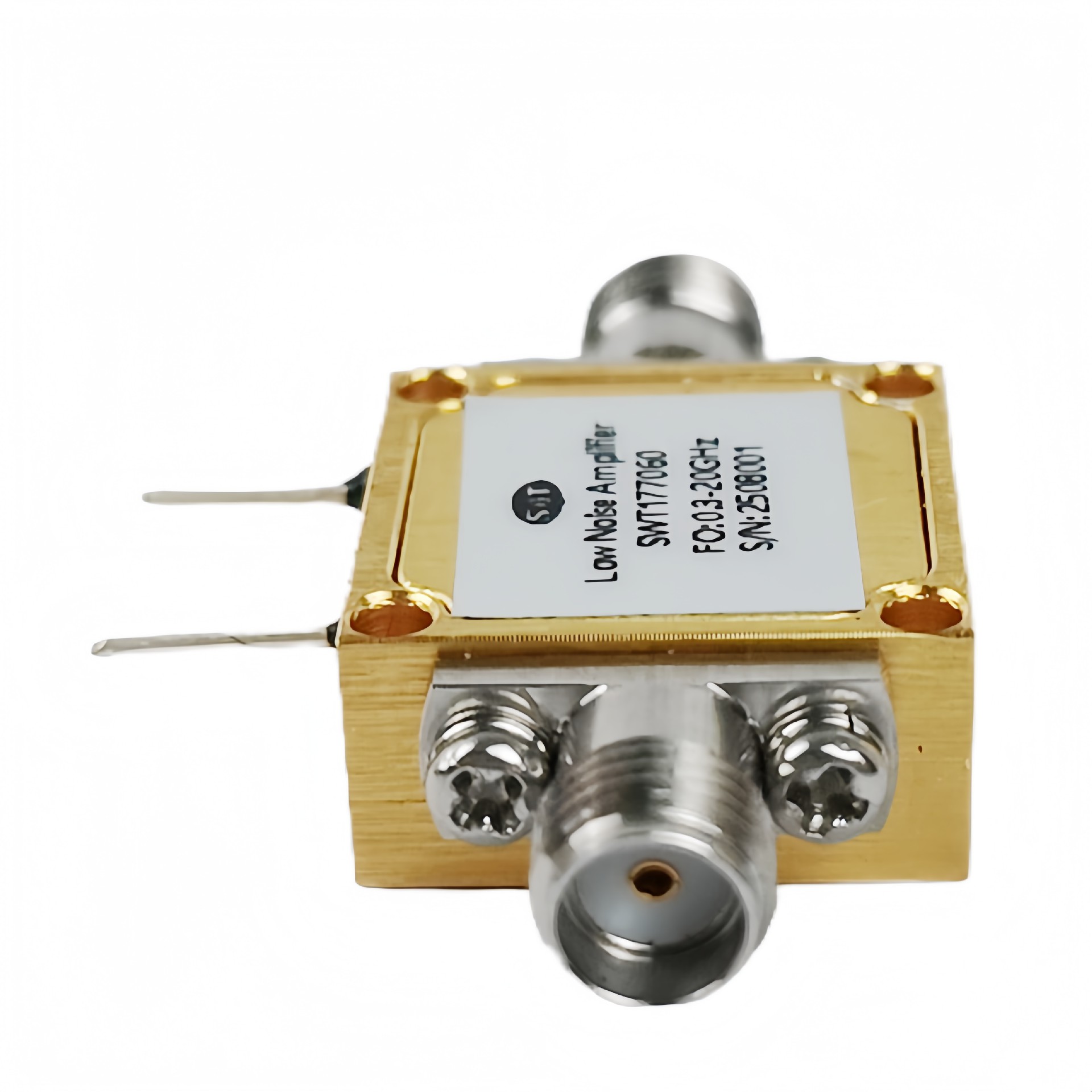

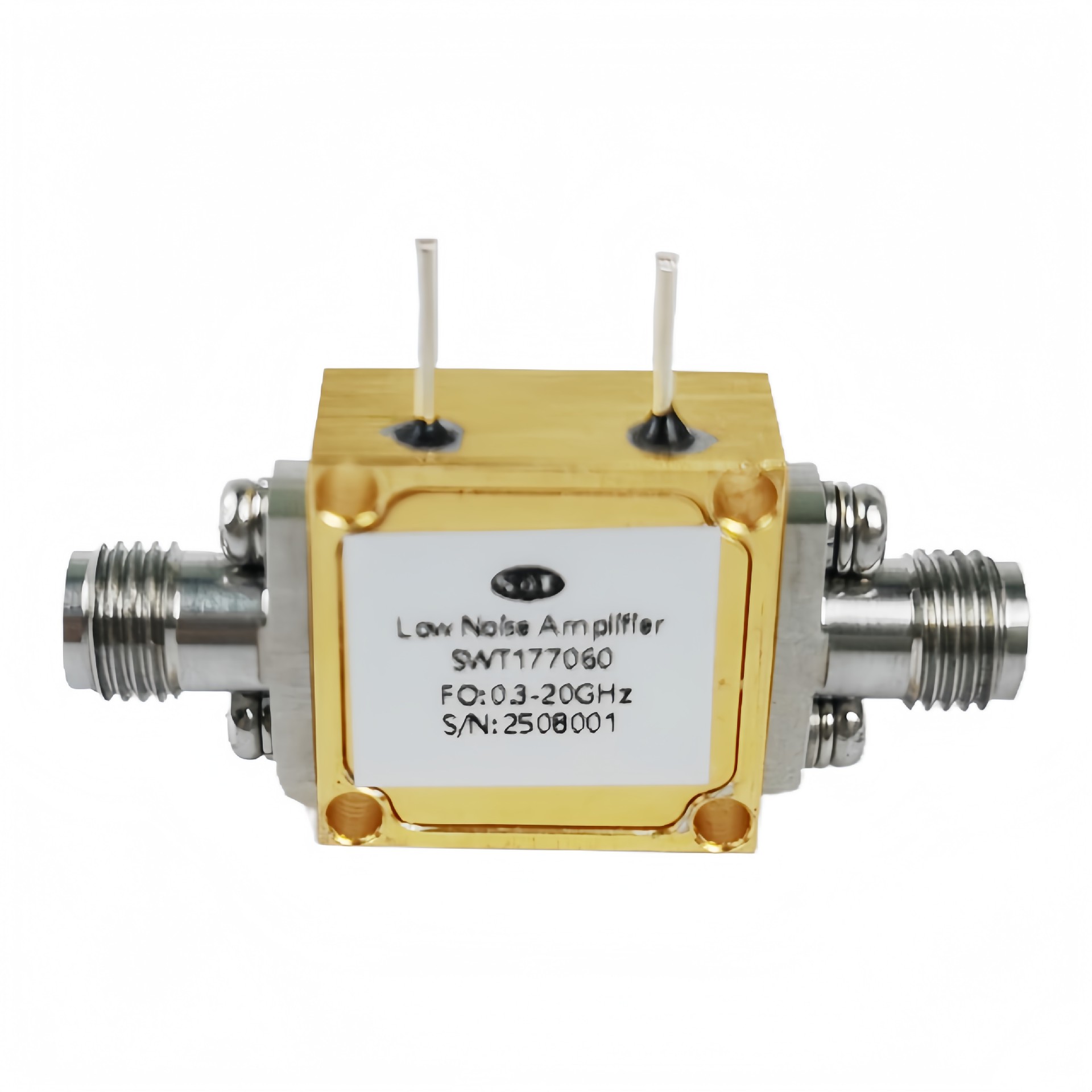

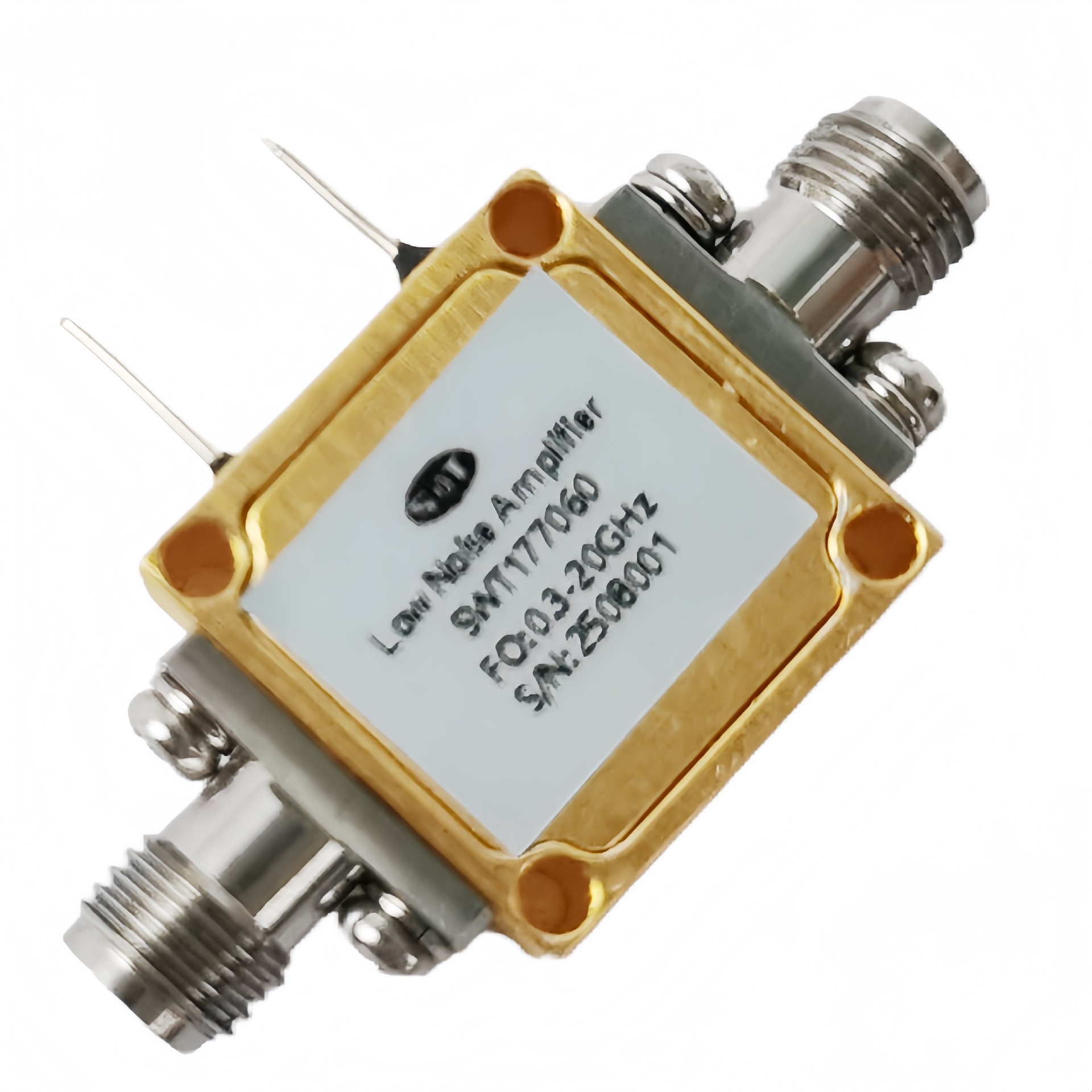

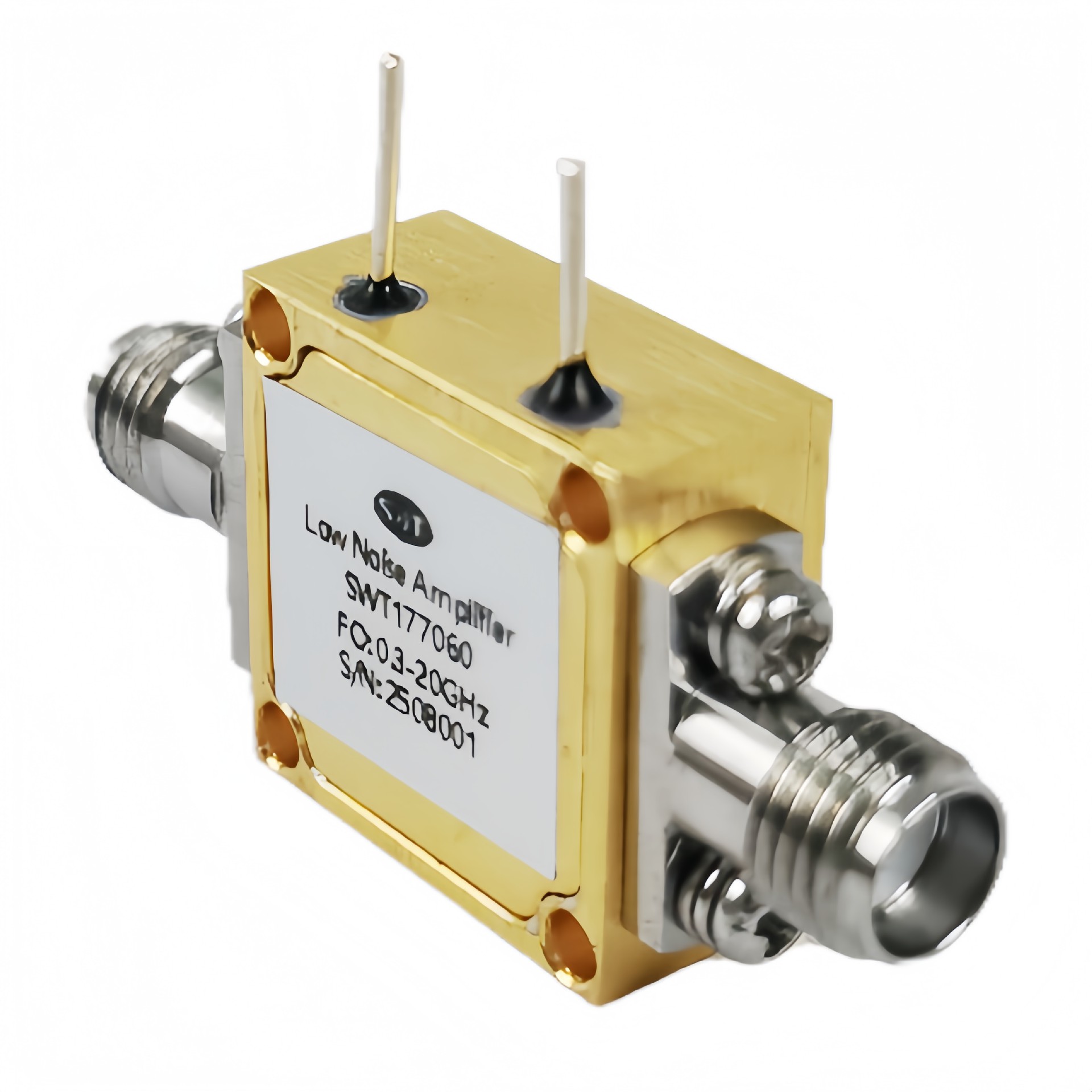

SWT177060 is a low noise amplifier with atypical small signal gain of 15 dB and a nominalnoise figure of 3 dB across the frequency range of 0.3 to 20 GHz. The typical port return losses are 10 dB. The DC power requirement for the amplifier is +12 VDC/70 mA. The output P1dB is +10 dBm. The RF connectors are both female SMA connectors. Other port configurations are available under different model numbers.

Features:

Broadband Performance

Low Noise Figure

Good Output P1dB Across the Band

Applications

Radar Systems

Communication Systems

Low Noise Receivers

Electrical Specifications:

Parameter	Minimum	Typical	Maximum
Frequency	0.3 GHz		20.0 GHz
Gain		15 dB
Gain Flatness		±2.5 dB
Noise Figure		3.0 dB	3.8 dB
P1dB		+10 dBm
Pin			+10 dBm
Input Return Loss		10 dB
Output Return Loss		10 dB
DC Voltage	+10 VDC	+12 VDC	+16 VDC
DC Supply Current		70 mA
Specification Temperature		+25 ˚C
Operating Temperature	-40 ˚C		+85 ˚C

Item	Specification
Input Port	SMA (F)
Output Port	SMA (F)
Bias Port	Solder Pin
Case Material	Aluminum
Finish	Gold Plated
Weight	0.35 Oz
Size	0.67” (W) X 0.67” (L) X 0.32” (H)

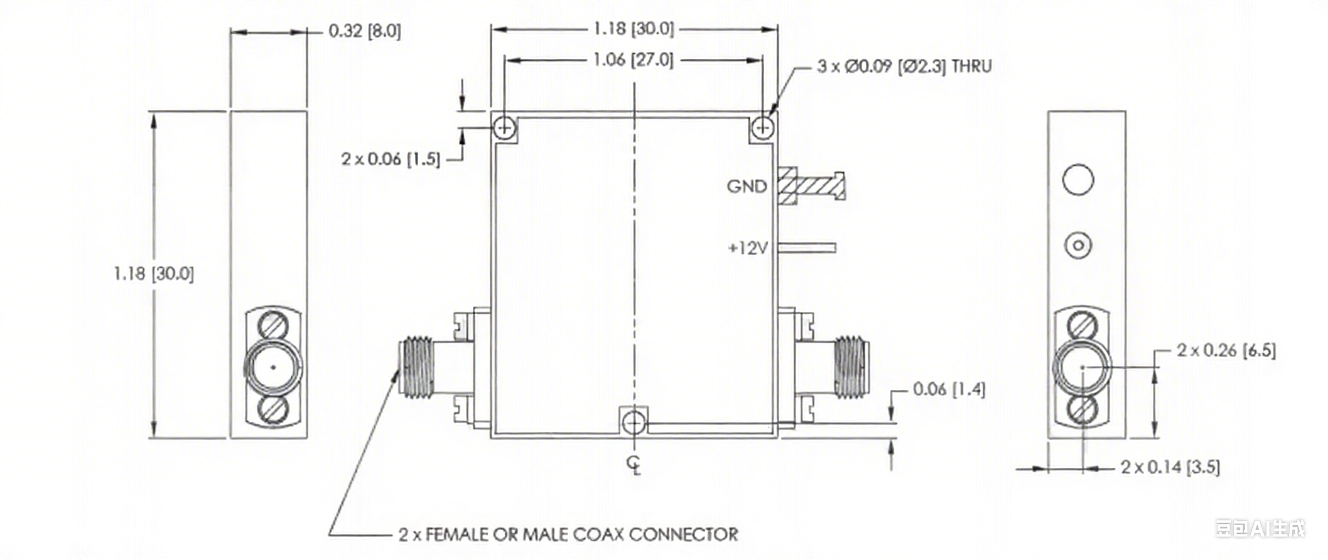

Outline	BL-ZC-7
