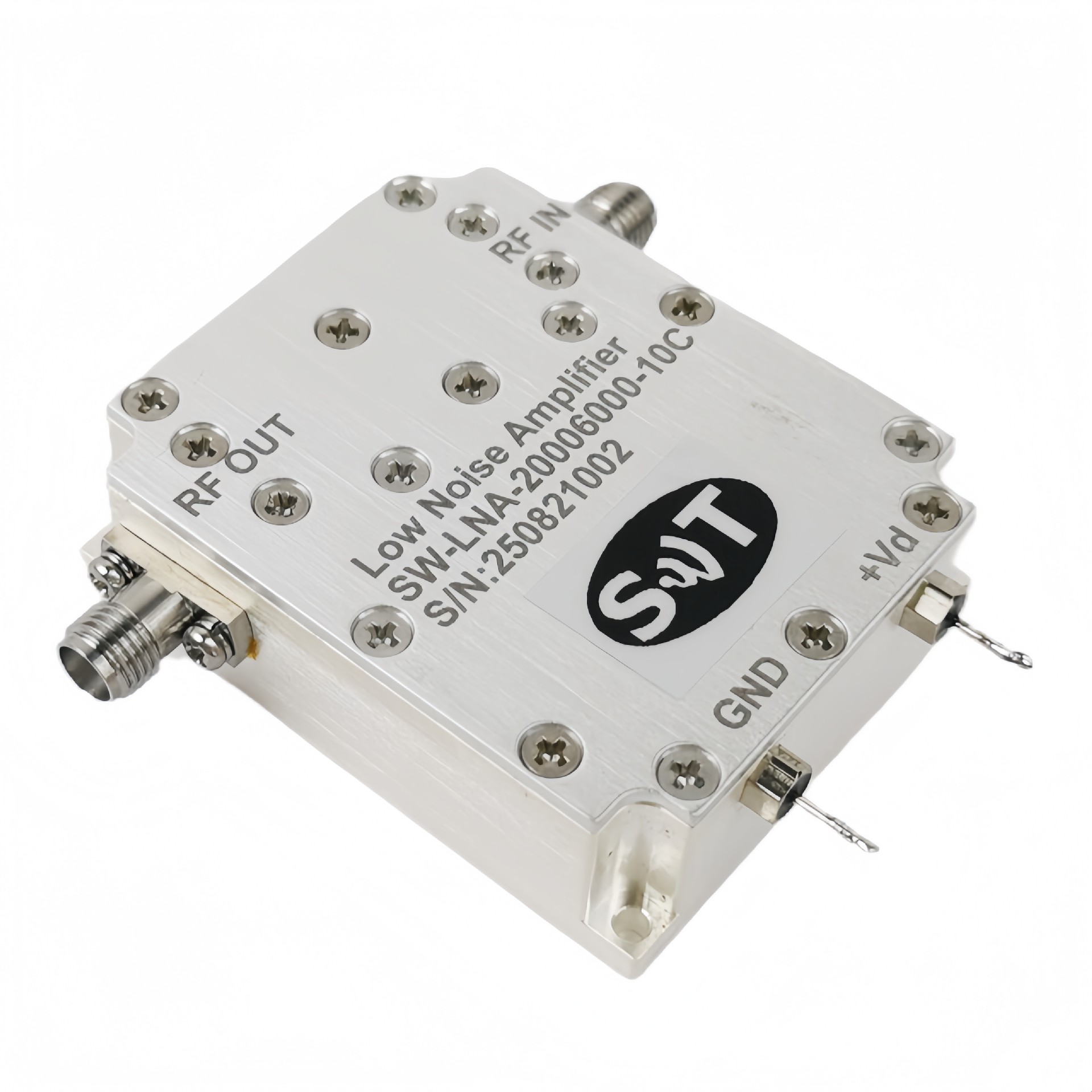

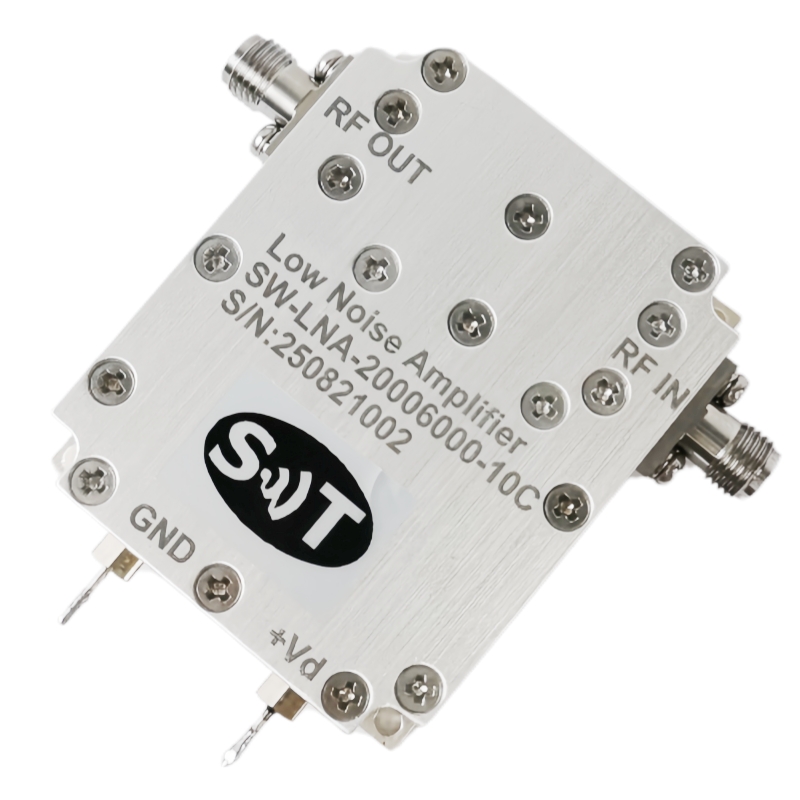

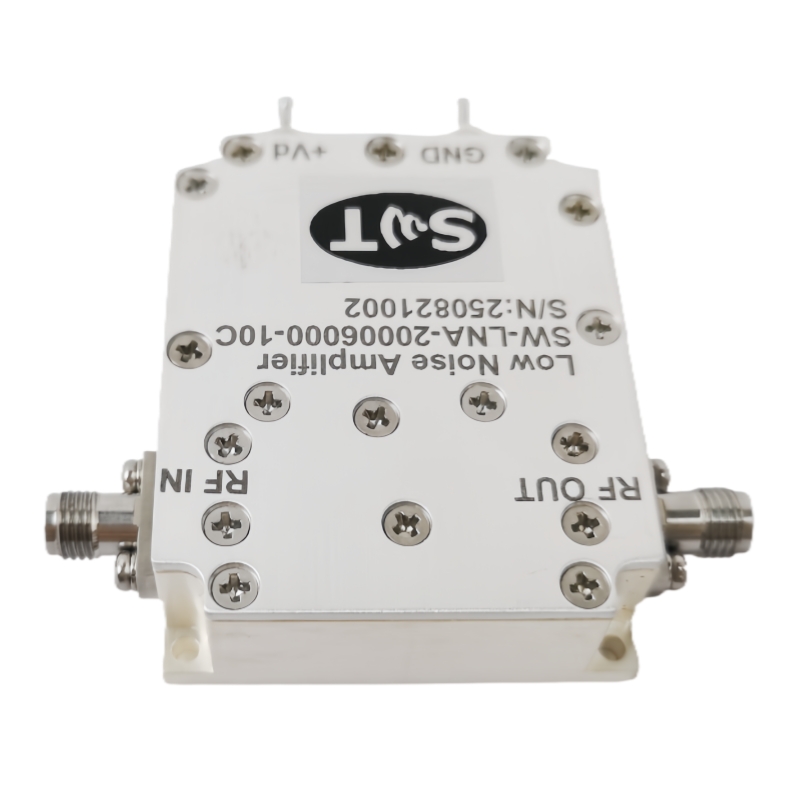

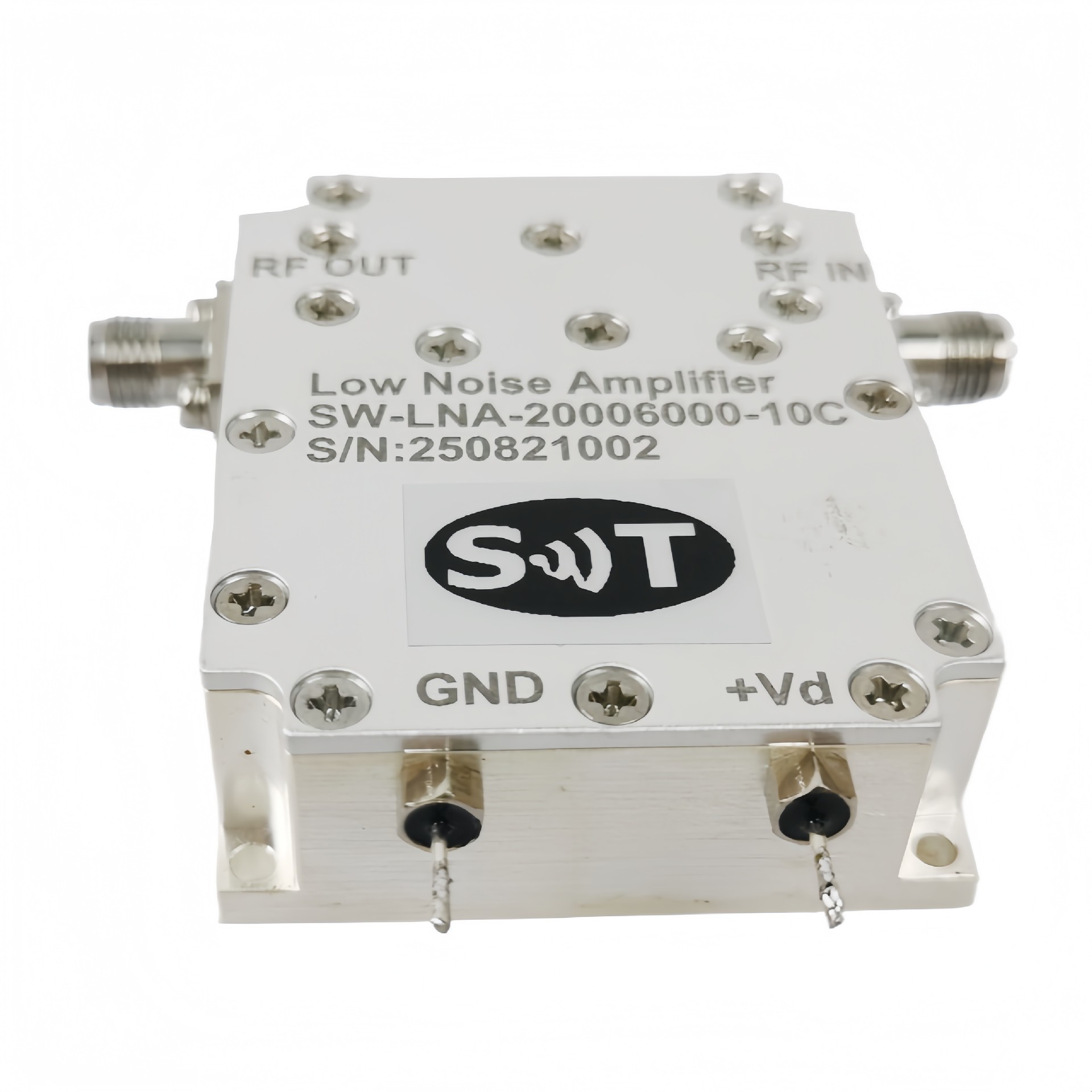

2000-6000MHz 10dBm P-1dB Output: Low Noise Amplifier for Industrial & Commercial Applications
Place of Origin：China
Brand Name：SWT
Model Number：SW-LNA-20006000-10C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +12V DC +25℃, and in a 50Ω system.
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 2000 | 6000 | MHz | |
RF INPUT | 0 | dBm | ||
P-1dB Power Output | 10 | dBm | ||
Gain | 33 | 36 | dB | |
Noise Figure | 1.5 | 3 | dB | |
Power Gain Flatness | ±2 | dB | ||
Input VSWR | 2.0 | |||
Operating Voltage | 12 | 15 | V DC | |
In-Out impedance | 50 | Ω | ||
Currents | 0.2 | A |
PARAMETER | VALUE | UNIT |

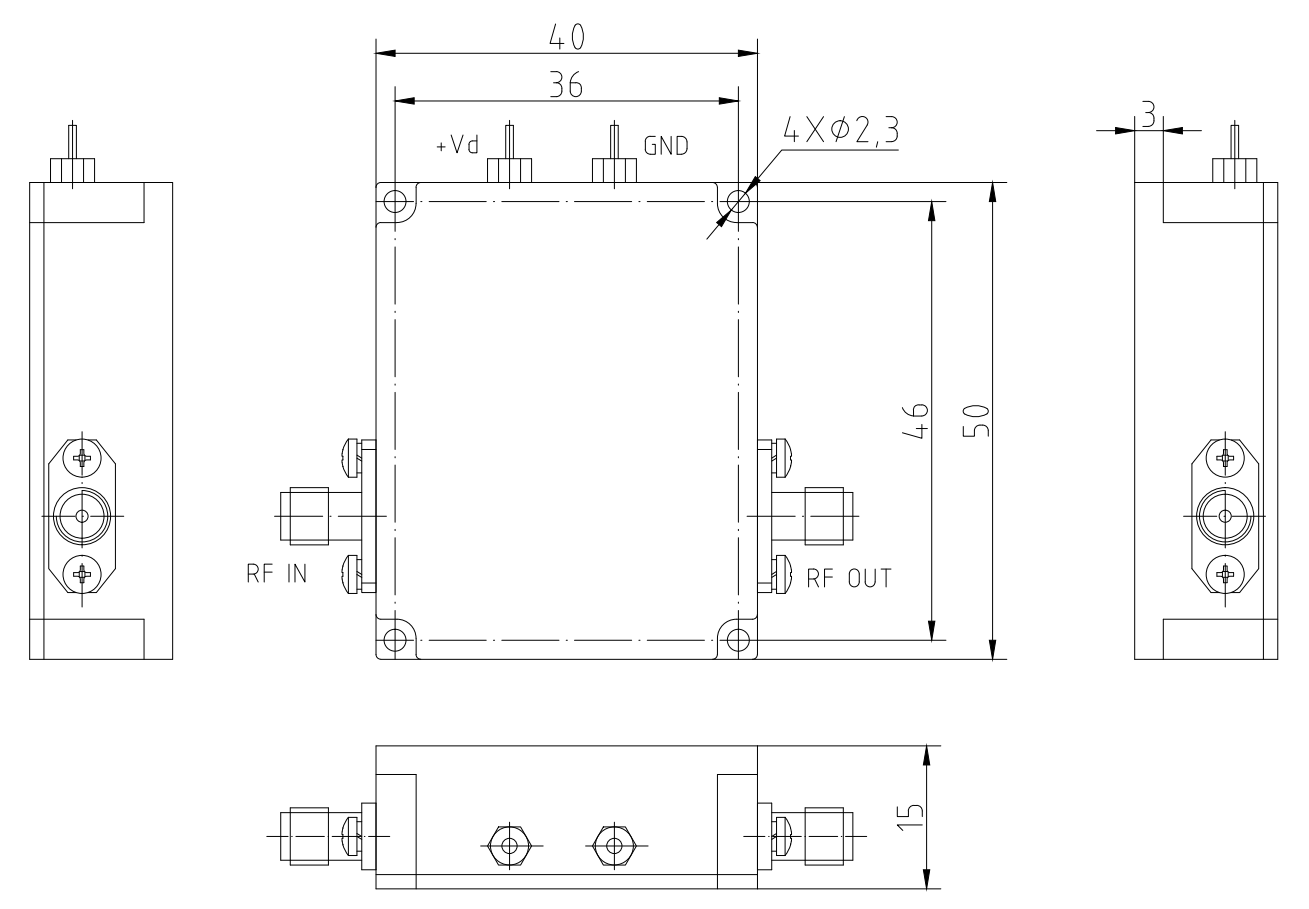

Dimensions (L x W x H) | 40 x50 x 15 | mm |
RF Connectors (Input / Output) | SMA- KFD/ SMA - KFD | -- |
DC Connector | Feed thru capacitor | -- |
Cooling | Consider heat dissipation with the system (Not Supplied) | |
Mounting | φ2.3-4 Thru Hole | -- |
Weight | ≤0.3 | kg |
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +60 | °C |
Humidity Range | 0-95 | % | |
Product Details
Frequency Range:
2000-6000 MHz
DC Power Supply:
Gain:
33dB
Noise Figure:
Connectors:
Gain Variation:
VSWR Input:
Output P1dB:
Working Temp:
Applications:
Dimensions:
Packing:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
