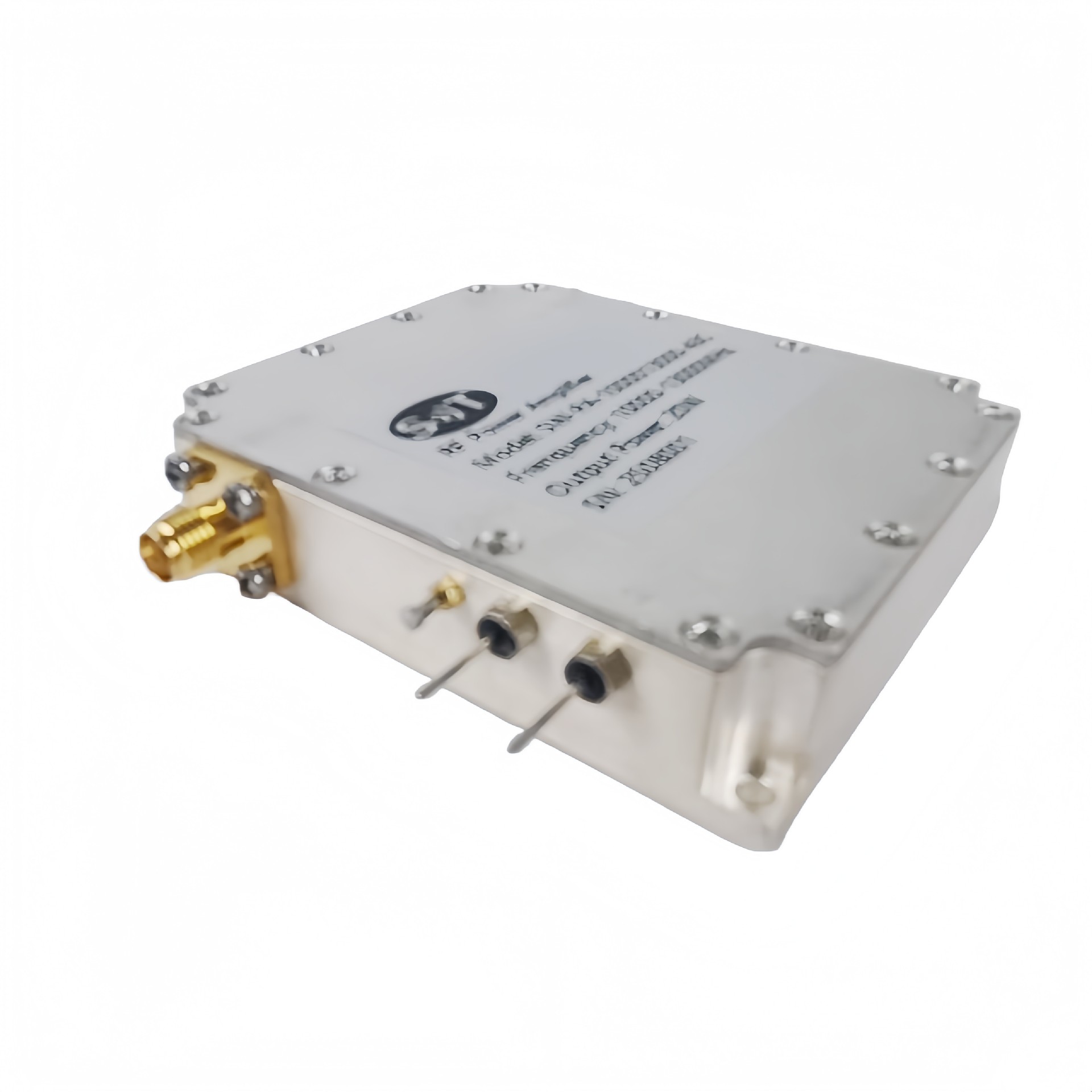

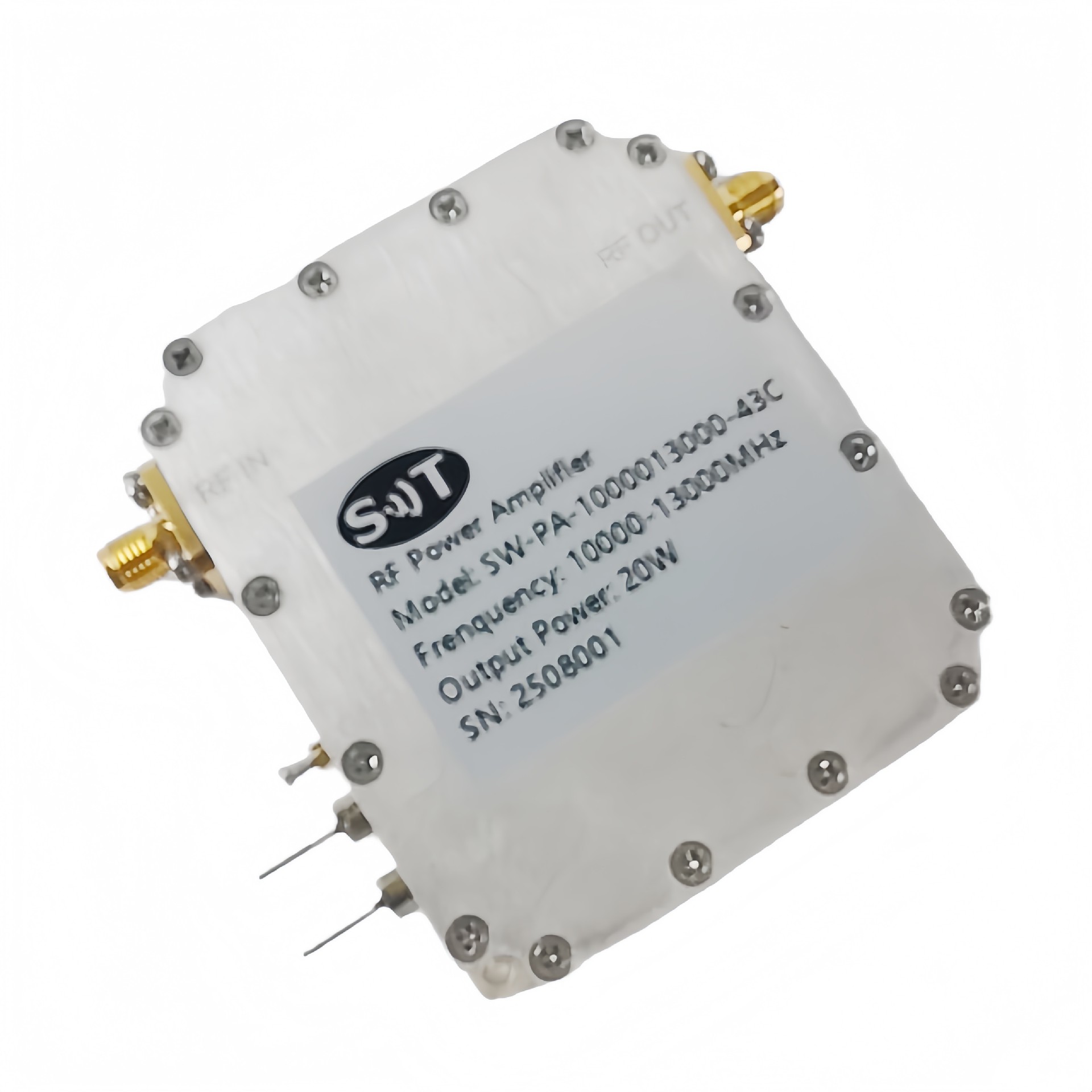

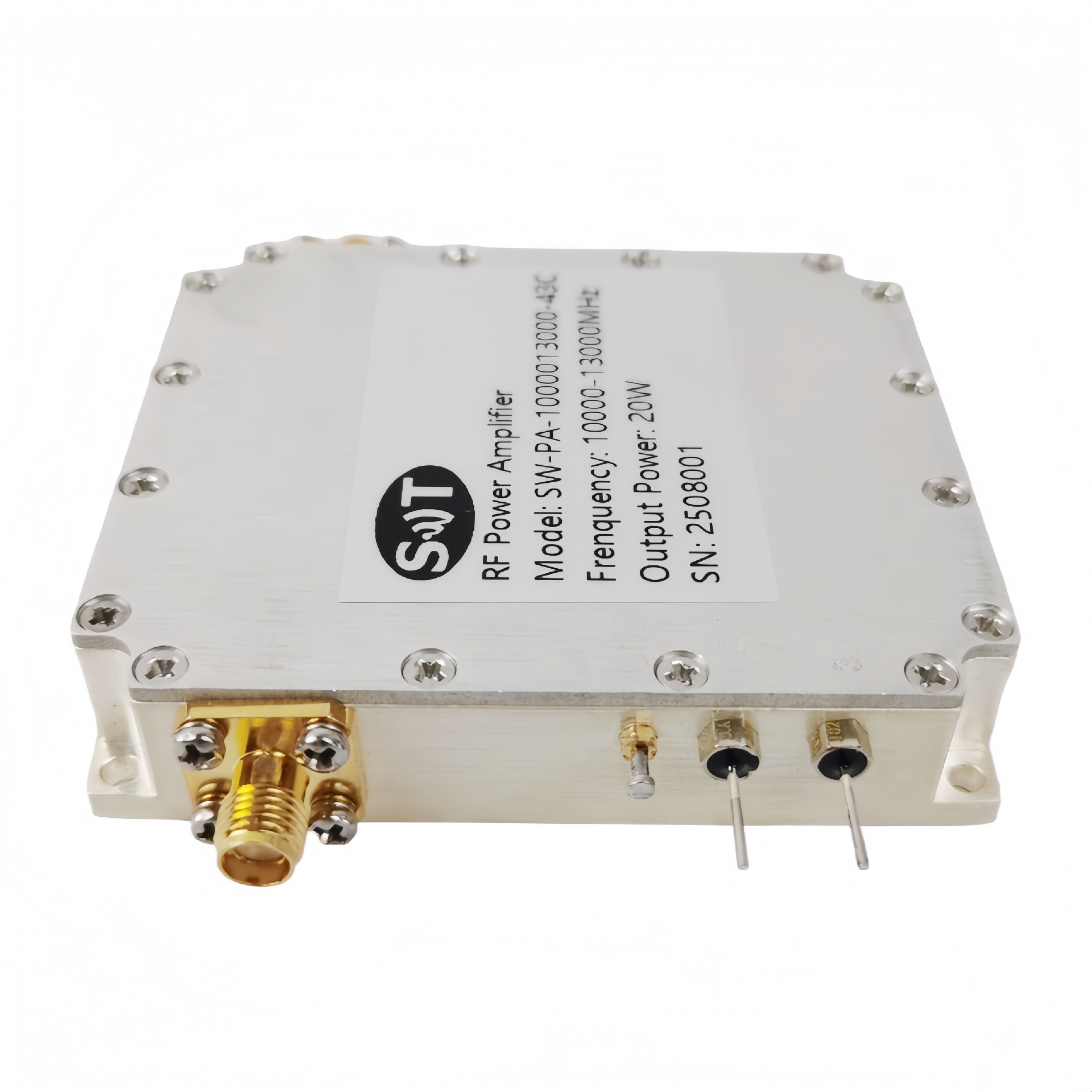

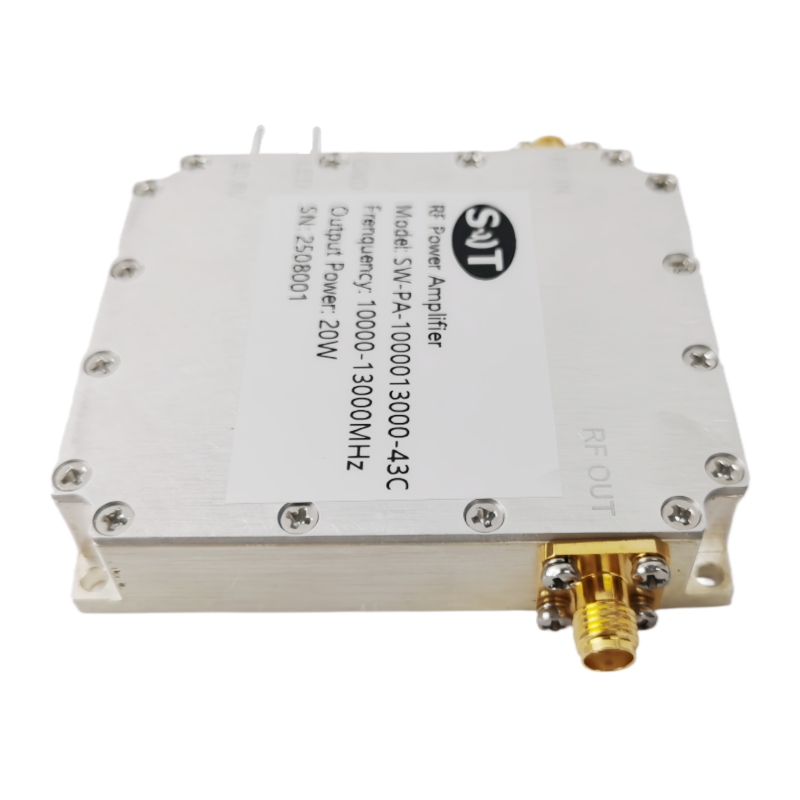

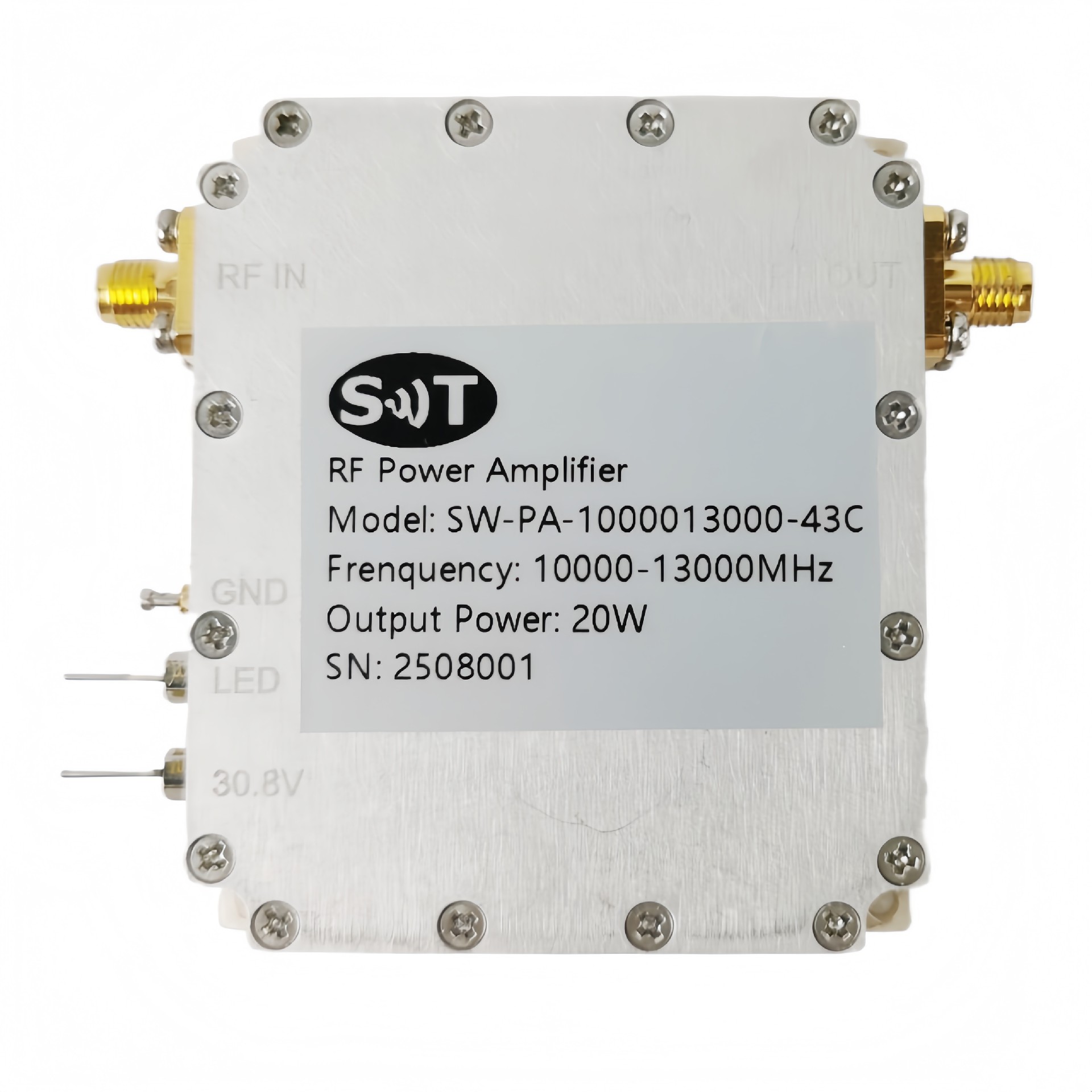

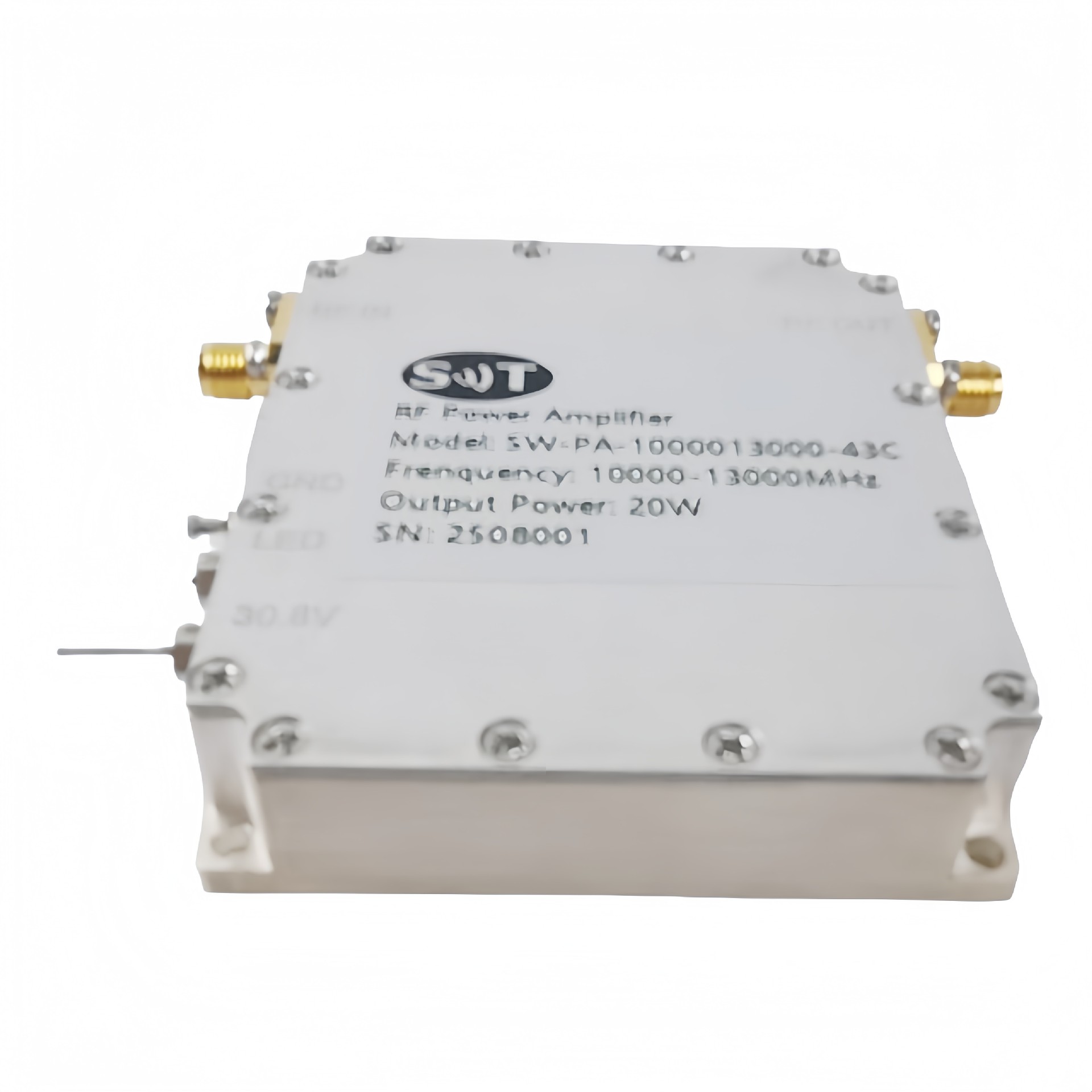

10000-13000MHz 20W Power Amplifier for Industrial & Commercial Use

Place of Origin：China

Brand Name：SWT

Model Number：SW-PA-1000013000-43C

Price：Please Contact Customer Service

Product Description

Description

The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

Specification

Typical performance at +28VDC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER	MIN	TYP.	MAX	UNIT
Operating Frequency	10000		13000	MHz
RF INPUT	0	3	5	dBm
P-sat Power Output	42	43	45	dBm
Power Gain Flatness		±1.5		dB
Spurious Signals		-50		dB
Input VSWR		1.8	2
Operating Voltage	28	30	32	VDC
In-Out impedance		50		Ω
Current		3		A

MECHANICAL
PARAMETER	VALUE	UNIT

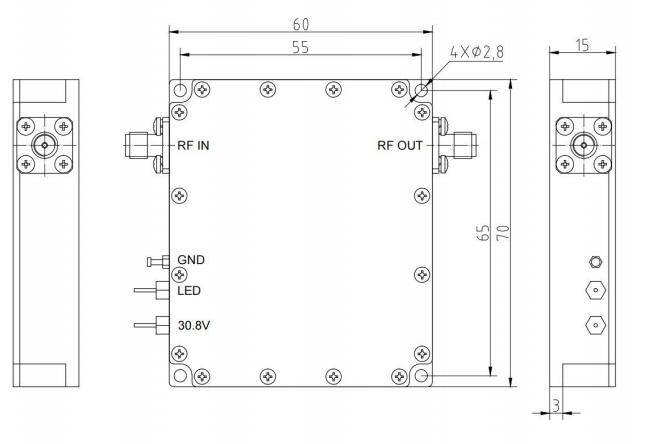

Dimensions (L x W x H)	6070 15	mm
RF Connectors (Input / Output)	SMA female/SMA female	--
DC / Control Connector	Feeding Capacitor	--
Cooling	Consider heat dissipation with the system	--
Mounting	3-6 Thru Hole	--
Weight	≤1.5	kg

ENVIRONMENTAL / PROTECTIONS
PARAMETER	MIN	MAX	UNIT
Operating Temp. (Housing Temp.)	-40	+60	°C
Humidity Range	0-100		%
PA Baseplate Shutoff Temperature	+ 90		°C

INPUT/OUTPUT panel Connector
AMPLIFIER CONNECTOR TYPE:			——
TRIAD CABLE PART NUMBER:			——
NUMBER	interface type		DESCRIPTION
X1		SMA female	RF IN
X2		SMA female	RF OUT
X3		Feeding Capacitor	DC and Control Interface
