75-90GHz Millimeter Wave Amplifiers 15dB Low Noise Amplifiers for satellite communication
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-7500090000-15C
Price：
Product Description
75-90GHz Millimeter Wave Amplifiers 15dB Low Noise Amplifiers for satellite communication
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 75 | 90 | GHz | |
| Small Signal Gain | 15 | dB | ||
| Small Signal Gain Flatness | ±1 | dB | ||
| Noise Figure | dB | |||
| Output Power 1dBcompression | 16 | dBm | ||
| IP3 | dBm | |||
| VSWR | 1.5:1 | Ratio | ||
| DC Power Supply | 5 | Volt | ||
| Current | 0.3 | mA | ||
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | +10 | dBm | ||
| Operating Temperature | -20 | +60 | ℃ | |
| Non-operating Temperature | -40 | +80 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | TBD | feet | ||
| Shock / Vibration (MIL-STD-810F) | TBD | |||
| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | Millimeter | ||
| Weight | 200 | gram | |
| RF Connectors Input | WR10 | ||
| RF Connectors output | WR10 | ||
| Impedance | Ohms | ||
Product Details
Frequency Range:
75-90GHz
DC Power Supply:
5V
Gain:
15dB
Noise Figure:
Connectors:
Input: SMA-Female, 50ohm; Output: SMA-Female, 50ohm
Gain Variation:
VSWR Input:
2:1 Ratio
Output P1dB:
16dB
Working Temp:
-20℃～+60℃
Applications:
wireless communications, radar systems, satellite communications, broadcasting, medical equipment
Dimensions:

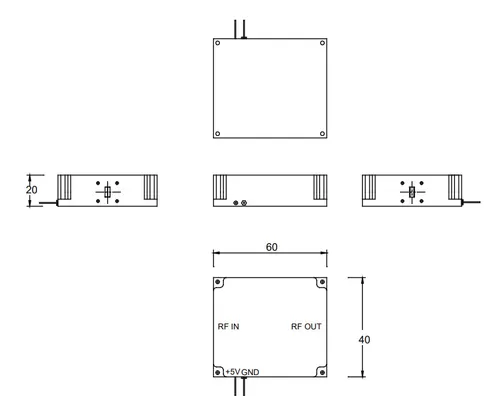

60*40*20mm
Packing:
Standard Packing
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
