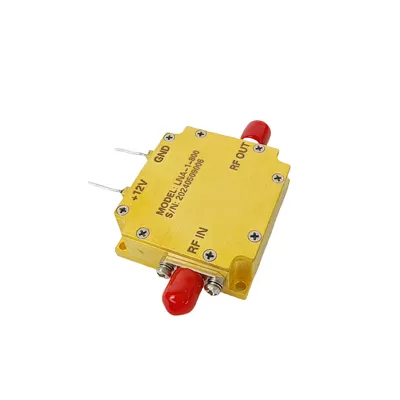

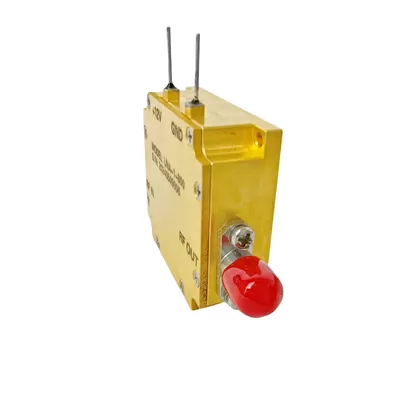

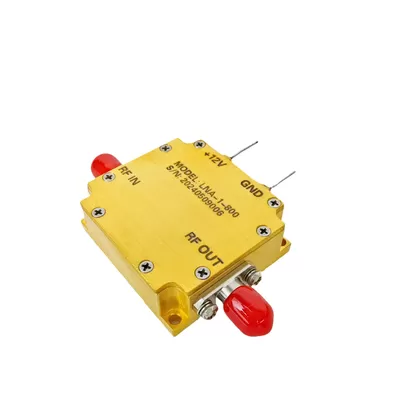

High Linearity 1-8GHz 30dB Communication Module Low Noise Amplifier for Test and Measurement Equipment

High Linearity 1-8GHz 30dB Communication Module Low Noise Amplifier for Test and Measurement Equipment

Product Description

The 1-8GHz Low Noise Amplifier (LNA) is designed for high-performance applications requiring low noise, high gain, and wide bandwidth. This LNA is ideal for use in communication systems, radar systems, and other RF and microwave applications where signal integrity is paramount.

Main Features:

1. Frequency Range: 1GHz to 8GHz

2. Noise Figure: Low noise figure, typically less than 1.5dB, to ensure minimal signal degradation

3. Gain: High gain, typically around 20dB, to amplify weak signals effectively

4. Output Power: P1dB typically around 15dBm

5. Input/Output Impedance: 50 ohms for seamless integration with standard RF systems

Design and Performance:

• Wideband Operation: Efficiently covers a broad frequency range from 1GHz to 8GHz.

• Low Noise: Specially designed to maintain a very low noise figure, ensuring excellent signal quality.

• High Linearity: Provides high linearity to minimize signal distortion.

• Compact and Robust Design: Small form factor and durable construction for easy integration and reliable performance in various environments.

• Thermal Stability: Excellent thermal stability to ensure consistent performance over a wide temperature range.

Applications:

• Communication Systems: Enhances signal reception and transmission in various communication systems including satellite, cellular, and wireless networks.

• Radar Systems: Increases the sensitivity and accuracy of radar systems by amplifying weak signals.

• Test and Measurement Equipment: Essential in RF and microwave test setups for accurate signal amplification.

• Electronic Warfare: Utilized in electronic warfare systems for signal interception and processing.

• Aerospace and Defense: Suitable for use in various aerospace and defense applications requiring robust and reliable amplification.

Performance Advantages:

• Wide Frequency Coverage: Efficiently supports a wide range of applications across the 1-8GHz band.

• Low Noise Characteristics: Ensures high-quality signal amplification with minimal noise addition.

• High Gain: Delivers significant signal amplification to enhance weak signals.

• Versatility: Suitable for various commercial, industrial, and military applications.

• Reliability: High-quality construction ensures long-term reliability and performance.

Summary:

The 1-8GHz Low Noise Amplifier is a high-performance, versatile solution for a variety of RF and microwave applications. Its low noise figure, high gain, and wide frequency range make it an excellent choice for enhancing signal quality and system performance in communication, radar, test and measurement, electronic warfare, and aerospace and defense systems.
