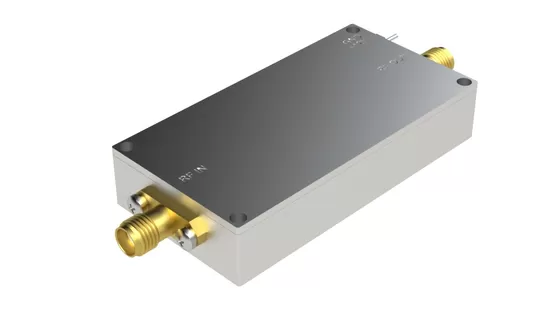

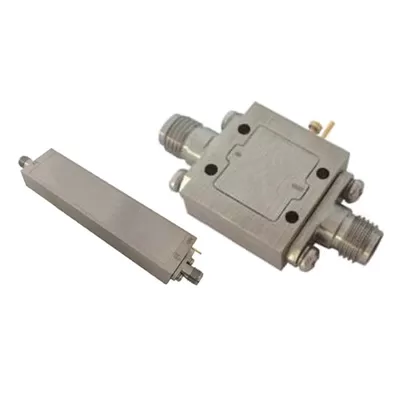

1-20GHz Signal Gain 40dB Wide Band Low Noise Amplifier for satellite communication, measurement application

1-20GHz Signal Gain 40dB Wide Band Low Noise Amplifier for satellite communication, measurement application

Description

The specific introduction of the 1-20 GHz Wide Band Low Noise Amplifier (LNA) is as follows:

Frequency Range: This amplifier covers a wide frequency range from 1 GHz to 20 GHz, making it versatile for various communication, radar, satellite communication, and measurement applications.

Low Noise: The amplifier is designed with a low noise figure, ensuring that the amplified signal maintains a high signal-to-noise ratio (SNR) critical for maintaining signal integrity and sensitivity in receiving weak signals.

Wide Bandwidth: Its wide bandwidth design allows for efficient amplification across a broad range of frequencies, making it suitable for applications requiring coverage across multiple frequency bands without significant loss or distortion.

Gain and Linearity: The amplifier provides appropriate gain levels while maintaining linearity, ensuring accurate and reliable signal amplification without introducing nonlinear distortions.

Applications: This type of amplifier is commonly used in RF front-end circuits, receivers, transmitters, microwave links, and instrumentation systems where low noise and wideband amplification are essential.

Performance: It offers stable and reliable performance, with features such as high isolation, good return loss, and excellent noise figure, making it suitable for demanding RF applications.

In summary, the 1-20 GHz Wide Band Low Noise Amplifier is a high-performance amplifier designed to provide low noise, wideband amplification across a broad frequency range, making it valuable for a wide range of RF and microwave applications.

Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

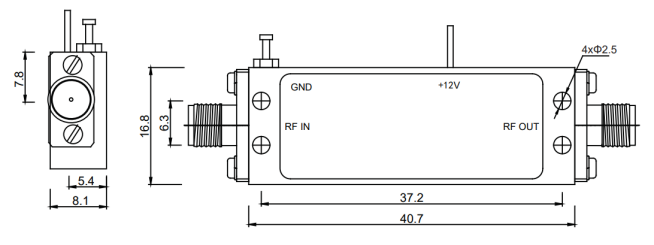

OutlineDimensionalDrawing
