0.5-20GHz Wide Band communication module 22dB low noise Amplifier for Satellite Communications

Place of Origin：China

Brand Name：SWT

Model Number：SW-PA-050020000-22C

Price：

Product Description

0.5-20GHz Wide Band communication module 22dB low noise Amplifier for Satellite Communications

Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25℃
PARAMETER	MIN	TYPICAL	MAX	UNIT
Frequency Range	0.5		20	GHz
Small Signal Gain	22			dB
Small Signal Gain Flatness		±1.5		dB
Noise Figure		3.5		dB
Output Power @P1dB		+12		dBm
IP3				dBm
VSWR		1.5	2	Ratio
DC Power Supply		+5		Volt
Current		200		mA

ENVIRONMENTAL RATINGS
PARAMETER	MIN	TYPICAL	MAX	UNIT
Max Input power			+15	dBm
Operating Temperature	-40		+60	℃
Non-operating Temperature	-40		+85	℃
Relative humidity (non-condensing)		95		%
Altitude (MIL-STD-810F)	10000		30000	feet
Shock / Vibration (MIL-STD-810F)		Airbone

MECHANICAL SPECIFICATIONS
PARAMETER	VALUE	LIMITS	UNIT

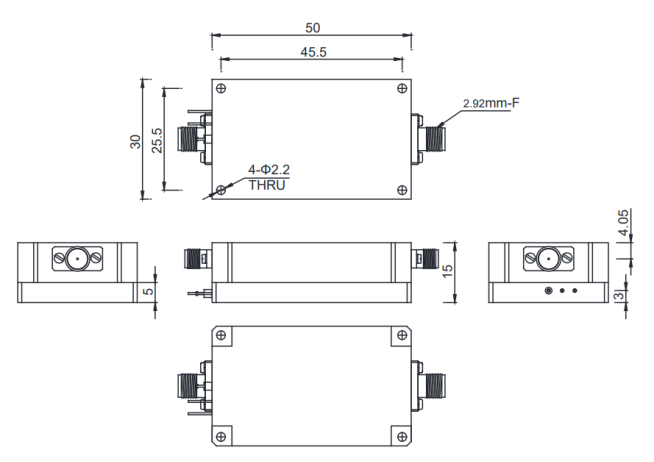

Dimensions	503015	Max	Millimeter
Weight	200	Max	gram
RF Connectors Input	2.92mm-F
RF Connectors output	2.92mm-F
Impedance	50		Ohms
