Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifier for Wireless Communication
Place of Origin：China
Brand Name：SWT
Model Number：SW-LNA-10004000-15C
Price：$300/pcs
Product Description
Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifier for Wireless Communication
Specification
Typical performance at +24VDC +25oC,and in a 50Ω system.
| RF / ELECTRICAL | |||||
| PARAMETER | MIN | TYP. | MAX | UNIT | |
| Input/output parameters | |||||
| Freq range | 1000 | 4000 | MHz | ||
| Gain | 15 | dB | |||
| Gain flatness | ±2 | dB | |||
| Noise figure | 0.7 | 1 | dB | ||
| Input VSWR | 2.3:1 | ||||
| Output VSWR | 2:1 | ||||
| Output P1dB | 15 | 15 | dBm | ||
| Others | |||||
| Operating voltage | 12 | 15 | V | ||
| Current | 180 | mA | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (W x D x H) | 66×30×12 | mm |
| RF Connectors | SMA, Female | -- |
| Power supply | Feed thru capacitor | -- |
| ENVIRONMENTAL | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | -40 | 60 | °C |

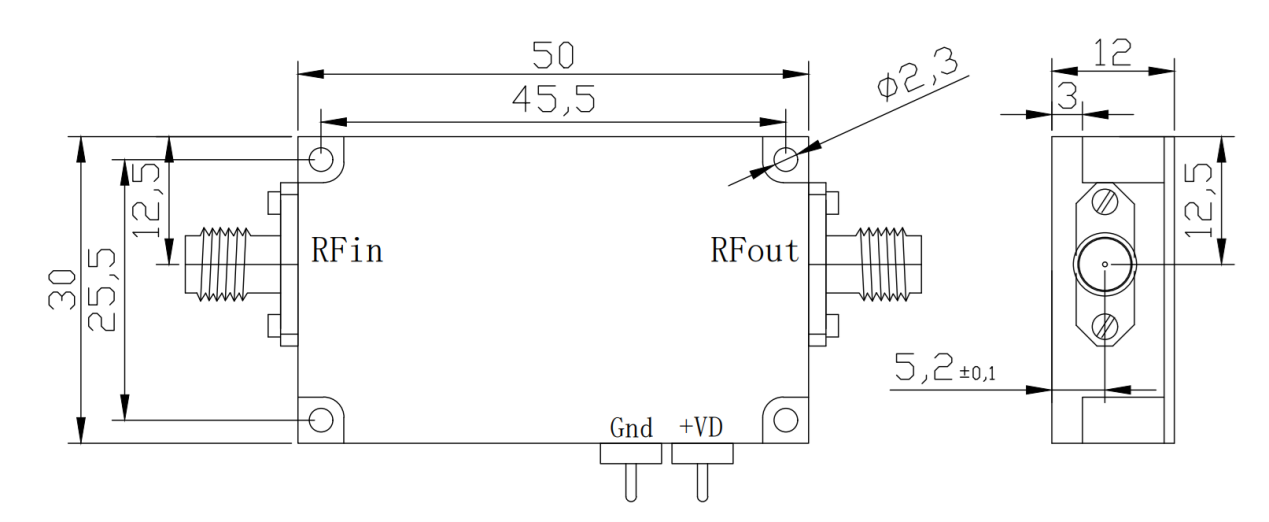

Outline Dimensional Drawing

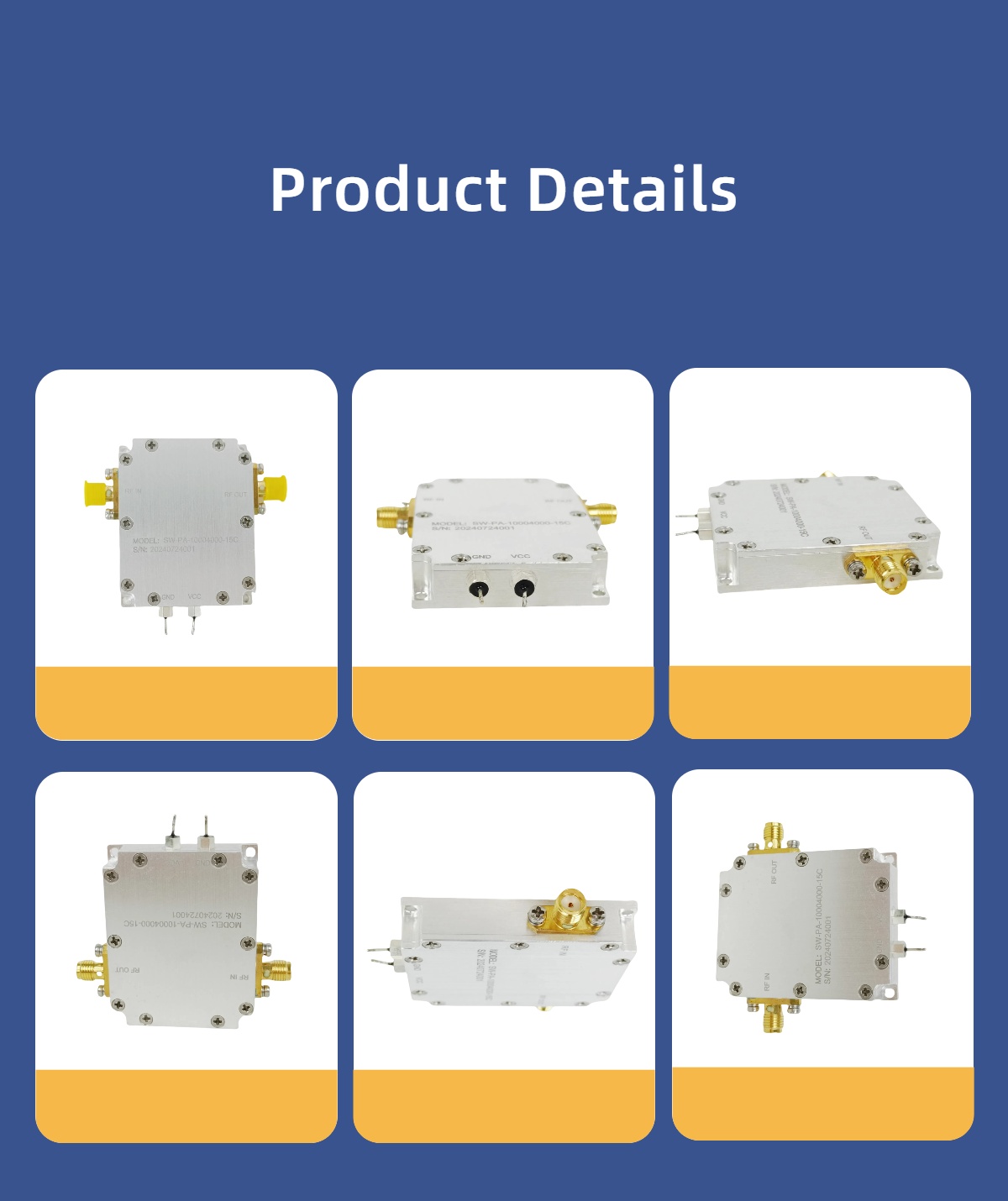

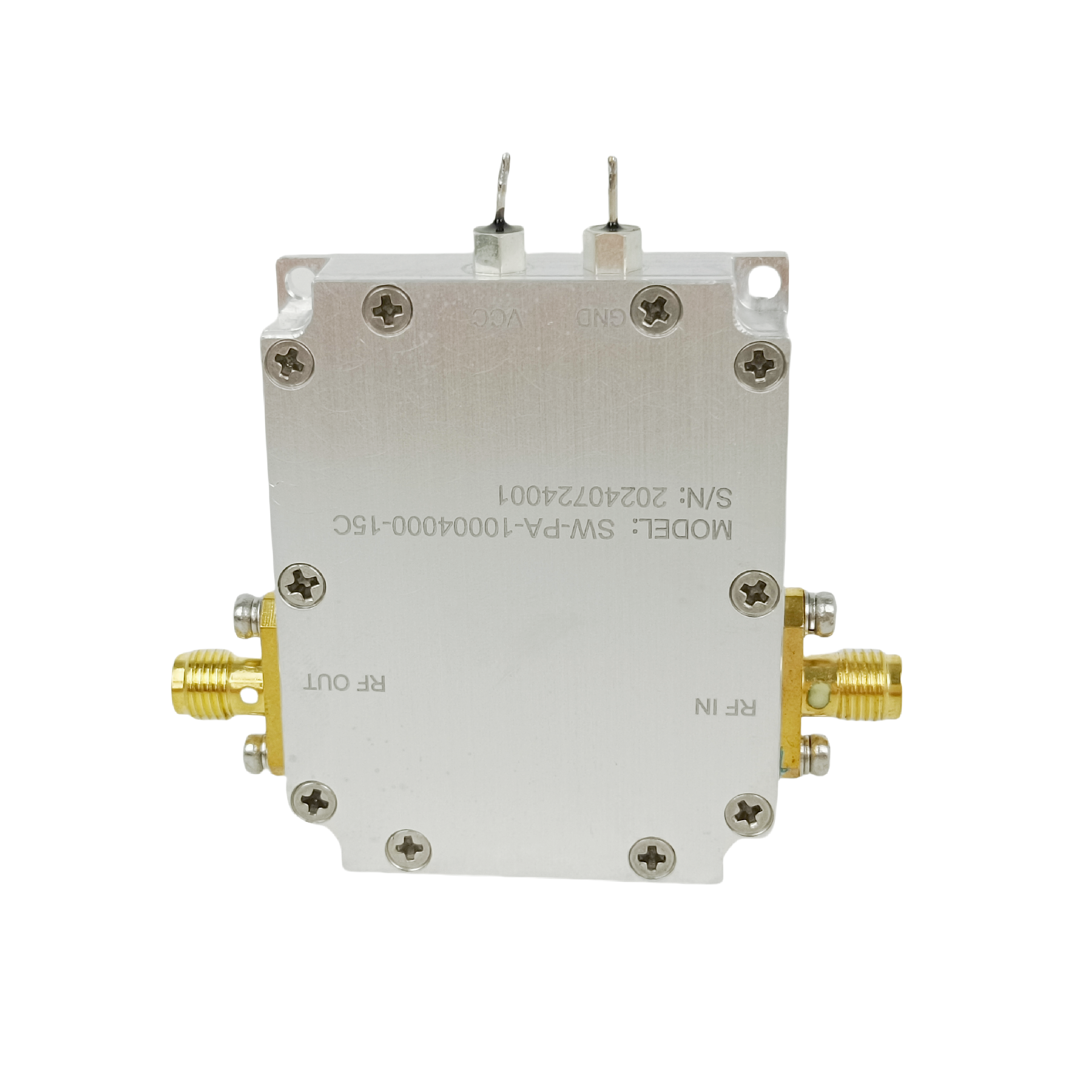

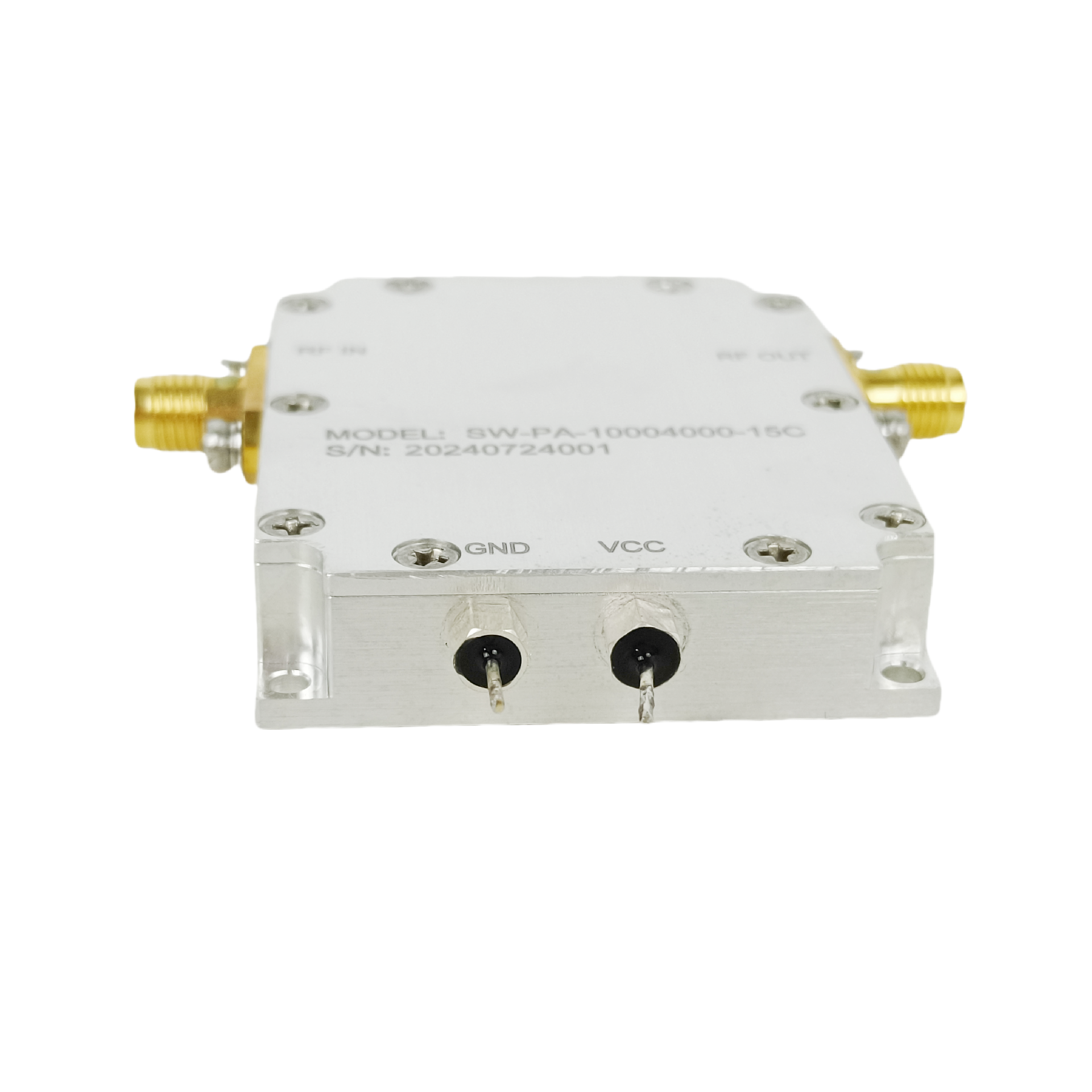

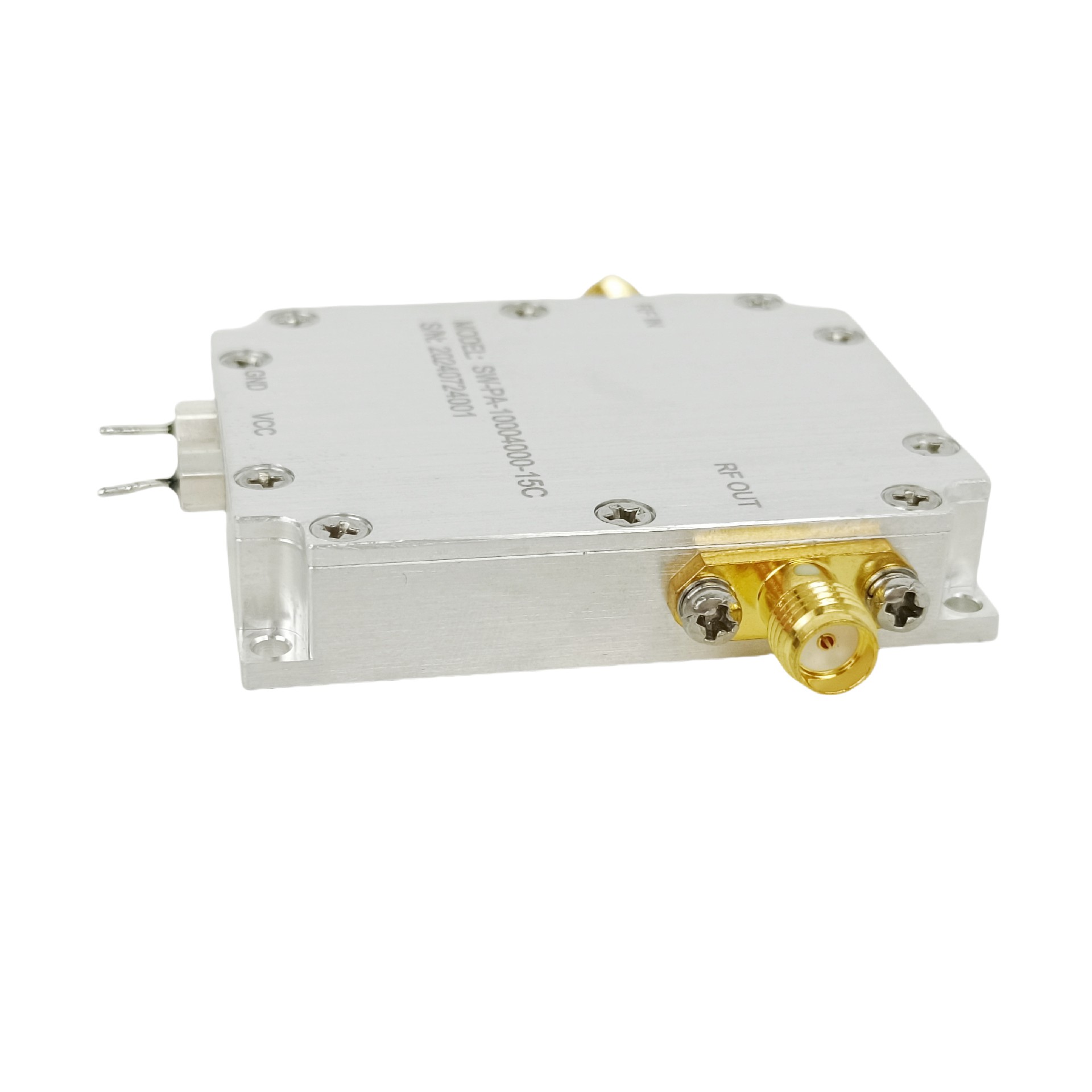

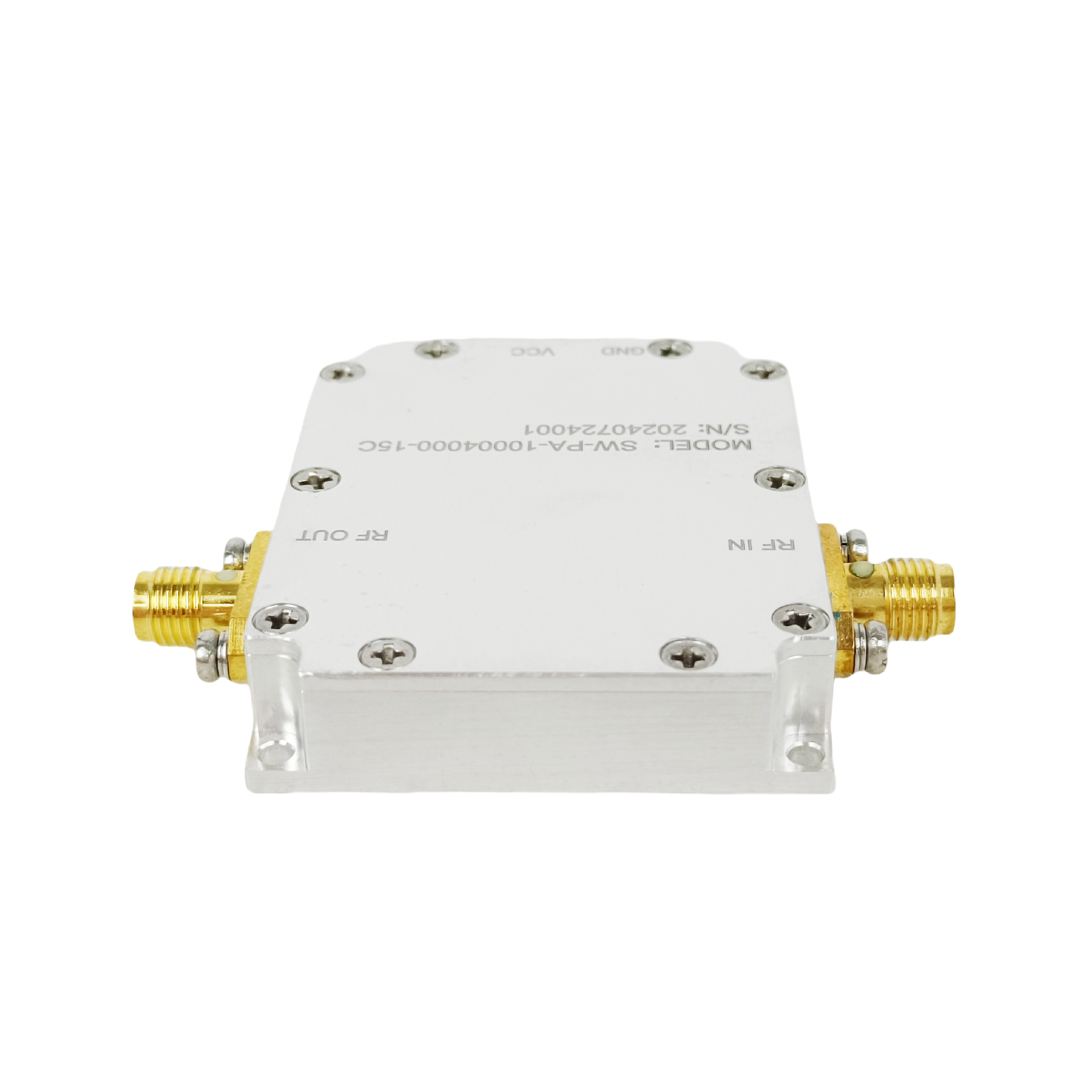

Product Details
Frequency Range:
1-4GHz Low Noise Amplifier
DC Power Supply:
DC 12~16V, 600mA
Gain:
15dB
Noise Figure:
2dBtyp@23℃
Connectors:
Input: SMA-Female, 50ohm; Output: SMA-Female, 50ohm Power supply: Feed thru capacitor
Gain Variation:
±2.5dBp-p
VSWR Input:
2.3:1
Output P1dB:
15dB
Working Temp:
-40℃～+60℃
Applications:
Satellite Communication, Radar system
Dimensions:
66×30×12mm
Packing:
Standard Packing
