Ultra-wideband low-noise, high-gain small signal amplifier 70-6000 MHz 10 dB RF Low Noise Amplifier

Ultra-wideband low-noise, high-gain small signal amplifier 70-6000 MHz 10 dBm RF Low Noise Amplifier

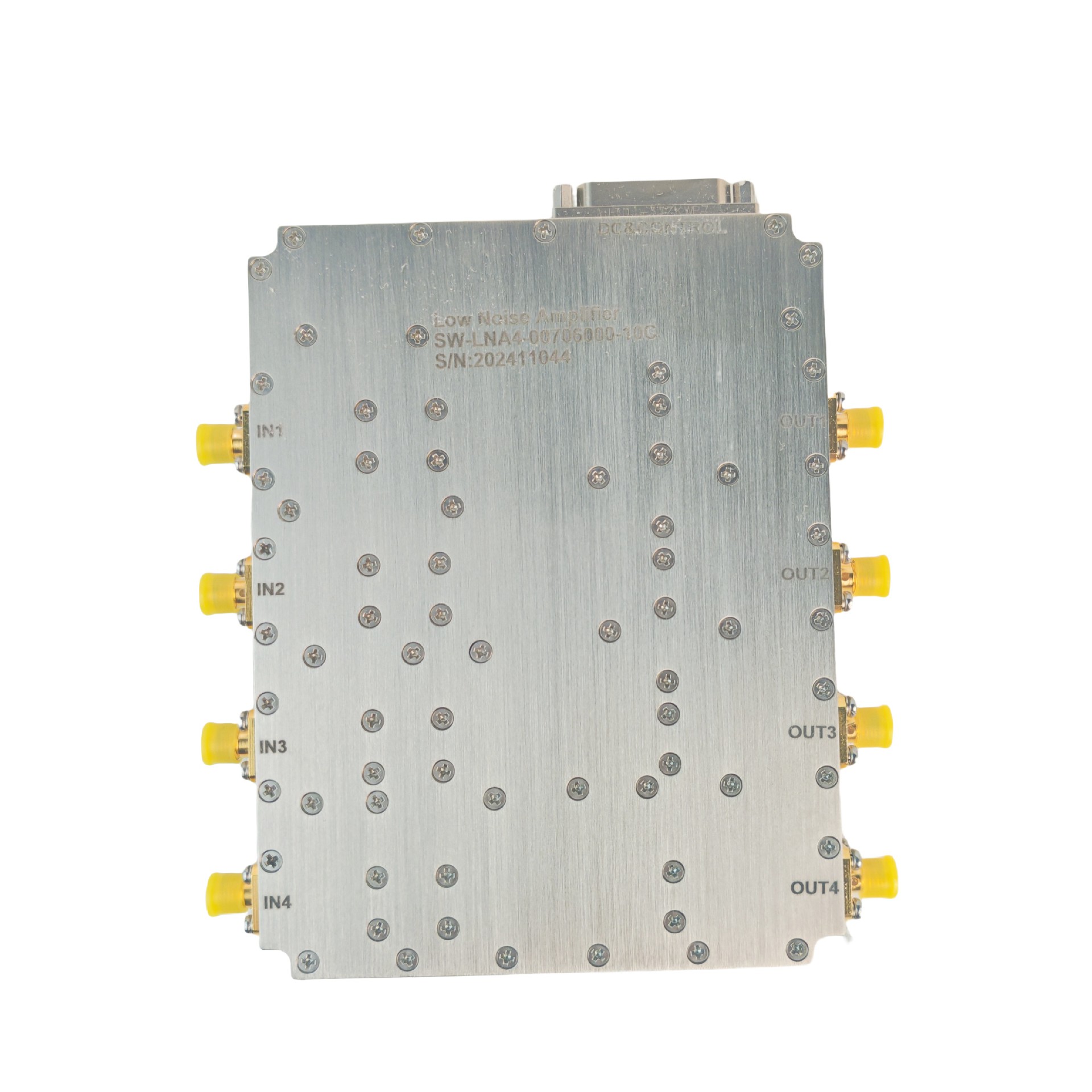

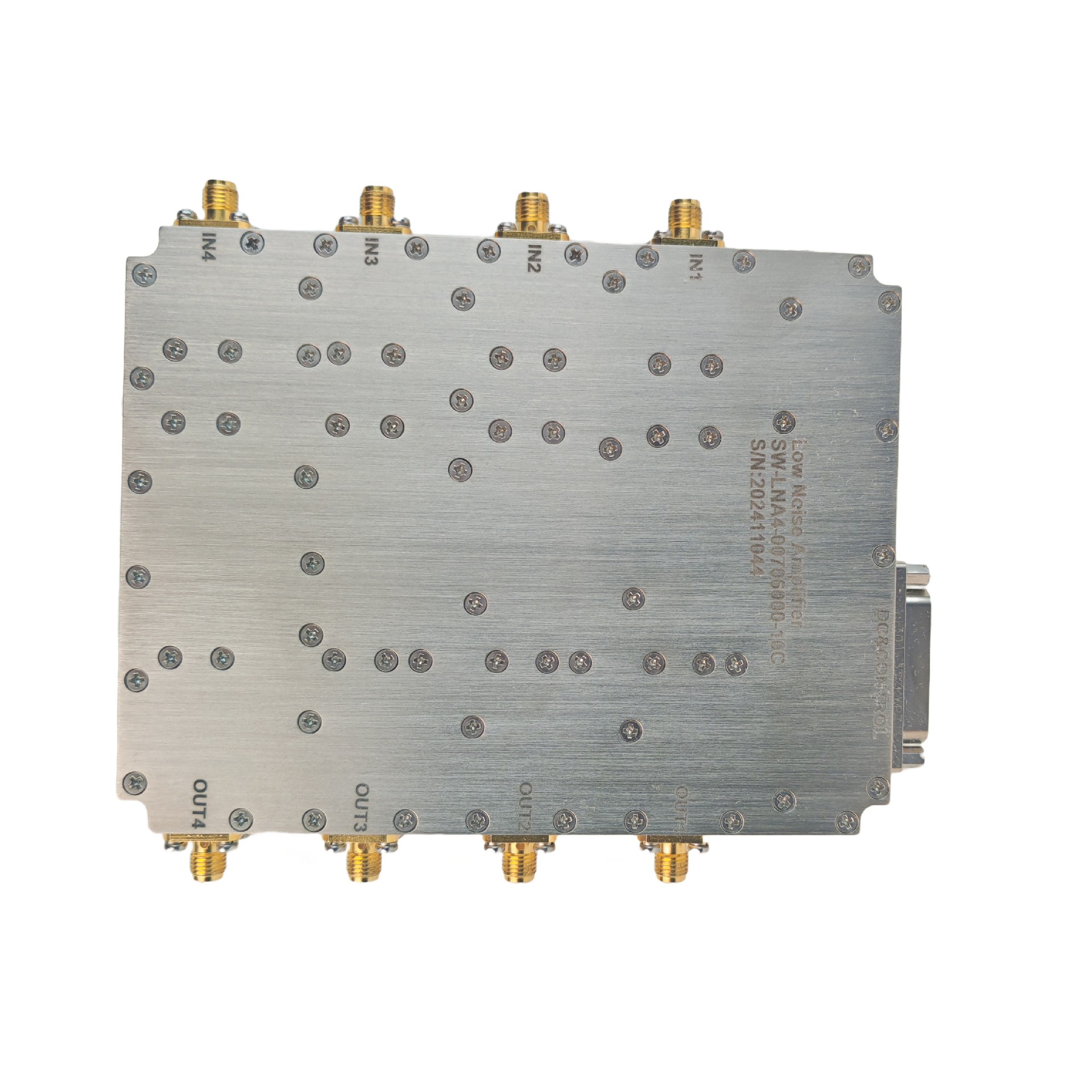

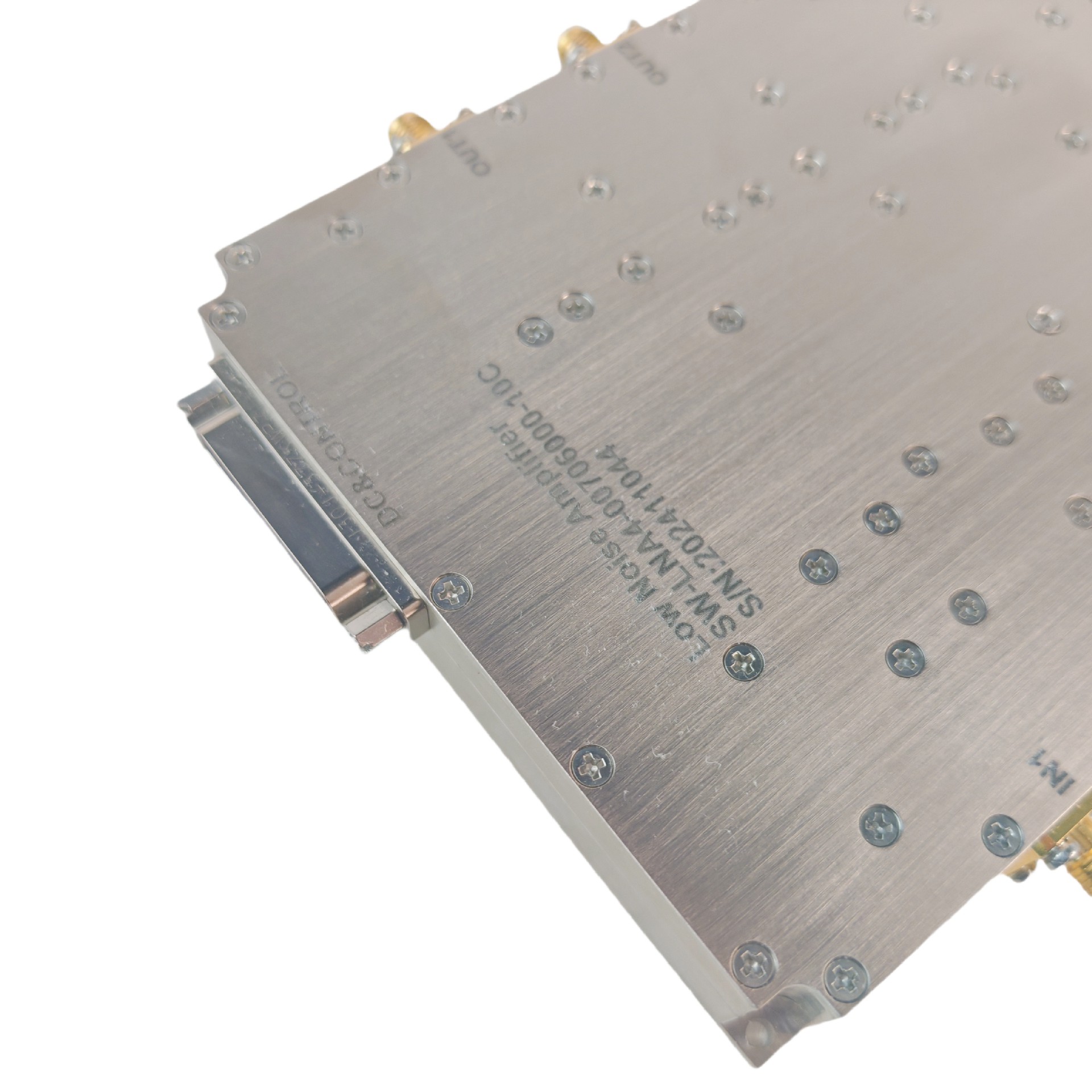

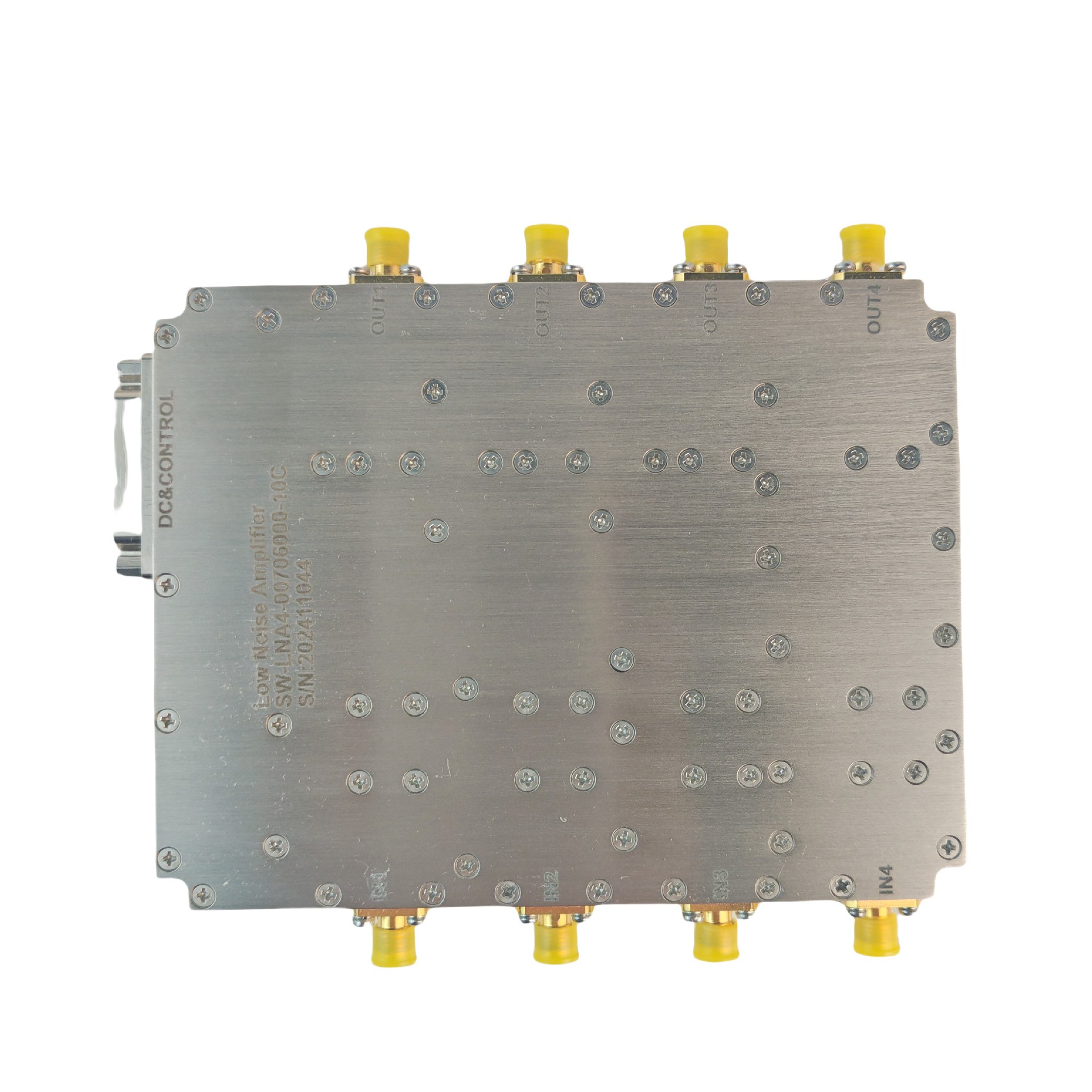

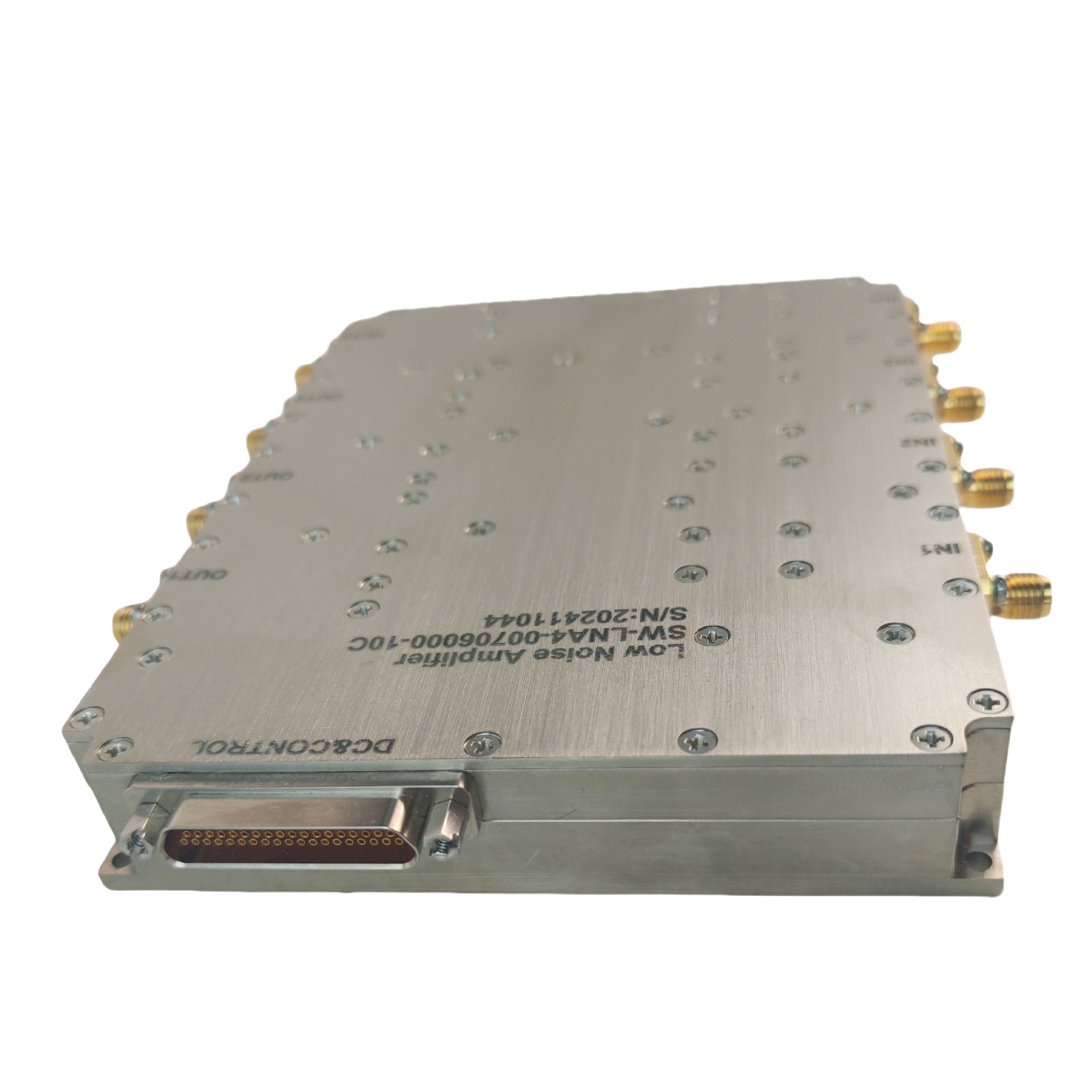

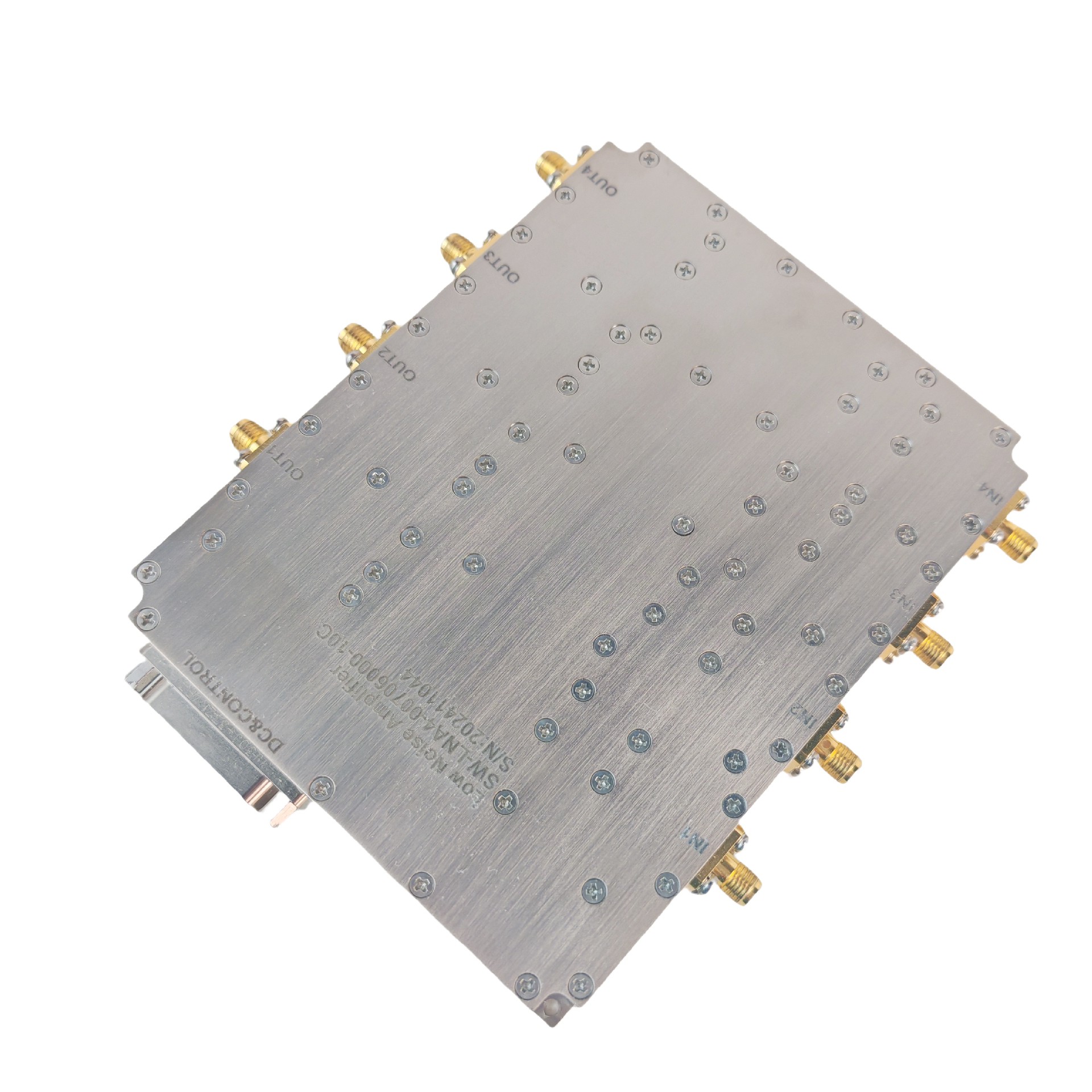

The 70-6000 MHz 10 dBm RF Low Noise Amplifier is a wideband, low-noise, high-gain small signal amplifier. It is specifically designed for RF and microwave systems and is suitable for applications such as wireless communications, satellite communications, radar, signal receivers, and laboratory testing.

Features

1. Wide Frequency Coverage: Operates across a frequency range of 70 MHz to 6000 MHz, covering most RF and microwave application bands.

2. Low Noise Performance: Features a low noise figure (typically below 2 dB), significantly improving signal reception sensitivity.

3. High Linear Output: Maximum output power of 10 dBm, ideal for small signal processing and link gain requirements.

4. High Gain: Typically provides 20-30 dB gain to ensure reliable signal amplification.

5. Compact Design: Small and lightweight, suitable for integration into various systems.

Typical Applications

1. Wireless Communications: Enhances receiver sensitivity in signal reception front ends.

2. Satellite Communications: Used as a low-noise front end in L-band, C-band, and other frequency bands.

3. Radar Systems: Amplifies radar echo signals to ensure reliable detection of weak signals.

4. Test Equipment: Amplifies weak signals in laboratory testing and signal link measurements.

5. Research and Development: Suitable for prototyping and validation of high-frequency systems.

Technical Highlights

1. Low Noise Design: Utilizes optimized low noise amplifier chips (such as GaAs or GaN technology) to minimize system noise.

2. Broadband Adaptability: Supports applications across multiple frequency bands, making it versatile for diverse scenarios.

3. High Reliability: Robust construction ensures stable operation under varying temperature and environmental conditions.

4. Easy Integration: Available in modular or plug-in form, facilitating system embedding.

This 70-6000 MHz 10 dBm RF Low Noise Amplifier, with its wide bandwidth, low noise, and high gain, is widely used in modern communication and signal processing systems, making it an ideal choice for high-performance RF front-end amplification.

Specification

Typical performance at 12V DC +25oC, and in a 50Ω system.
