50 W 3.5 mm Audio Attenuator DC-26.5 GHz Connector SMA 2.92 mm
Place of Origin：China
Brand Name：SWT
Model Number：SW-DTS50GA
Price：
Product Description

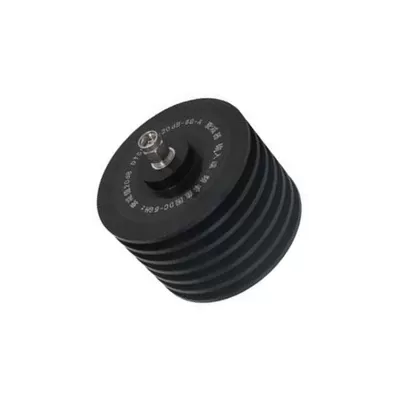

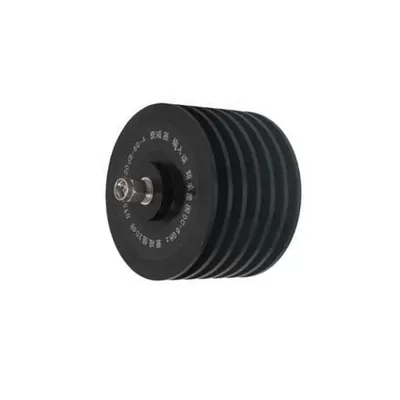

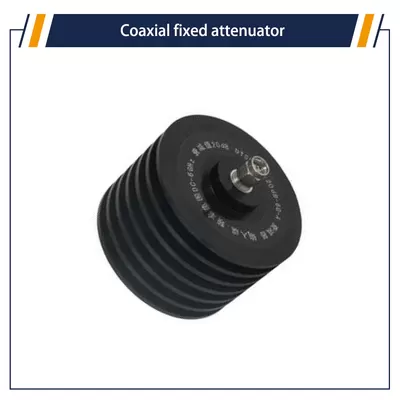

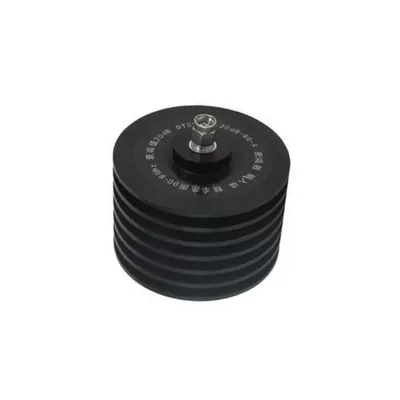

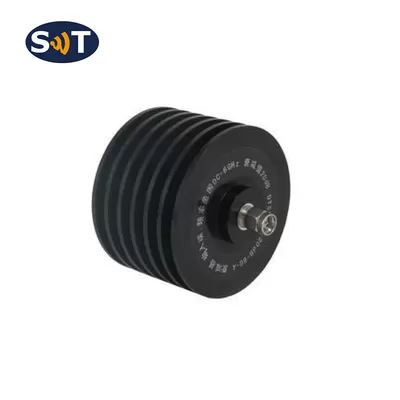

50 W Coaxial Fixed Attenuators DC-26.5 GHz Connector SMA, 3.5mm, 2.92mm
Description
The coaxial fixed attenuator is suitable for any need to reduce the power level or circuit matching, can quantitatively absorb the energy in the transmission line, extend the power range, control the power level, and can be configured with a small power meter, comprehensive tester or spectrum analyzer to accurately measure the power or spectrum of various RF microwave transmitters.
DTS50GA-26.5 coaxial fixed attenuator average power 50W, frequency range DC-26.5GHz. It has the following characteristics: wide working frequency band, low standing wave coefficient, flat attenuation value, strong anti-pulse and anti-burn ability.
MECHANICAL SPECIFICATIONS
Connector Housing | Brass plated with gold or nickel |
Inner positive conductor | Orichalum plating |
Cathode conductor | Beryllium bronze gold plating |
Cavity | Aluminum shell, blackened |
Temperature range | -55°C to +125°C |
Overall dimensions | Ø63×71mm |
Weight | 120g |
Electrical performance:
| Type | Frequency (GHz) | Attenuation value and accuracy(dB) | Max VSWR | |||||
| 10 | 20 | 30 | 40 | 50 | 60 | |||
| DTS50GA-XX-12.4 | DC-12.4 | ±0.5 | ±0.6 | ±0.8 | ±0.8 | -1.0/+0.7 | -1.0/+0.5 | 1.20 |
| DTS50GA-XX-18 | DC-18 | ±1.0 | ±1.0 | ±1.0 | -1.0/+1.5 | -1.0/+1.5 | -1.0/+1.5 | 1.25 |
| DTS50GA-XX-26.5 | DC-26.5 | -1.0/+2.5 | -1.0/+1.5 | -1.0/+1.5 | -1.0/+1.5 | -1.0/+1.5 | -1.0/+1.5 | 1.30 |
Note: XX indicates the attenuation
Nominal impedance: 50Ω
Average power: 50W corresponds to the ambient temperature of 25°C, when the temperature rises to 125°C, the power linearly decreases to 5W
Peak power: 0.5KW(5μs pulse width, 10% load cycle)
Connector form: SMA, 3.5mm, 2.92mm
Product Details
Average Power:
50W
Peaking Power:
0.5 KW
Frequency:
DC-26.5 GHz
Connector:
SMA, 3.5mm, 2.92mm
Nominal Impedance Power:
50 Ω
Cavity:
Al
Dimensional Tolerance:
±5%
Packing:
Standard Packing
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
