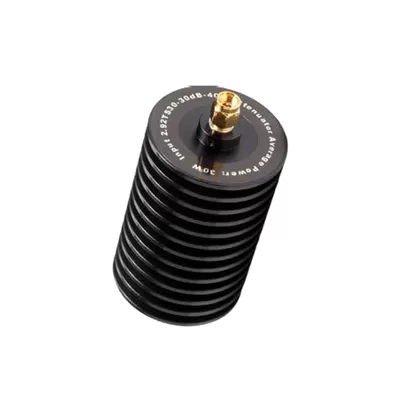

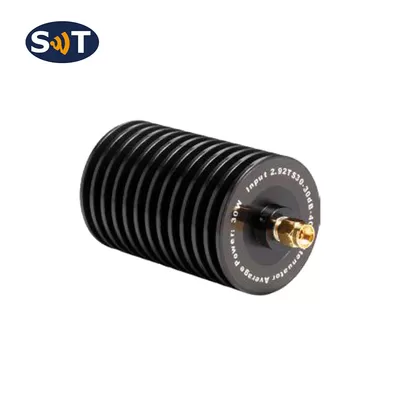

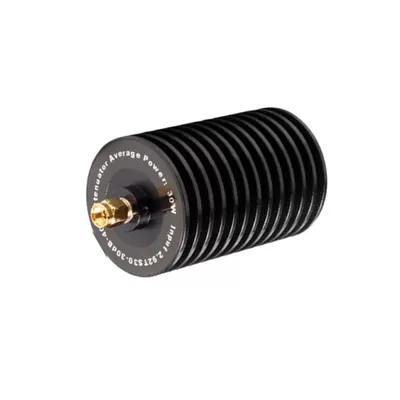

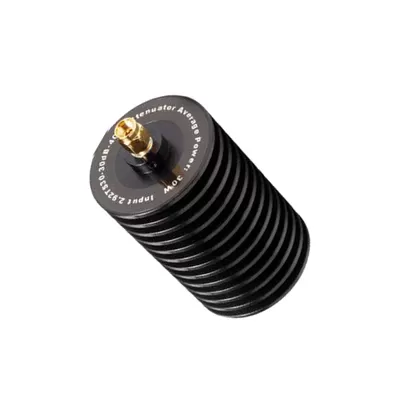

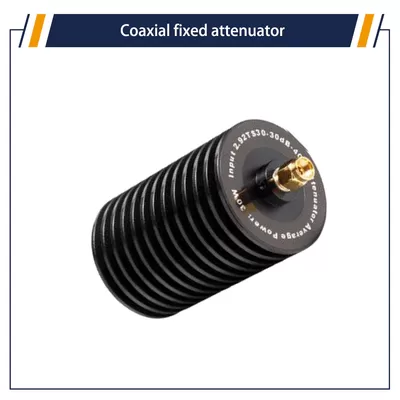

30 W Coaxial Fixed Attenuators DC-40 GHz Connector 2.92 mm
Description
The coaxial fixed attenuator is suitable for any need to reduce the power level or circuit matching, can quantitatively absorb the energy in the transmission line, extend the power range, control the power level, and can be configured with a small power meter, comprehensive tester or spectrum analyzer to accurately measure the power or spectrum of various RF microwave transmitters.
2.92TS30 coaxial fixed attenuator average power 30W, frequency range DC-40GHz. It has the following characteristics: wide working frequency band, low standing wave coefficient, flat attenuation value, strong anti-pulse and anti-burn ability.
MECHANICAL SPECIFICATIONS
Connector Housing | Brass plated with gold or stainless steel |
Inner positive conductor | Beryllium bronze gold plating |
Cathode conductor | Beryllium bronze gold plating |
Cavity | Aluminum shell, blackened |
Temperature range | -55°C to +100°C |
Overall dimensions | 30dB:Ø45×96.5mm 40dB:Ø45×112.5mm |
Weight | 30dB:135g; 40dB:150g |
Electrical performance:
| Type | Frequency (GHz) | Attenuation value and accuracy(dB) | Max VSWR | |
| 30 | 40 | |||
| 2.92TS30-XX-26.5 | DC-26.5 | -1.0/+2.0 | -1.0/+2.0 | 1.30 |
| 2.92TS30-XX-32 | DC-32 | -1.0/+2.0 | -1.0/+2.0 | 1.40 |
| 2.92TS30-XX-40 | DC-40 | -1.0/+2.0 | -1.0/+2.5 | 1.45 1.50(40dB) |
Note: XX indicates the attenuation
Nominal impedance: 50Ω
Average power: 30W corresponds to the ambient temperature of 25°C, when the temperature rises to 125°C, the power linearly decreases to 3W
Peak power: 0.2KW(5μs pulse width, 10% load cycle)
Connector form: 2.92mm
Product Details
Average Power:
30W
Peaking Power:
0.2 KW
Frequency:
DC-40GHz
Connector:
2.92mm
Nominal Impedance Power:
50 Ω
Cavity:
Al
Dimensional Tolerance:
±5%
Packing:
Standard Packing
