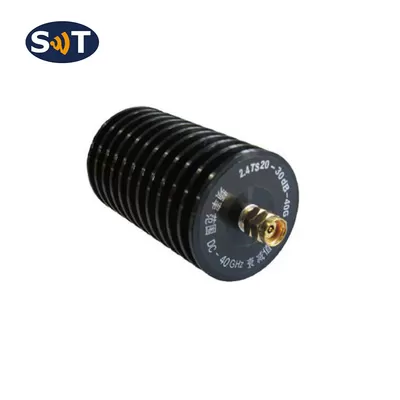

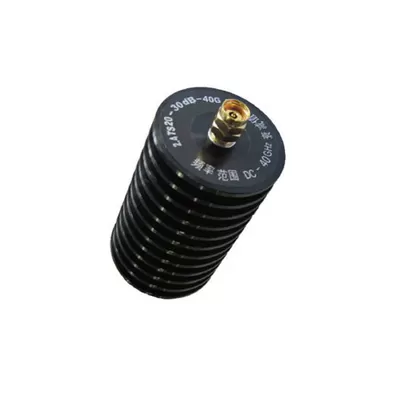

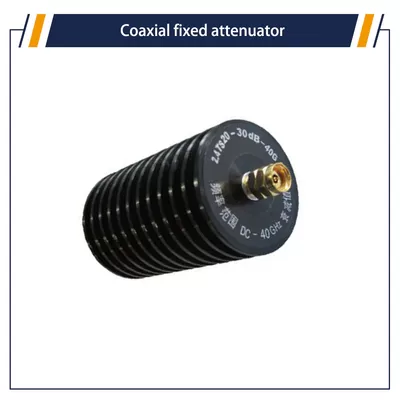

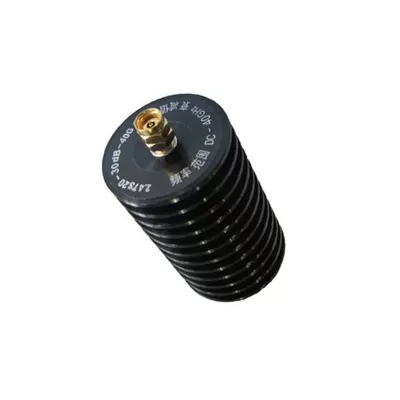

20 W Coaxial Fixed Attenuators DC - 40 GHz Connector 2.4 mm Attenuator
Place of Origin：China
Brand Name：SWT
Model Number：SW-2.4TS20
Price：
Product Description
20 W Coaxial Fixed Attenuators DC-40 GHz Connector 2.4 mm
Description
The coaxial fixed attenuator is suitable for any need to reduce the power level or circuit matching, can quantitatively absorb the energy in the transmission line, extend the power range, control the power level, and can be configured with a small power meter, comprehensive tester or spectrum analyzer to accurately measure the power or spectrum of various RF microwave transmitters.
2.4TS20 coaxial fixed attenuator average power 20W, frequency range DC-40GHz. It has the following characteristics: wide working frequency band, low standing wave coefficient, flat attenuation value, strong anti-pulse and anti-burn ability.
MECHANICAL SPECIFICATIONS
Connector Housing | Brass plated with gold or stainless steel |
Inner positive conductor | Beryllium bronze gold plating |
Cathode conductor | Beryllium bronze gold plating |
Cavity | Aluminum casing |
Temperature range | -55°C to +100°C |
Overall dimensions | 10-30dB: Ø38×80mm 40dB: Ø45×96mm |
Weight | 10-30dB: 80g 40dB: 140g |
Electrical performance:
| Type | Frequency (GHz) | Attenuation value and accuracy(dB) | Max VSWR | |||
| 10 | 20 | 30 | 40 | |||
| 2.4TS20-XX-26.5 | DC-26.5 | -1.0/+2.0 | -1.0/+2.0 | -1.0/+2.0 | -1.0/+2.0 | 1.30 |
| 2.4TS20-XX-32 | DC-32 | -1.0/+2.0 | -1.0/+2.0 | -1.0/+2.0 | -1.0/+2.0 | 1.40 |
| 2.4TS20-XX-40 | DC-40 | -1.5/+3.0 | -1.0/+2.5 | -1.0/+2.5 | -1.0/+2.5 | 1.40 |
Note: XX indicates the attenuation
Nominal impedance: 50Ω
Average power: 20W corresponds to the ambient temperature of 25°C, when the temperature rises to 125°C, the power linearly decreases to 2W
Peak power: 0.2KW(5μs pulse width, 10% load cycle)
Connector form: 2.4mm
Product Details
Average Power:
20W
Peaking Power:
0.2KW
Frequency:
DC-40GHz
Connector:
2.4mm
Nominal Impedance Power:
50 Ω
Cavity:
Al
Dimensional Tolerance:
±5%
Packing:
Standard Packing
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
