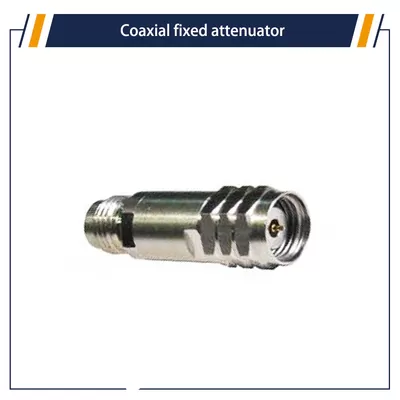

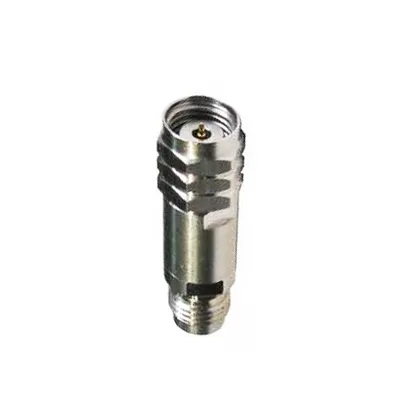

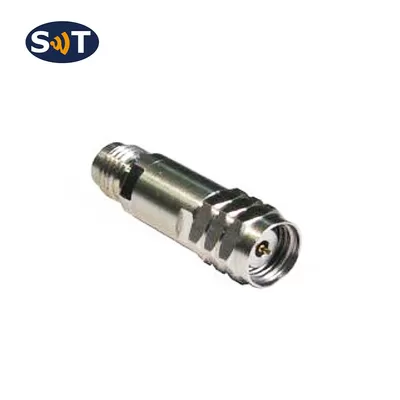

2 W Coaxial Fixed Attenuators DC-67 GHz Connector 1.85 mm
Place of Origin：China
Brand Name：SWT
Model Number：SW-1.85TS2-67
Price：
Product Description
2 W Coaxial Fixed Attenuators DC-67 GHz Connector 1.85 mm
Description
The coaxial fixed attenuator is suitable for any need to reduce the power level or circuit matching, can quantitatively absorb the energy in the transmission line, extend the power range, control the power level, and can be configured with a small power meter, comprehensive tester or spectrum analyzer to accurately measure the power or spectrum of various RF microwave transmitters.
1.85TS2 coaxial fixed attenuator average power 2W, frequency range DC-67GHz. It has the following characteristics: wide working frequency band, low standing wave coefficient, flat attenuation value, strong anti-pulse and anti-burn ability.
MECHANICAL SPECIFICATIONS
Connector Housing | Stainless Steel |
Inner positive conductor | Beryllium bronze plated |
Cathode conductor | Beryllium bronze plated |
Cavity | Stainless steel |
Temperature range | -55°C to +125°C |
Overall dimensions | Ø8×26.9mm |
Weight | 5g |
Electrical performance:
| Type | Frequency (GHz) | Attenuation value and accuracy(dB) | Max VSWR | ||
| 1-9 | 10 | 20 | |||
| 1.85TS2-XX-67 | DC-26.5 | -1.0/+1.5 | -1.0/+1.5 | -1.0/+2.0 | 1.35 |
| 26.5-50 | 1.40 | ||||
| 50-67 | 1.45 | ||||
Note: XX indicates the attenuation
Nominal impedance: 50Ω
Average power: 2W corresponds to the ambient temperature of 25°C, when the temperature rises to 125°C, the power linearly decreases to
0.5W peak power: 0.2KW
Connector form: 1.85mm(M,F)
Product Details
Average Power:
2W
Peaking Power:
0.2 KW
Frequency:
DC-67 GHz
Connector:
SMA
Nominal Impedance Power:
50 Ω
Cavity:
Al
Dimensional Tolerance:
±5%
Packing:
Standard Packing
