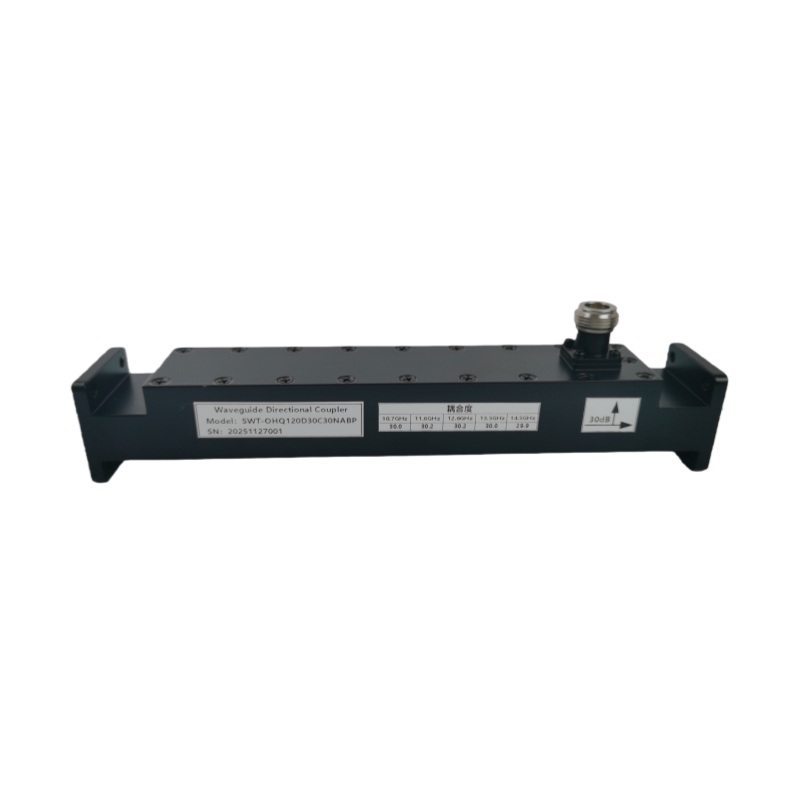

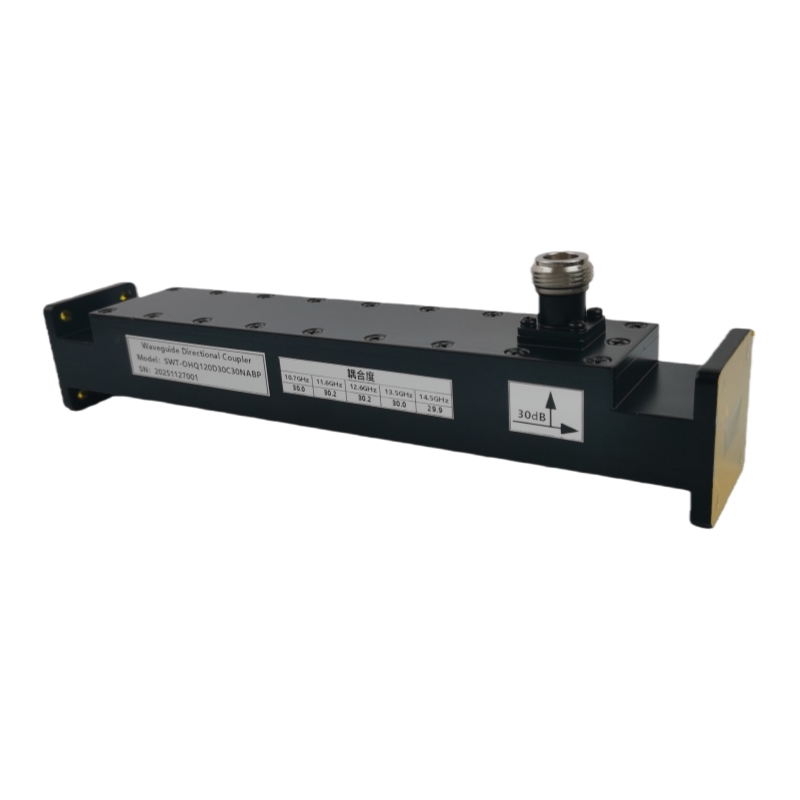

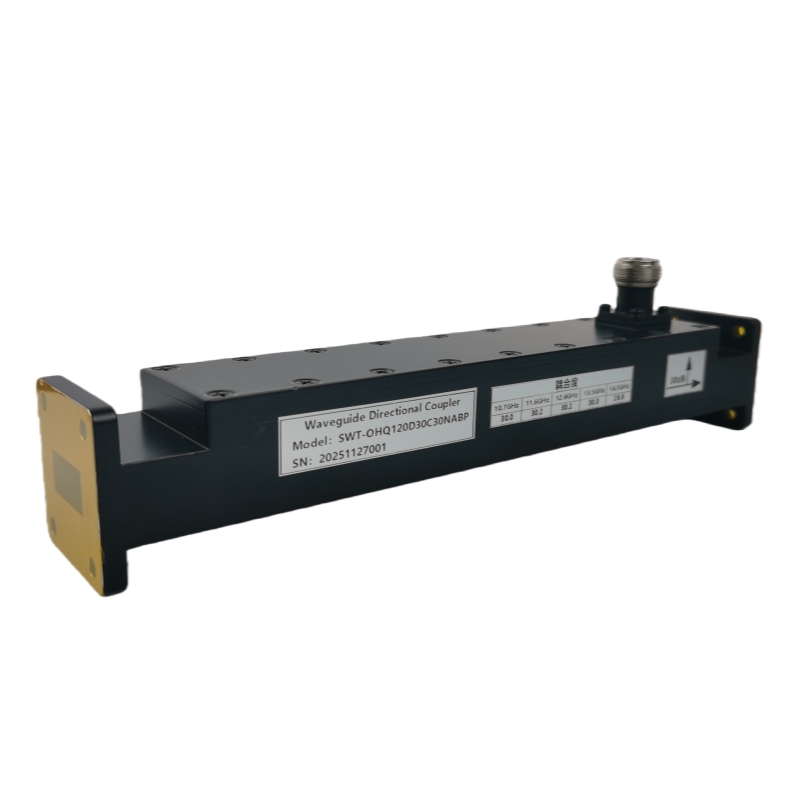

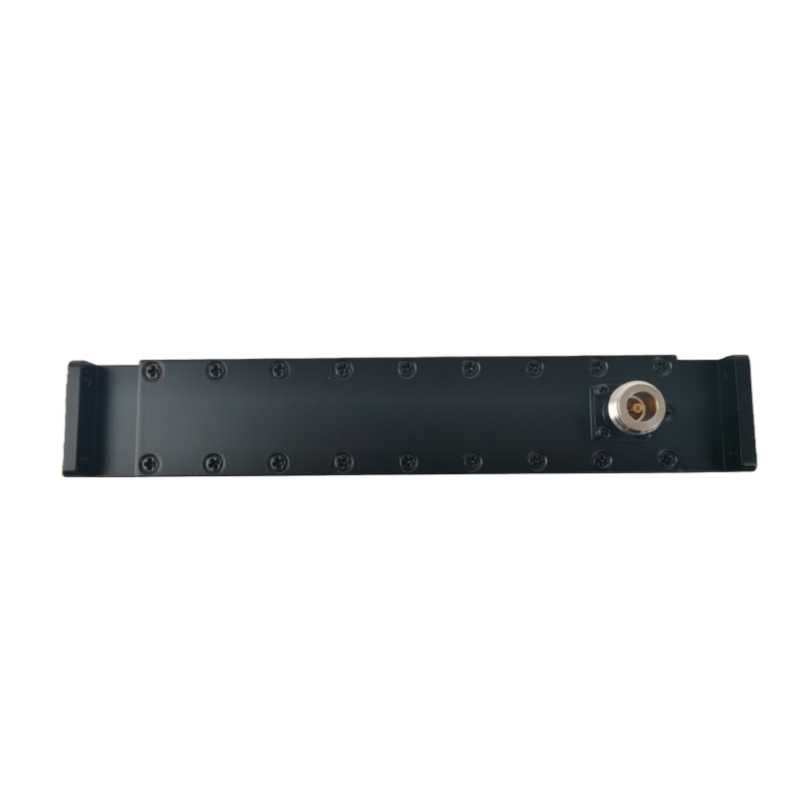

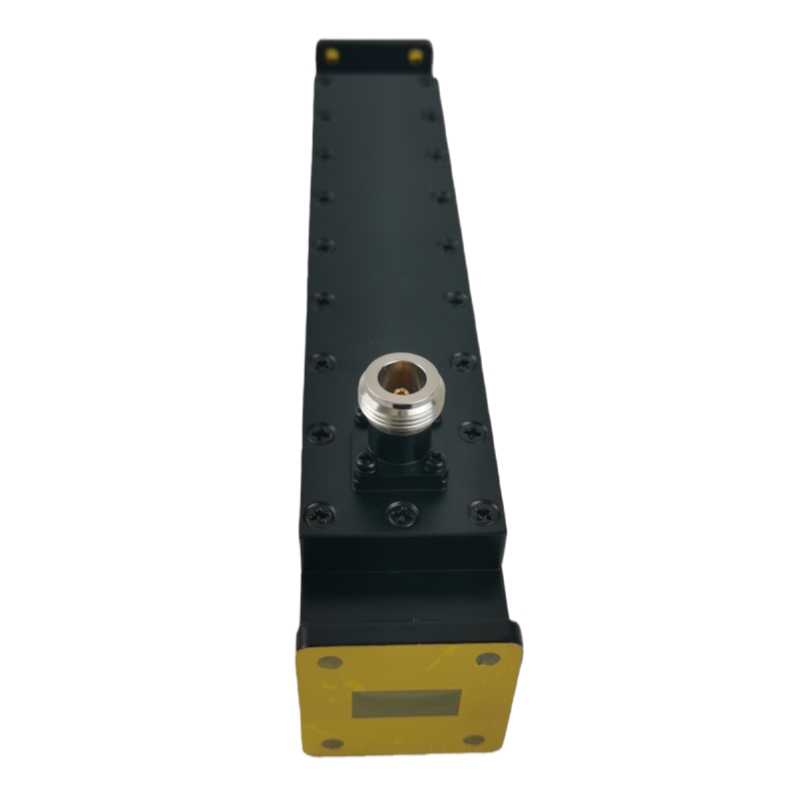

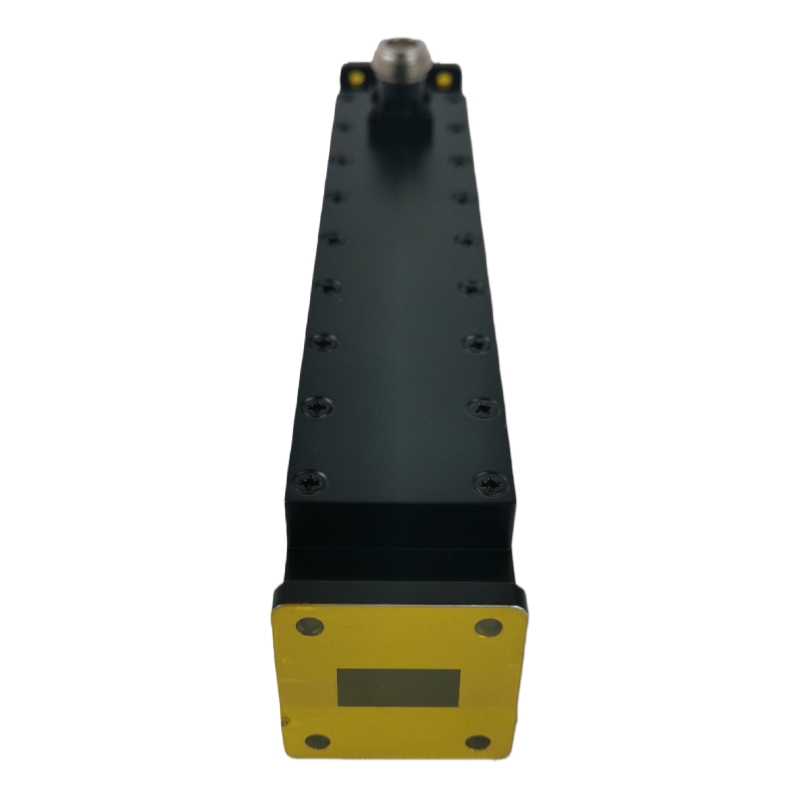

10.7–14.5 GHz High-Performance Broadband Directional Coupler for Microwave Systems
Place of Origin：China
Brand Name：SWT
Model Number：SWT-OHQ120D30C30NABP
Price：Please Contact Customer Service
Product Description
Description
High-performance broadband directional coupler designed for microwave and RF systems. Features a frequency range of 10.7–14.5 GHz, low VSWR (≤1.1 main, ≤1.3 auxiliary),
high directivity (≥30 dB), and robust aluminum construction with conductive oxidation coating. Ideal for precision signal sampling and monitoring applications.
Specification
| Parameter | Specification |
|---|---|
| Frequency Range | 10.7 – 14.5 GHz |
| Main Path VSWR | ≤ 1.1 |
| Auxiliary Path VSWR | ≤ 1.3 |
| Coupling | 30 dB ± 1 dB |
| Directivity | ≥ 30 dB |
| Connector Type | N-Female |
| Material | Aluminum |
| Flange Type | FBP120 |
| Surface Treatment | Conductive Oxidation |
| Coating | Blue Paint |
Product Details
Packing:
Power Consumption:
Data Format:
Working Temperature:
Physical Interface:
Communication Interface:
Receiving Signal:
Applications:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
