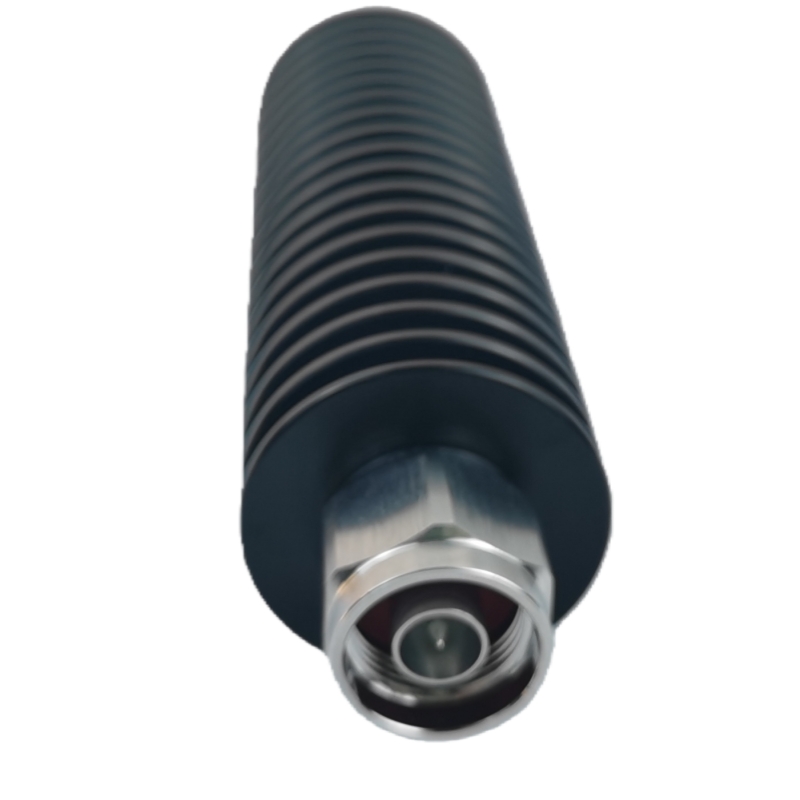

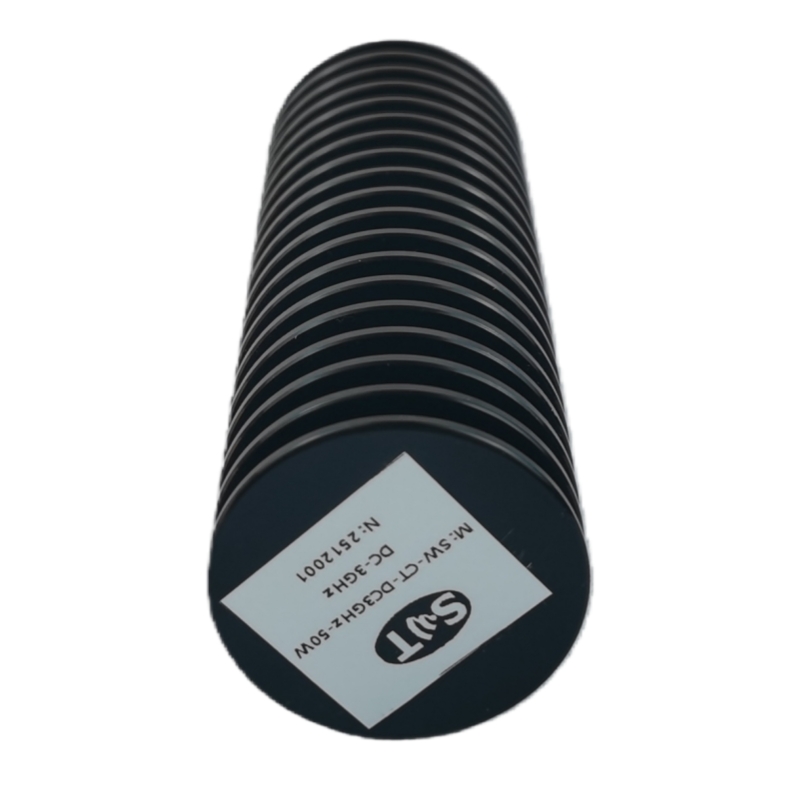

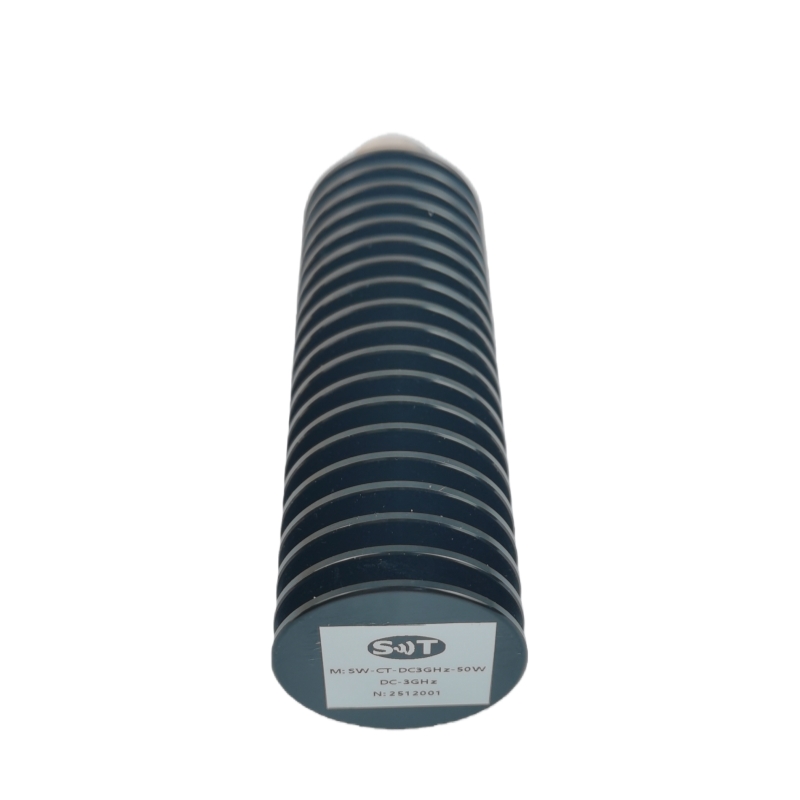

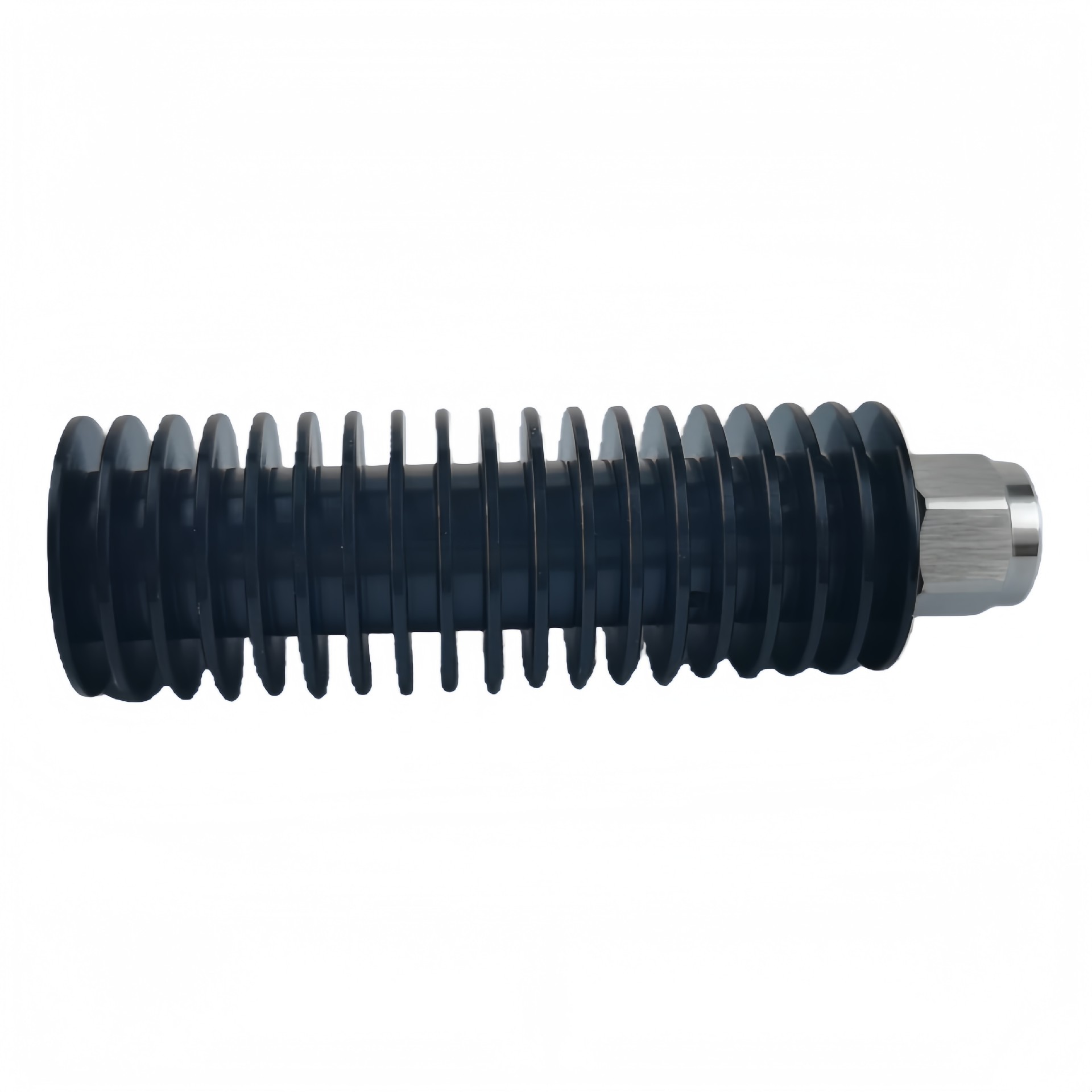

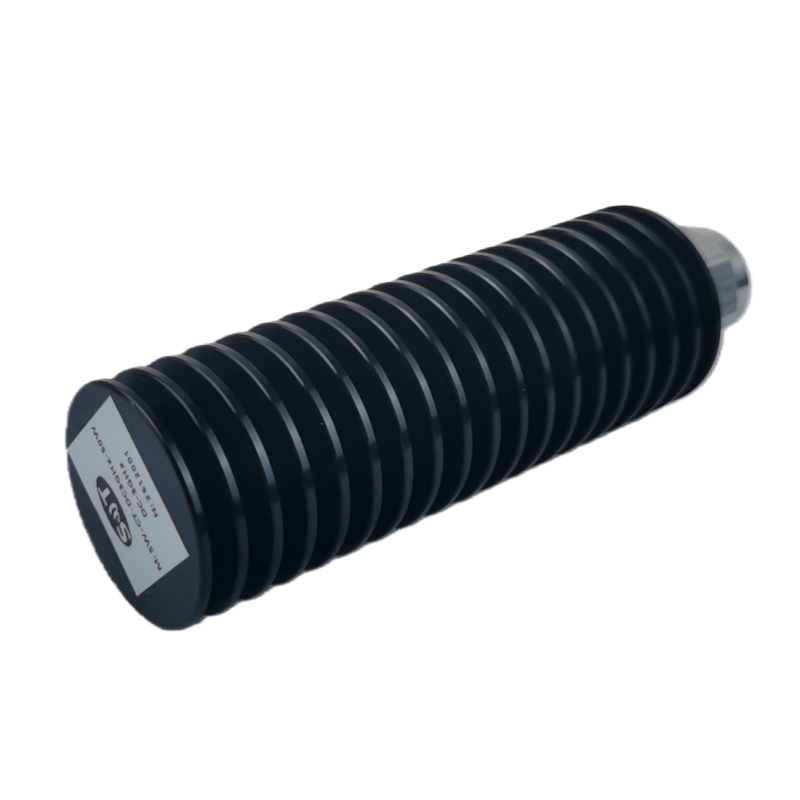

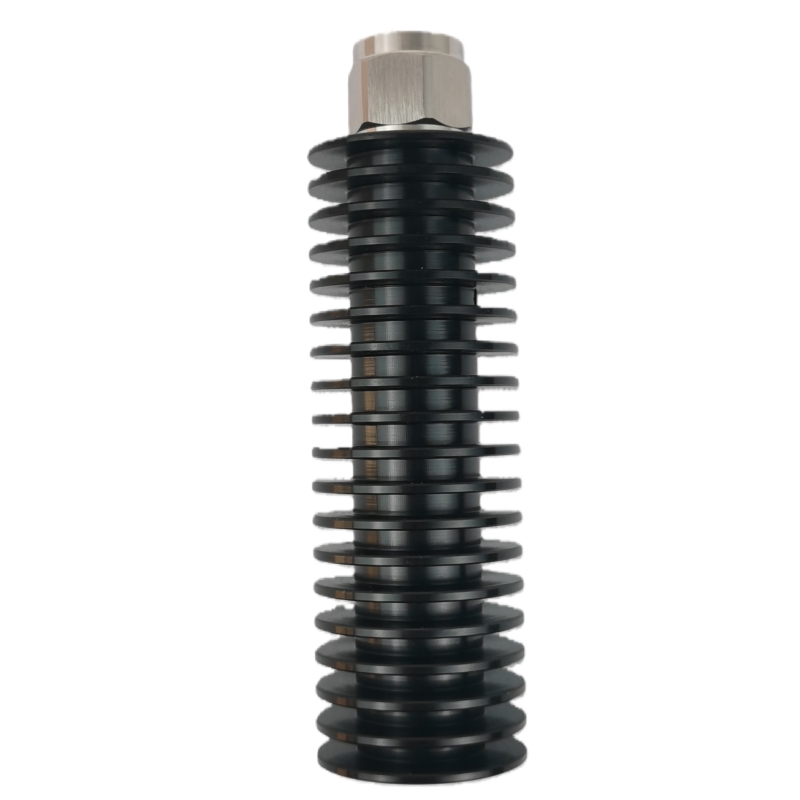

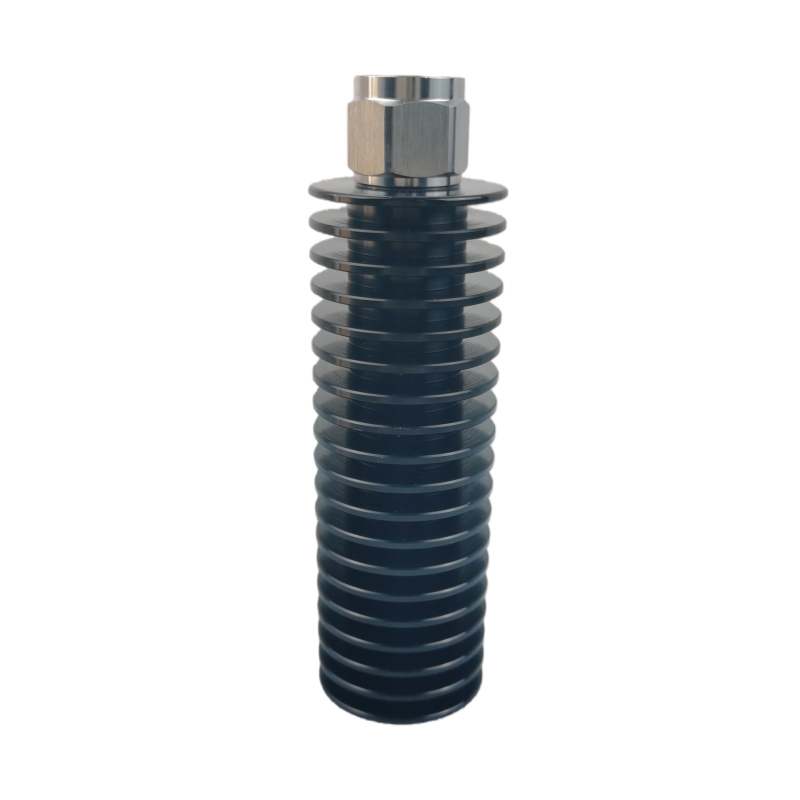

High-Power 50W Coaxial Termination (DC–3 GHz) for Military and Commercial RF Systems – Compact, Lightweight, and Ultra-Low VSWR
Place of Origin：China
Brand Name：SWT
Model Number：SW-CT-DC3GHz-50W
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
PARAMETER | RF / CHARACTERISTICS | UNIT |
Frequency Range | DC-3GHz | GHz |
VSWR | ≤1.15 | -- |
Power | 50W | W |
Connector | N-Male | --- |
Impedance | 50 Ω | Ω |

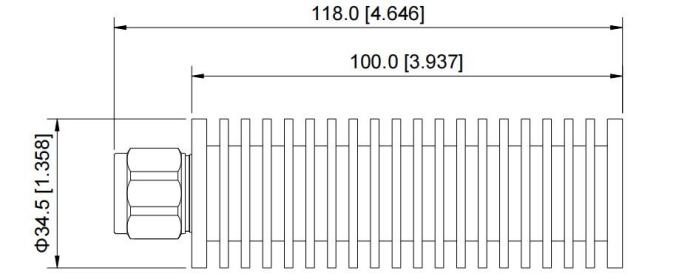

Outline Dimensional Drawing（ mm/ inch）
Product Details
Packing:
Power Consumption:
Data Format:
Working Temperature:
Physical Interface:
Communication Interface:
Receiving Signal:
Applications:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
