Customized 18.0 GHz – 26.5 GHz RF Waveguide Switch for microwave systems, communication equipment
Place of Origin：China
Brand Name：SWT
Model Number：SWT220DR2401
Price：
Product Description
Customized 18.0 GHz – 26.5 GHz RF Waveguide Switch for microwave systems, communication equipment
Key Features
Frequency Range: 18.0 GHz – 26.5 GHz
VSWR (Voltage Standing Wave Ratio): ≤1.10
Insertion Loss: <0.10 dB
Isolation: >60 dB
Switching Time: ≤50 ms
Electrical Specifications
Voltage: 24 VDC
Current: ≤625 mA @ 24 VDC (25°C)
Switching Duration: >50 ms
Environmental and Durability
Working Temperature: -40°C to +70°C
Operational Life: 100,000 cycles
Control Options
Modes: Latching, Manual, and Electric control

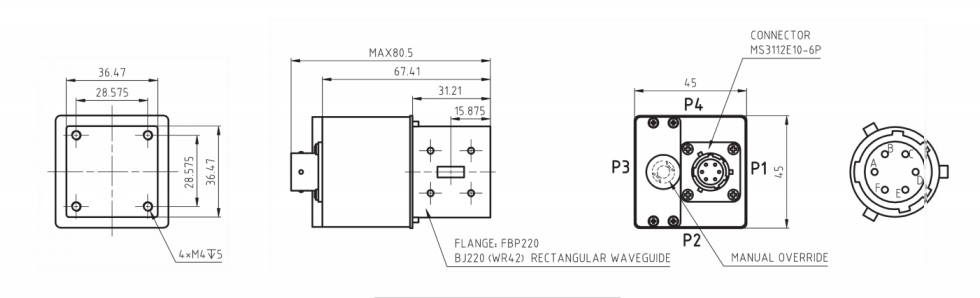

Connector: MS3112E10-6P
Product Details
Name:
18.0GHz--26.5GHz waveguide switch
Operating Frequency:
18.0GHz--26.5GHz
Operating Voltage:
24V/DC
Connector Type:
lsolation:
≥60dB
Ins. Loss:
≤0.10dB
VSWR:
≤1.10
Application:
High-Frequency Communication and Microwave System
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
