Customized 2450MHz RF Waveguide Switch manual switch for microwave communication system with Conductive oxidation
Place of Origin：China
Brand Name：SWT
Model Number：SWTI26EMA1OCV2.0
Price：
Product Description

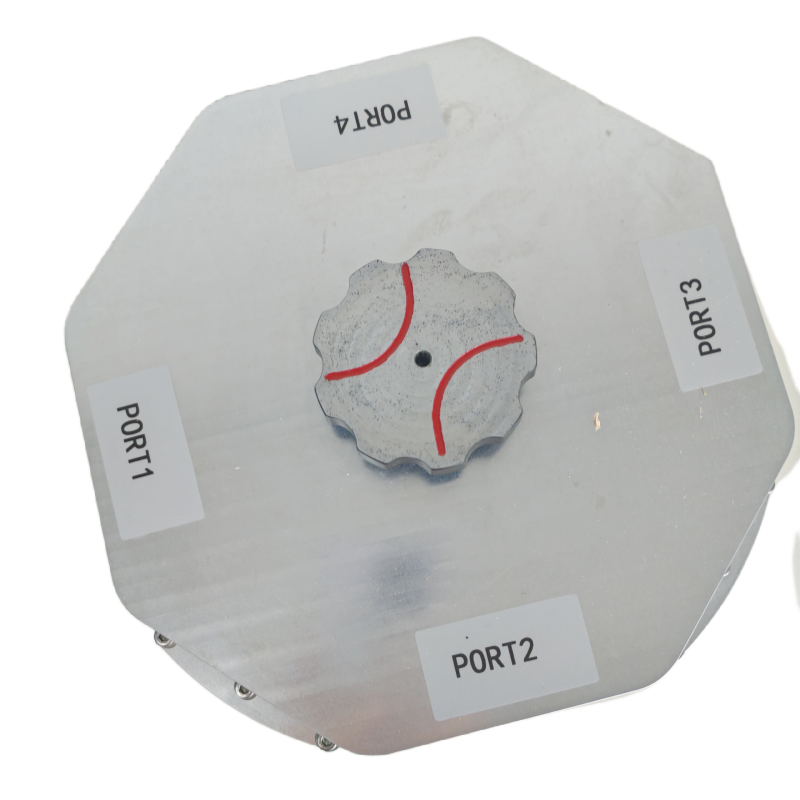

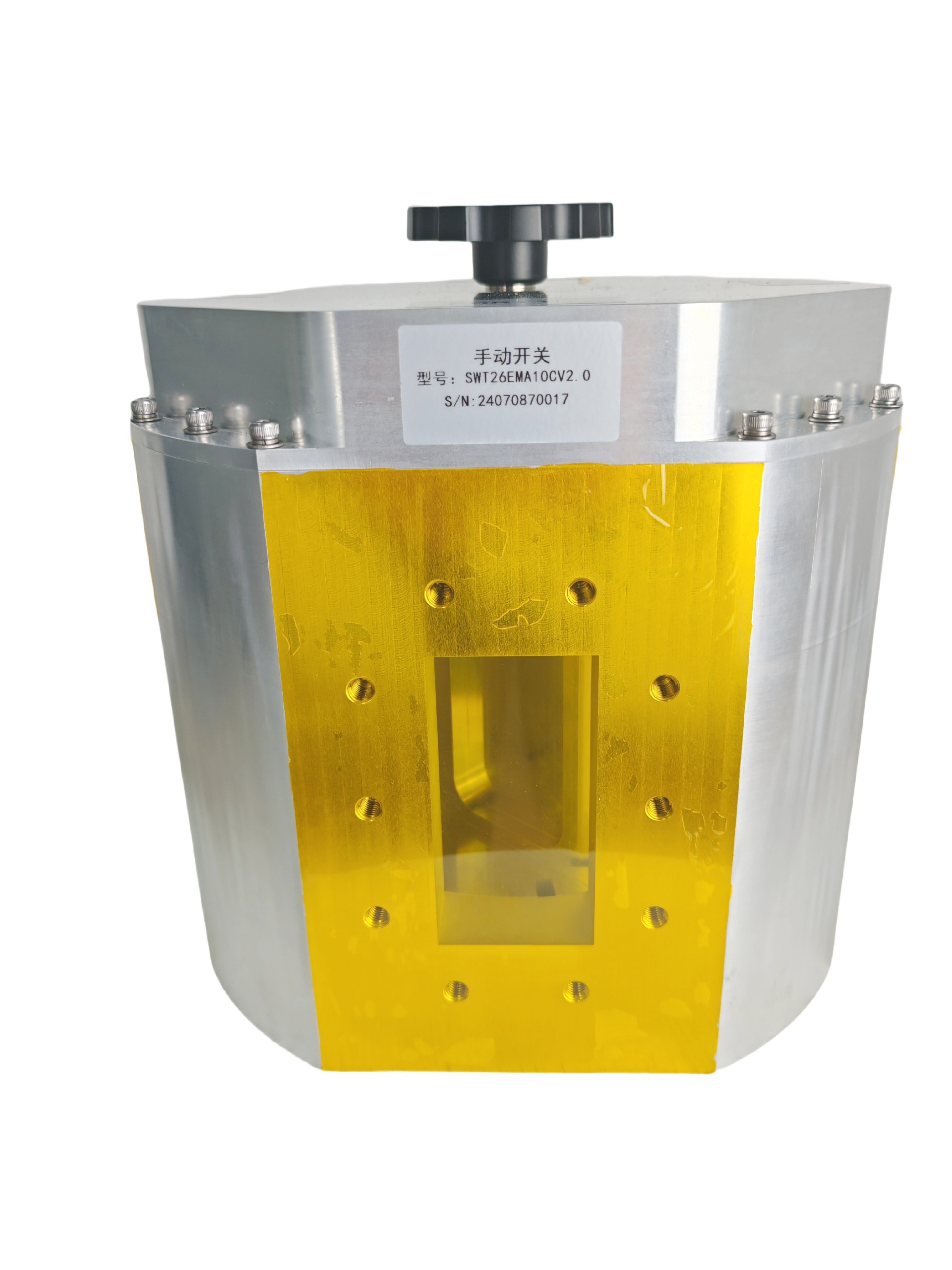

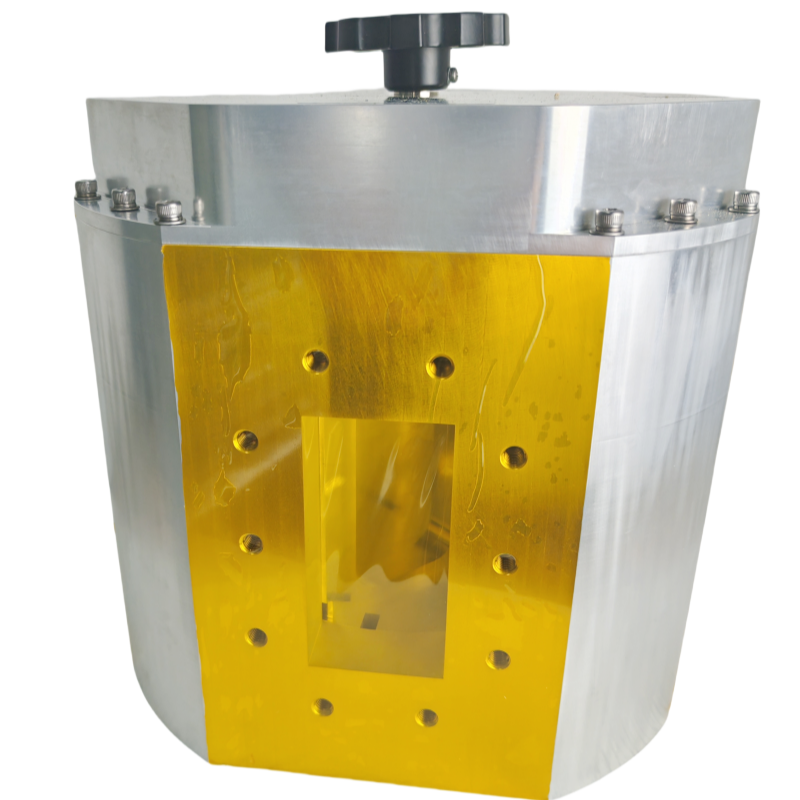

Customized 2450MHz RF Waveguide Switch manual switch for microwave communication system with Conductive oxidation
Product introduction
Product Code: SWT126EMA10CV2.0
Frequency Range: 2450MHz ± 50MHz
VSWR (Voltage Standing Wave Ratio): ≤ 1.1
Insertion Loss: ≤ 0.15dB
Isolation: ≥ 75dB
Connector Type: FDP26
Material: Aluminum Alloy
Surface Treatment: Conductive Oxidation
Product Details
Name:
2450MHz manual switch
Operating Frequency:
2450MHz±50MH
Operating Voltage:
Connector Type:
FDP26
lsolation:
Ins. Loss:
≤0.15dB
VSWR:
≤1.1
Application:
communication systems, radar, and RF testing setups
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
