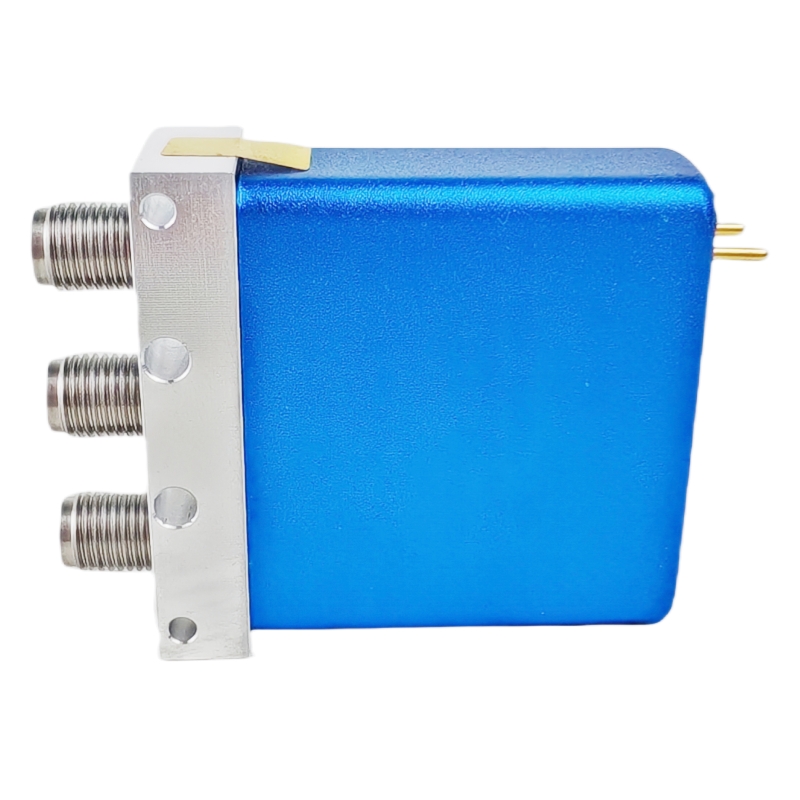

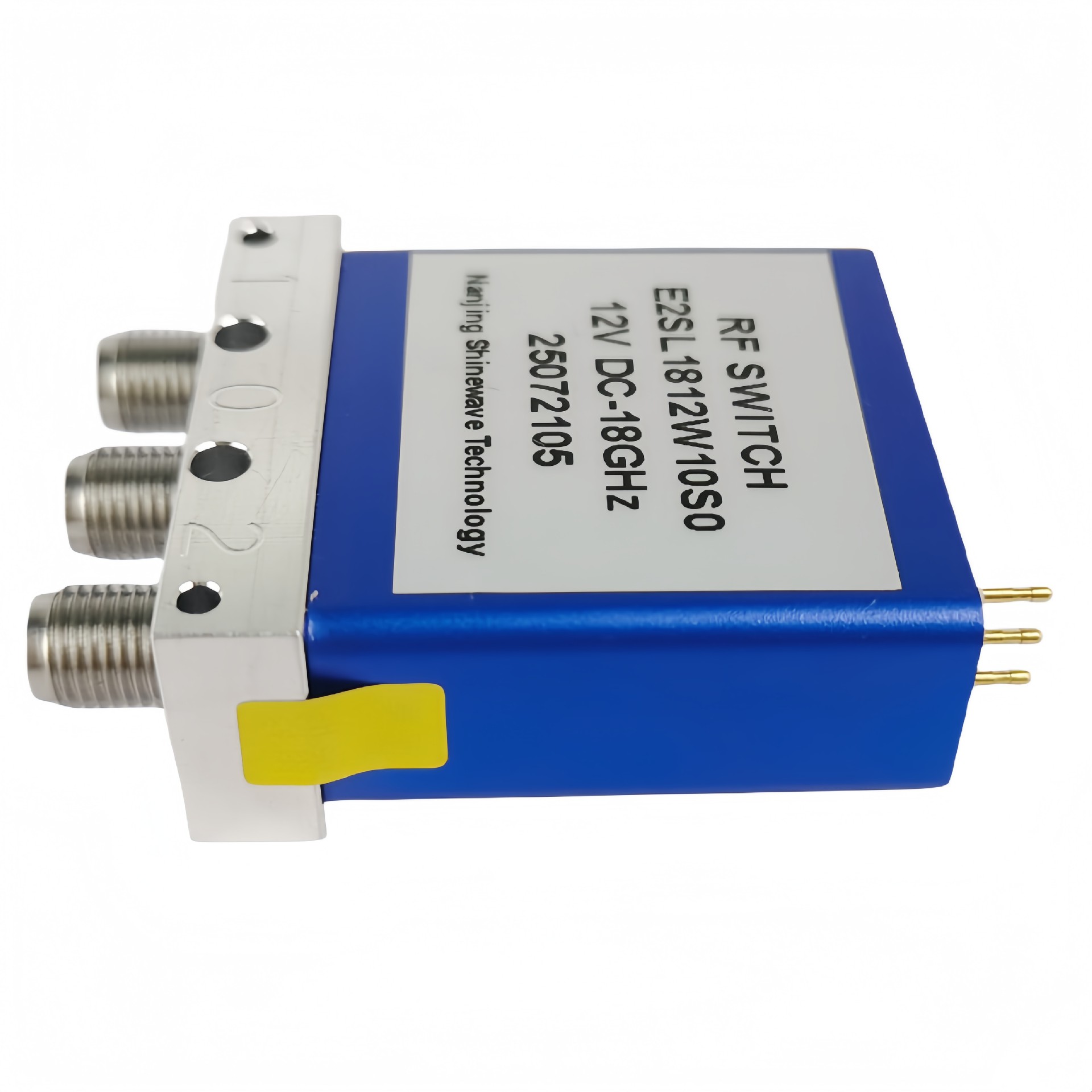

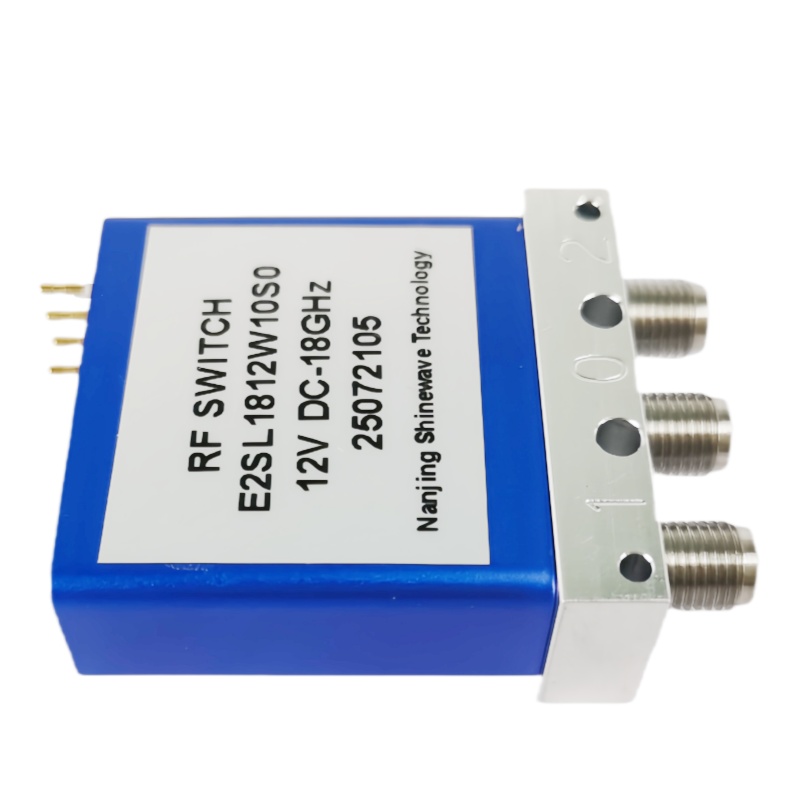

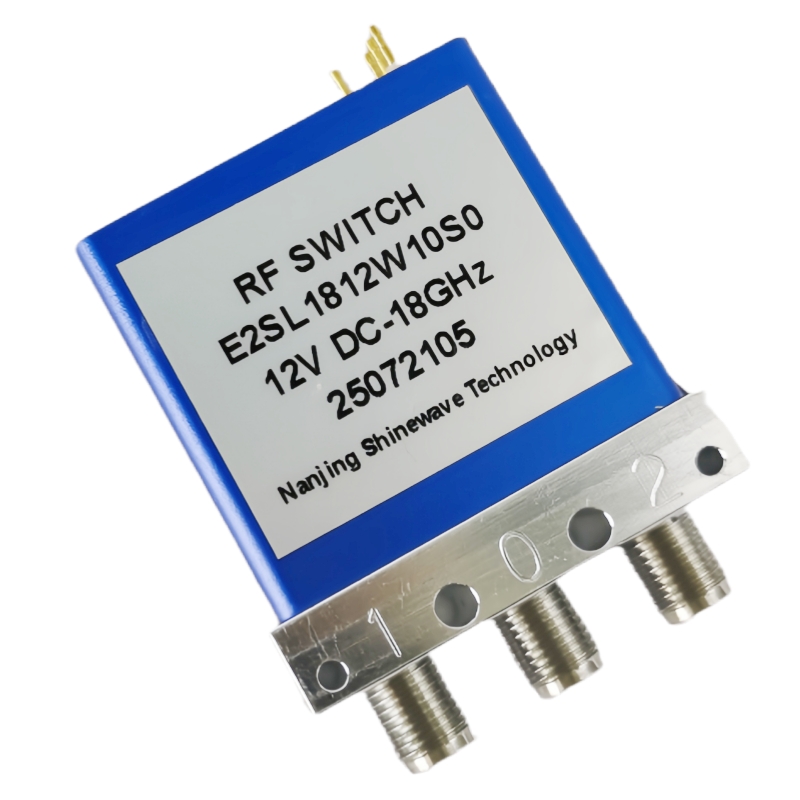

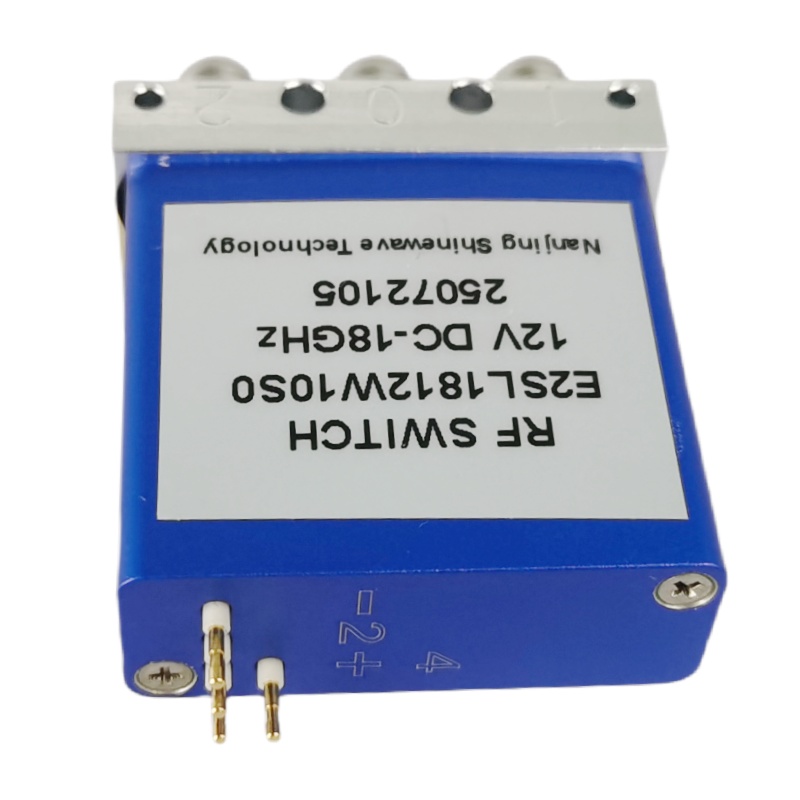

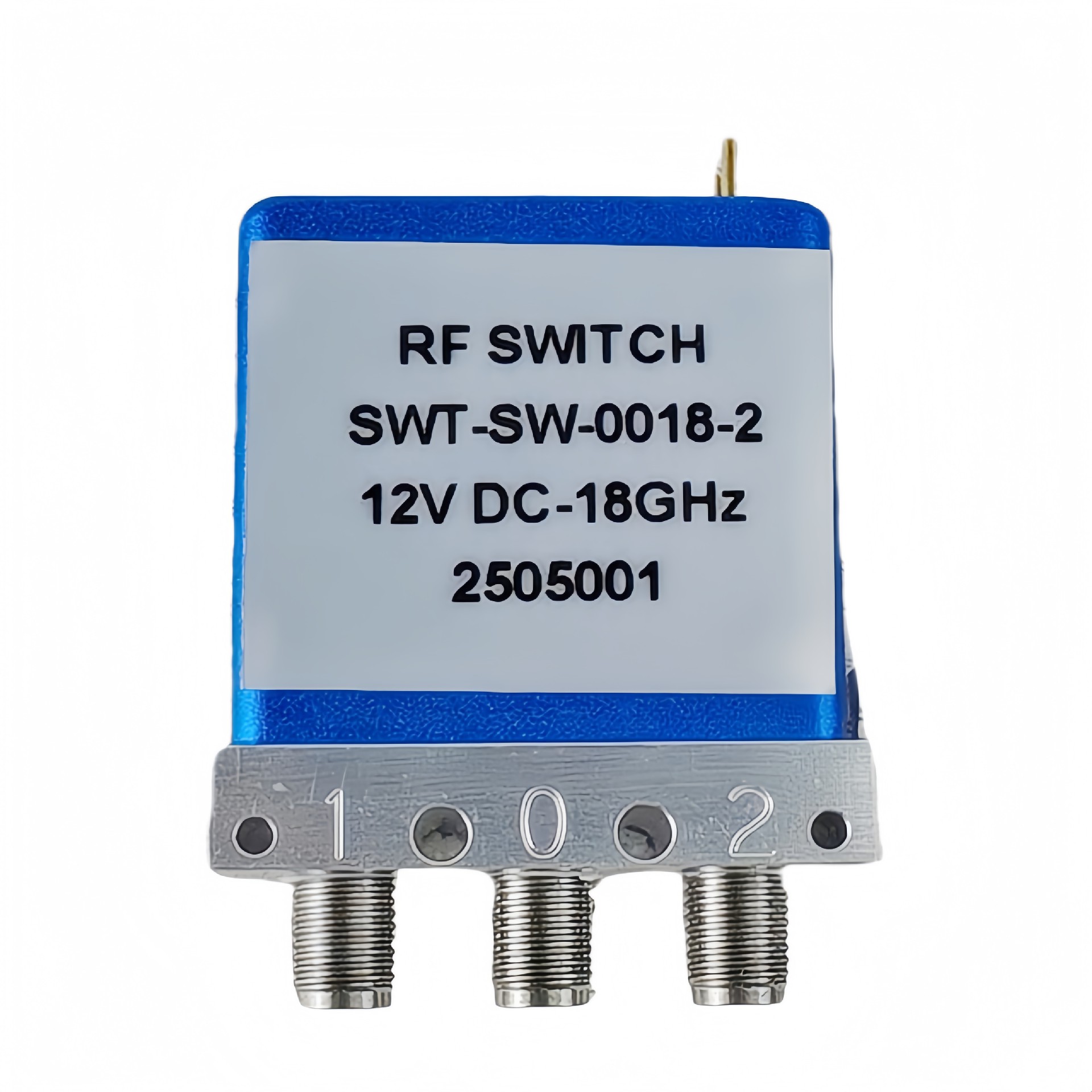

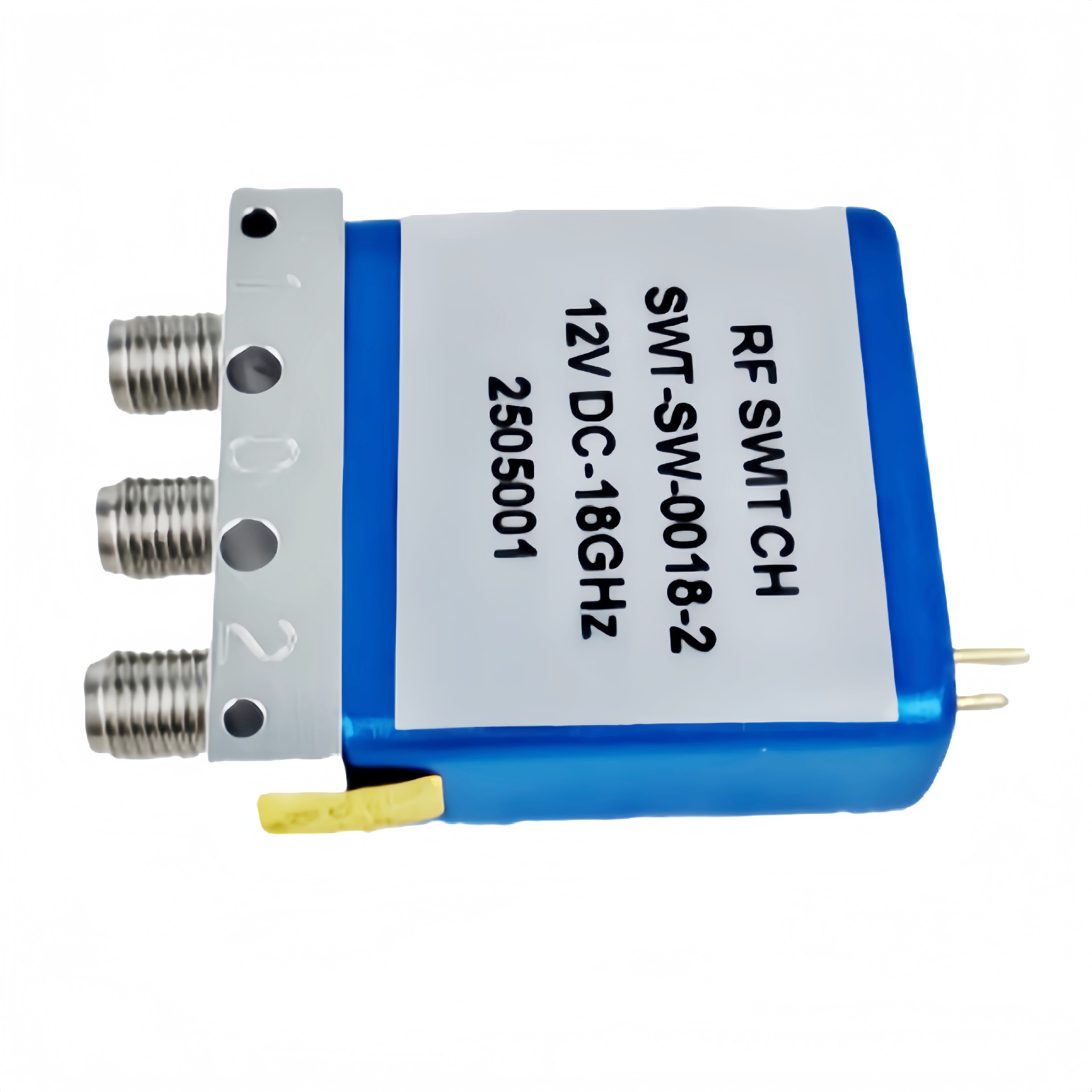

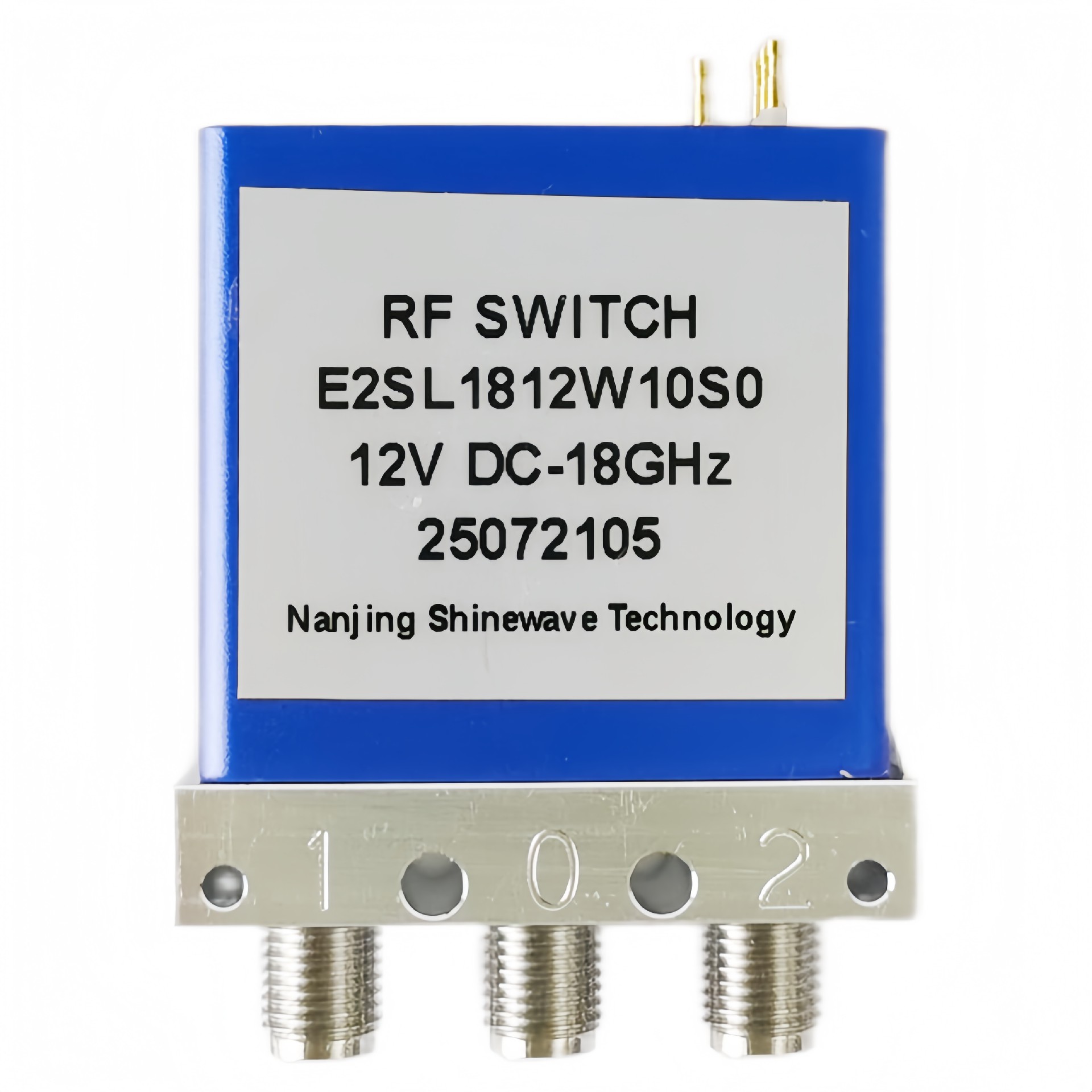

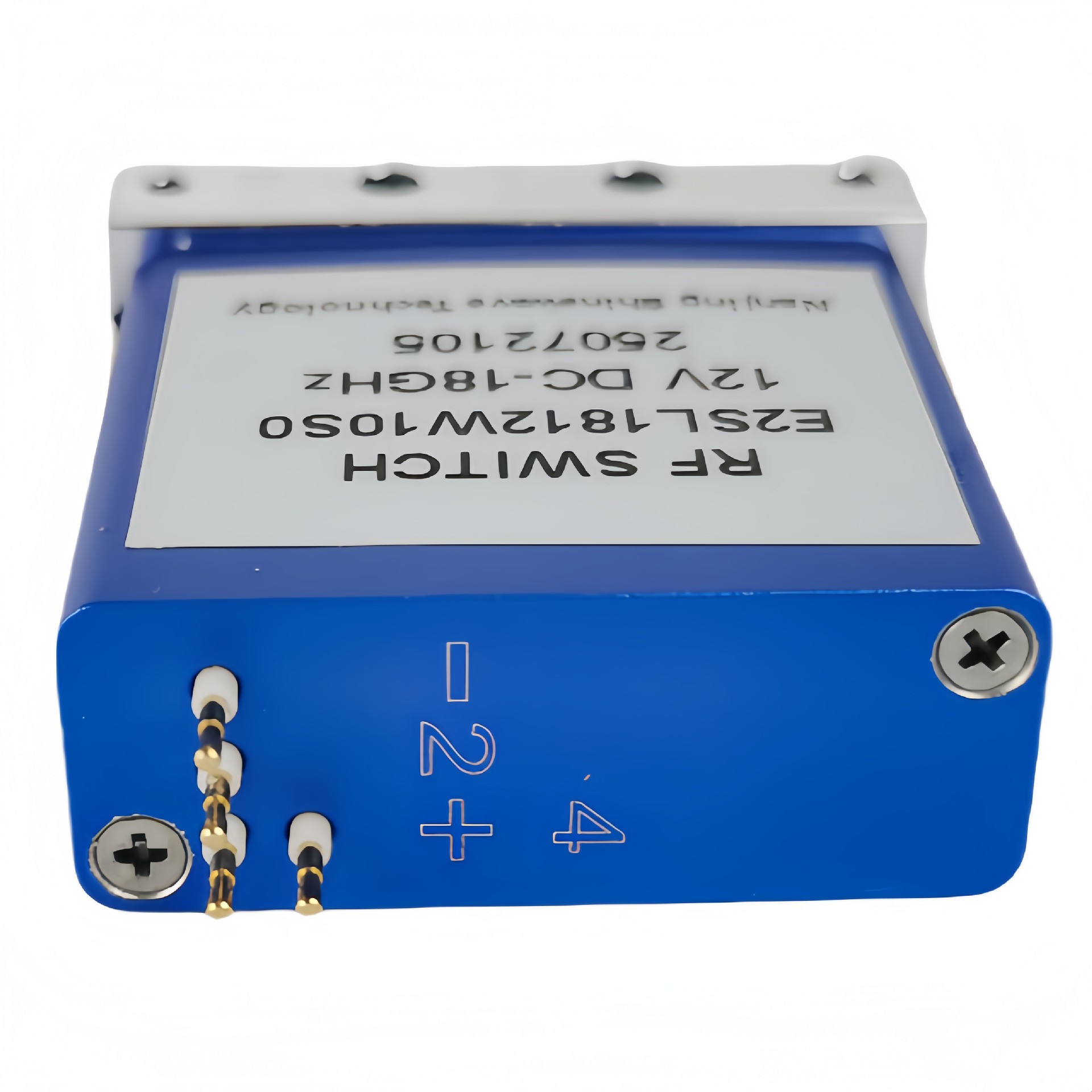

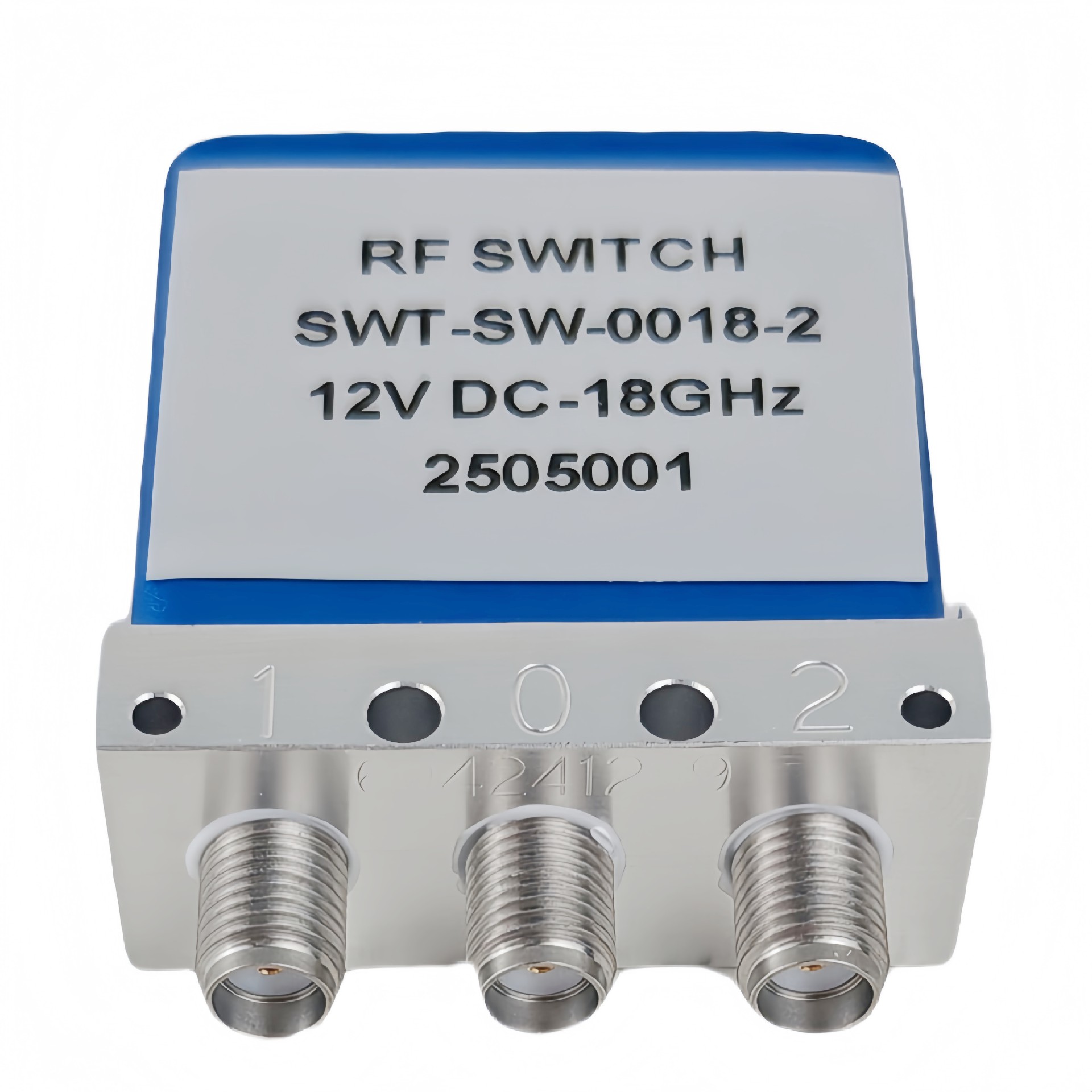

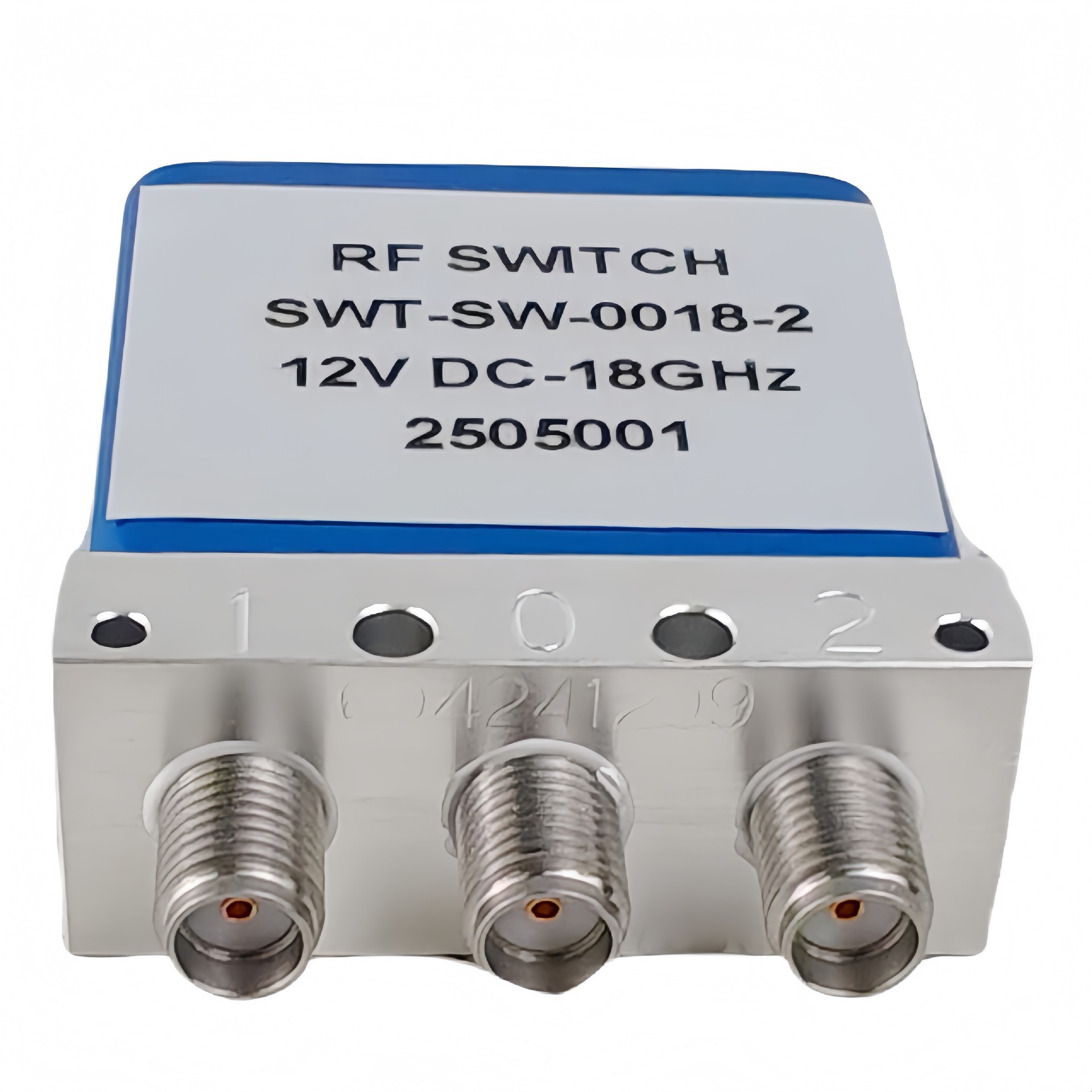

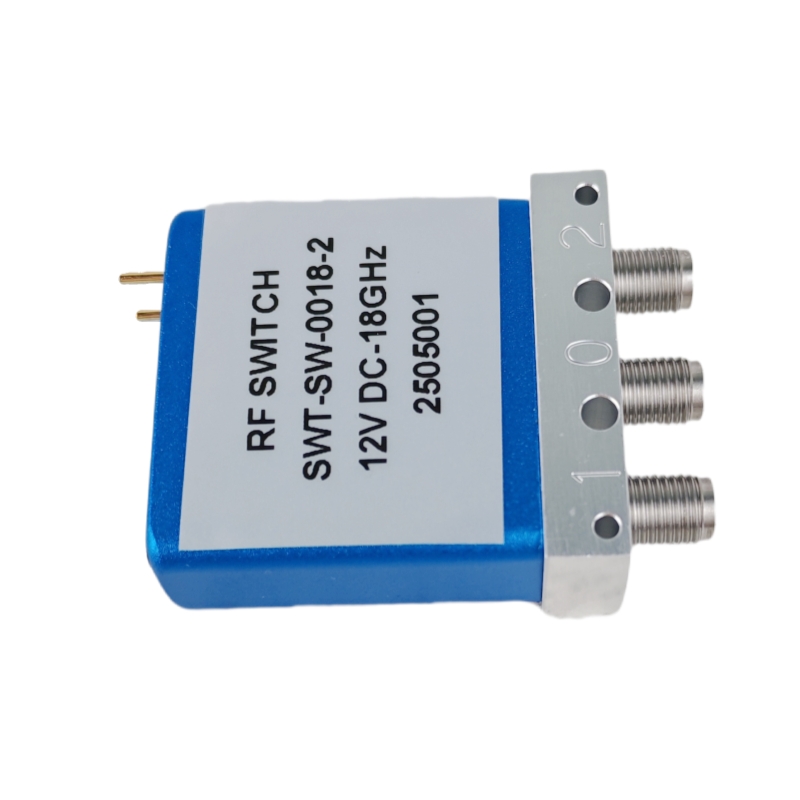

80W RF Switch Module for Independent Stations DC to 18GHz SPDT Failsafe Latching
Place of Origin：China
Brand Name：SWT
Model Number：SWT-SW-0018-2，E2SL1812W10S0
Price：Please Contact Customer Service
Product Description
Product Functions
DC to 18GHz
Low loss, Low VSWR, High Isolation
SMA Connector
Selectable TTL driver control
RF Characteristics
Frequency （GHz） | Ins.loss （dB） | Isolation （dB） | VSWR | RF Power CW （W） |
DC-6 | 0.2 | 70 | 1.2 | 80 |
6-12 | 0.3 | 70 | 1.3 | 60 |
12-18 | 0.4 | 60 | 1.4 | 50 |
Operating Voltage/Coil Current
Operating Voltage(V) | 12 | 24 | 28 | |
Coil Current (mA) | Failsafe | 195 | 100 | 95 |
Latching | 230 | 140 | 120 | |
*It can be selected according to user requirements
TTL | TTL Low(V) | TTL High | |
0-0.3 | 3~5V | 20mA | |
Indicators | Withstand VoltageV (max) | CurrentcapacitymA(max) | Resistance Ω (max) |
50 | 100 | 15 |
* Connect VDC &GND before the function operates

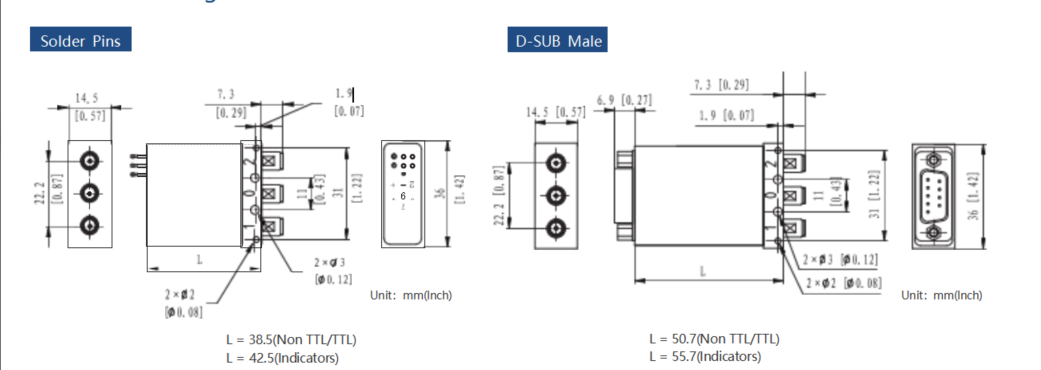

Outline Drawing
Truth Table
Failsafe Non TTL | |||
Actuator Terminals | RF Connector | ||
Solder Pins/D-SUB 9Pin Male | |||
Pin No. | Define | No Power,RF 1-0 | |
1 | V | RF 2-0 | |
2 | N/A | - | |
3 | GND | - | |
4 | Ind.1 |
Indicators | RF 1-0 |
5 | Ind.2 | RF 2-0 | |
6 | Ind.com | - | |
7 | VDC | - | |
8~9 | N/A | - | |
Failsafe TTL | |||
Actuator Terminals | RF Connector | ||
Solder Pins/D-SUB 9Pin Male | |||
Pin No. | Define | No Power,RF 1-0 | |
1 | VDC | RF 2-0 | |
2 | TTL | - | |
3 | GND | - | |
4 | Ind.1 |
Indicators | RF 1-0 |
5 | Ind.2 | RF 2-0 | |
6 | Ind.com | - | |
7~9 | N/A | - | |
Latching Non TTL | |||
Actuator Terminals | RF Connector | ||
Solder Pins/D-SUB 9Pin Male | |||
Pin No. | Define | - | |
1 | V1 | RF 1-0 | |
2 | V2 | RF 2-0 | |
3 | GND | - | |
4 | Ind.1 |
Indicators | RF 1-0 |
5 | Ind.2 | RF 2-0 | |
6 | Ind.com | - | |
7 | VDC | - | |
8~9 | N/A | - | |
Latching TTL | |||
Actuator Terminals | RF Connector | ||
Solder Pins/D-SUB 9Pin Male | |||
Pin No. | Define | - | |
1 | VDC | ||
2 | TTL | RF 1-0 | |
3 | GND | - | |
4 | TTL | RF 2-0 | |
5 | Ind.1 | Indicators | RF 1-0 |
6 | Ind.2 | RF 2-0 | |
7 | Ind.com | - | |
8~9 | N/A | - | |

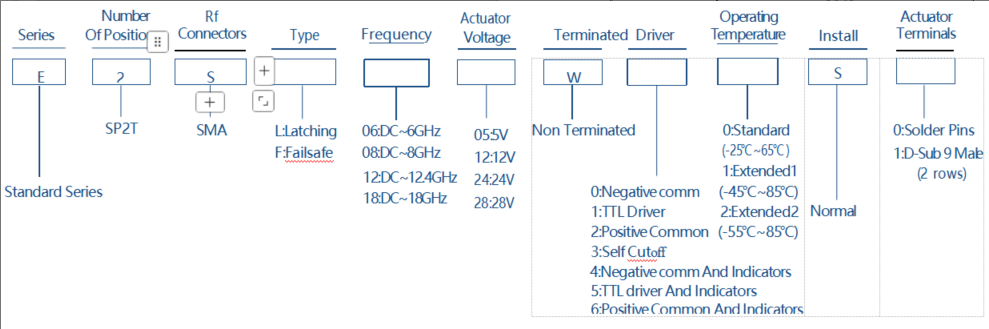

Product Selection
Product Details
Name:
Operating Frequency:
Operating Voltage:
Connector Type:
lsolation:
Ins. Loss:
VSWR:
Application:
