12.4GHz High Power Coaxial Switch RF Characteristics, Truth Table & Product Selection

Place of Origin：China

Brand Name：SWT

Model Number：E2NF0612W10S1

Price：Please Contact Customer Service

Product Description

Product Functions

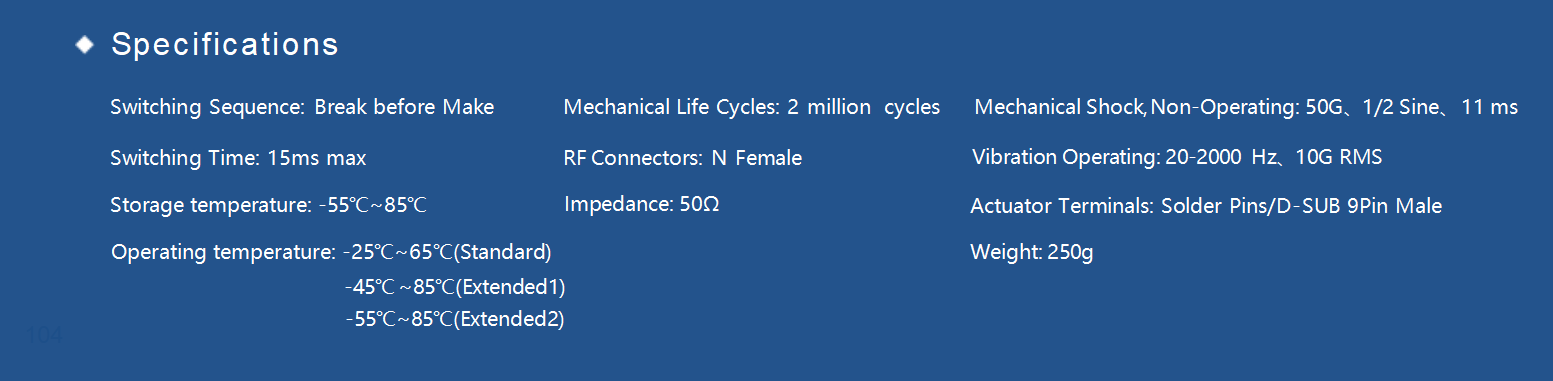

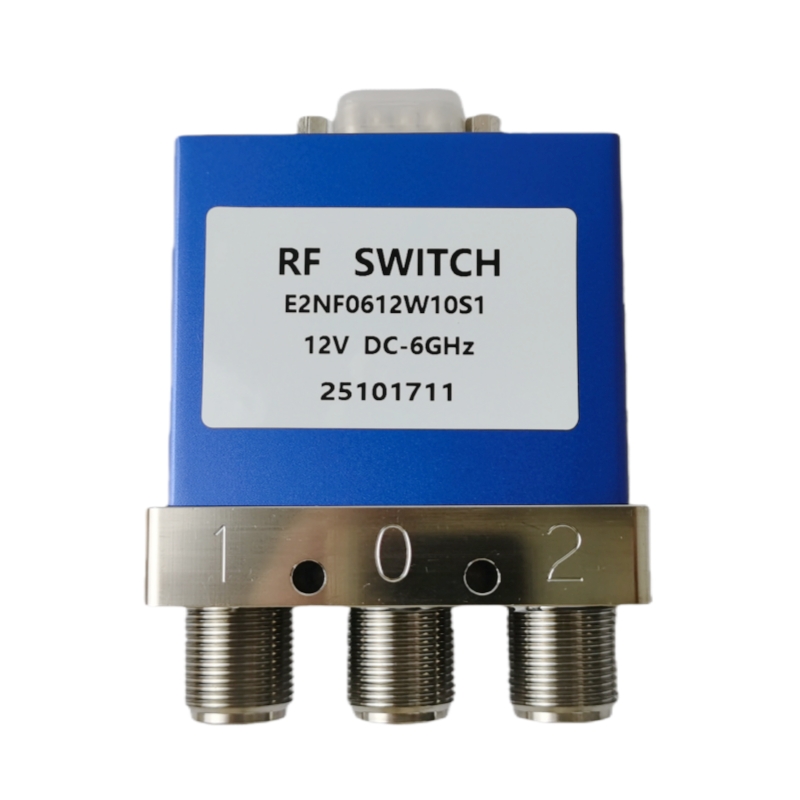

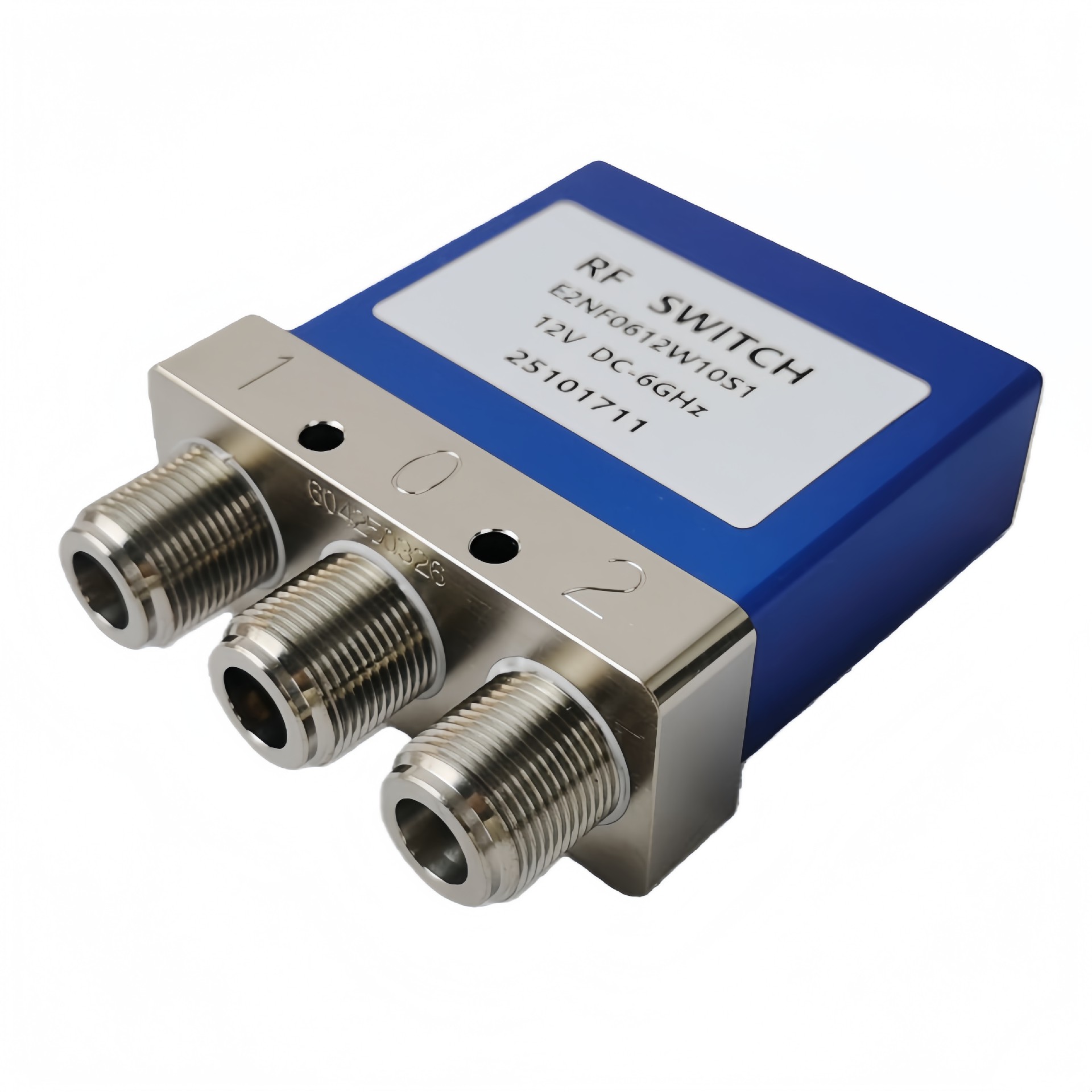

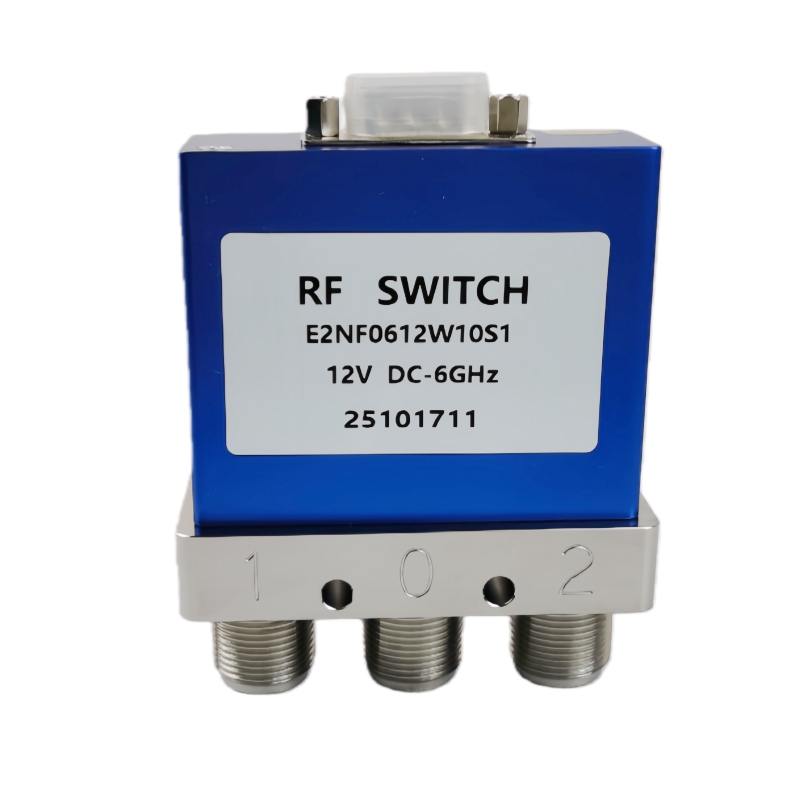

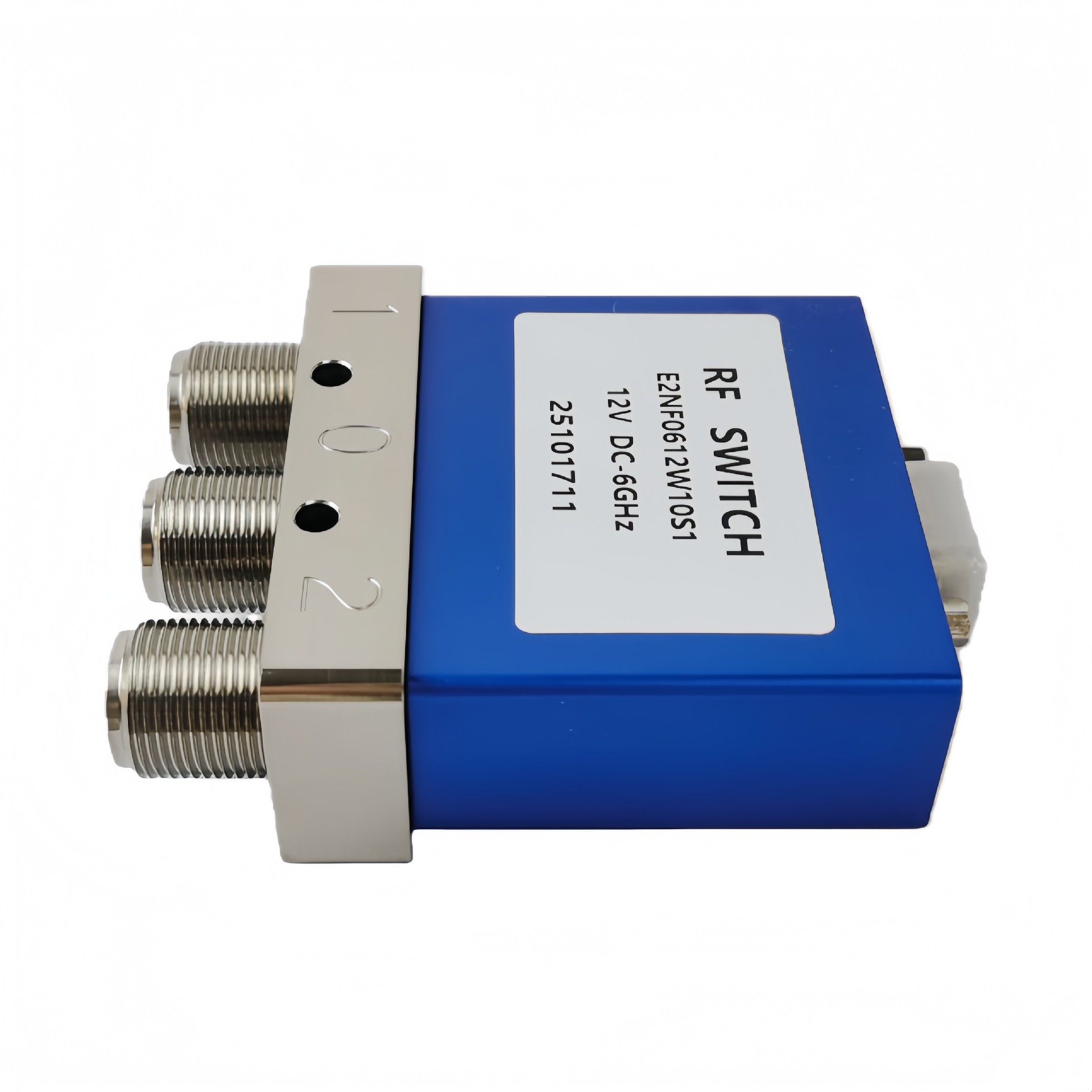

DC to 12.4GHz Low loss,

Low VSWR, High Isolation

N Female Connector

Selectable TTL driver control

RF Characteristics

Frequency

（GHz）

Ins.loss

（dB）

Isolation

（dB）

VSWR

RF Power CW

（W）

DC-5

0.3

1.3

350

5-12.4

0.5

1.5

250

Operating Voltage/Coil Current

Operating Voltage(V)

Coil Current

(mA)

Failsafe

300

180

150

Latching

320

180

150

TTL	TTL Low(V)	TTL High
	0-0.3	3~5V	20mA

Indicators

Withstand Voltage

V (max)

Currentcapacity

mA(max)

Resistance Ω (max)

100




Truth Table

Failsafe Non TTL
Actuator Terminals			RF Connector

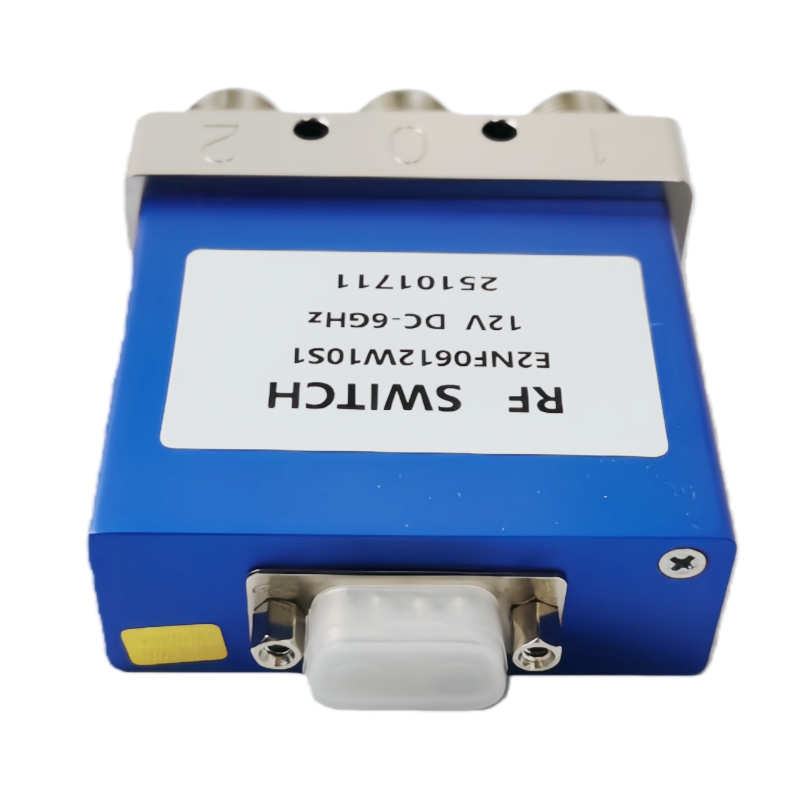

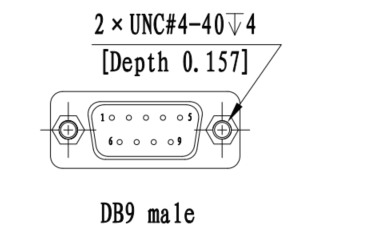

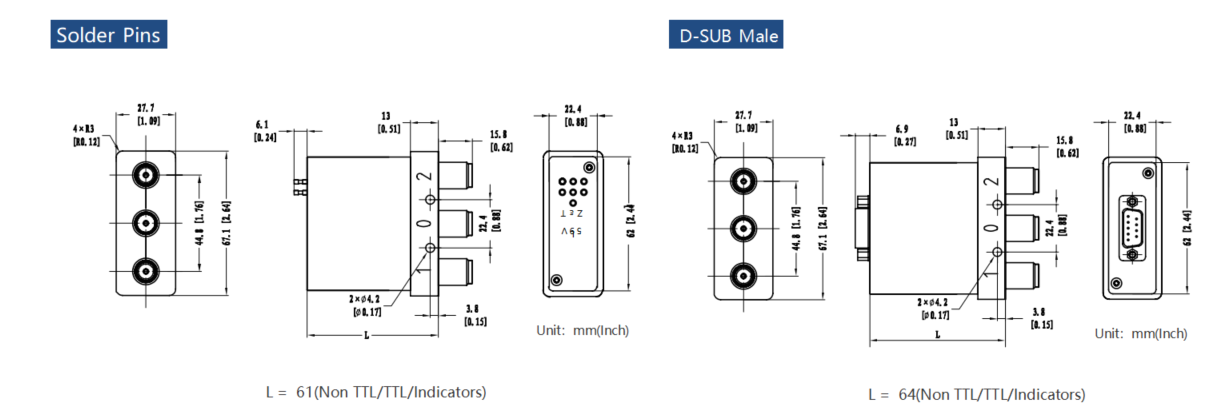

Solder Pins/D-SUB 9Pin Male
Pin No.	Deﬁne		No Power,RF 1-0
1	V		RF 2-0
2	N/A		-
3	GND		-
4	Ind.1	Indicators	RF 1-0
5	Ind.2		RF 2-0
6	Ind.com		-
7	VDC		-
8~9	N/A		-

Failsafe TTL
Actuator Terminals			RF Connector
Solder Pins/D-SUB 9Pin Male
Pin No.	Deﬁne		No Power,RF 1-0
1	VDC		RF 2-0
2	TTL		-
3	GND		-
4	Ind.1	Indicators	RF 1-0
5	Ind.2		RF 2-0
6	Ind.com		-
7~9	N/A		-

Latching Non TTL
Actuator Terminals			RF Connector
Solder Pins/D-SUB 9Pin Male
Pin No.	Deﬁne		-
1	V1		RF 1-0
2	V2		RF 2-0
3	GND		-
4	Ind.1	Indicators	RF 1-0
5	Ind.2		RF 2-0
6	Ind.com		-
7	VDC		-
8~9	N/A		-

Latching TTL
Actuator Terminals			RF Connector
Solder Pins/D-SUB 9Pin Male
Pin No.	Deﬁne		-
1	VDC
2	TTL		RF 1-0
3	GND		-
4	TTL		RF 2-0
5	Ind.1	Indicators	RF 1-0
6	Ind.2		RF 2-0
7	Ind.com		-
8~9	N/A		-
