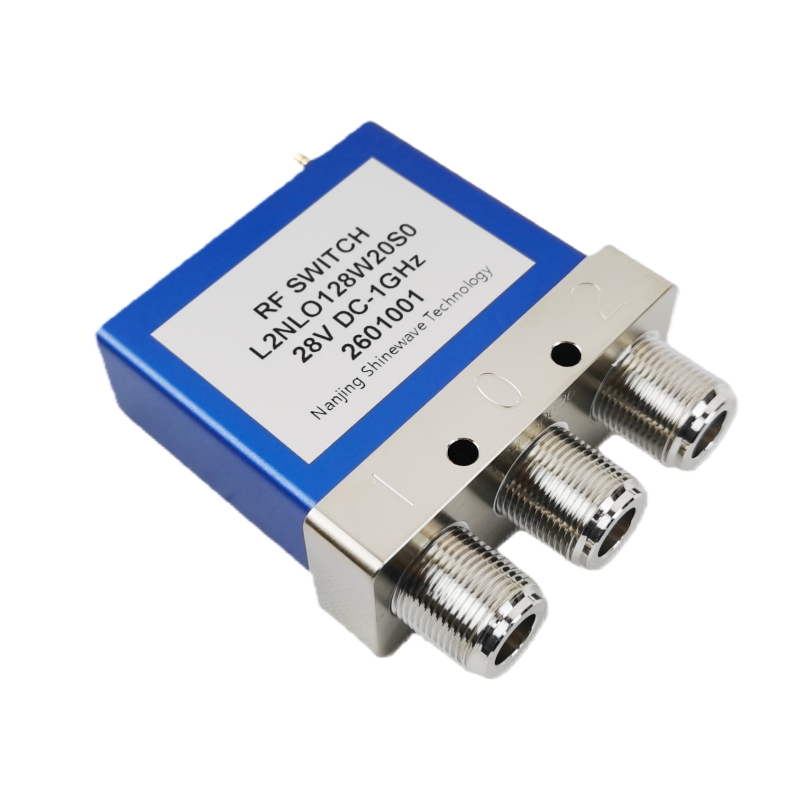

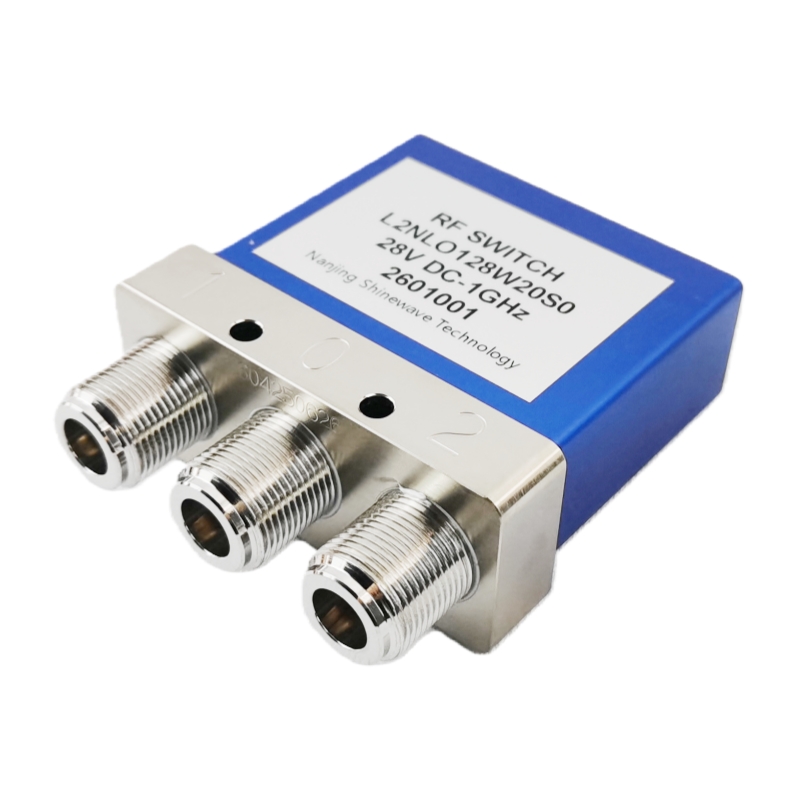

High power latching coaxial RF switch SPDT DC to 1 GHz 350 W N female 28 V for antenna switching
Place of Origin：China
Brand Name：SWT
Model Number：L2NL0128W20S0
Price：Please Contact Customer Service
Product Description
RF Characteristics (Latching)
Frequency (GHz) | Insertion Loss (dB) | Isolation (dB) | VSWR | RF Power CW (W) |
DC~1 | 0.3 | 70 | 1.3 | 350 |
Operating Voltage & Coil Current
Operating Voltage (V) | Coil Current (mA@25℃) |
28 | ≤150 |

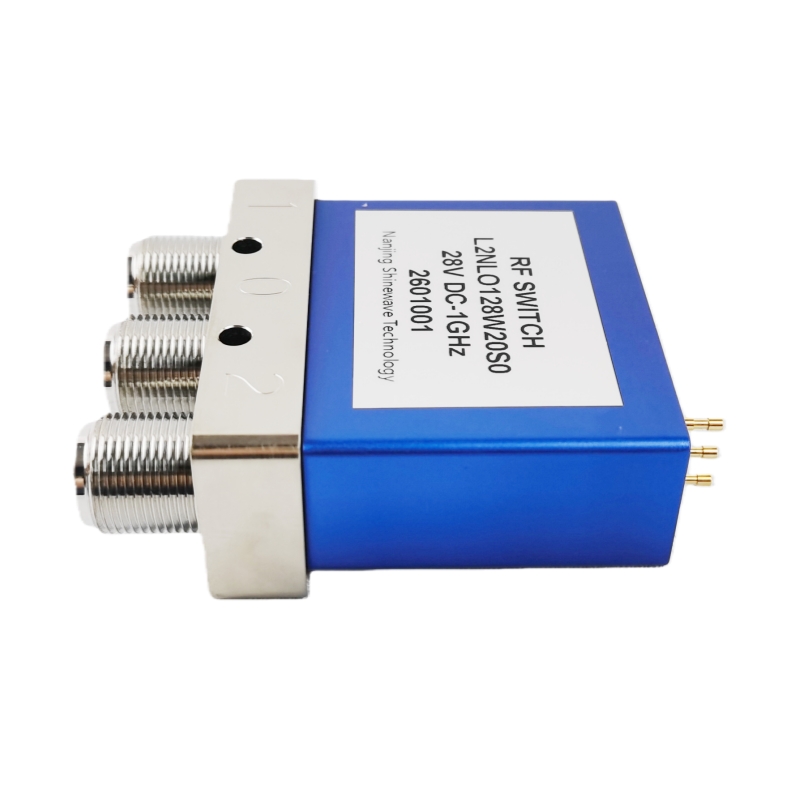

Pin Configuration
Pin No. | Definition | RF Connector Path |
+ | VDC | - |
1 | GND | 0→1 |
2 | GND | 0→2 |
General Specifications
Parameter | Value |
Switching Sequence | Break before Make |
Mechanical Life Cycles | 2 million cycles |
RF Connectors | N Female |
Switching Time (max) | 15ms |
Impedance | 50Ω |
Storage Temperature | -55℃ ~ 85℃ |
Operating Temperature | -25℃ ~ 65℃ |
Actuator Terminals | Solder Pins |
Weight | 250g |
Mechanical Shock & Vibration
Test Item | Condition |
Mechanical Shock (Non-Operating) | 50G, 1/2 Sine, 11 ms |
Vibration (Operating) | 20-2000 Hz, 10G RMS |

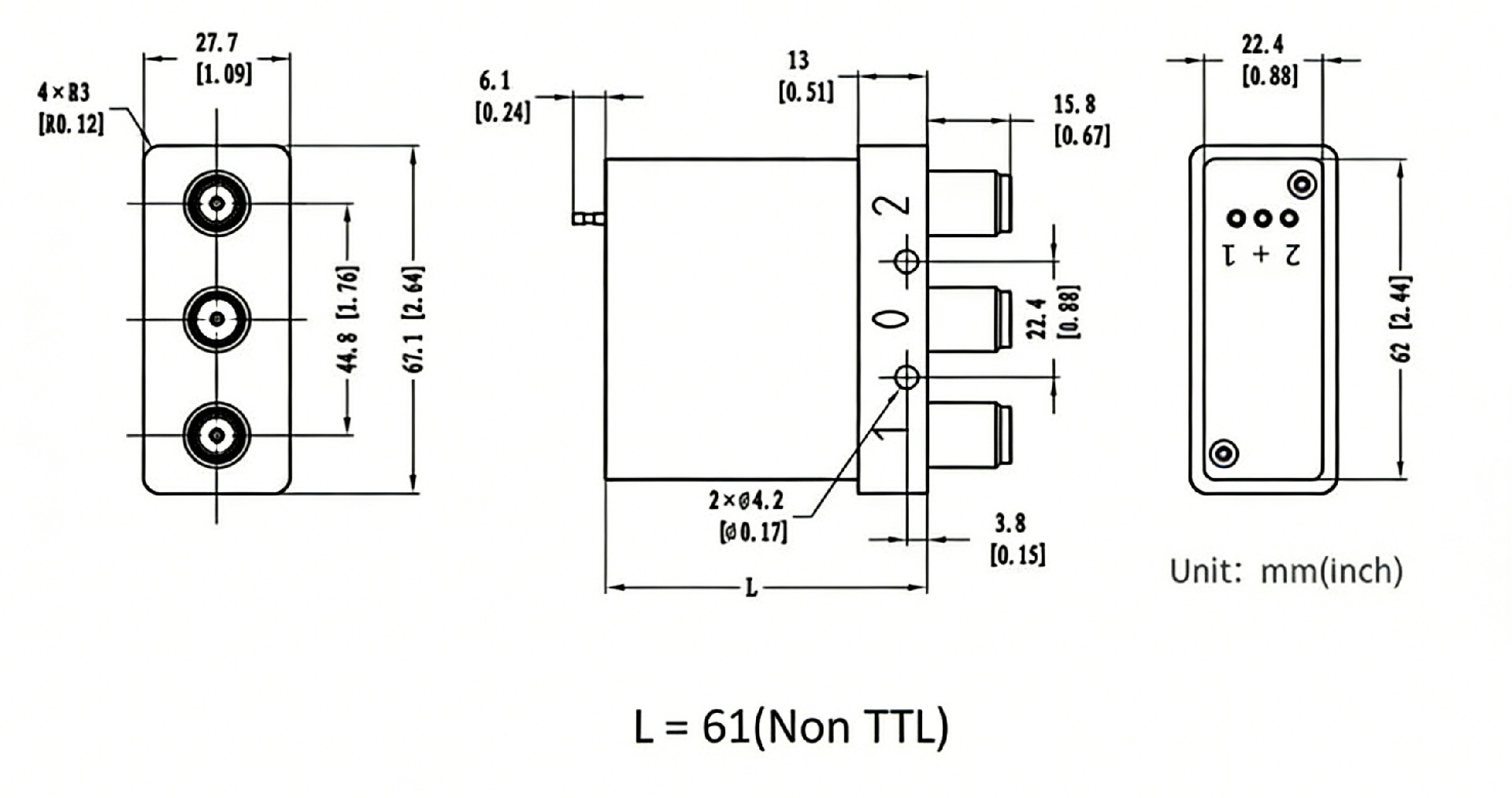

Dimensions (Unit: mm / Inch)
Dimension Description | Value (mm) / (Inch) |
Radius | R0.12 |
Thickness | 11t |
Length 1 | 44.8 / 1.76 |
Length 2 | 67.1 / 2.64 |
Hole Dimension (2x) | 4.2, R0.17 |
Length 3 | 22.4 / 0.88 |
Length 4 (Non TTL) | L = 61 |
Length 5 | 62 / 2.44 |
Product Details
Name:
Operating Frequency:
Operating Voltage:
Connector Type:
lsolation:
Ins. Loss:
VSWR:
Application:
