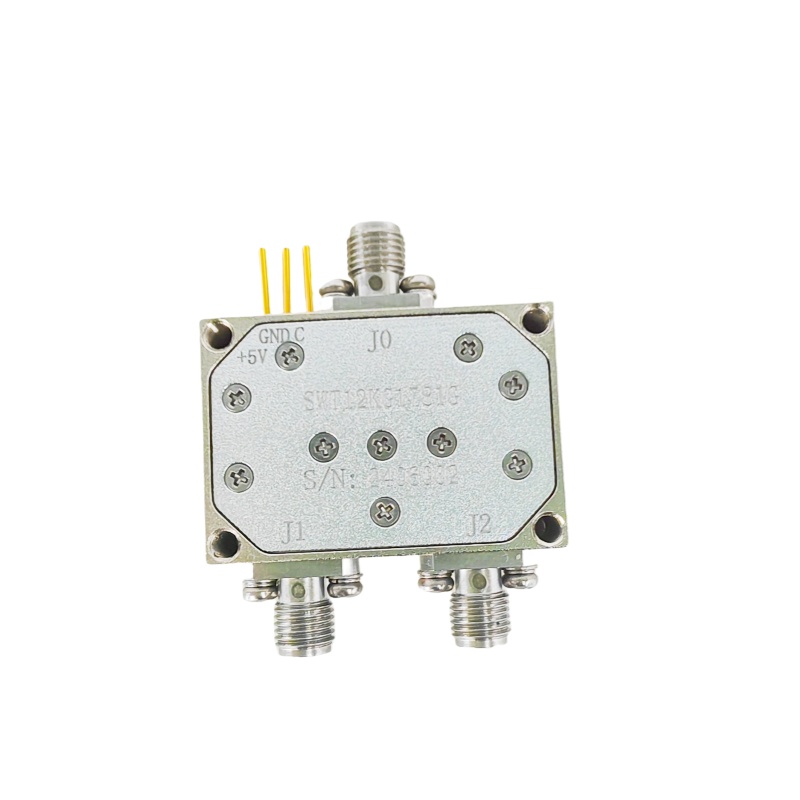

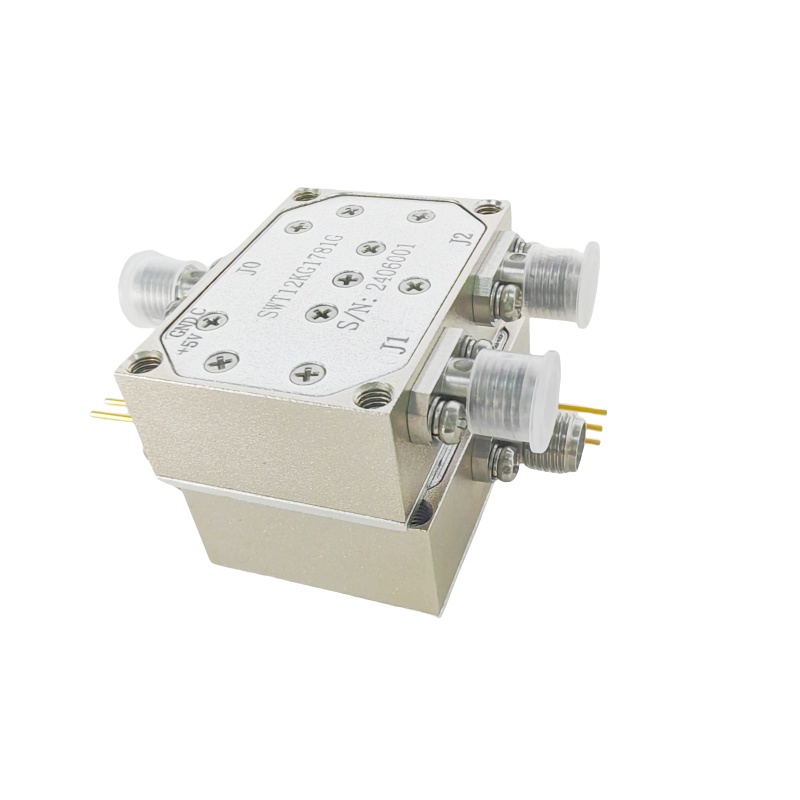

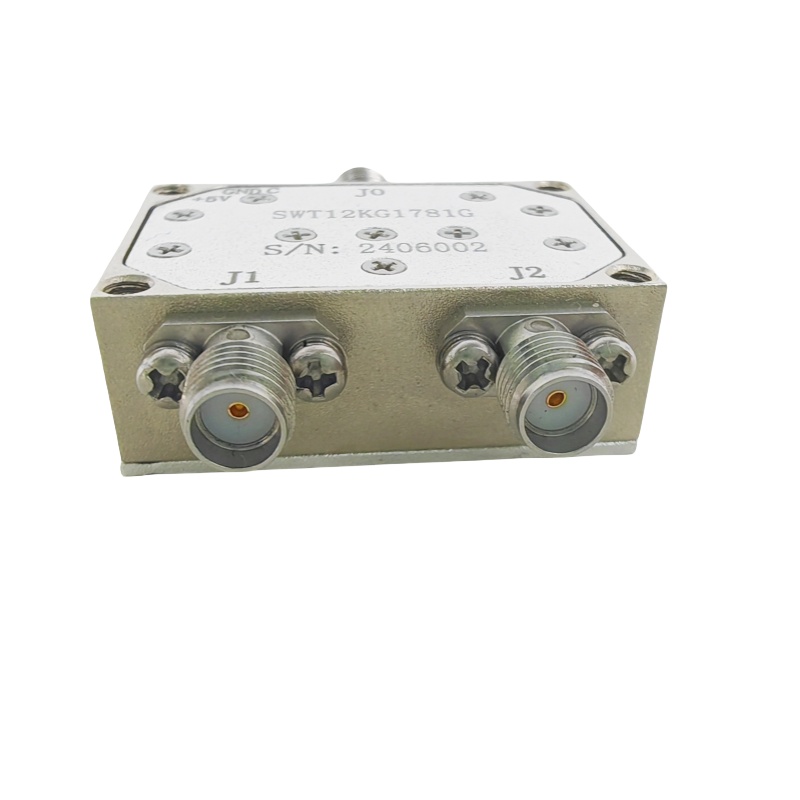

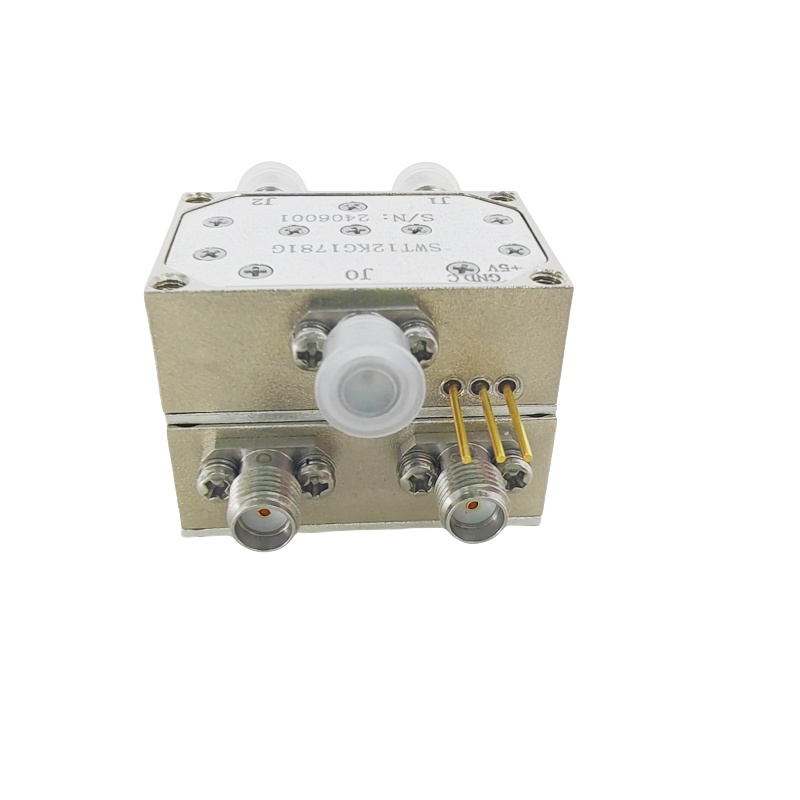

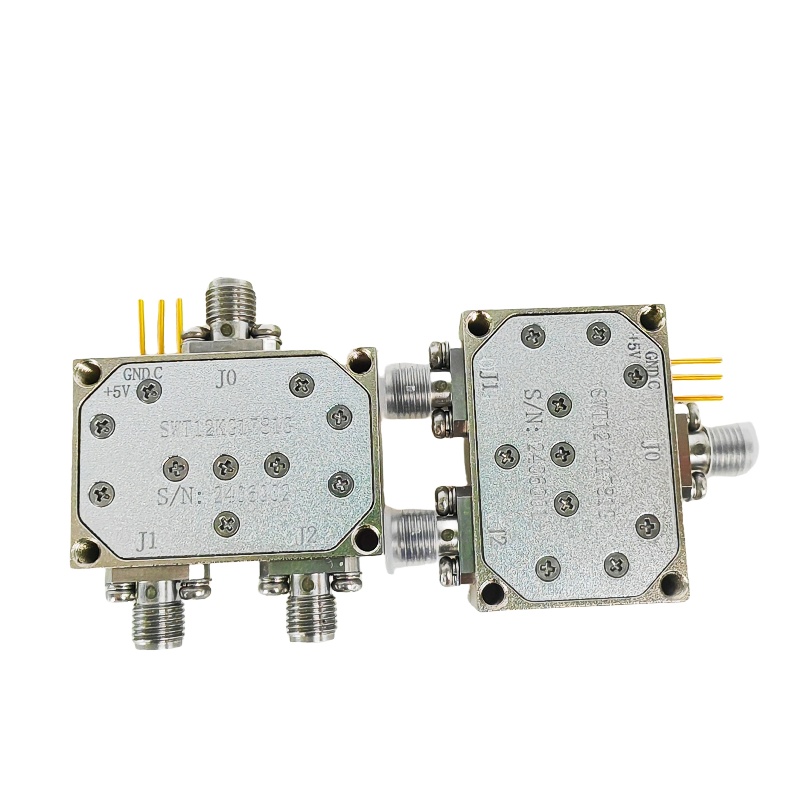

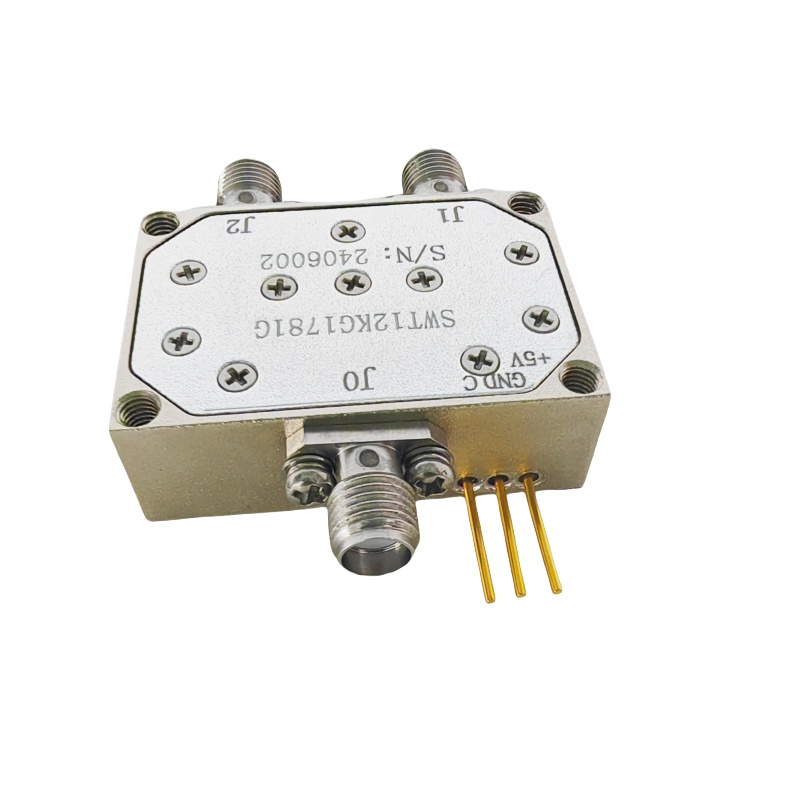

Compact Design 1~2.5GHz or 2.5~6GHz Double-Throw Switches for RF Test and Signal Routing in Communication Systems
Place of Origin：China
Brand Name：SWT
Model Number：SWT12KG1781G
Price：
Product Description
Compact Design 1~2.5GHz or 2.5~6GHz Double-Throw Switches for RF Test and Signal Routing in Communication Systems
1. Technical indicators
Serial number | Item | Specification |
1-1 | Product Type | Reflective high power single-pole, double-throw switches |
1-2 | operating frequency | 1～2.5GHz/2.5～6GHz |
1-3 | Isolation | ≥70dB/ |
1-4 | insertion loss | ≤1.2dB/2dB |
1-5 | port standing wave | ≤1.6 |
1-6 | Port Impedance | 50Ω |
1-7 | Maximum Input Power | ≥55dBm |
1-8 | switching time | ≤5μs |
1-9 | RF interface | SMA-50K |
1-10 | control interface | Φ0.8mm glass insulator |
1-11 | control method | TTL level (0V low level is indicated by "0", 3.3V-5V high level is indicated by "1") |
1-12 | Power supply | +5V/DC (current ≤ 500mA) |
2. Environmental conditions
Serial number | Item | Specification |
2-1 | operating temperature | -40℃～+70℃ |
2-2 | Storage temperature | -55℃～+85℃ |
3. control logic
Serial number | C | conduction state |
3-1 | 0 | J0→J1 Conductivity |
1 | J0→J2 Conductivity |
4. External structure
Serial number | Item | Specification |
4-1 | Overall dimensions | See Figure 4-1, unit: mm |
Figure 4-1 Note: Unnote tolerance according to ± 0.1mm
| ||
4-2 | makings | Aluminium 6061 |
4-3 | surface treatment | nickel-plated |
Product Details
Name:
Reflective high power single-pole, double-throw switches
Operating Frequency:
1～2.5GHz/2.5～6GHz
Operating Voltage:
+5V/DC
Connector Type:
SMA-50K
lsolation:
≥70dB
Ins. Loss:
≤1.6
VSWR:
Application:
High-Frequency Communication and Microwave System
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
