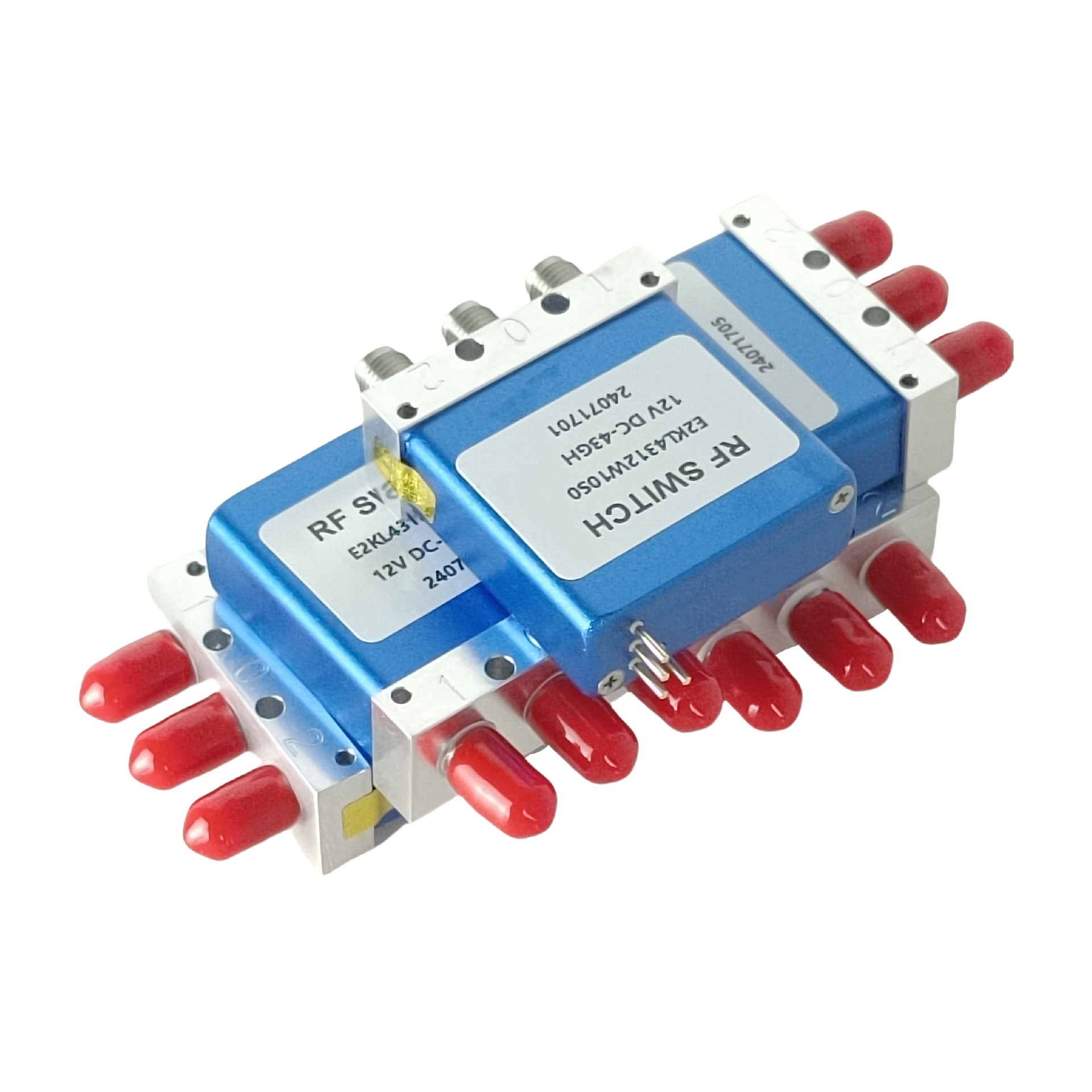

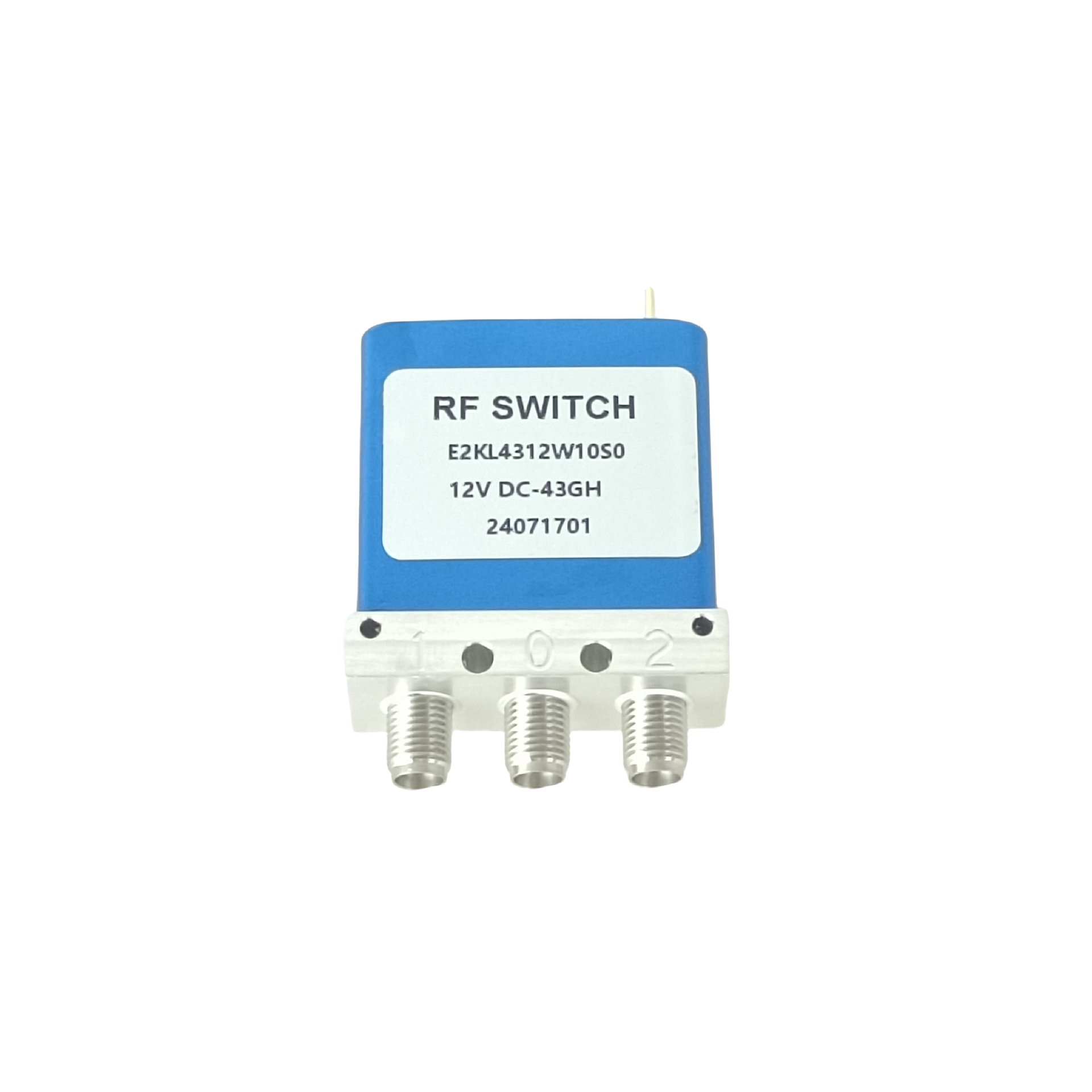

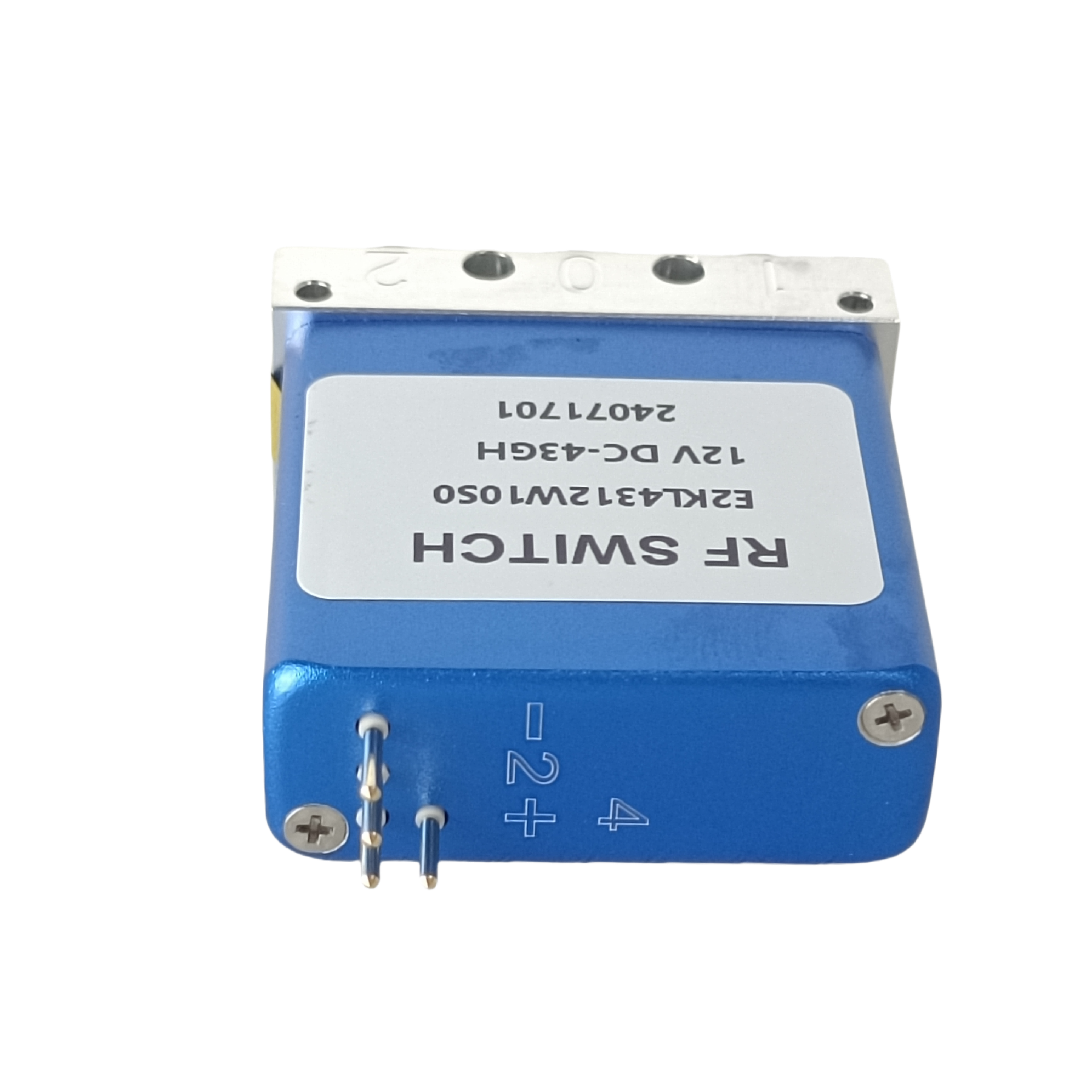

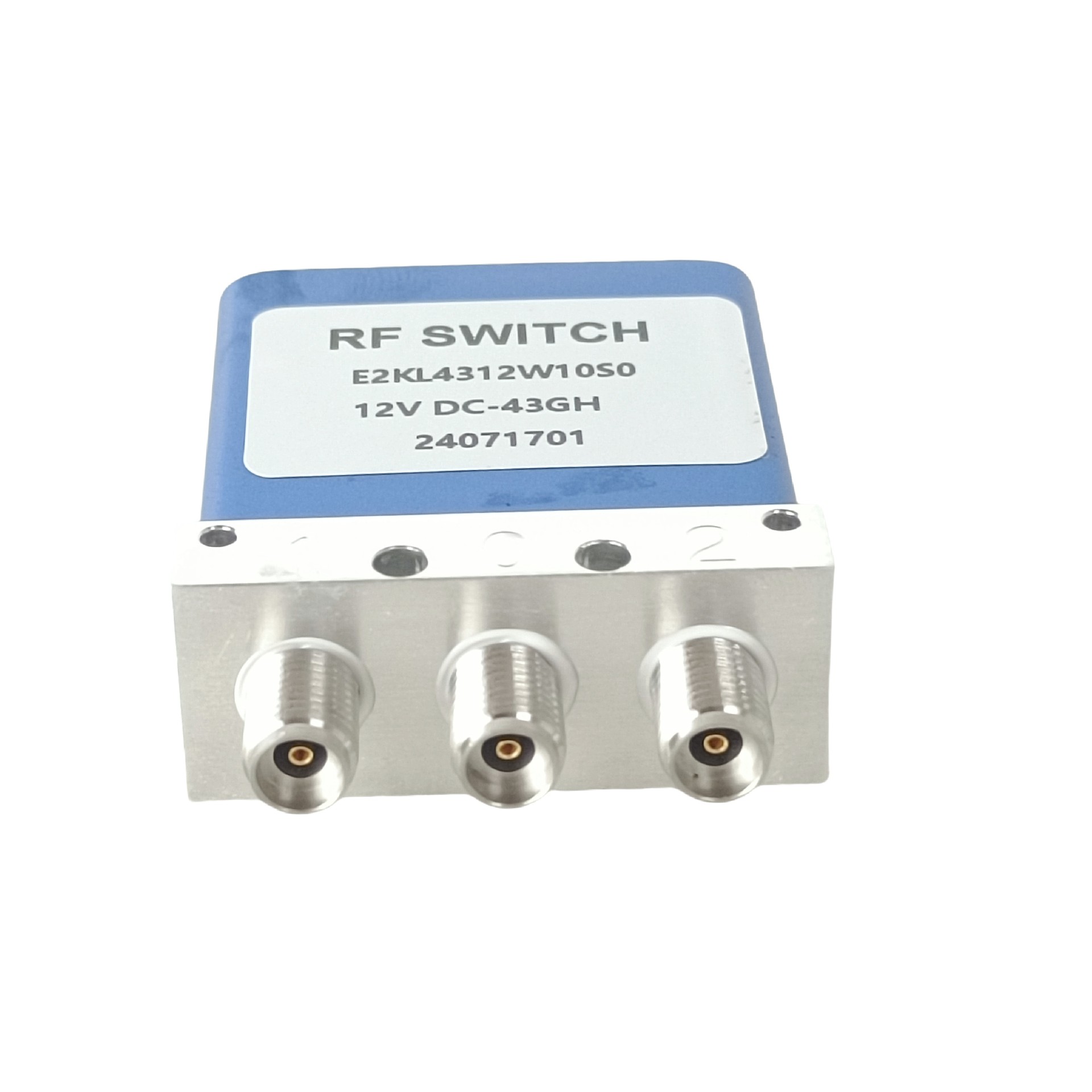

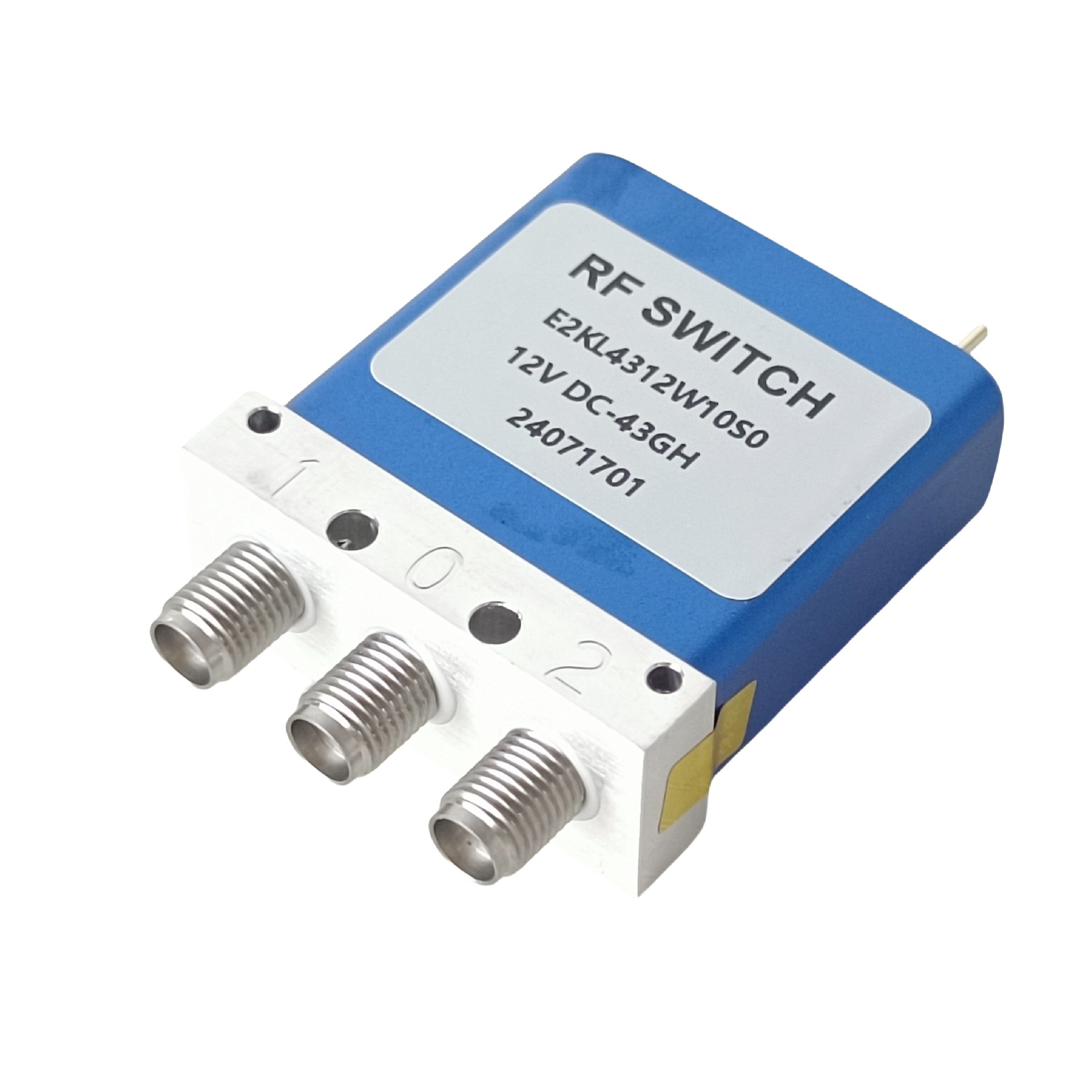

High Isolation DC to 43.5 GHz Coaxial Switch, 2.92 Connector, Ttl Drive Control Mechanical Microwave Switch for Test Equipment
Place of Origin：China
Brand Name：SWT
Model Number：E2KL4312W10S0
Price：
Product Description
High Isolation DC to 43.5 GHz Coaxial Switch, 2.92 Connector, Ttl Drive Control Mechanical Microwave Switch for Test Equipment
RF Characteristics
| Frequency (GHz) | Ins.loss (dB) | Isolation (dB) | VSWR | RF Power CW (W) |
| DC-6 | 0.2 | 70 | 1.2 | 40 |
| 6-12 | 0.3 | 70 | 1.3 | 30 |
| 12-18 | 0.4 | 60 | 1.4 | 25 |
| 18-26.5 | 0.6 | 55 | 1.6 | 12 |
| 26.5-32 | 0.7 | 50 | 1.7 | 8 |
| 32-40 | 0.8 | 50 | 1.8 | 5 |
| 40-43.5 | 0.8 | 50 | 1.8 | 4 |
Operating Voltage/Coil Current
| Operating Voltage(V) | 12 | 24 | 28 | |
| Coil Current (mA) | Failsafe | 195 | 100 | 95 |
| Latching | 230 | 140 | 120 | |
*It can be selected according to user requirements

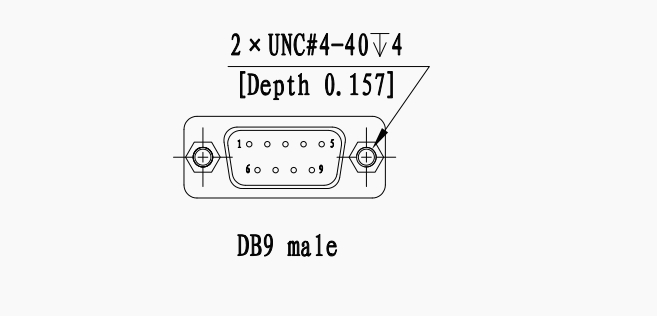

| TTL | TTL Low(V) | TTL High | |
| 0-0.3 | 3~5V | 20mA | |
| Indicators | Withstand Voltage V (max) | Currentcapacity mA(max) | Resistance Ω (max) |
| 50 | 100 | 15 |
* Connect VDC &GND before the function operates

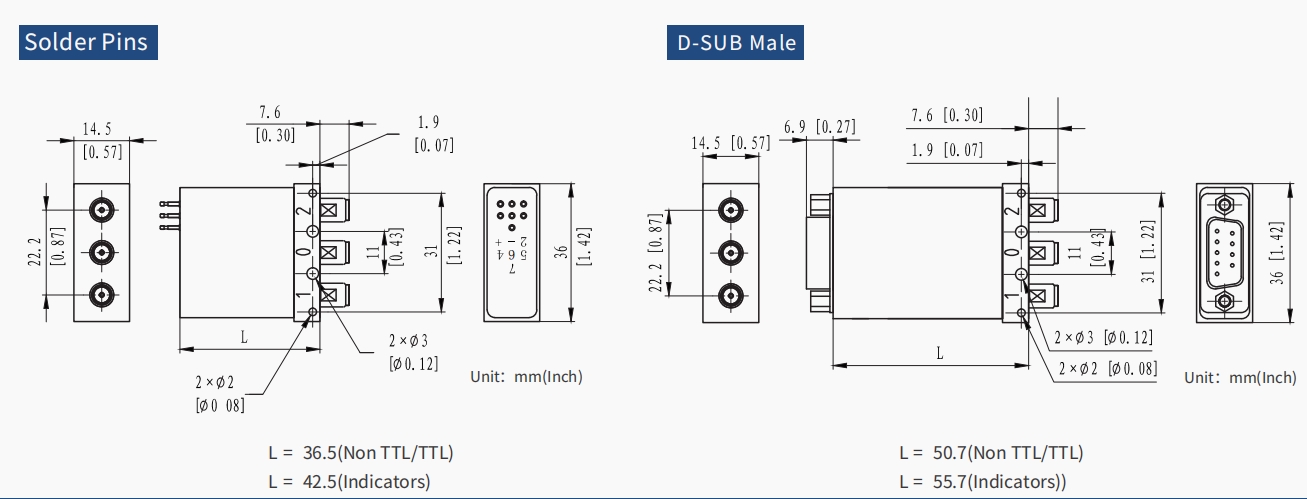

Product Details
Name:
Reflective high power single-pole, double-throw switches
Operating Frequency:
DC-43.5GHz
Operating Voltage:
24V/DC
Connector Type:
SMA
lsolation:
50dB
Ins. Loss:
0.8dB
VSWR:
1.8
Application:
High-Frequency Communication and Microwave System
