DC-12.4GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch

Place of Origin：China

Brand Name：SWT

Model Number：SWT-DT628-1S09-12.4G

Price：

Product Description

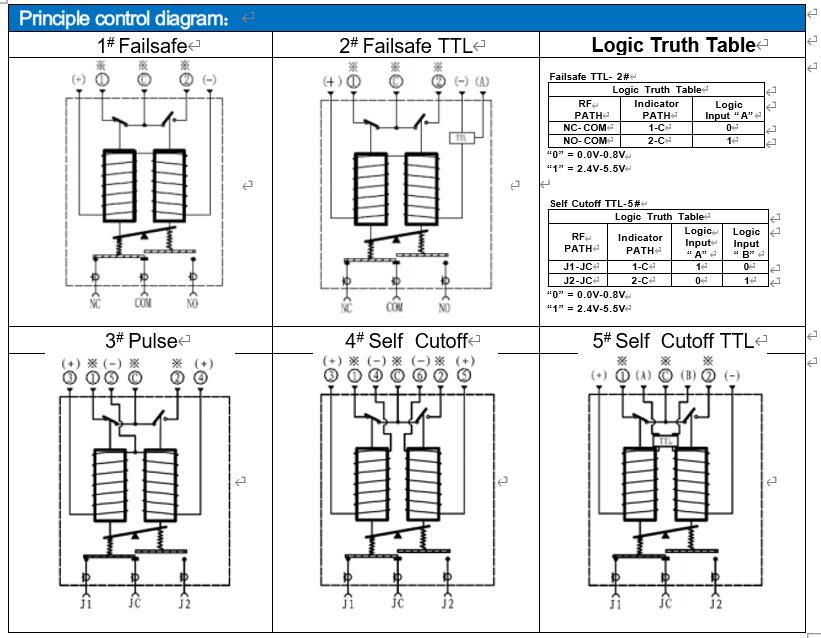

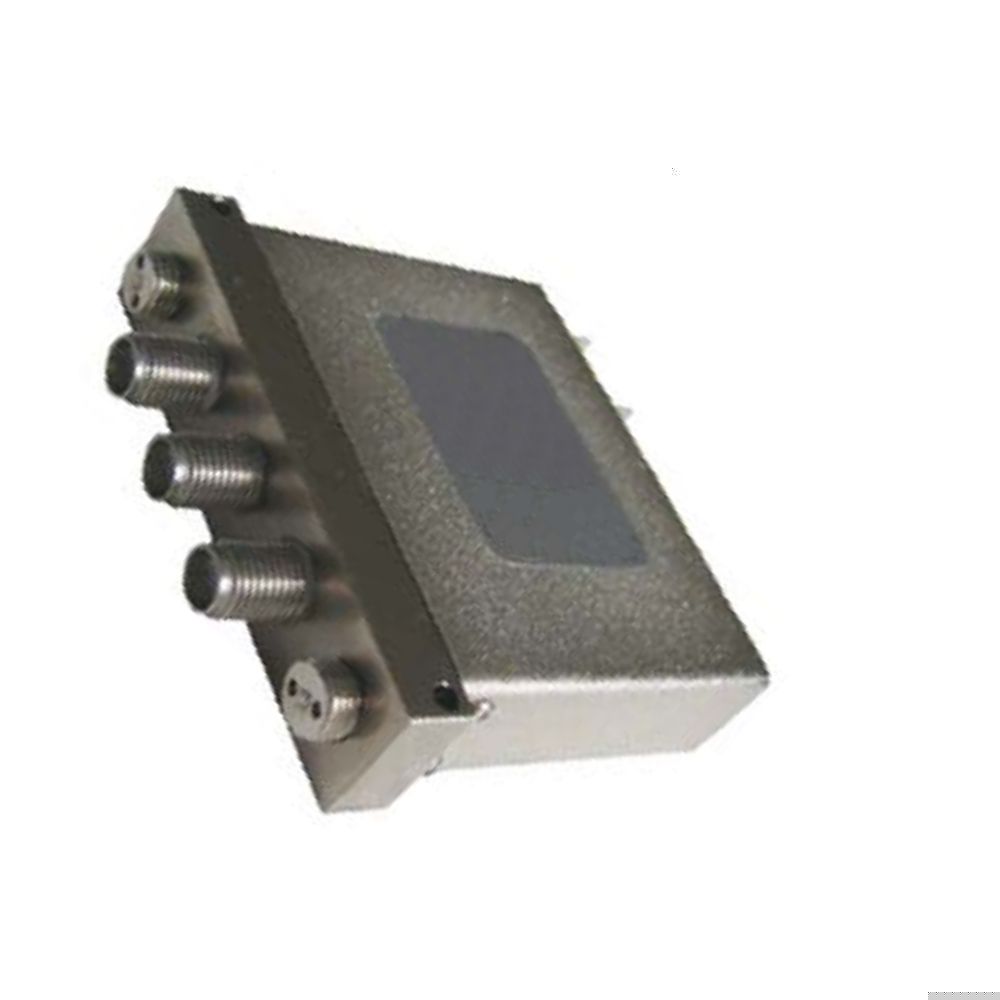

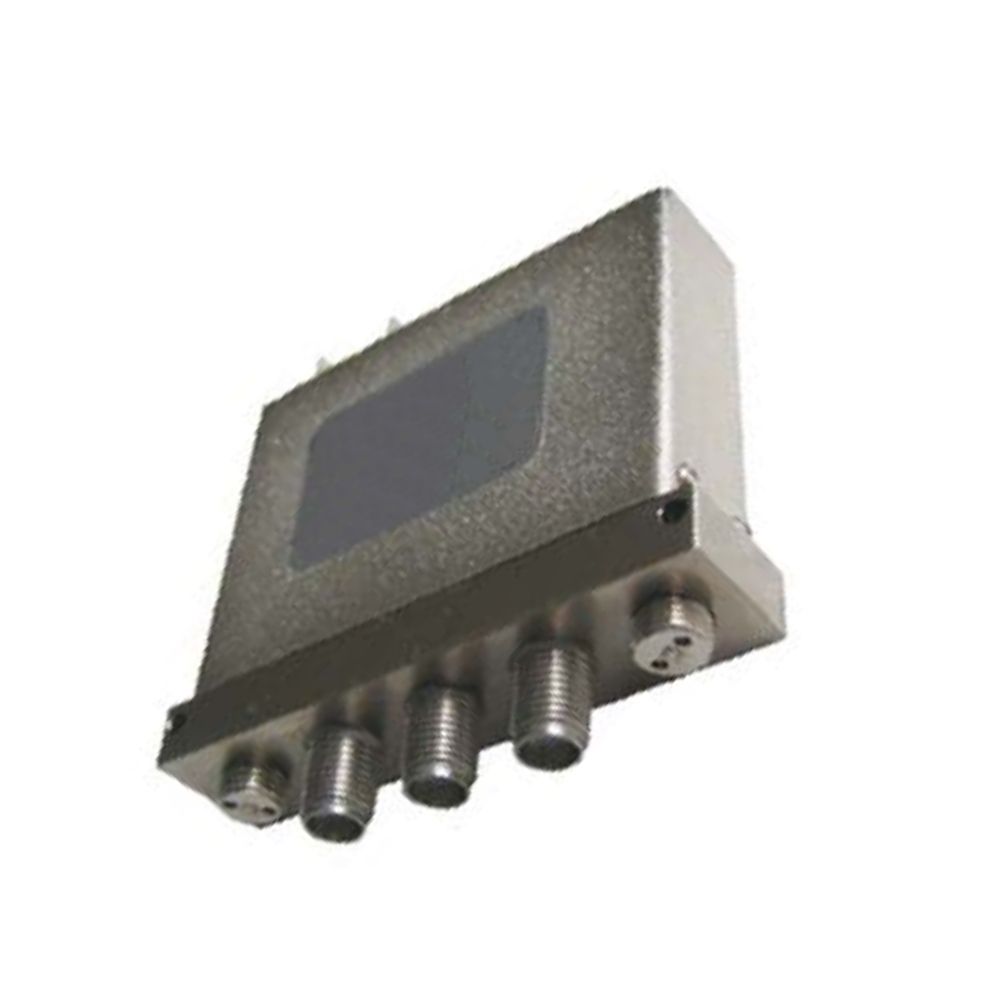

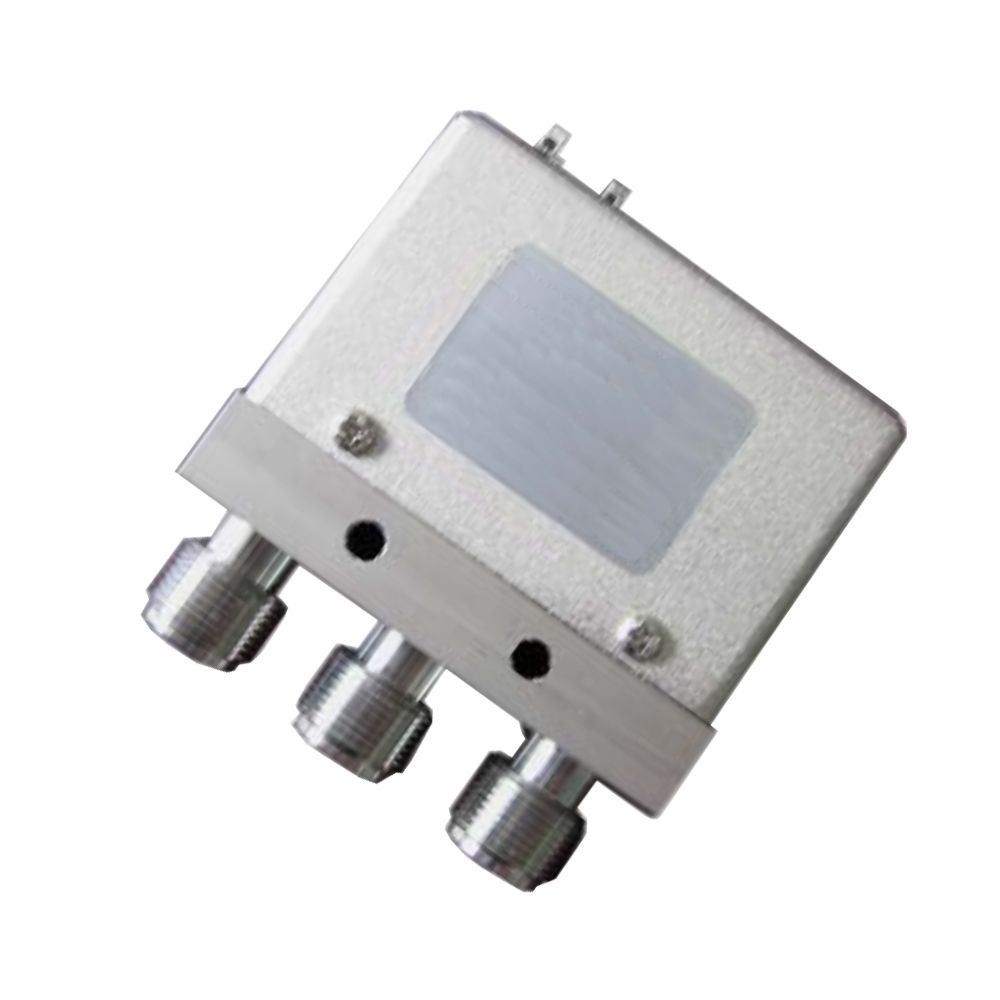

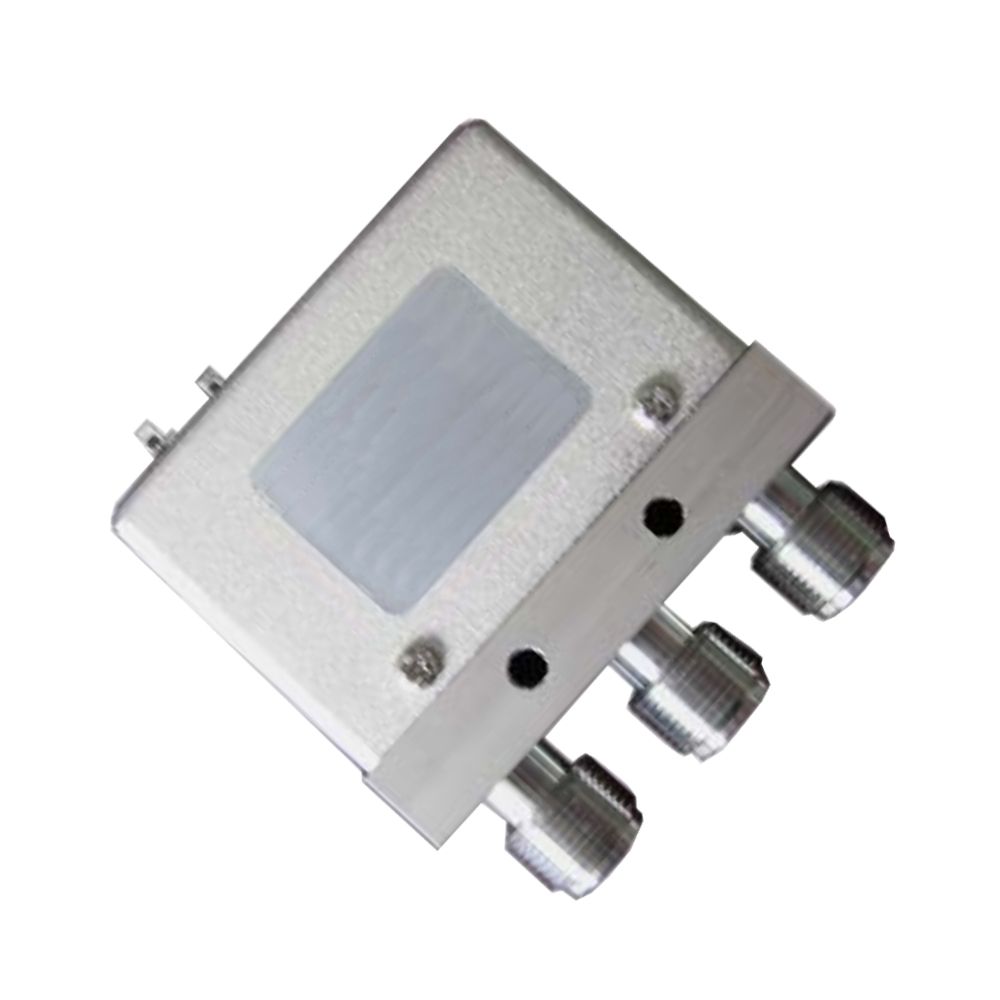

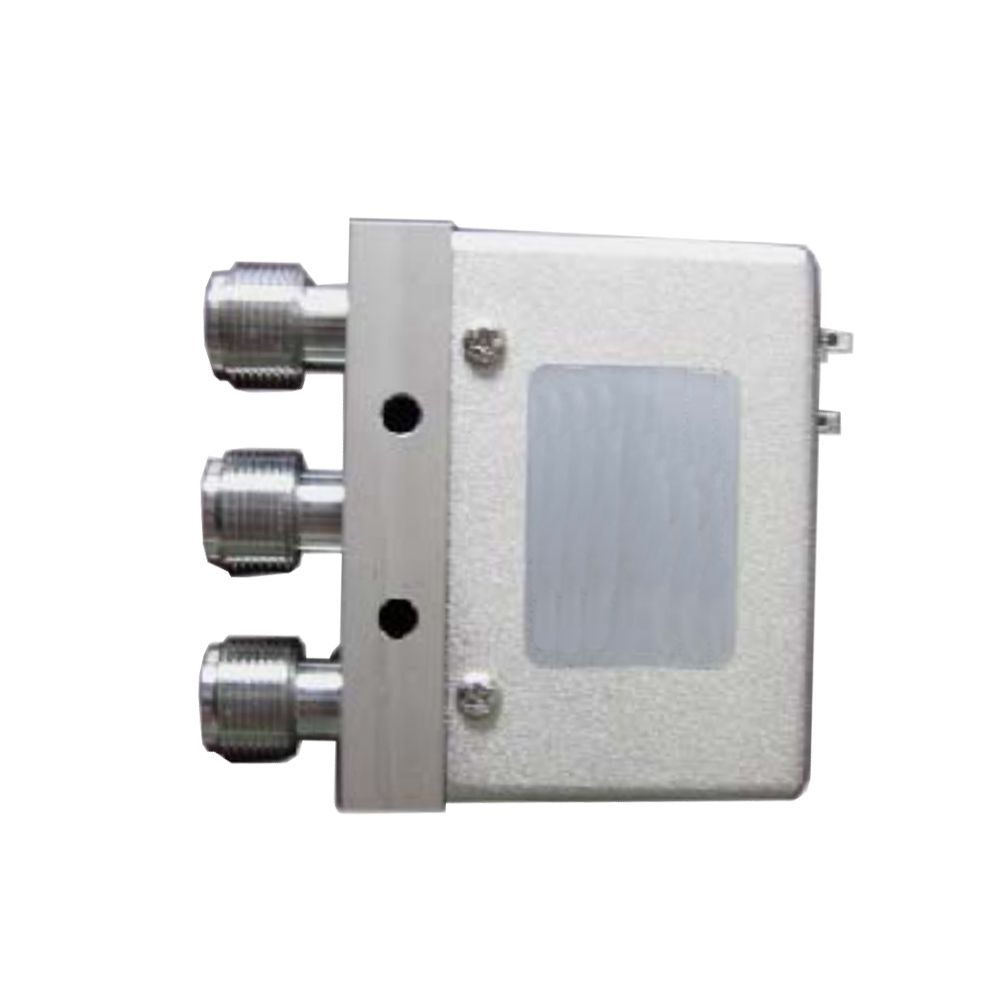

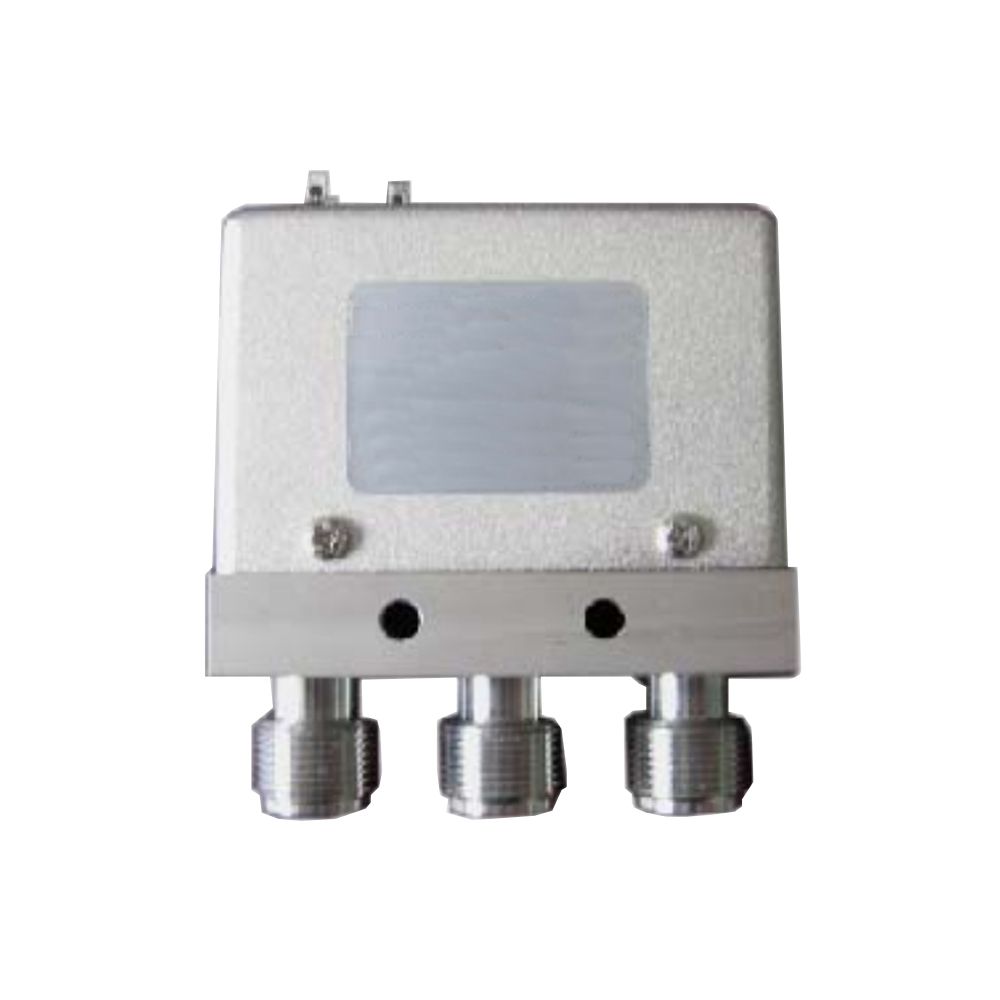

DC-12.4GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch

Coaxial switches could be controlled by voltage or computer programmable and are used in switching over in microwave circuit. According to the amount of output ports they include SPDT-SP8T, 2PDT, 2P3T and Transfer etc.
SWT-801 serial coaxial switches' frequency range DC-26.5GHz and the features include low Insertion Loss,low VSWR and excellent wide-band performance.

RF Characteristics

Frequency range GHz	VSWR MAX	Isolation, Min dB	Insertion loss Max dB
DC- 1	1.15	85	0.15
1-2	1.20	80	0.20
2-4	1.25	70	0.25
4-8	1.35	60	0.40
8- 12.4	1.50	60	0.50

Electrical performance:

Control voltage	28 Vd.c. ±2 Vd.c.
Current	135 mA @ 20ºC
Switchover	20 ms
Service life	1 Million times
Operating temperature	-25ºC~ +85ºC -55ºC~ +85ºC
Vibrate	10 g rms 20-2000Hz (Vibration, operation) 50 g ,1/2sine ,11ms (Mechanical shock, non-operational)
Weight	260 g
