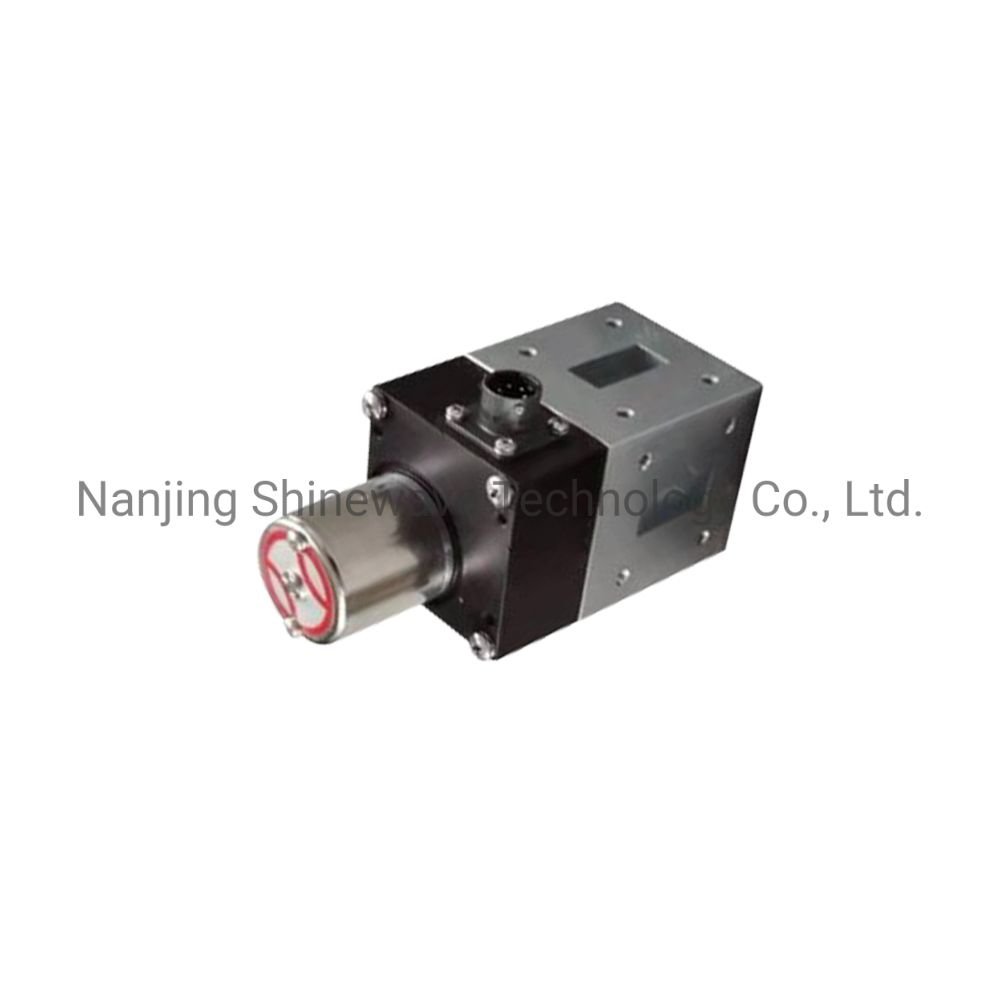

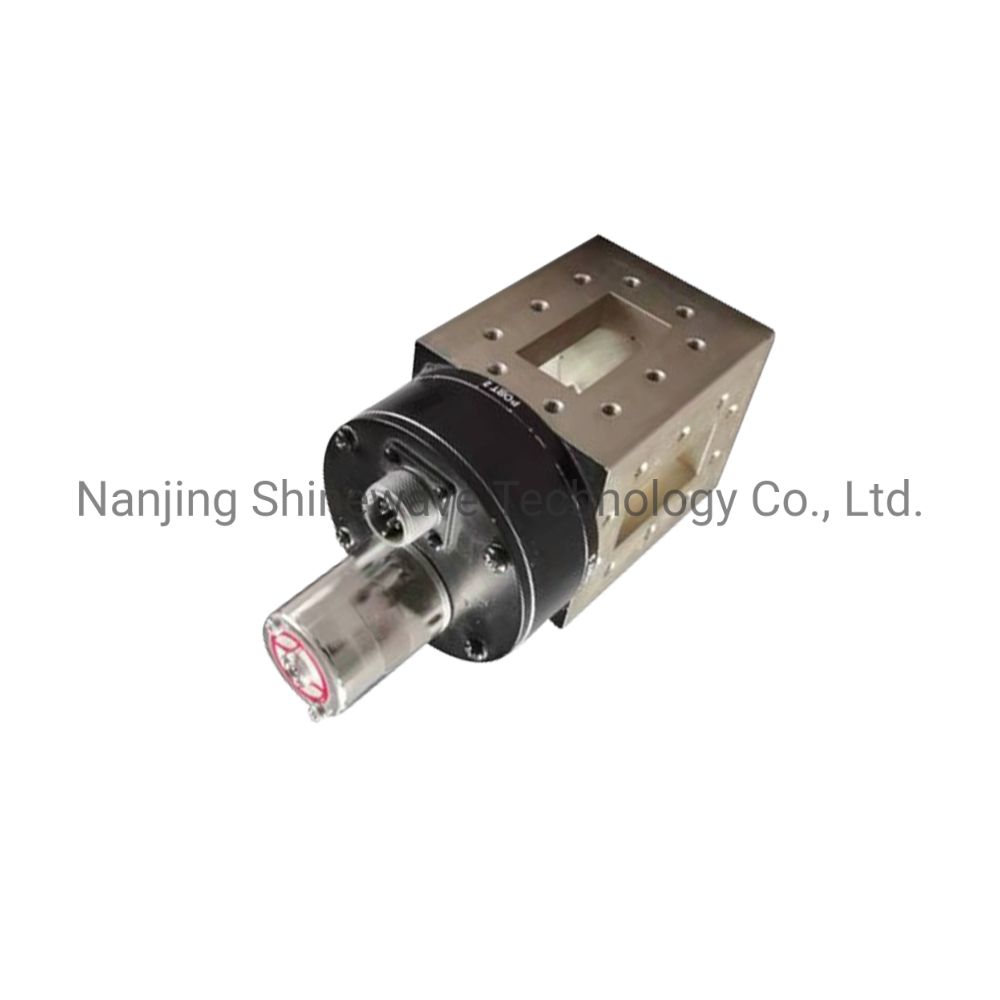

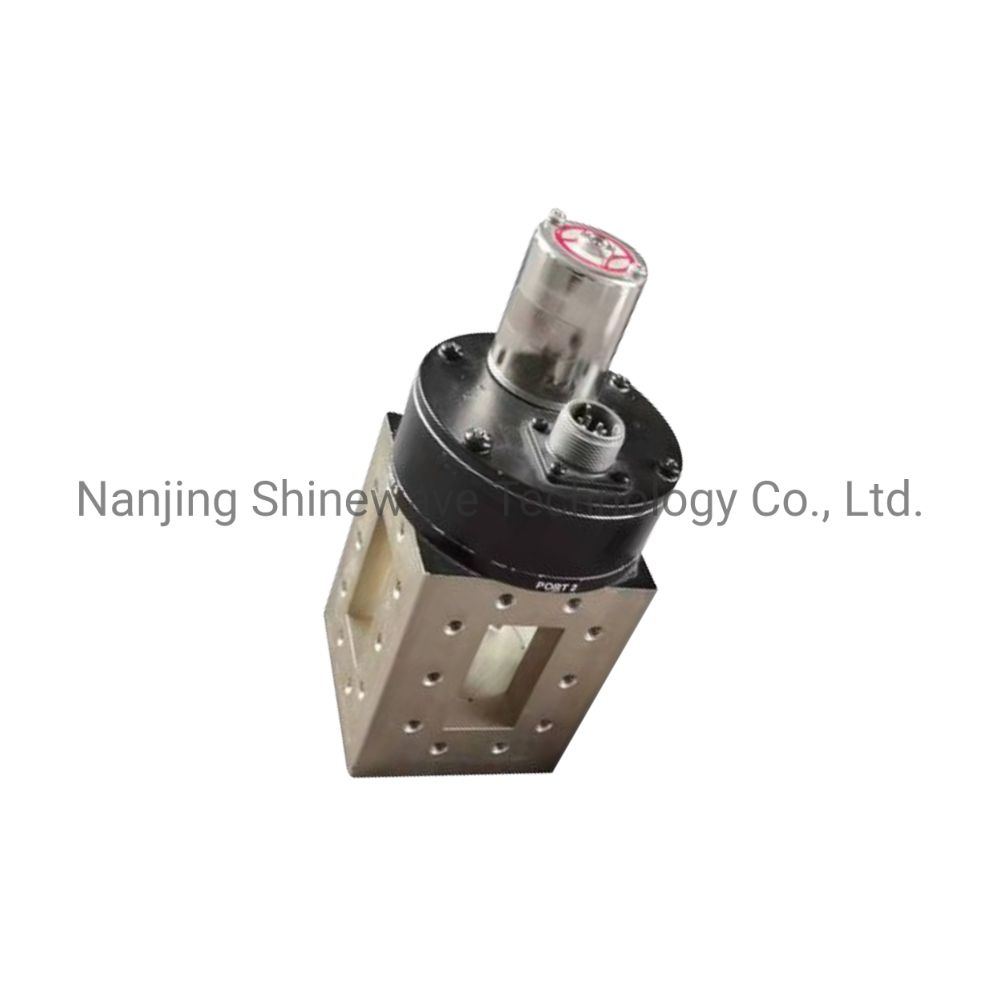

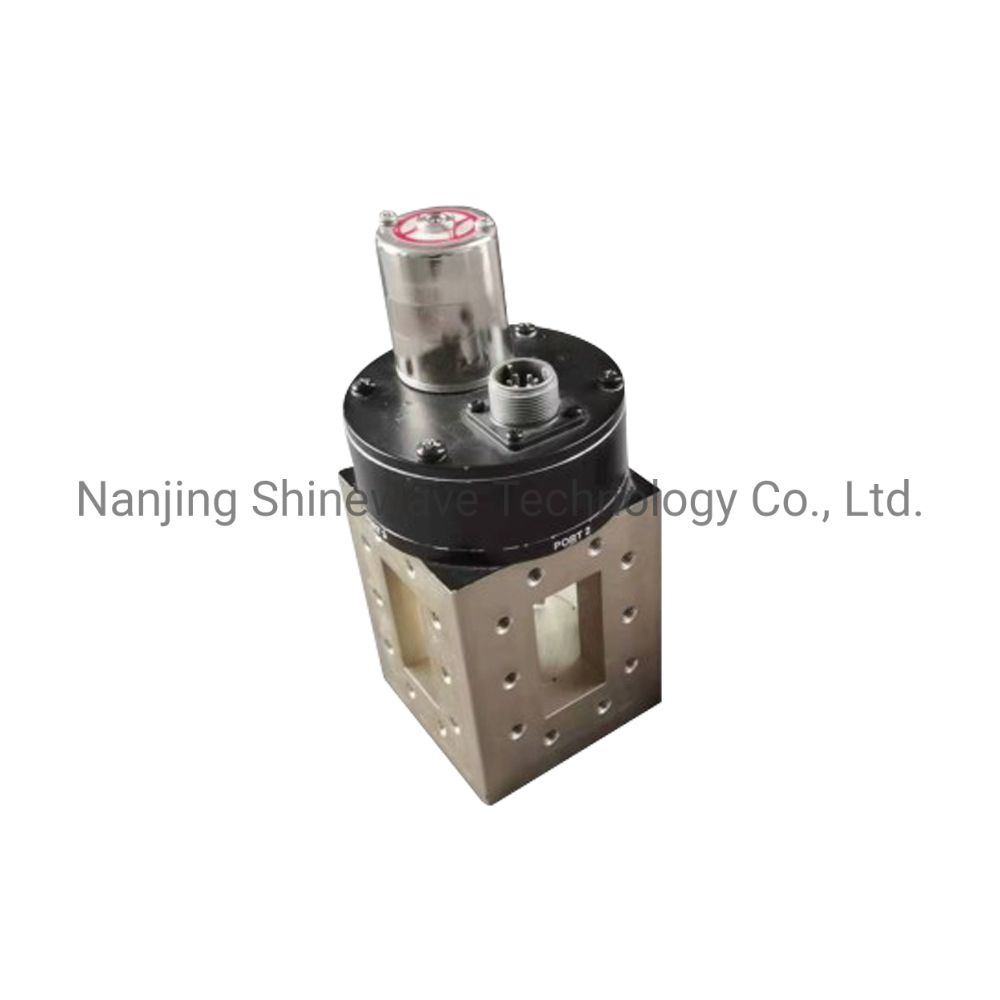

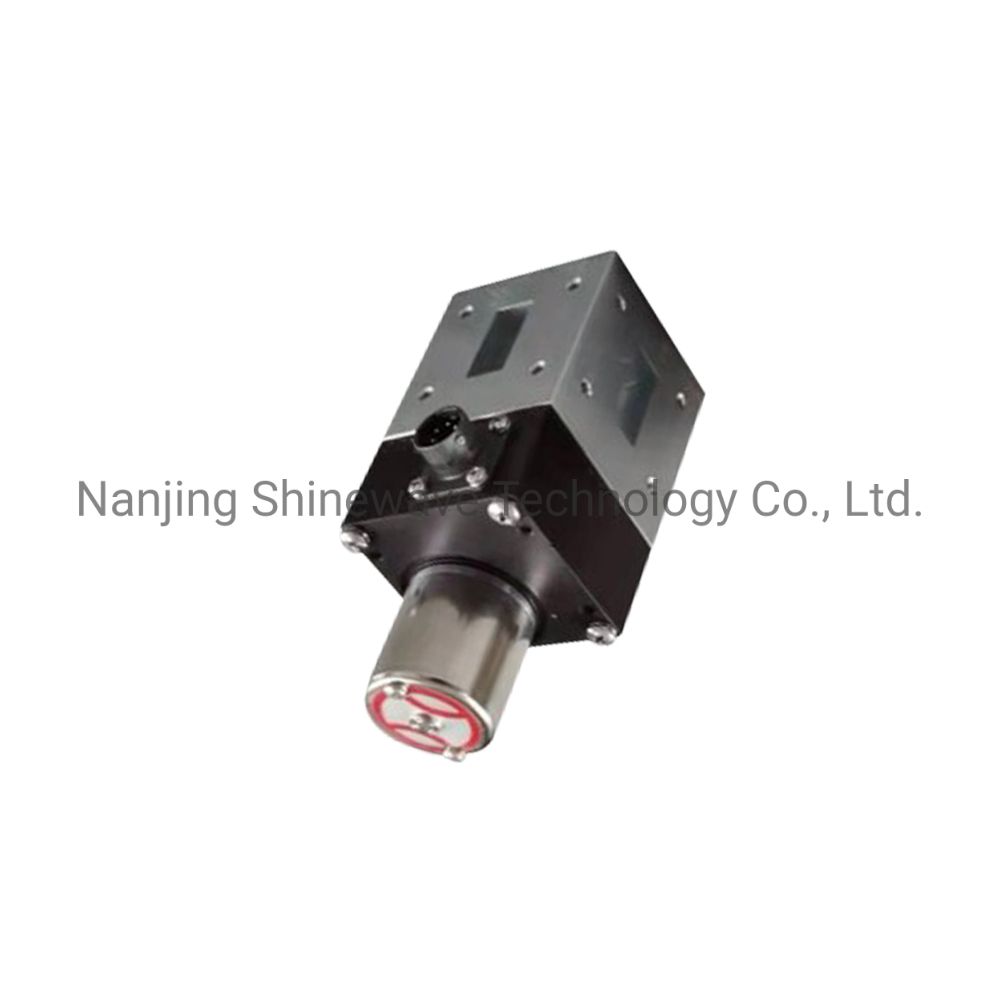

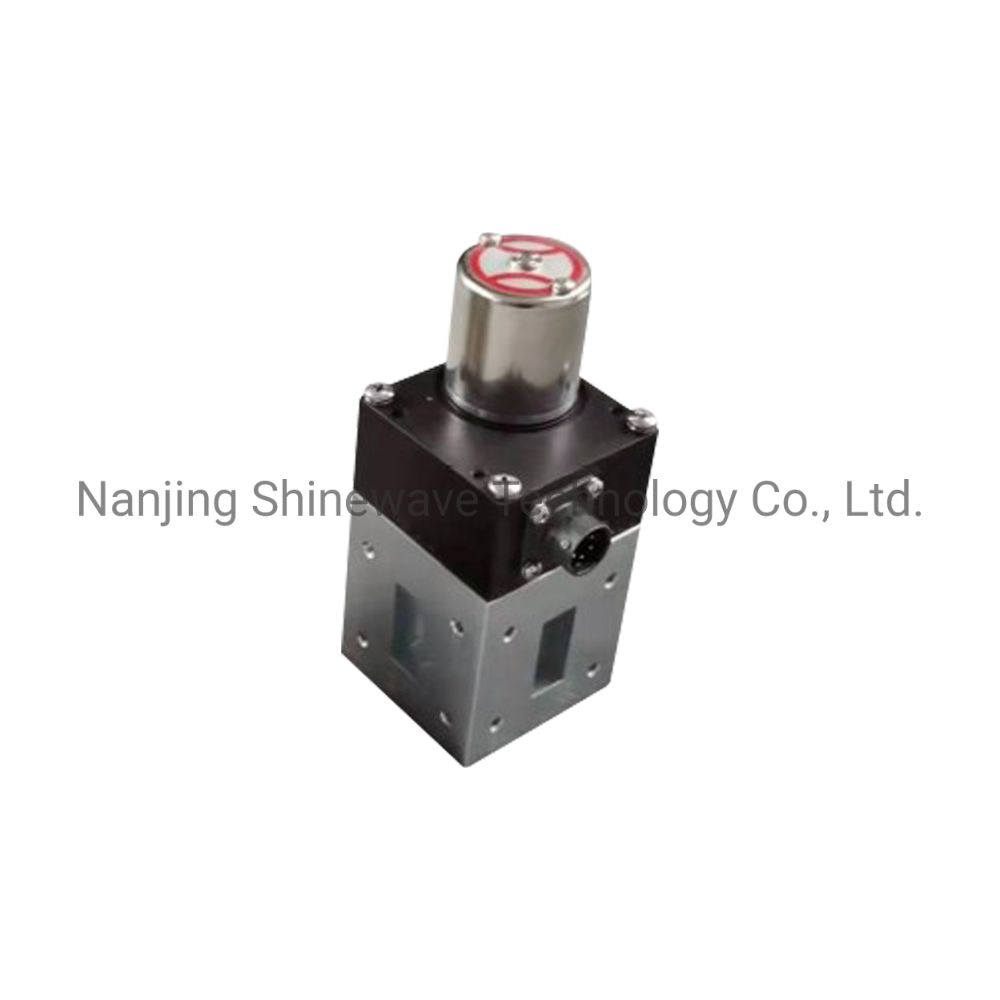

2.17GHz-40.0GHz Waveguide Switch Used to Change Signal Path in Waveguide Transmission System

Waveguide switches are often used to change signal paths in waveguide transmission systems. Waveguide size from WR340-WR28, very low insertion loss and standing wave ratio, high power. The model covers c, x, ku, k and ka frequency bands up to 40GHz; The power processing capacity is as high as 12 kW CW and 320 kW Peak; The waveguide switch is configured with SPDT and optional DPDT. The isolation between ports is high, TTL control standard is accurately positioned, and the flange conforms to IEC and EIA standards. The basic materials are aluminum (6061), brass, oxygen-free hard copper or copper alloy, and the surface treatment includes silver plating, gold plating, shackles plating, passivation, conductive oxidation and other treatment methods. The overall dimension, flange, material, surface treatment and electrical and gas index requirements of the waveguide can be customized according to the user's requirements.
