DC-12GHz 50W Power Swt615-2*8 Switch Control Box for Microwave, Switch and Control
Place of Origin：China
Brand Name：SWT
Model Number：SWT-Kg26g75ap
Price：
Product Description

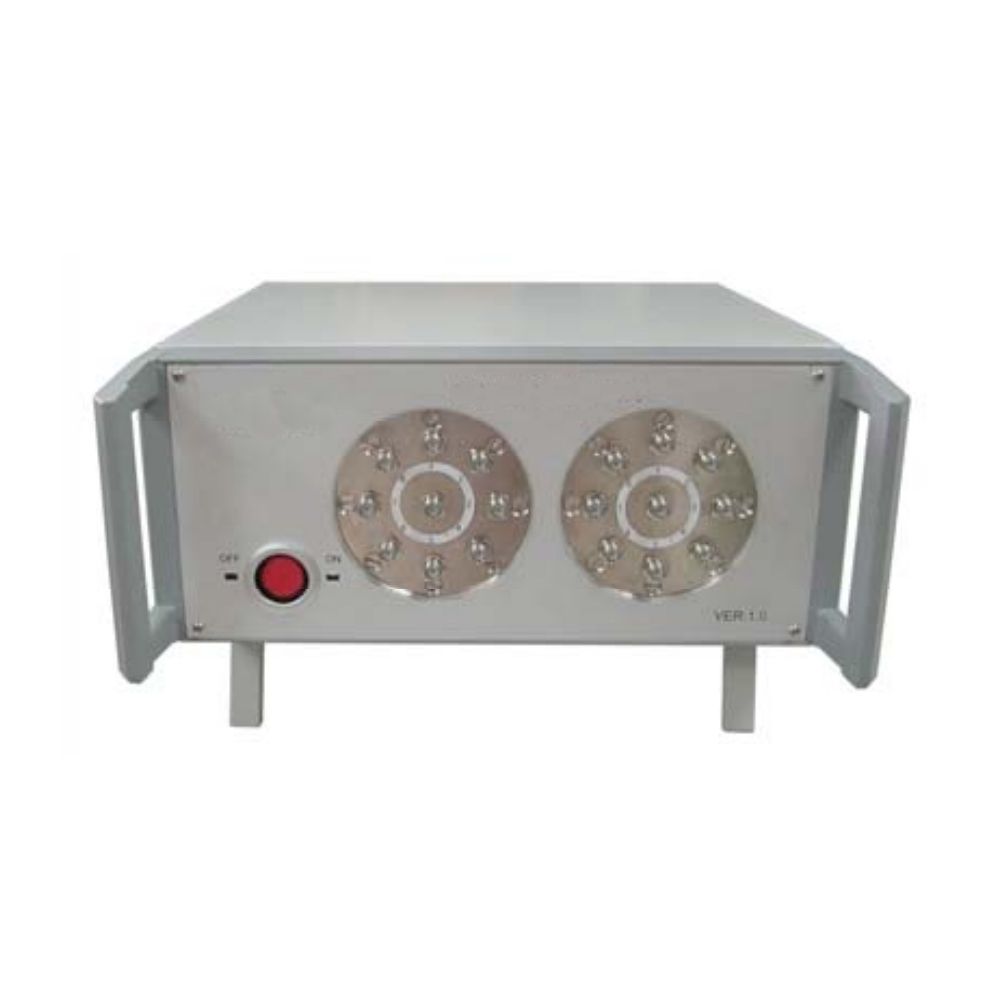

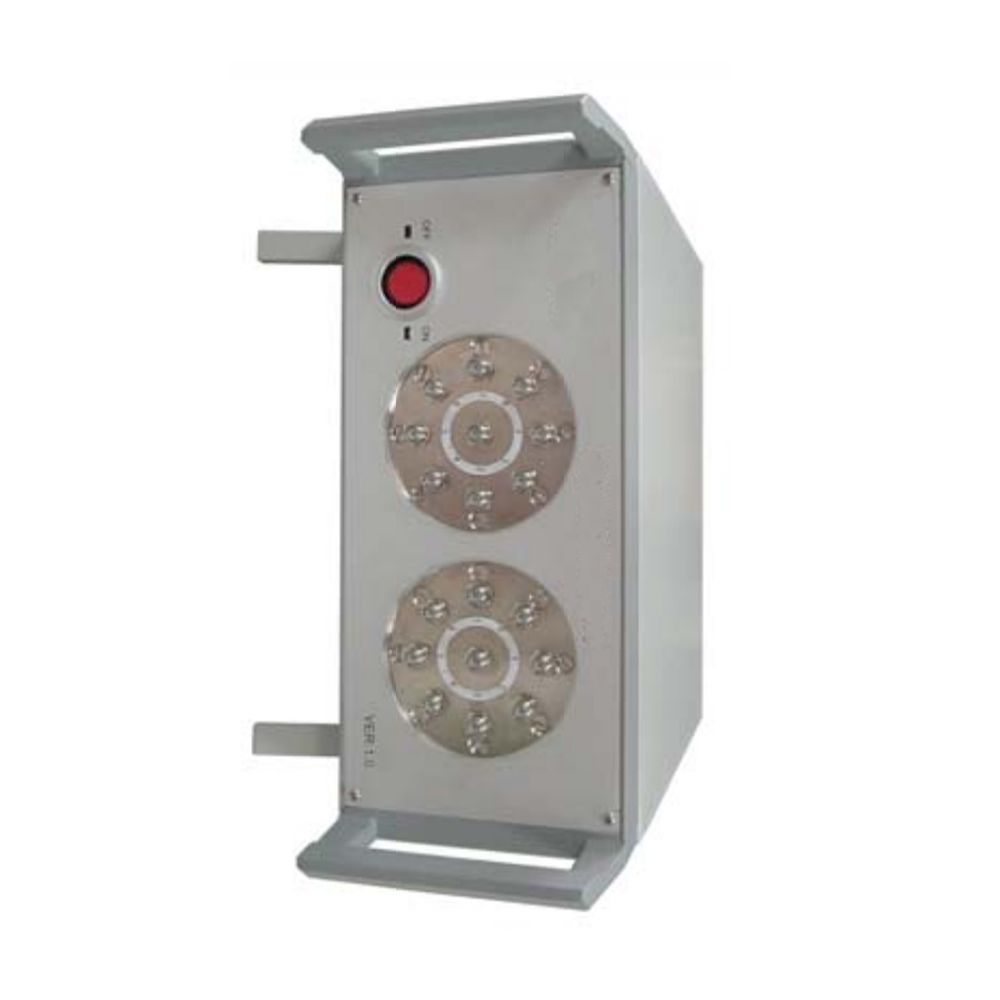

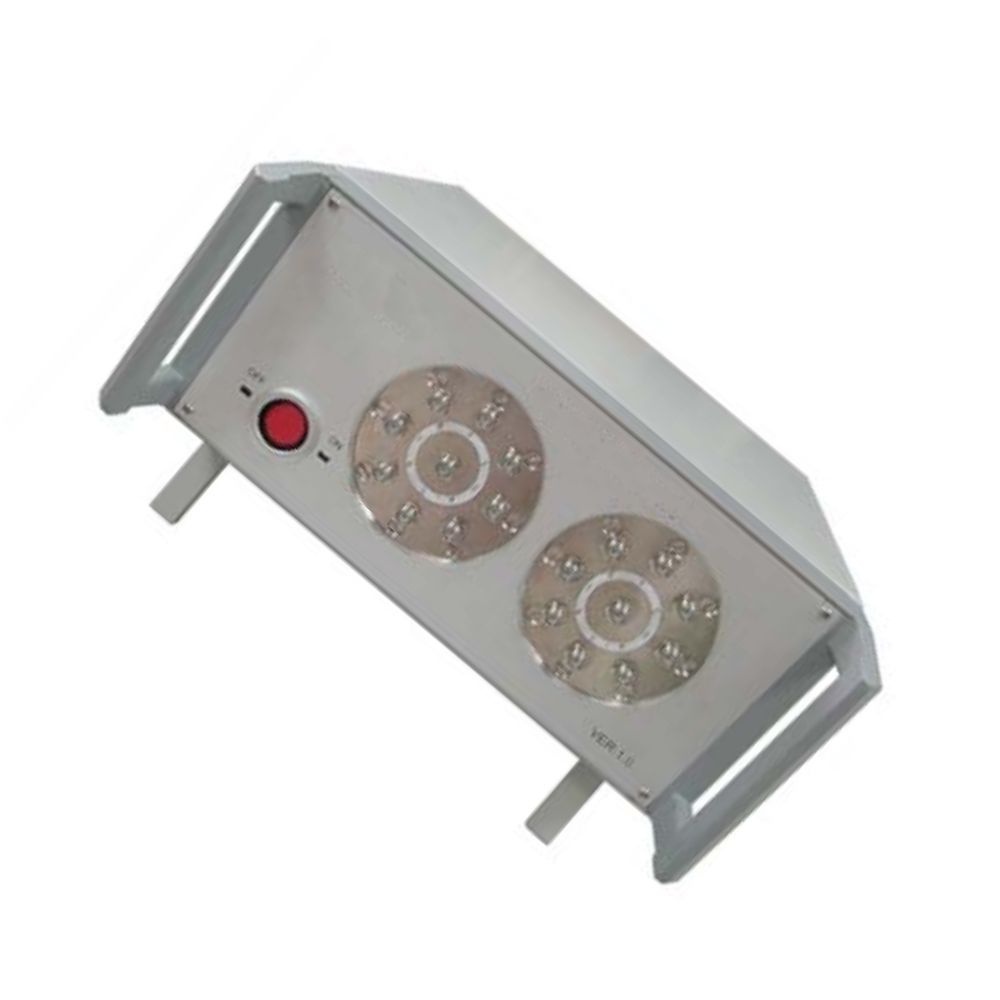

DC-12GHz 50W power SWT615-2*8 Switch Control Box for Microwave,Switch and Control
SWT615-2*8 switch control boxes' frequency range is DC~12GHz, feature is high precision, easy operation, high frequency, capability steady, expansibility better and etc. It has be applied widely in microwave, switch and control.
MECHANICAL SPECIFICATIONS
| Connectors | Stainless Steel |
| Female Pin | Beryllium Copper Gold Plated |
| Housing | Aluminum, Spray-Paint |
| Temp Range | -40° C ~ +85° C |

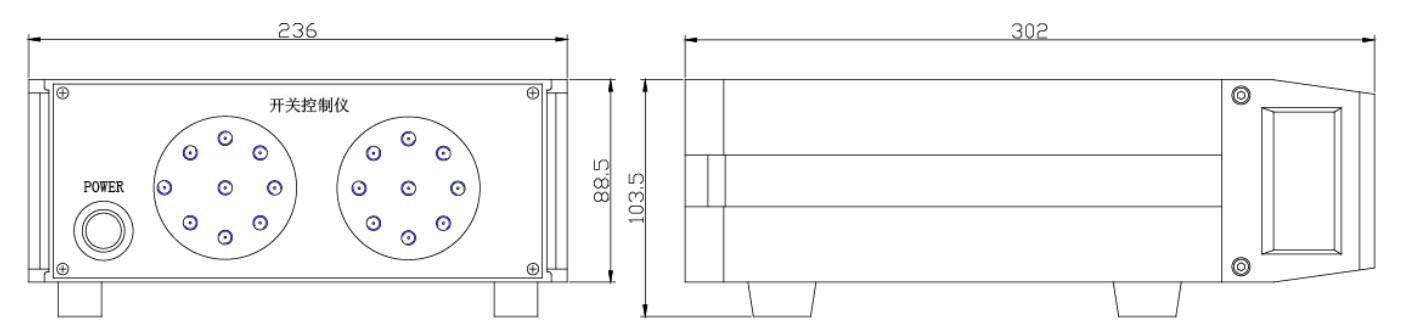

| Dimensions | 302×240×119mm |
| Weight | 2.5Kg |
RoHS Complient: Yes
ELECTRICAL SPECIFICATIONS
| Model Number | Frequency (GHz) | VSWR | Insertion Loss(dB) | Isolation (dB) | Switch Times(ms) | Operating Voltage(V) | Remote Control |
| SWT582-2×8 | DC-2 | 1.15 | 0.2 | >95 | <20 | AC220 | RS232 |
| 2-4 | 1.20 | 0.2 | >80 | ||||
| 4-8 | 1.30 | 0.3 | >70 | ||||
| 8-12 | 1.40 | 0.4 | >65 | ||||
| IMPEDANCE | 50Ω |
| MEACHICAL LIFES | 106 times |
| AVERAGE POWER | 50W average to 25°C ambient temperature, derated linearly to 25W @ 85°C |
| CONNECTOR TYPE | SMA(F) |
Notes:
1.Dimensions Tolerance ±2%. Custom designs available.
2.This switch is cold switch.
3.Program operation reference software manua.
Product Details
Name:
RF Switch
Operating Frequency:
DC-12GHz
Operating Voltage:
AC220
Connector Type:
SMA(F)
lsolation:
>65 dB
Ins. Loss:
≤0.4 dB
VSWR:
1.9
Application:
High-Frequency Communication and Microwave System
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
