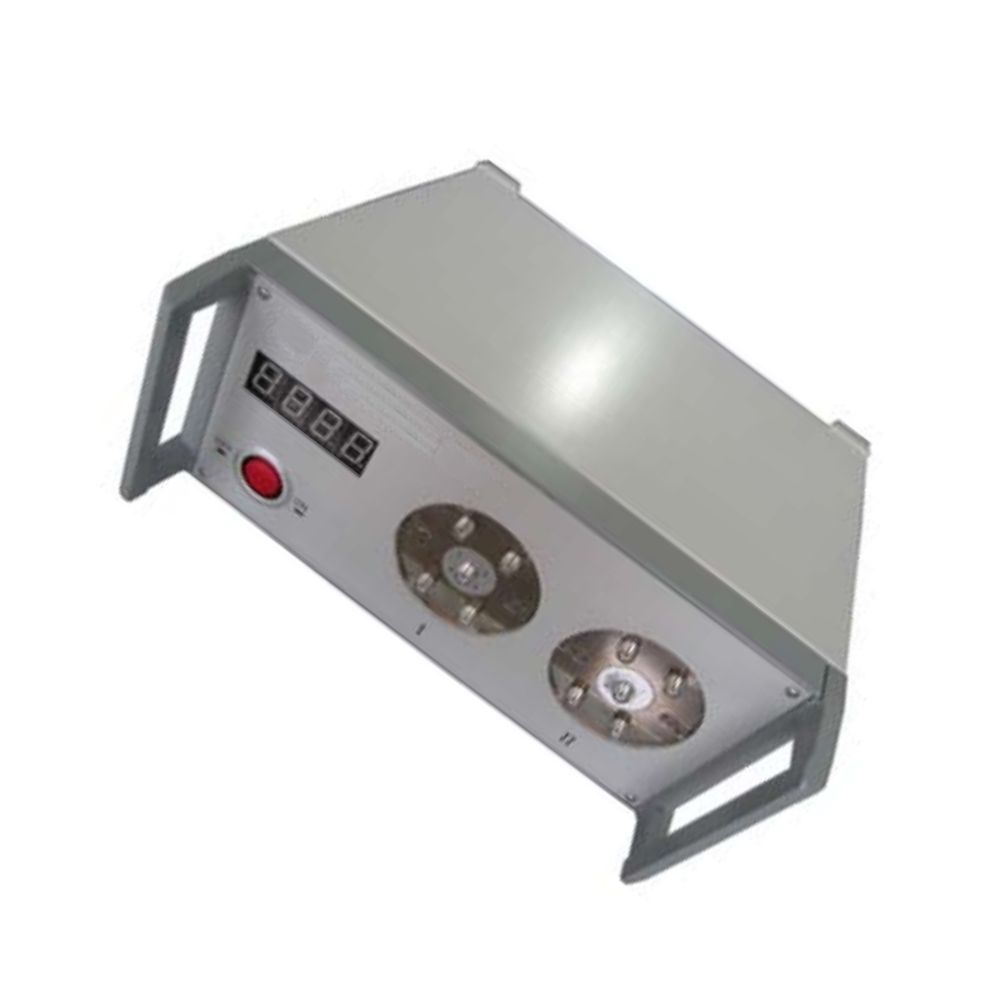

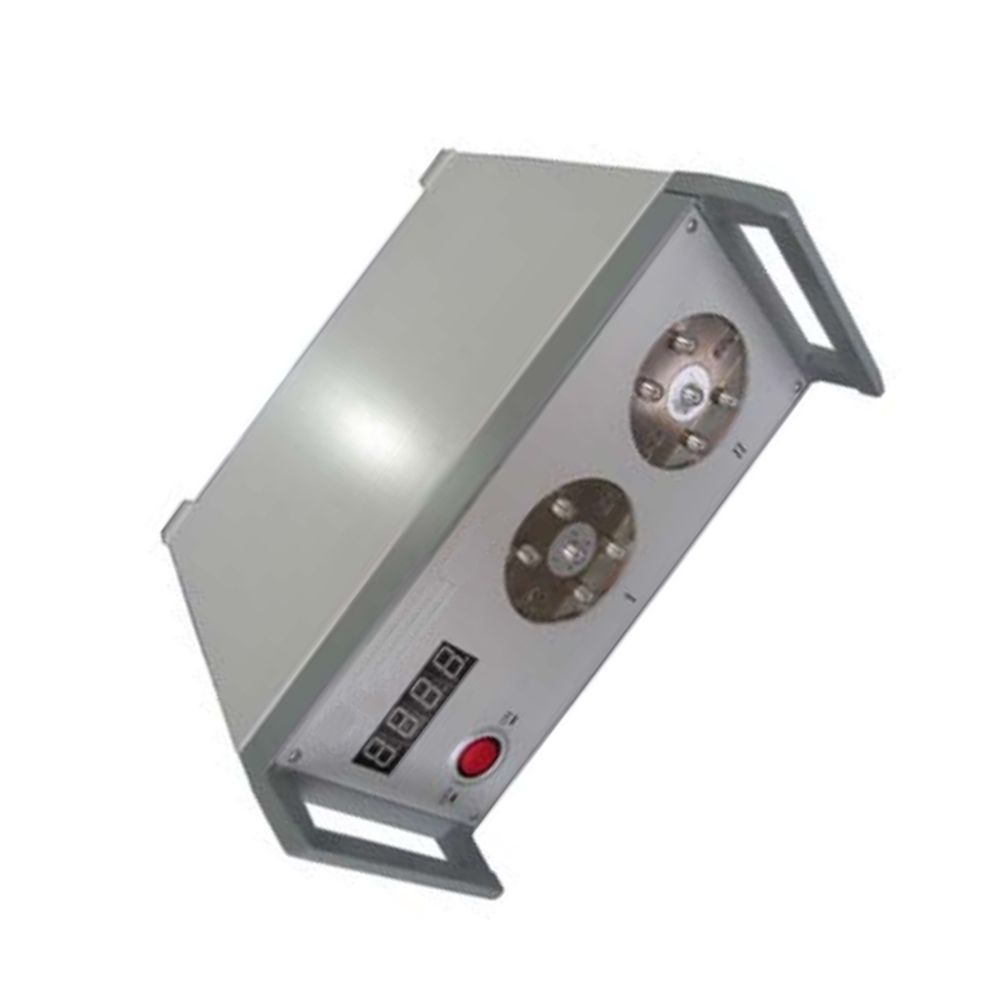

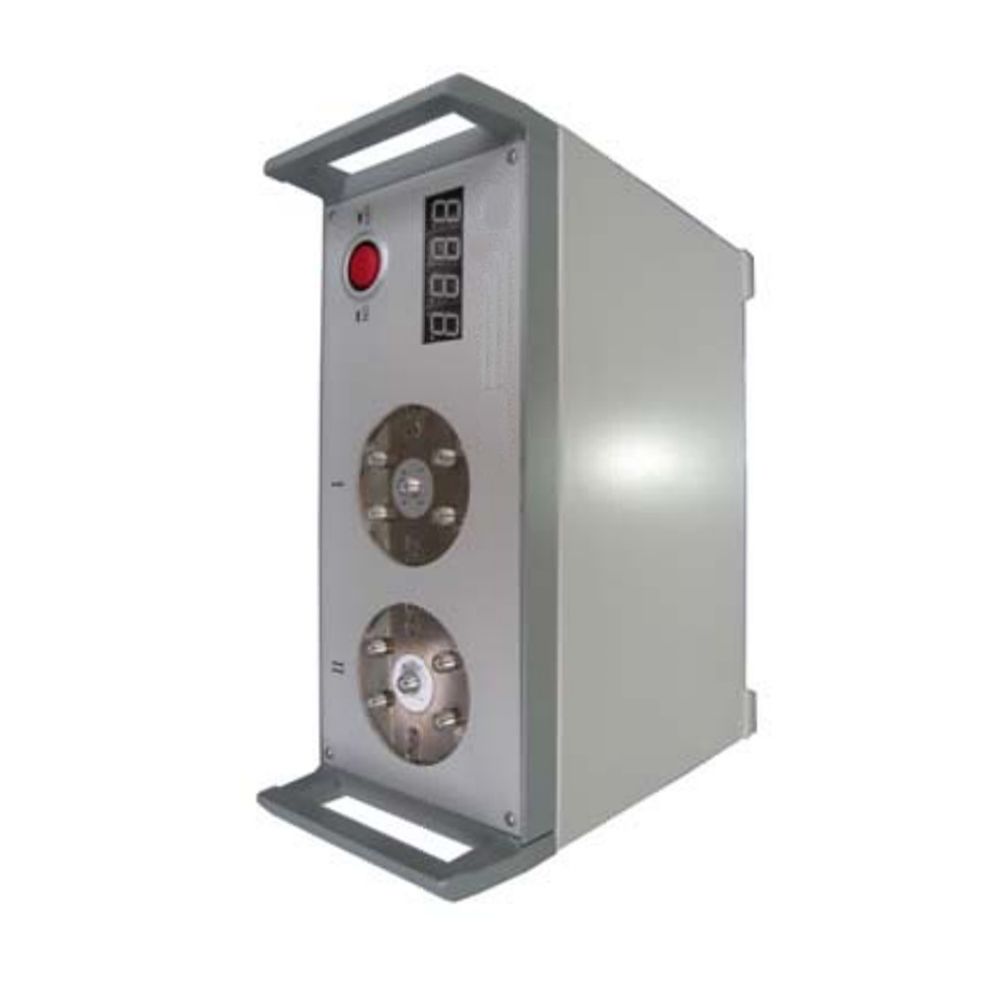

DC-18GHz 50W Power Swt615-2*6 Switch Control Box for Microwave, Switch and Control

Place of Origin：China

Brand Name：SWT

Model Number：SWT615-2*6

Price：

Product Description

DC-18GHz 50W Power Swt615-2*6 Switch Control Box for Microwave, Switch and Control

SWT615-2*6 switch control boxes' frequency range is DC ~ 18GHz, feature is high precision, easy operation, high frequency, capability steady, expansibility better and etc. It has be applied widely in microwave, switch and control.

MECHANICAL SPECIFICATIONS

Connectors	Stainless Steel
Female Pin	Beryllium Copper Gold Plated
Housing	Aluminum, Spray-Paint
Temp Range	-40° C ~ +85° C

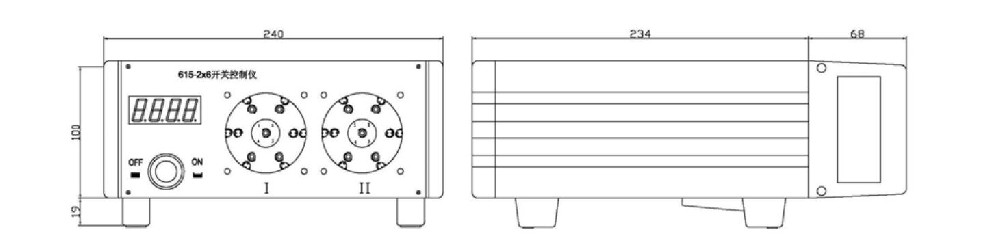

Dimensions	302×240×119mm
Weight	2.3Kg

RoHS Complient: Yes

ELECTRICAL SPECIFICATIONS

Model Number	Frequency (GHz)	VSWR	Insertion Loss(dB)	Isolation (dB)	Switch Times(ms)	Operating Voltage(V)	Remote Control
SWT615-2×6	DC-2	1.15	0.2	>95	<20	AC220	RS232
	2-4	1.20	0.2	>80
	4-8	1.30	0.3	>75
	8-12.4	1.40	0.4	>70
	12.4-18	1.50	0.5	>60

IMPEDANCE	50Ω
MEACHICAL LIFES	10⁶ times
AVERAGE POWER	50W average to 25°C ambient temperature, derated linearly to 25W @ 85°C
CONNECTOR TYPE	SMA(F)
