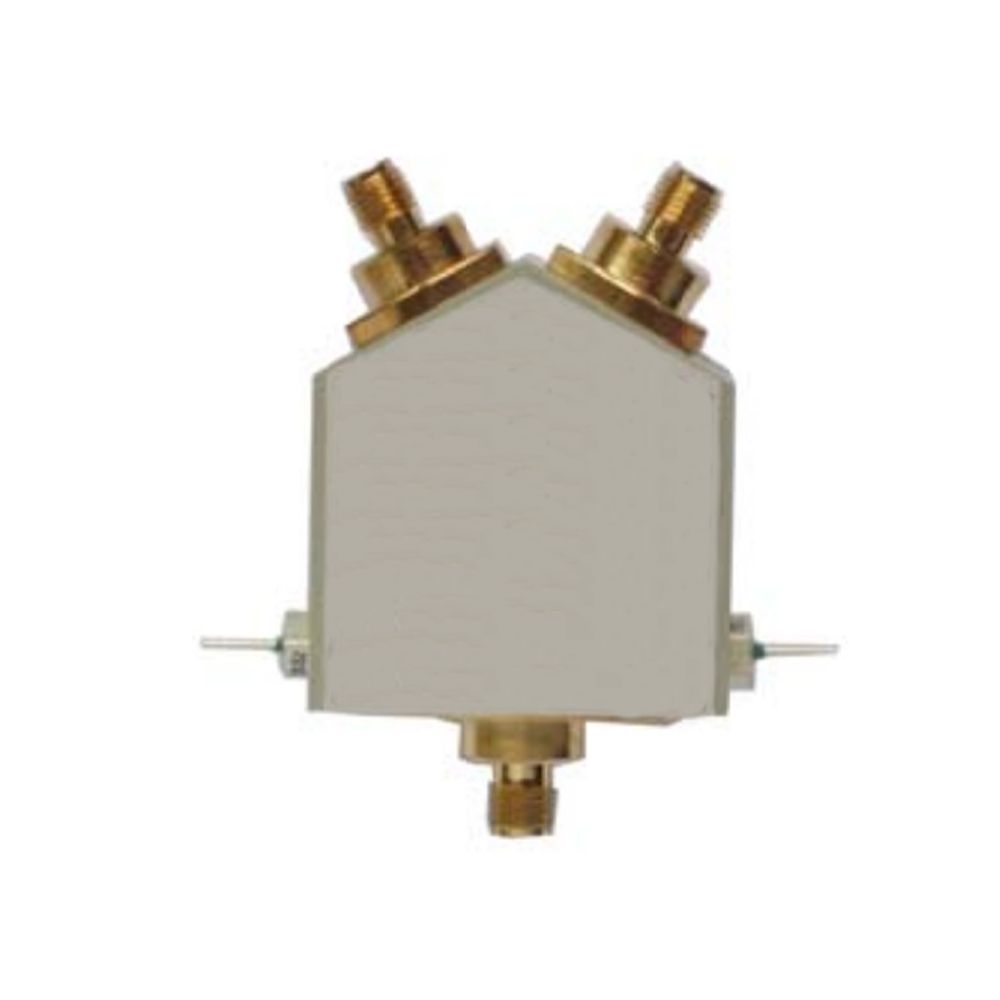

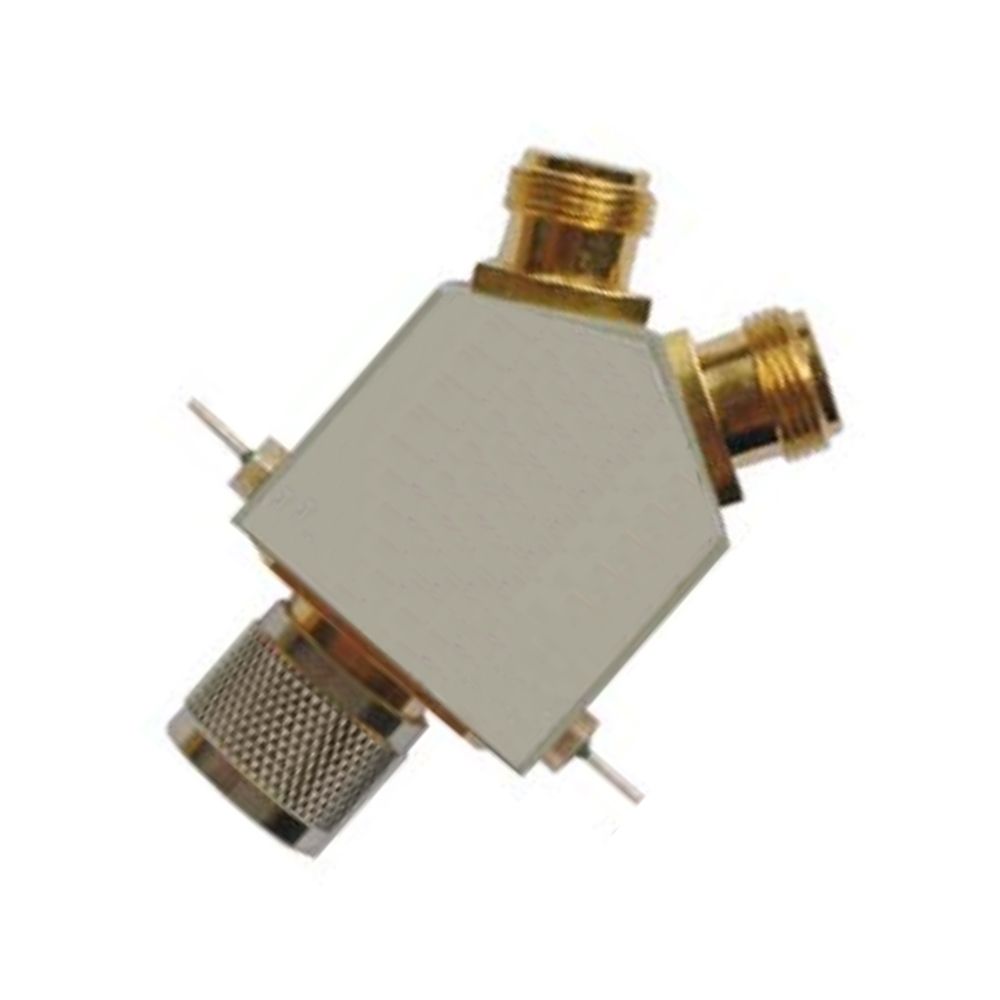

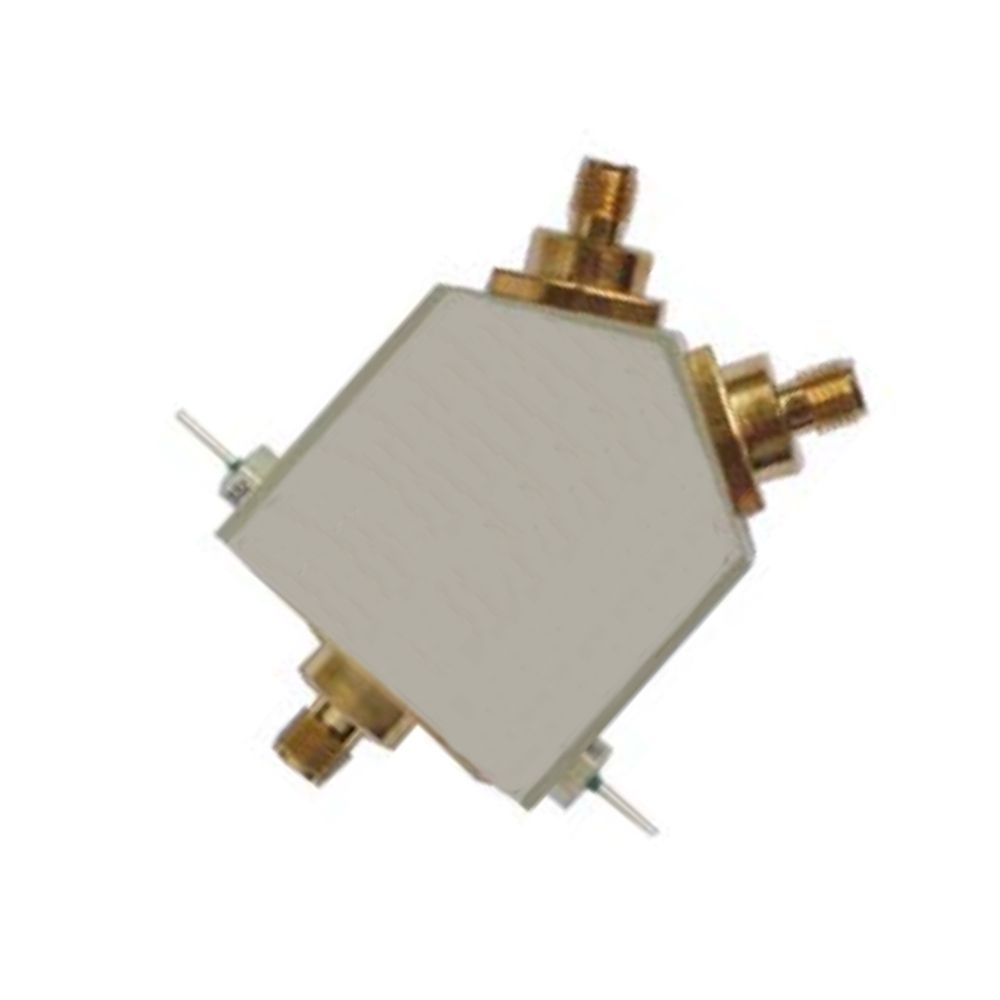

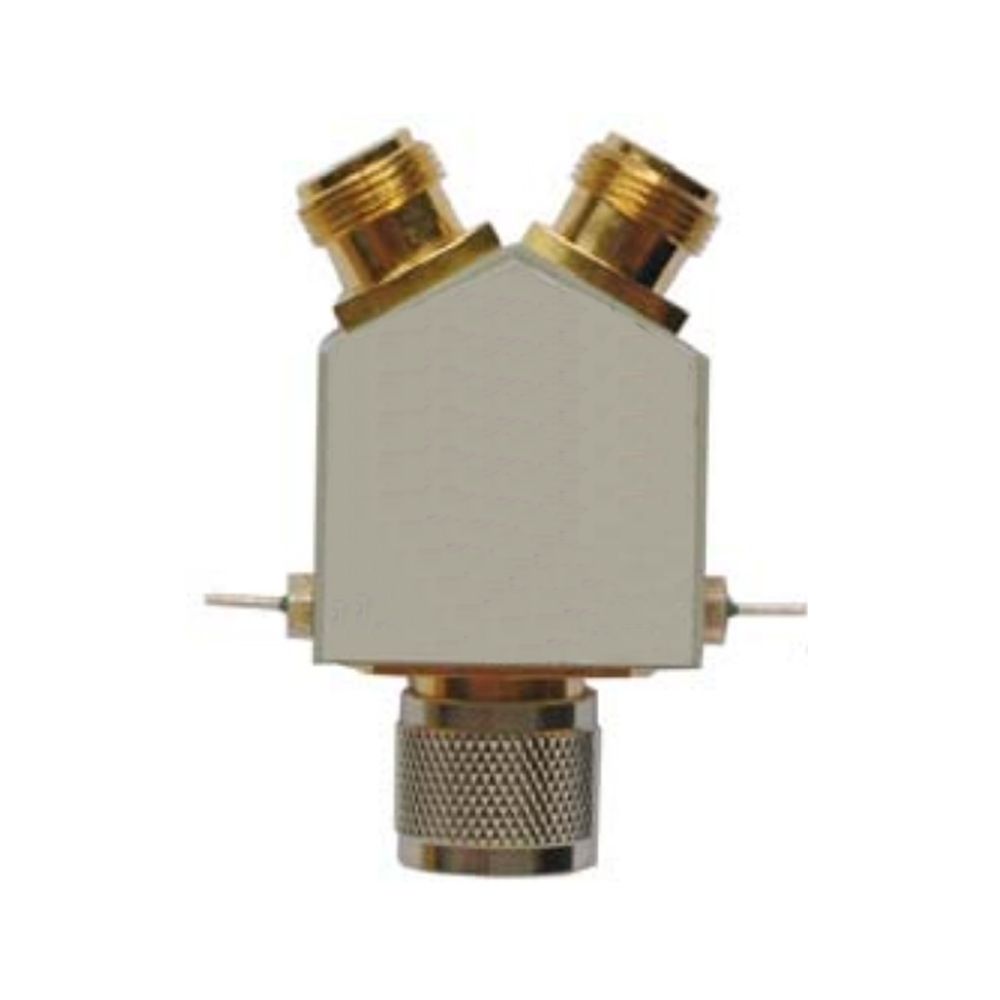

DC-8GHz Brass Nickel Plated 10W Low Insertion Loss Spdt Coaxial Switches

Place of Origin：China

Brand Name：SWT

Model Number：SWT101, SWT1011

Price：

Product Description

DC-8GHz Brass Nickel Plated 10W low Insertion Loss SPDT Coaxial Switches

Coaxial switches could be controlled by voltage or computer programmable and are used in switching over in microwave circuit. According to the amount of output ports they include SPDT-SP8T, 2PDT, 2P3T and Transfer etc.

SWT101,SWT1011 SPDT coaxial switches' average power 10W, frequency range DC-8GHz and the features include low Insertion Loss,low VSWR and excellent Wide-band performance.

MECHANICAL SPECIFICATIONS

Connectors	Male Pin	Female Pin	Housing	Temp Range	Dimensions	Weight
Brass Nickel Plated	Brass Gold Plated	Beryllium Copper Gold Plated	Aluminum	Operating: -10°C~+50°C Non-operating: -40°C~+70°C	60×41×76mm	21g

RoHS Complient: Yes

ELECTRICAL SPECIFICATIONS

Model Number	Frequency Range (GHz)	Max VSWR	Insertion Loss (dB)	Isolation (dB)
SWT101	DC-8	1.5	≤1.0	≥40
SWT1011

NOMINAL IMPEDANCE	50Ω
AVERAGE POWER	10W
OPERATING VOLTAGE	+12V, +15V, +24V
COIL CURRENT	≤100mA
SWITCHING TIME	10ms min
CONNECTOR TYPE	N, SMA
