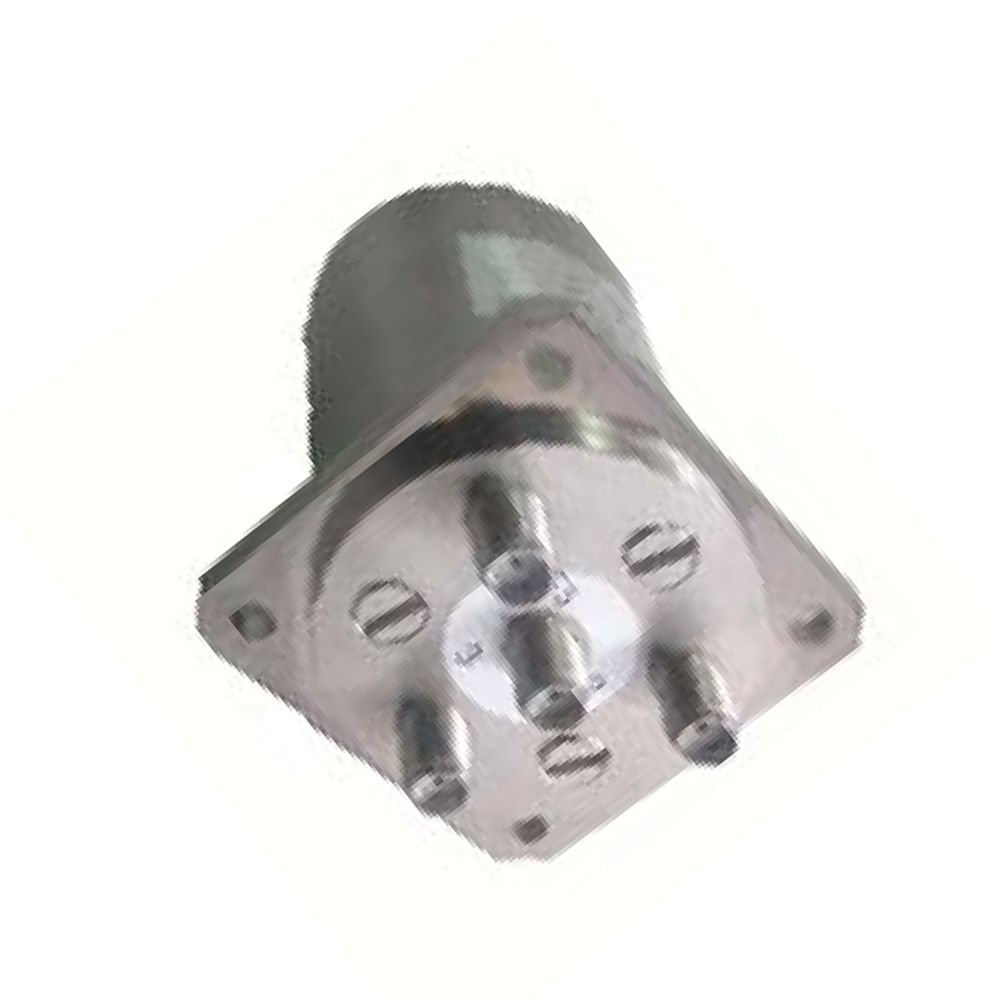

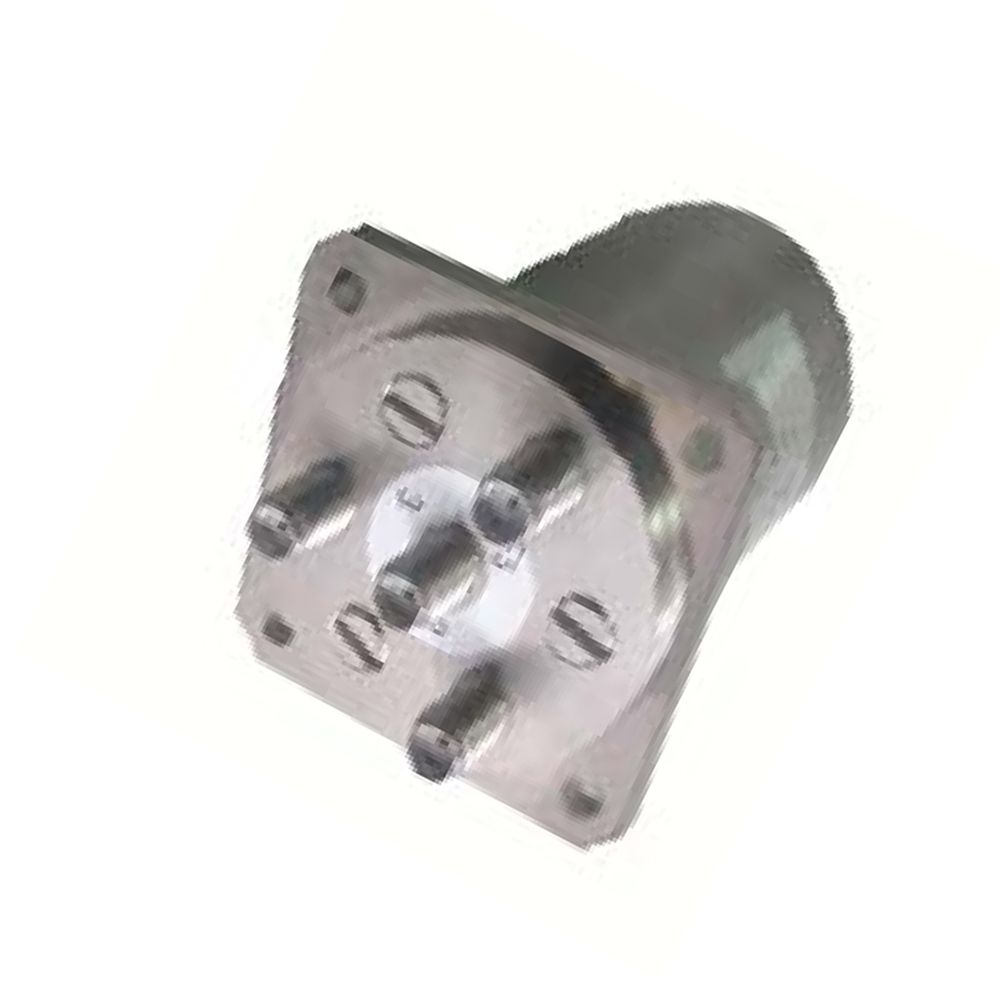

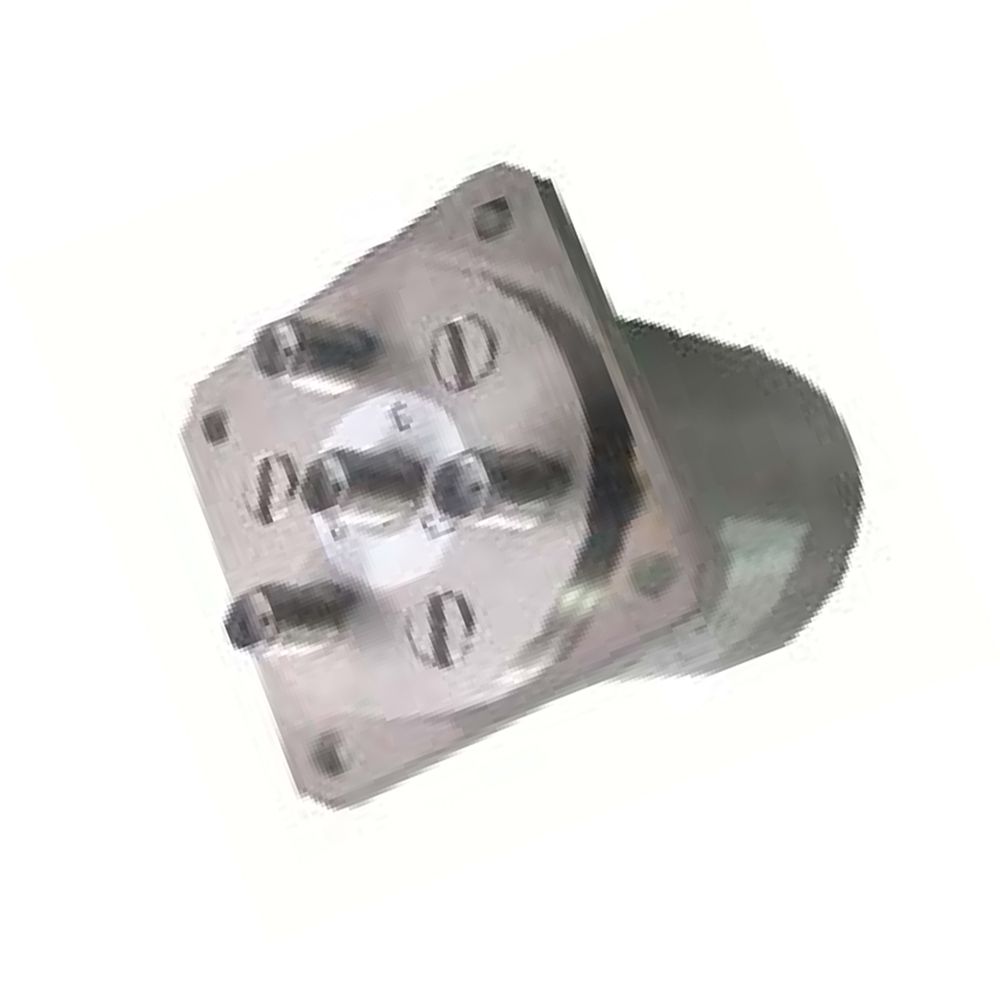

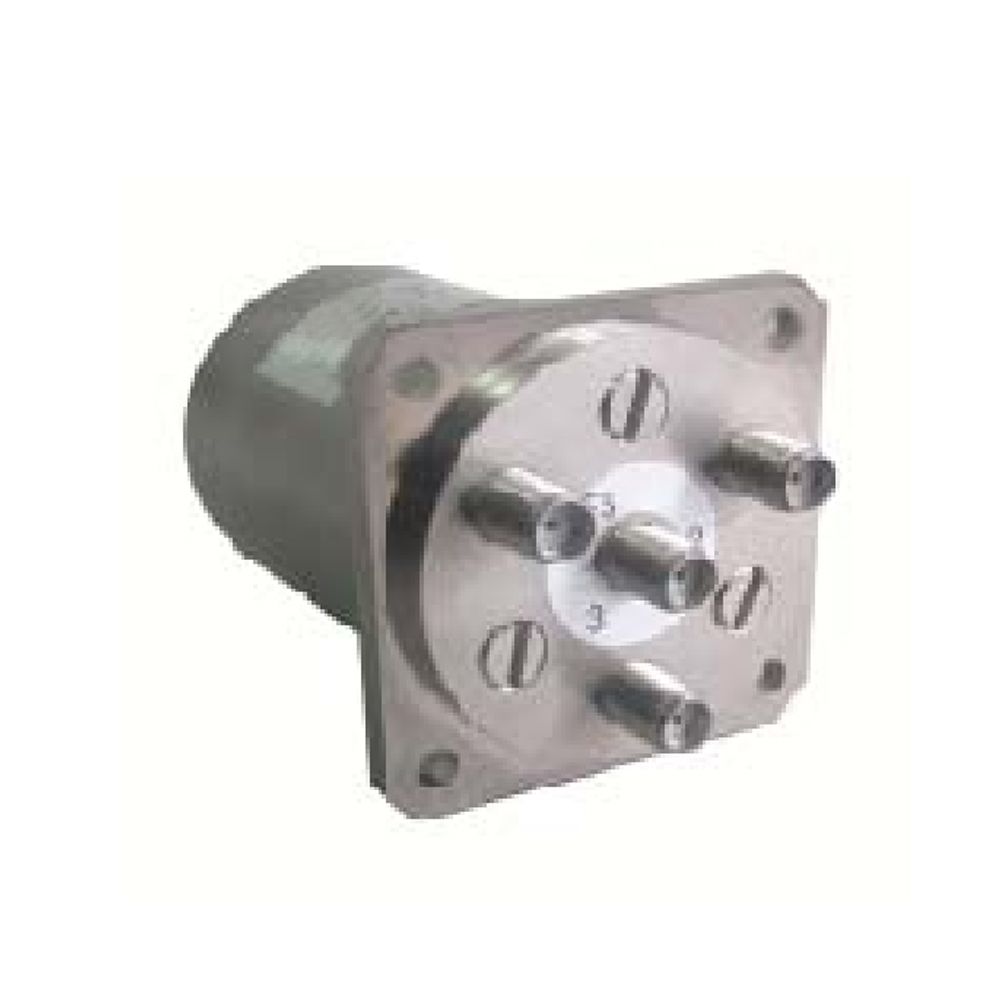

DC-22GHz DC12V, 24V, 28V Without Termination & with Ttl Sp3-6t Failsafe Coaxial Switch

Place of Origin：China

Brand Name：SWT

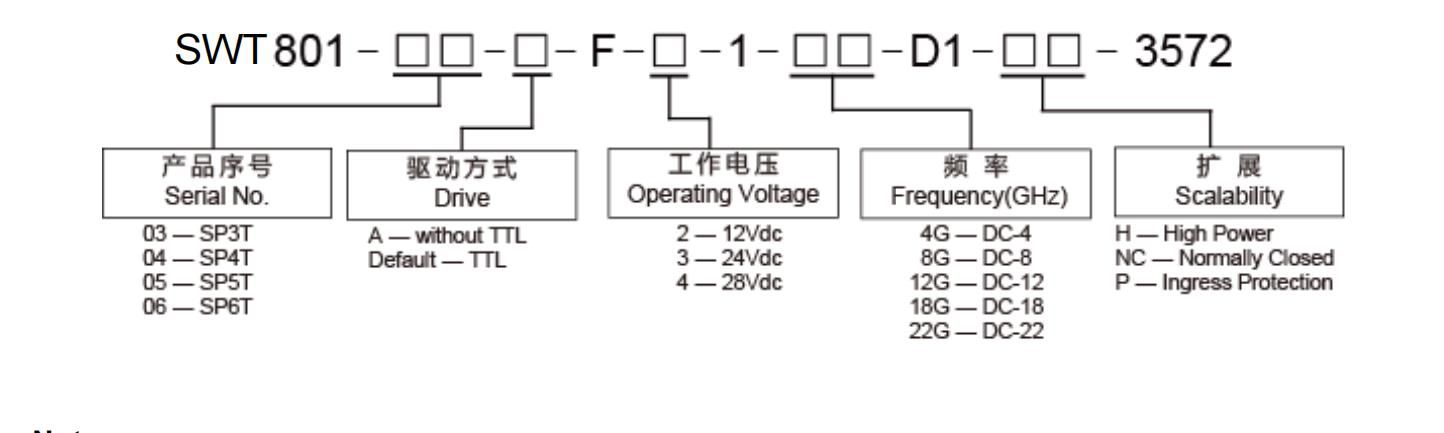

Model Number：SWT801-06-F-2-1-8G-D1-3572

Price：

Product Description

DC-22GHz DC12V, 24V, 28V Without Termination & with Ttl Sp3-6t Failsafe Coaxial Switch

Coaxial switches could be controlled by voltage or computer programmable and are used in switching over in microwave circuit. According to the amount of output ports they include SPDT-SP8T, 2PDT, 2P3T and Transfer etc.
SWT-801 serial coaxial switches' frequency range DC-26.5GHz and the features include low Insertion Loss,low VSWR and excellent wide-band performance.

RF Characteristics

Frequency (GHz)	VSWR	Isolation (dB)	Ins. Loss (dB)
DC~4	1.15	90	0.2
4~8	1.2	80	0.2
8~12	1.3	75	0.25
12~18	1.4	65	0.35
18~22	1.5	60	0.4

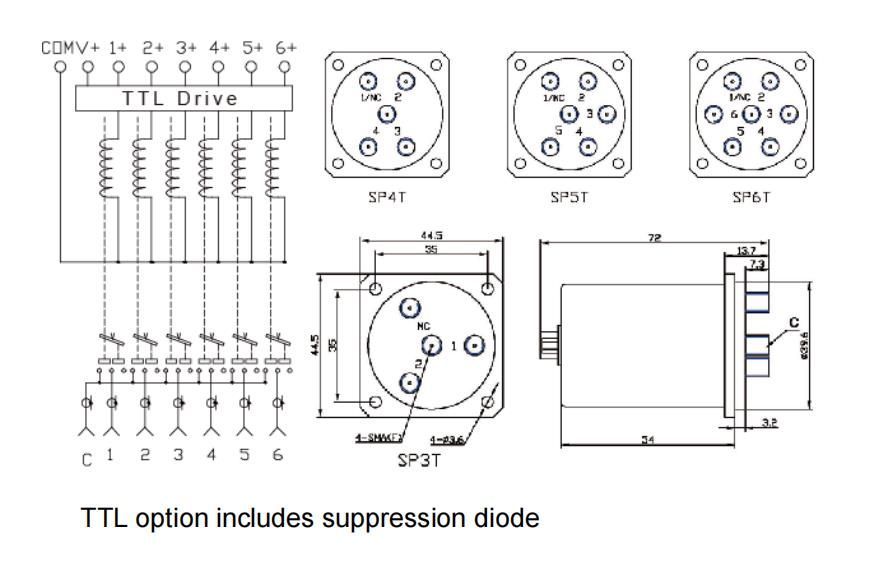

Specifications

Operating Voltage	DC12V, 24V, 28V
Coil Current	190mA/12V,110mA/24V,100mA/28V
Switch Time	≤20ms
Operating Temperature	-40ºC~+85ºC
Storage Temperature	-55ºC~+85ºC
Mechanical Life,circles	≥10⁶
TTL Drive Voltage	2.5~5V
TTL Drive Current	0.02~0.8mA
Impedance	50Ω
Weight	150g
