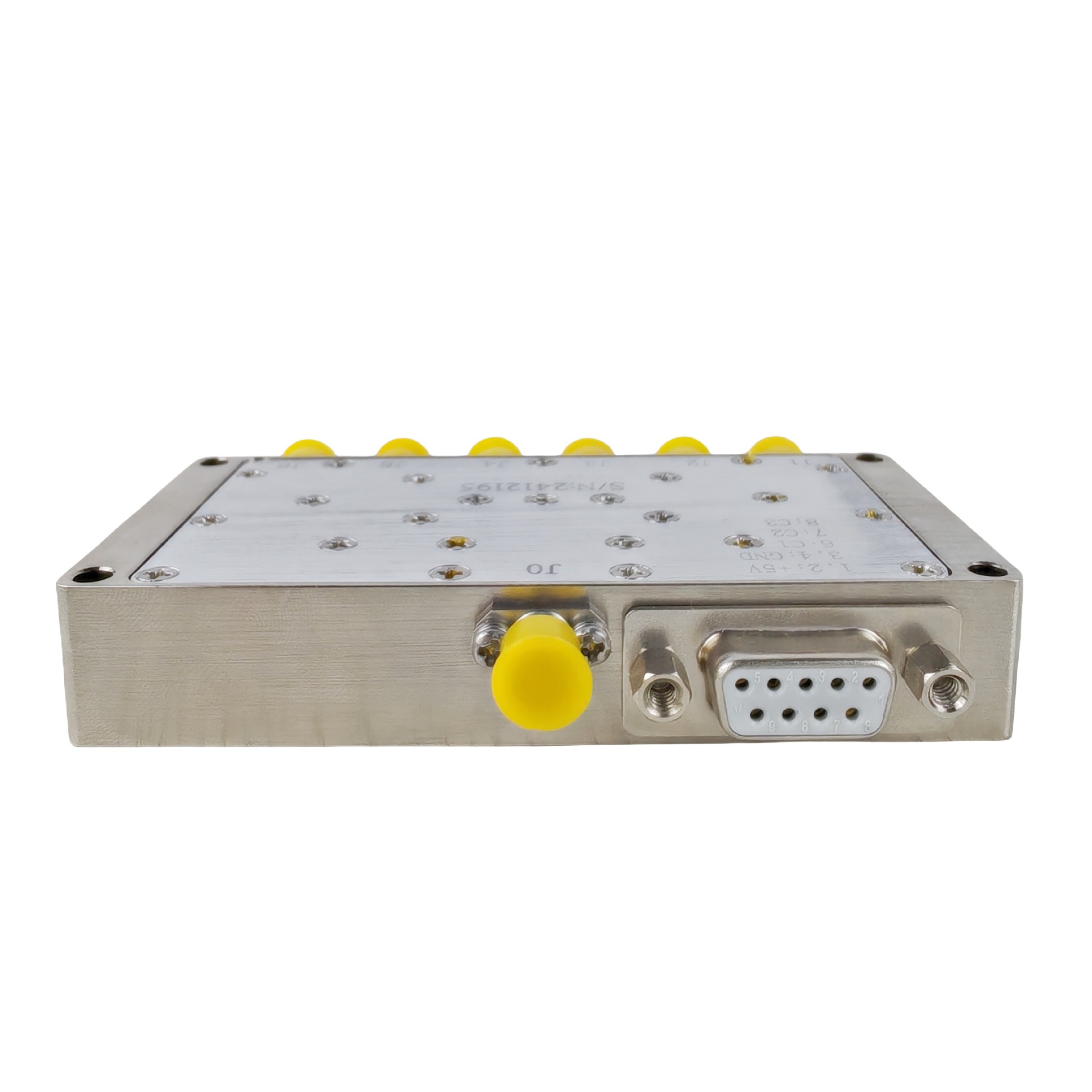

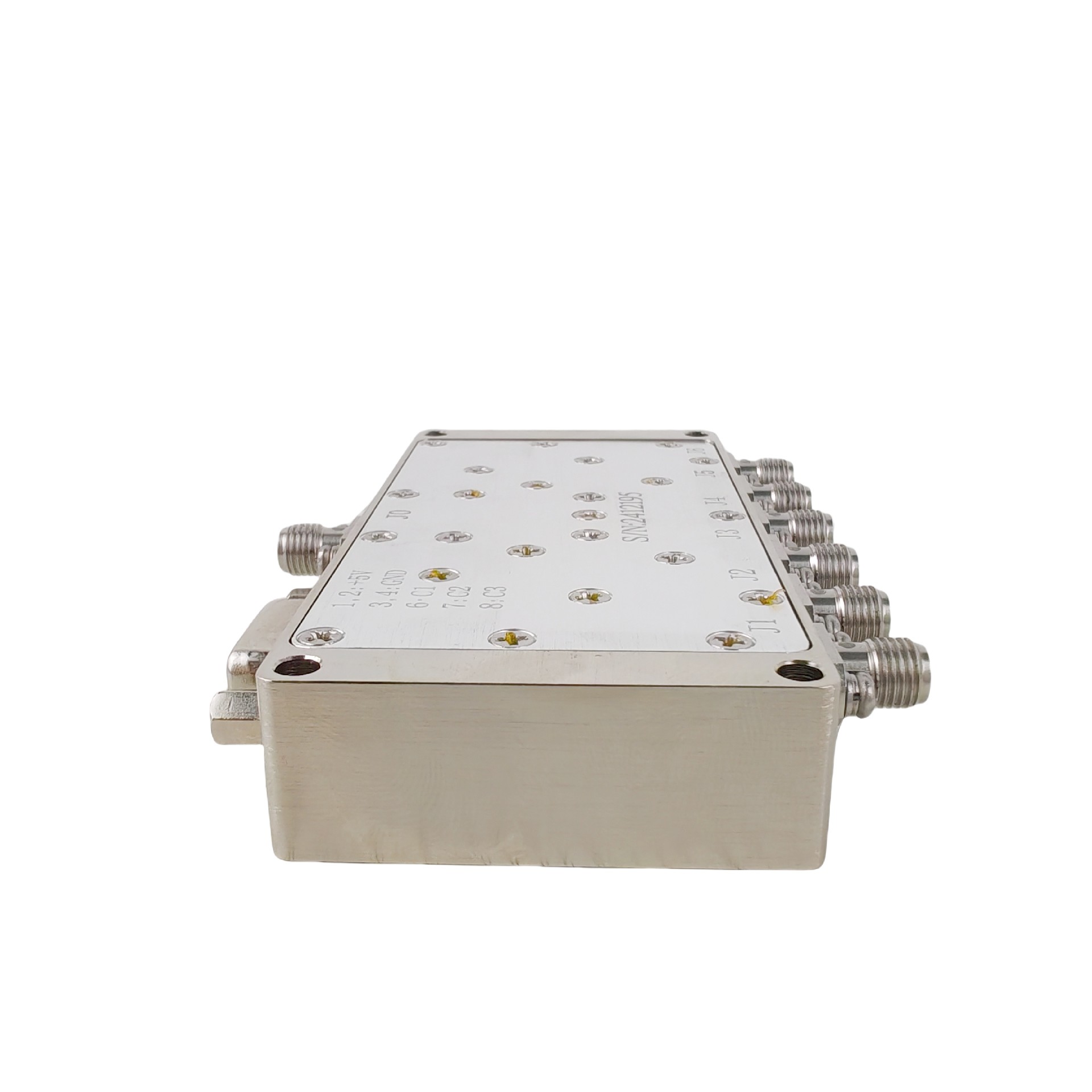

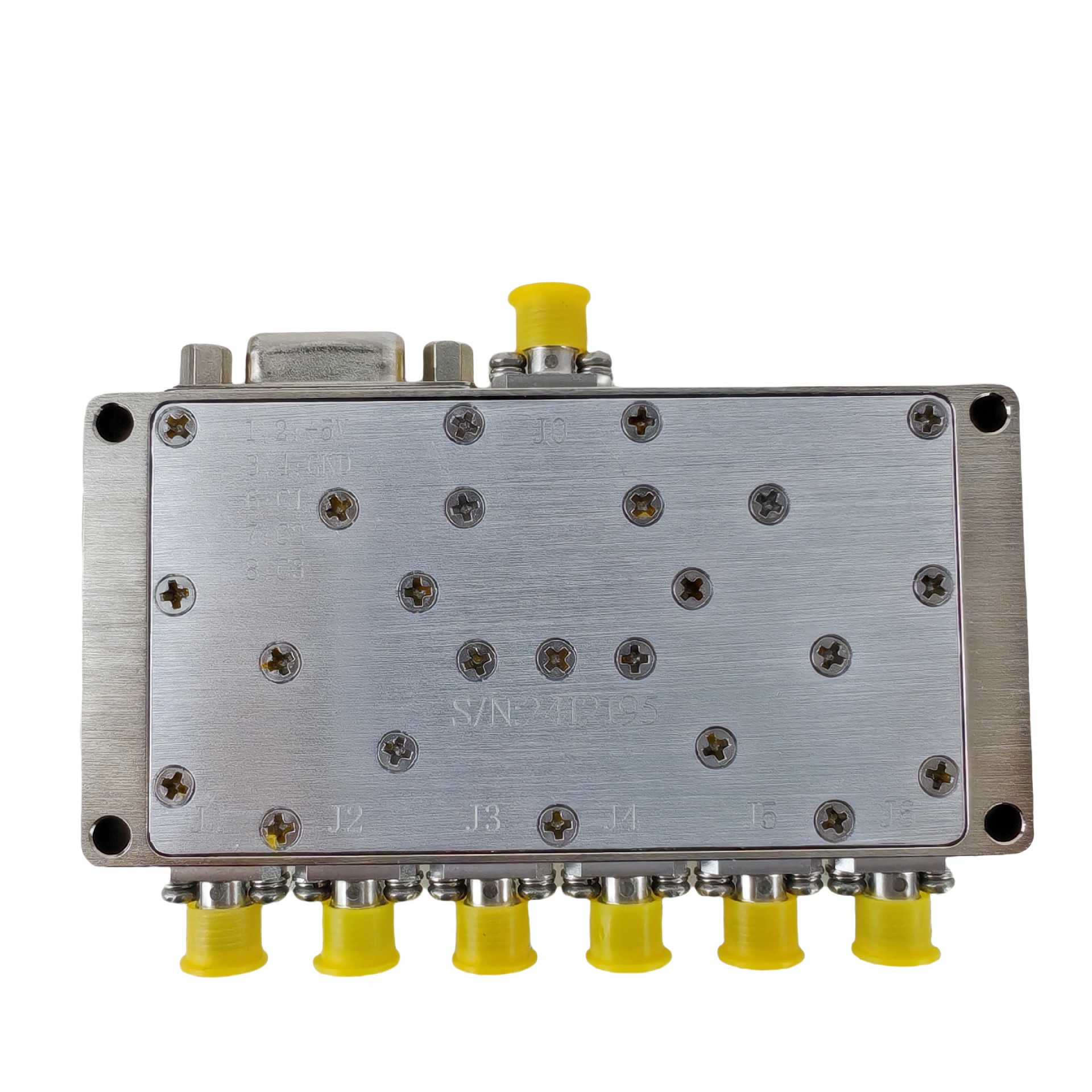

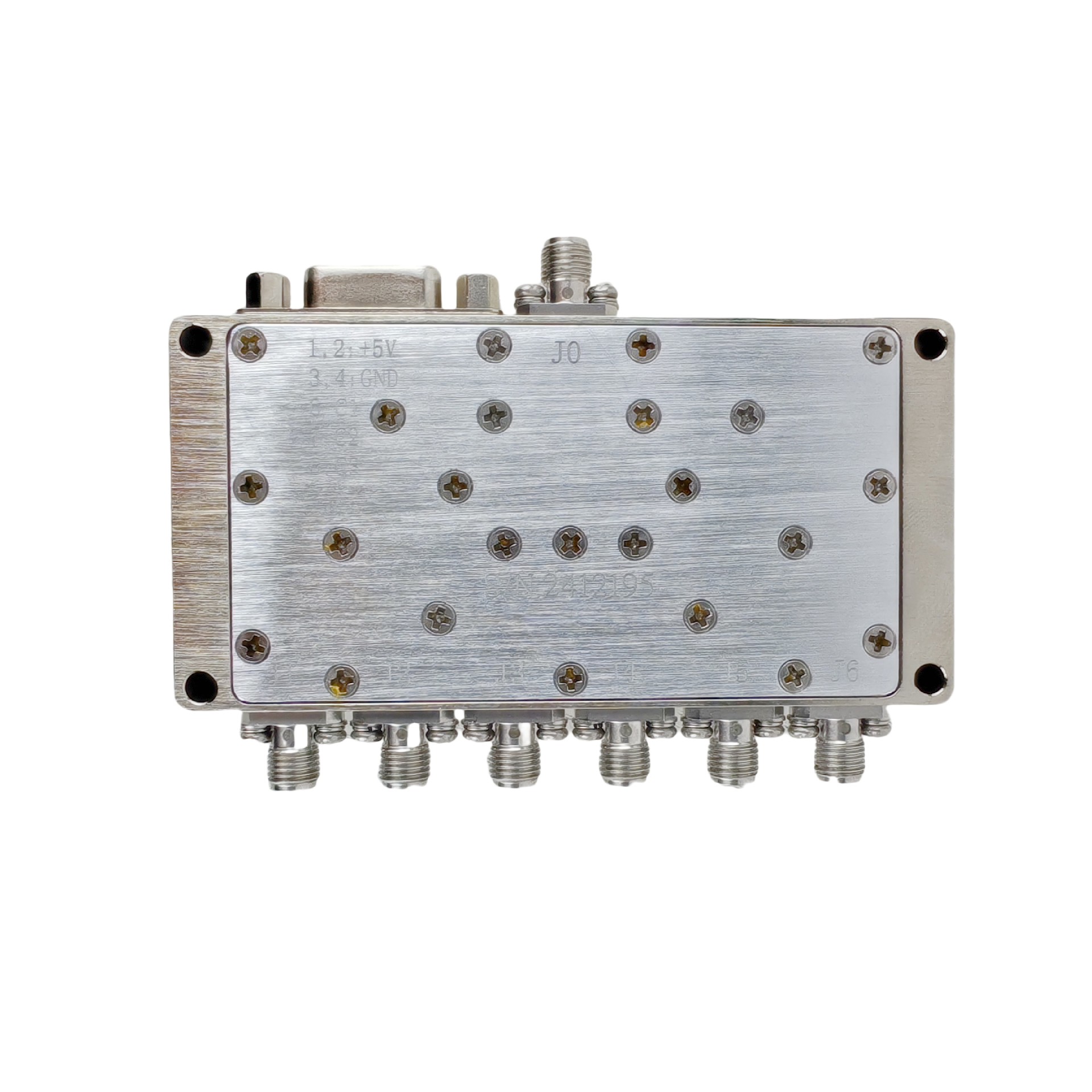

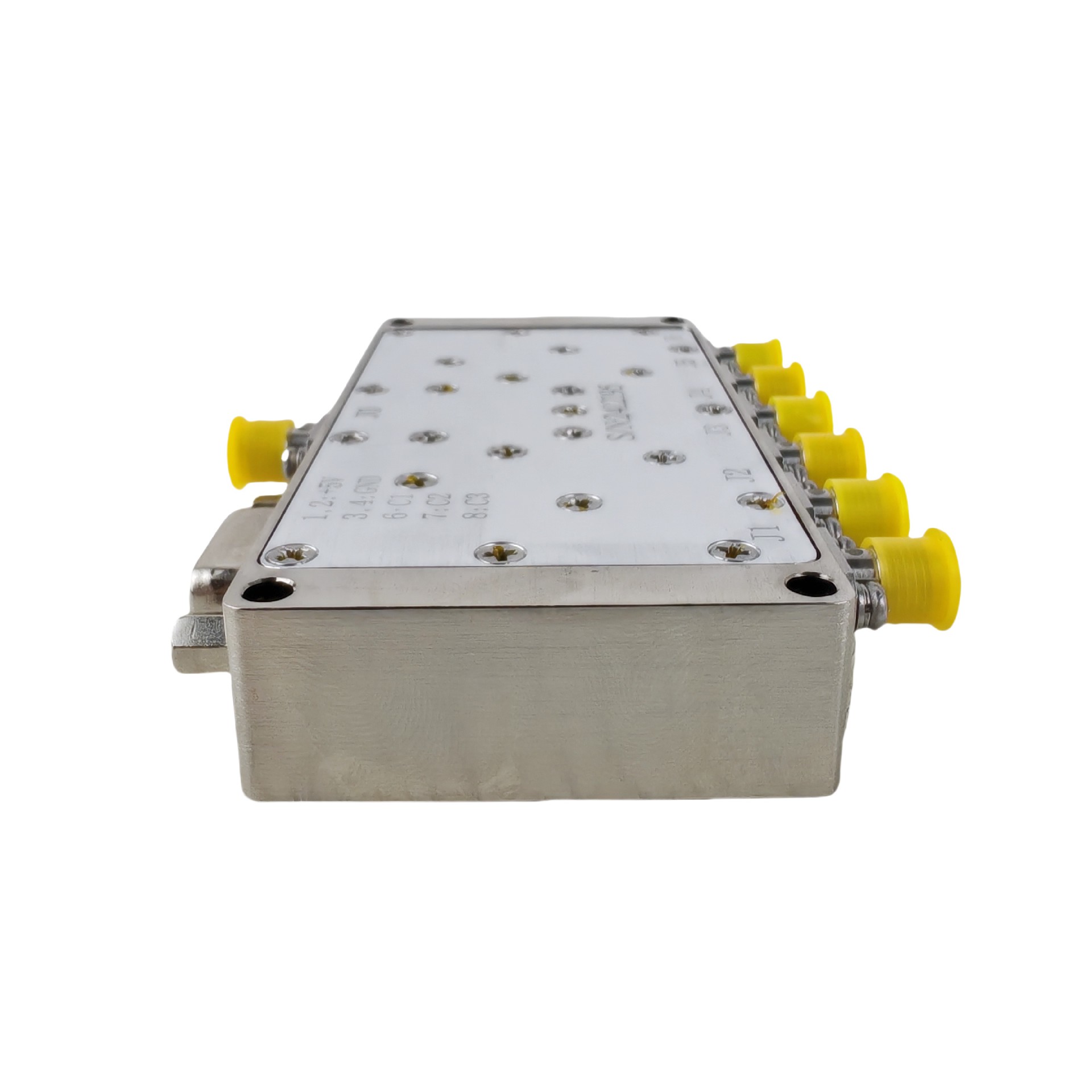

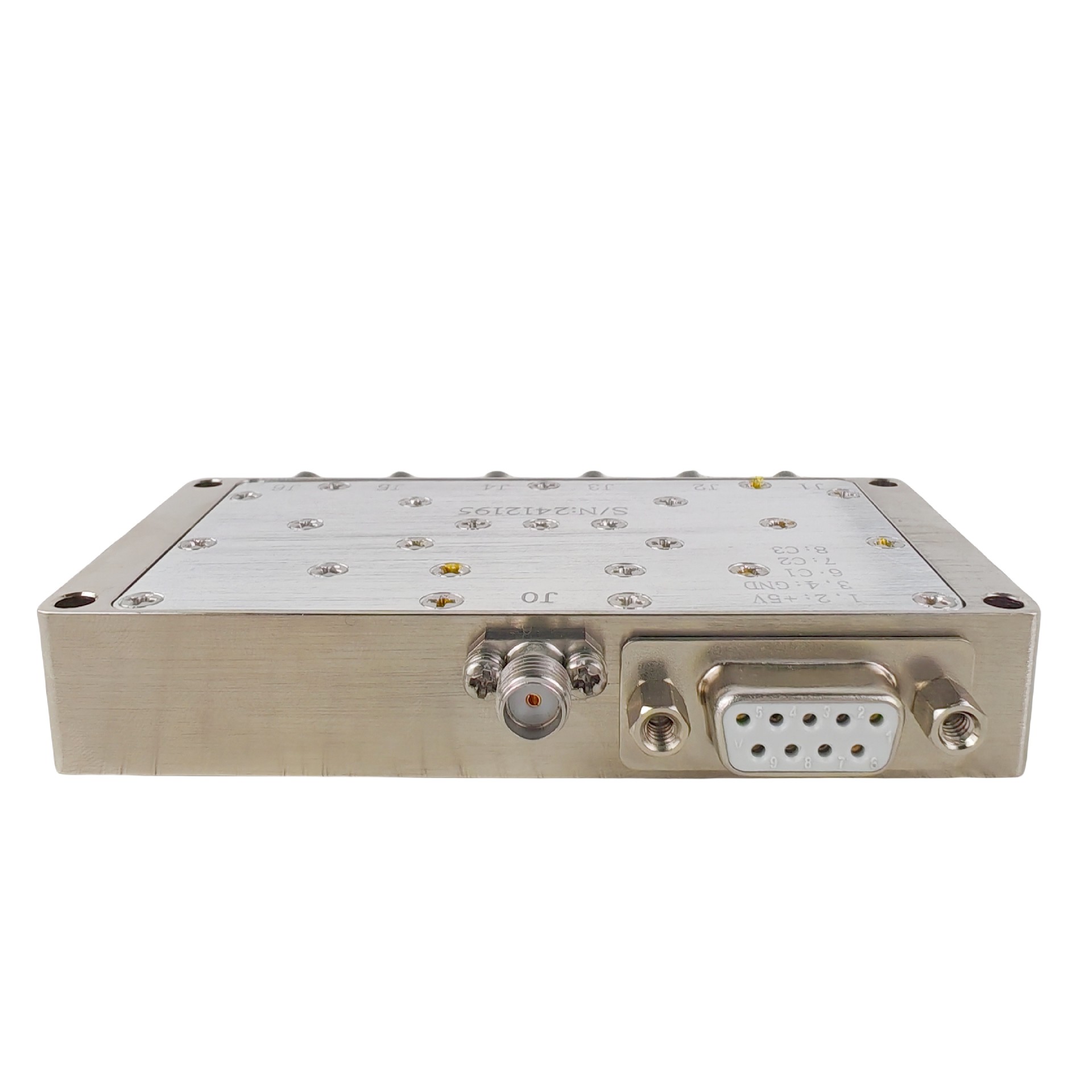

High-performance 400-6000 MHz RF SP6T (Single-Pole Six-Throw) switch for both Industrial and commercial

This is a high-performance RF SP6T (Single-Pole Six-Throw) switch designed for both military and commercial applications. Utilizing the latest device technologies and design methods, it achieves high frequency and performance in a compact and lightweight package, making it ideal for various RF systems.

Key Features

1. Frequency Range: Supports 400 MHz to 6000 MHz, covering a wide range of applications.

2. Insertion Loss: Typical value of 2.5 dB ensures minimal signal loss and superior performance.

3. Isolation: High isolation up to 80 dB, ensuring effective signal separation.

4. Switching Time: Typical switching time of 200 ns for fast response.

5. Power Handling: Handles up to 33 dBm, suitable for various RF signals.

6. Connector Type: Equipped with SMA-Female interfaces for easy connectivity.

7. Compact Size: Module dimensions of just 90×45×16 mm make it easy to integrate.

Applications

• Military Systems: Ideal for radar, communication, and electronic warfare applications requiring high reliability.

• Commercial Sector: Suitable for wireless communication and test measurement devices.

• Scientific Research: Perfect for high-frequency signal testing and control.

Specification

Typical performance at +5VDC +25oC, and in a 50Ω system.

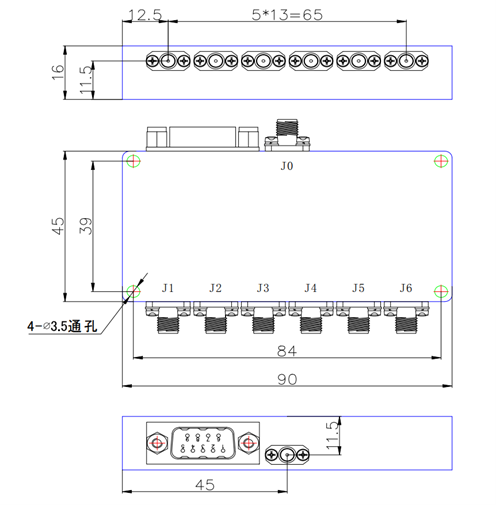

Outline Dimensional Drawing
