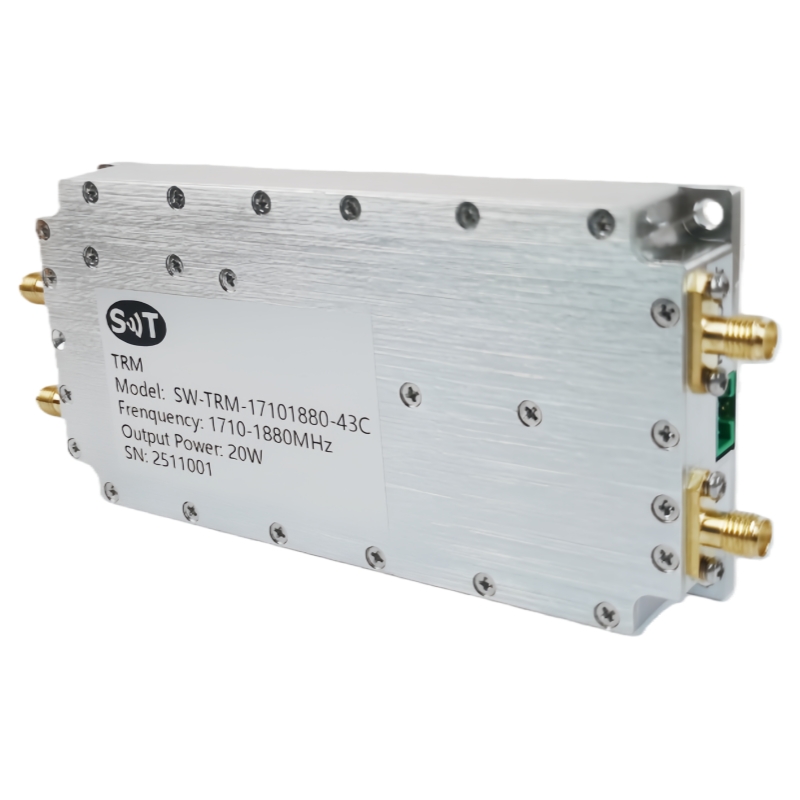

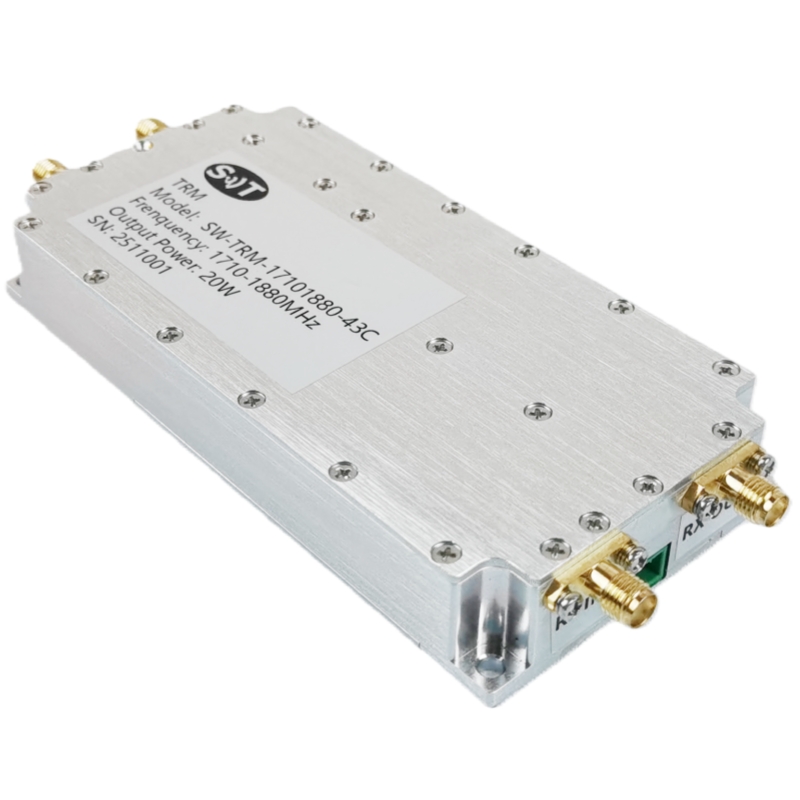

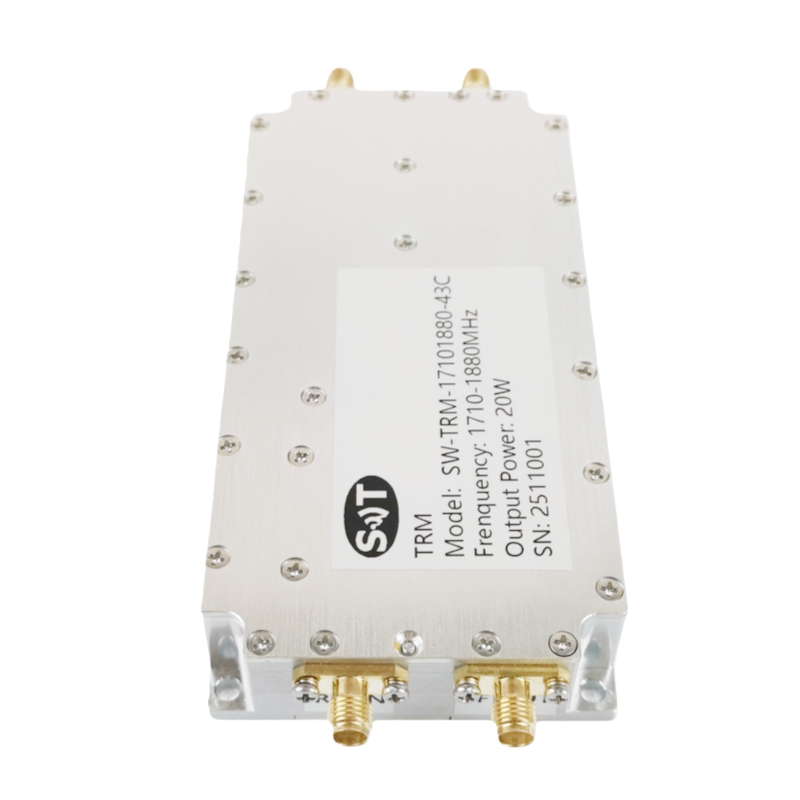

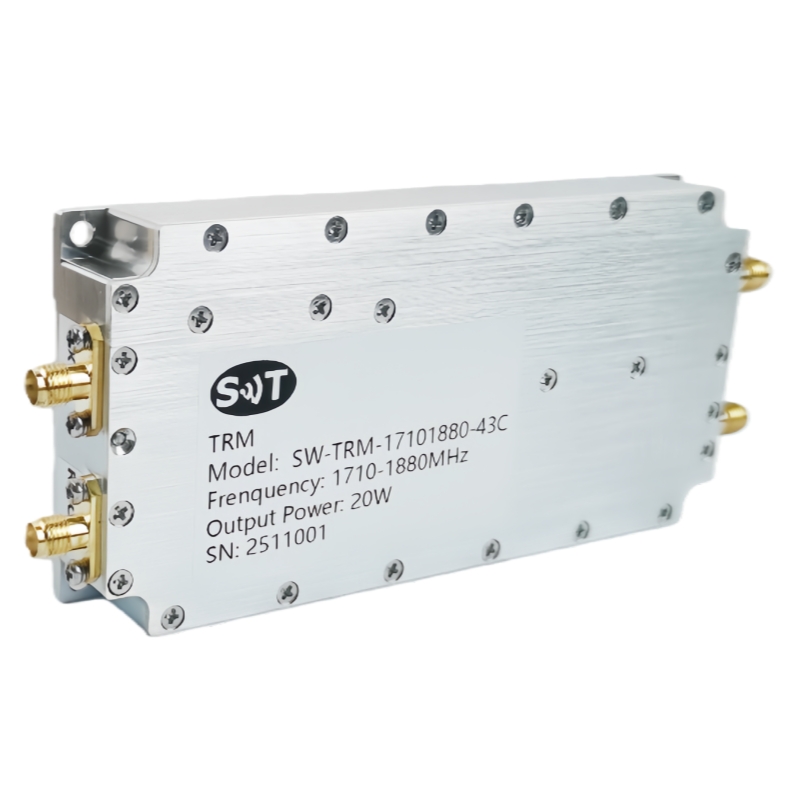

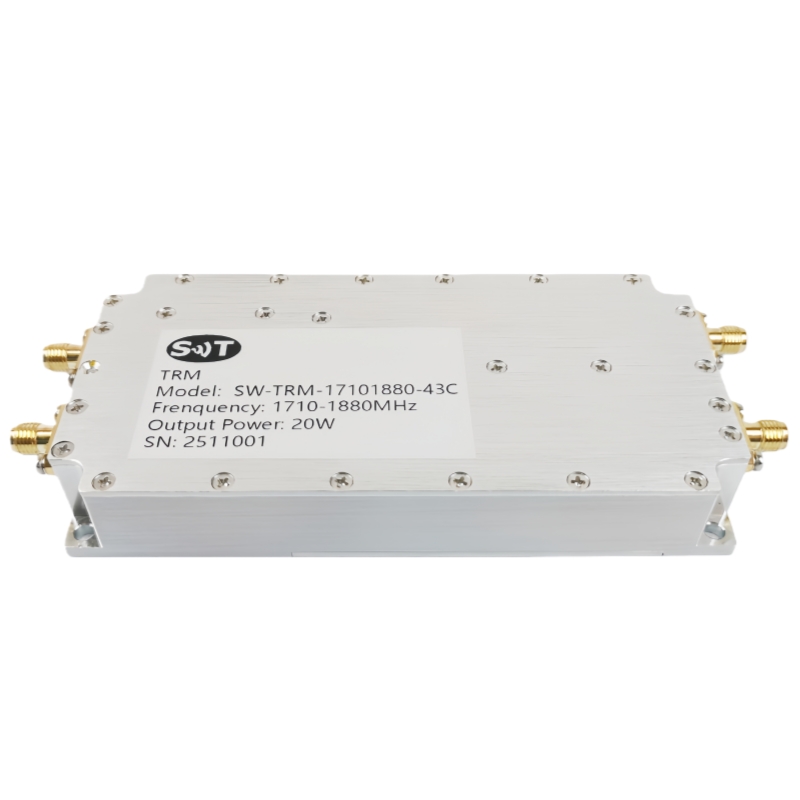

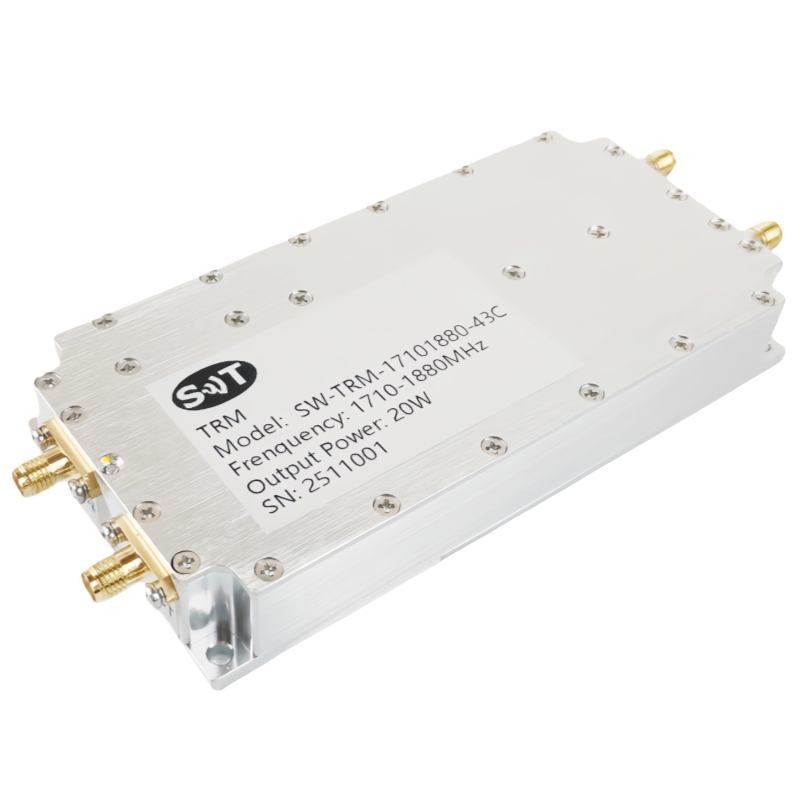

1710-1880 MHz 20 W Industrial & Commercial Power Amplifier Datasheet

Place of Origin：China

Brand Name：SWT

Model Number：P/N: SW-TRM-17101880-43C

Price：Please Contact Customer Service

Product Description

Description

The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

Specification

Typical performance at +28V DC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER	MIN	TYP.	MAX	UNIT
Operating Frequency (Downlink frequency)	1805		1880	MHz
Operating Frequency (Uplink frequency)	1710		1785	MHz
TX Channel(Downlink frequency)
RF INPUT		10		dBm
P-sat Power Output		43		dBm
TX Gain		33		dB
Spurious Signals		-60		dBc
Harmonic Signals		-20		dBc
RX Channel(Uplink frequency)
RX Gain (AGC gain)	0		30	dB
Noise Figure (Max gain)			2	dB
RX P-1dB Power Output		10		dBm
General Parameters
Operating Voltage		28		V DC
In-Out impedance		50		Ω
Currents@20W		2.5	3	A
Input VSWR		1.8	2.0	--

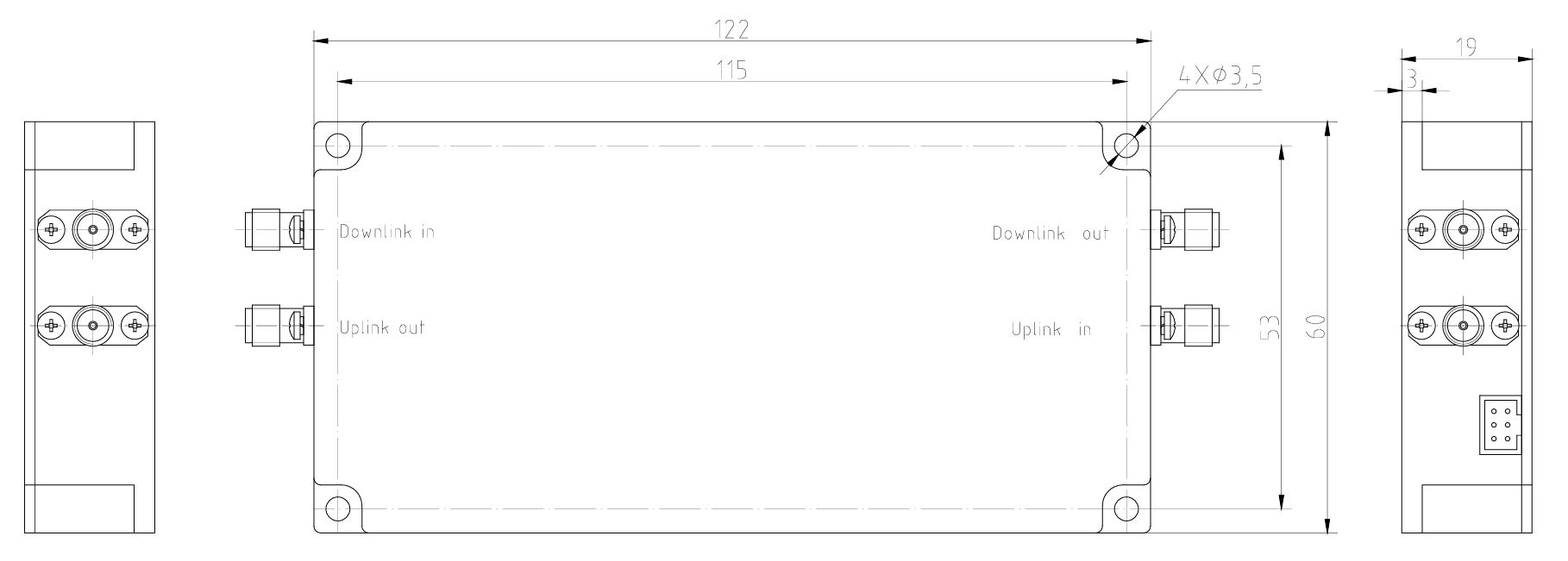

MECHANICAL
PARAMETER	VALUE	UNIT
Dimensions (L x W x H)	1226019	mm
RF Connectors (Input / Output)	SMA- KFD/ SMA - KFD	--
DC Connector	JL24-8ZJ	--
Cooling	Consider heat dissipation with the system (Not Supplied)
Mounting	φ4.4-4 Thru Hole	--
Weight	≤0.5	kg
