SW-SIP-080120-P40 Single-channel 10w SIP Transceiver Module
Place of Origin：China
Brand Name：SWT
Model Number：SW-SIP-080120-P40
Price：Please Contact Customer Service
Product Description
Description
This product is specially designed for high-end RF scenarios such as phased array radar, LEO satellite communication, EW data link, and high-precision navigation systems, enabling efficient RF signal transceiving and beam steering, supporting multi-channel array integration, and meeting the stringent reliability requirements of Industrial, aerospace, and industrial-grade communications.
Specification
service frequency | 8～12GHz |
emission saturation power | 40dBm |
transmission power gain | 37dB |
emission efficiency | 35% |
service frequency | 8～12GHz |
emission saturation power | 40dBm |
transmission power gain | 37dB |
emission efficiency | 35% |

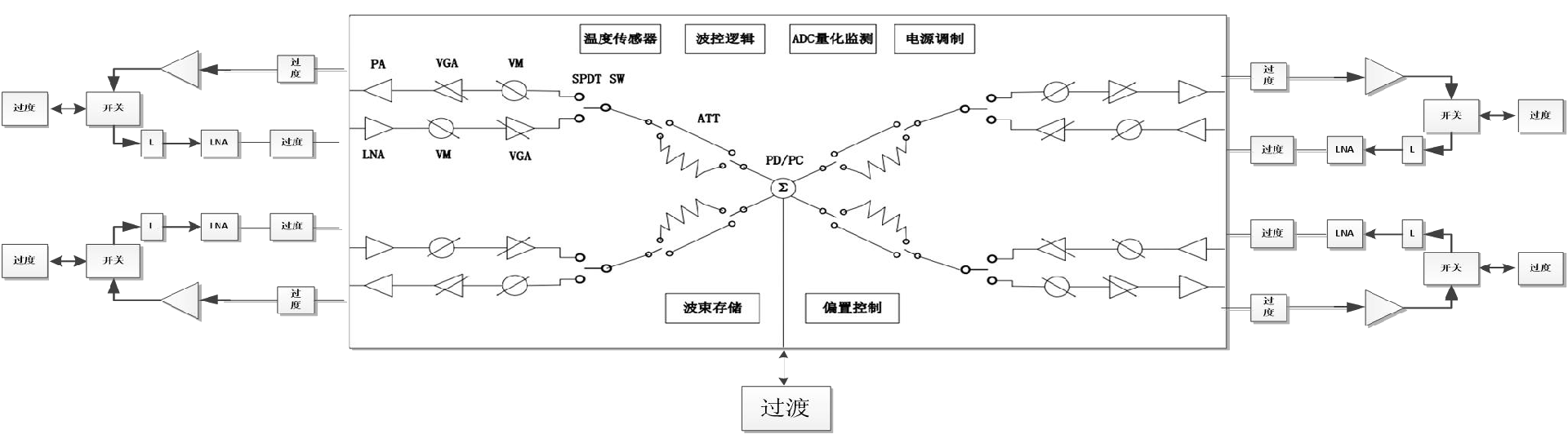

X-band Series SIP Transceiver Module Products
Product Details
Packing:
15×15×2.5mm
Power Consumption:
≈10W
Data Format:
Not specified
Working Temperature:
Not specified
Physical Interface:
Not specified
Communication Interface:
Not specified
Receiving Signal:
NF3.0dB, gain20dB, P-1 -30dBm
Applications:
Not specified
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
