SW-SIP-320370-P27 Single-channel 0.5W SIP Transceiver Module
Place of Origin：China
Brand Name：SWT
Model Number：SW-SIP-330370-P27
Price：Please Contact Customer Service
Product Description
Description
This product is specially designed for high-end RF scenarios such as phased array radar, LEO satellite communication, EW data link, and high-precision navigation systems, enabling efficient RF signal transceiving and beam steering, supporting multi-channel array integration, and meeting the stringent reliability requirements of Industrial, aerospace, and industrial-grade communications.
Specification
| Operating Frequency | 32～37GHz |
| Transmit Saturated Power | 26.5dBm |
| Transmit Power Gain | 25dB |
| Transmit Efficiency | 20% |
| Receive Noise Figure | 4.5dB |
| Receive Small Signal Gain (Single Channel) | 25dB |
| Receive Input P-1 | -30dBm |
| Power Supply Voltage | +5V, -5V, +3.3V |
| SIP Size | 10.8mm×9.5mm×2.25mm (Excluding Ball) |
| Others | 6-bit phase shift, 6-bit attenuation |

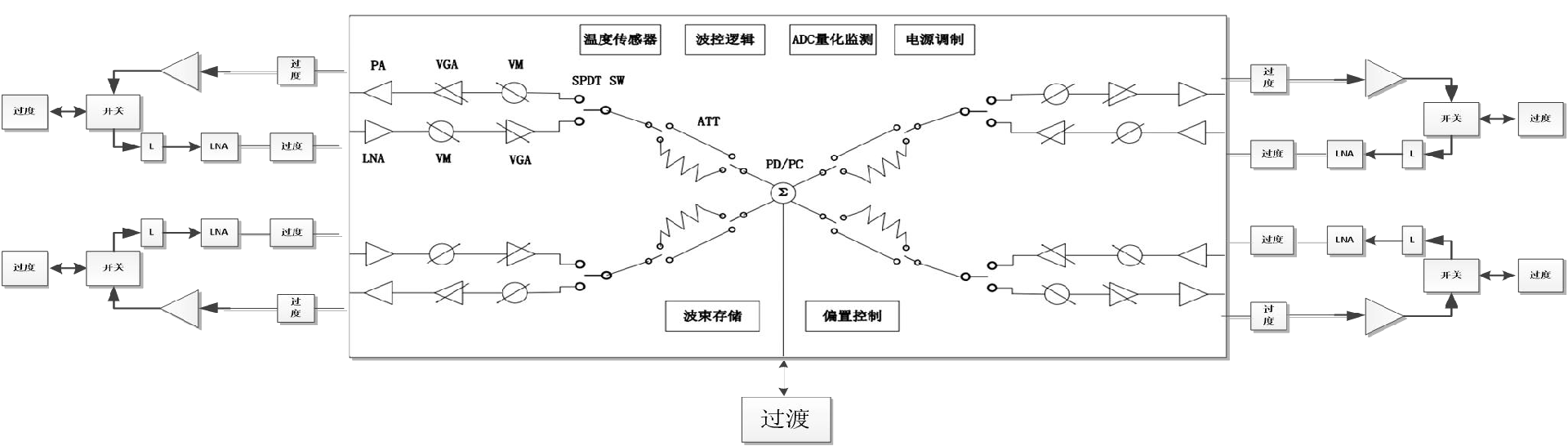

Ka-band Series SIP Transceiver Module Products
Product Details
Packing:
10.8×9.5×2.25mm
Power Consumption:
≈0.5W
Data Format:
Not specified
Working Temperature:
Not specified
Physical Interface:
Not specified
Communication Interface:
Not specified
Receiving Signal:
NF3.0dB, gain20dB, P-1 -30dBm
Applications:
Not specified
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
