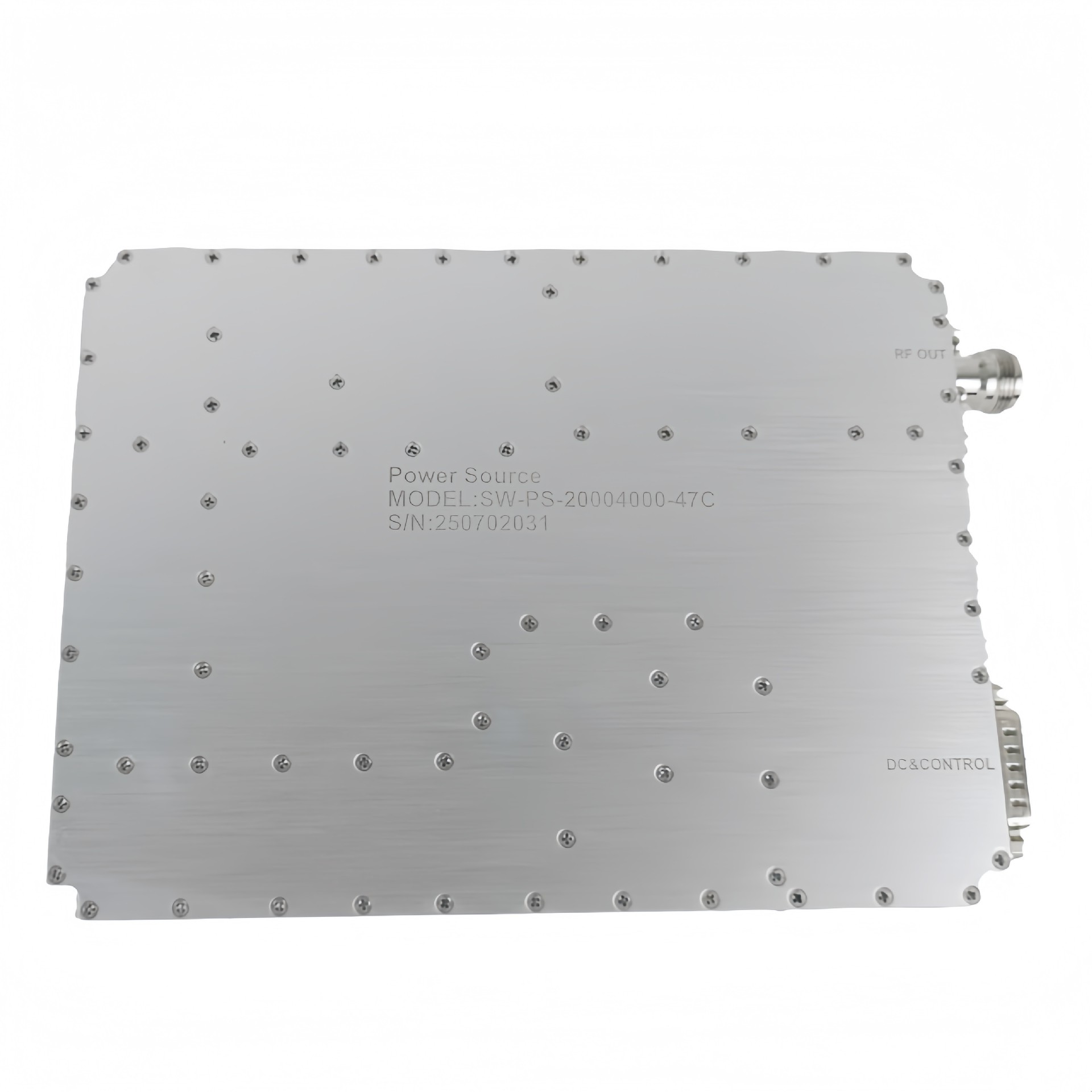

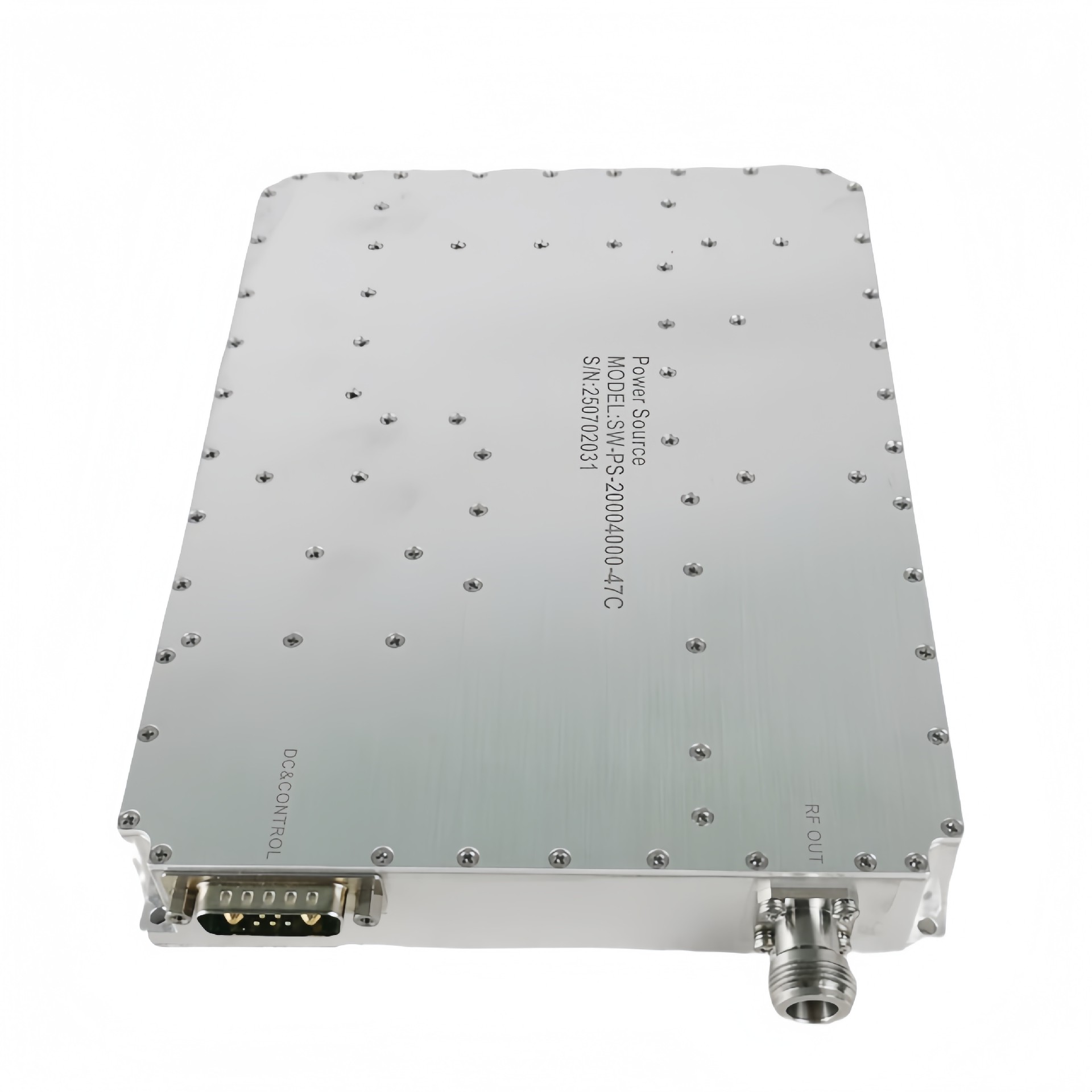

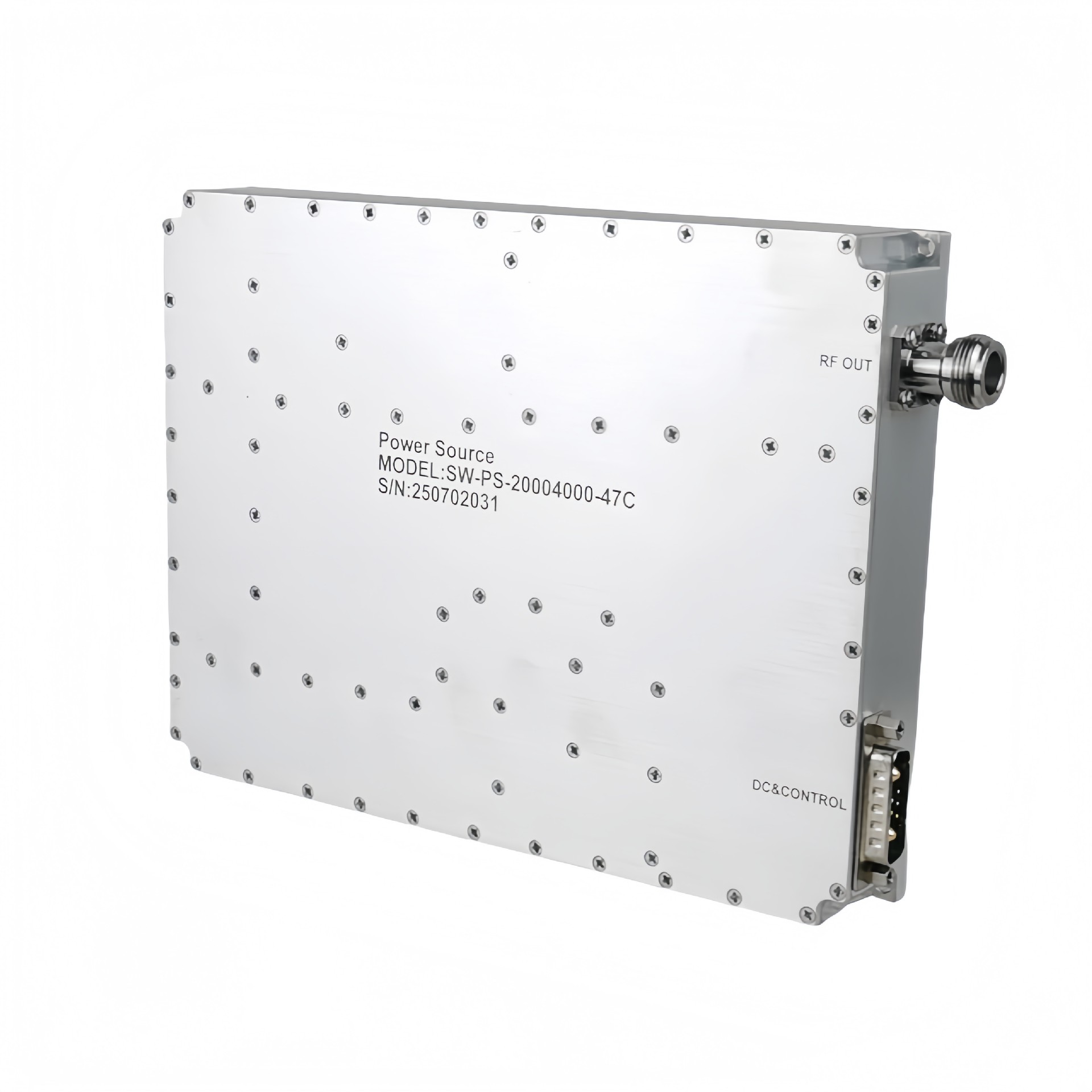

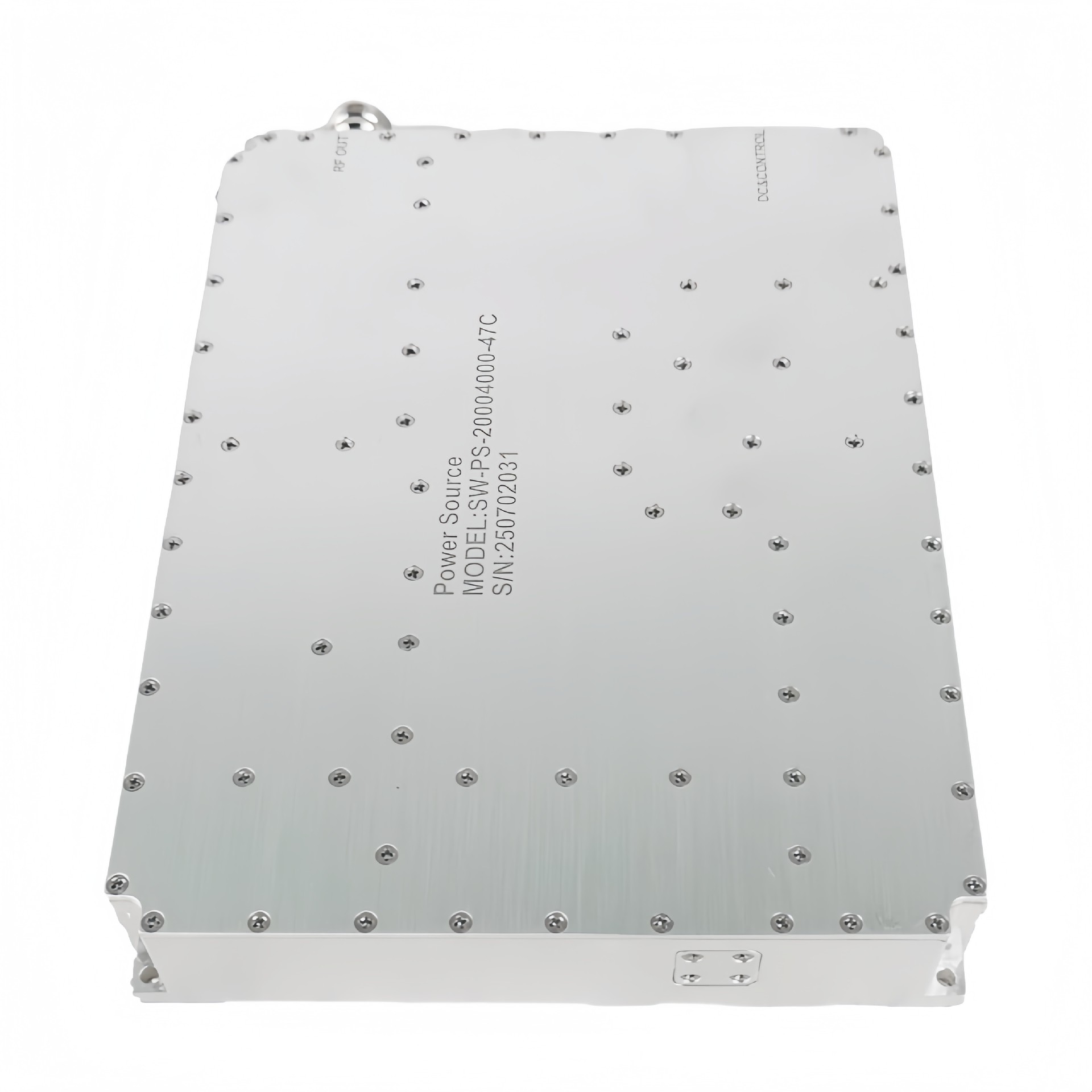

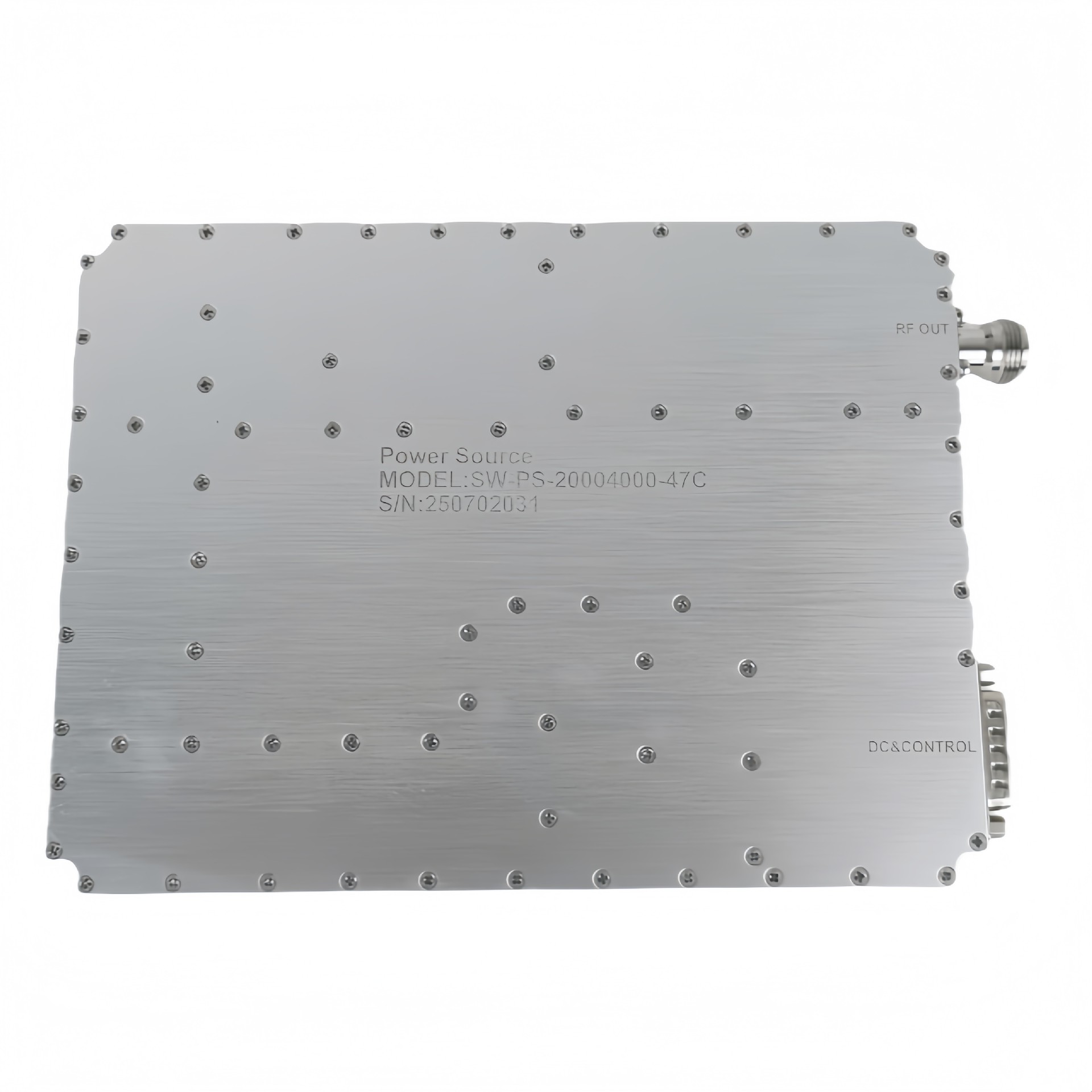

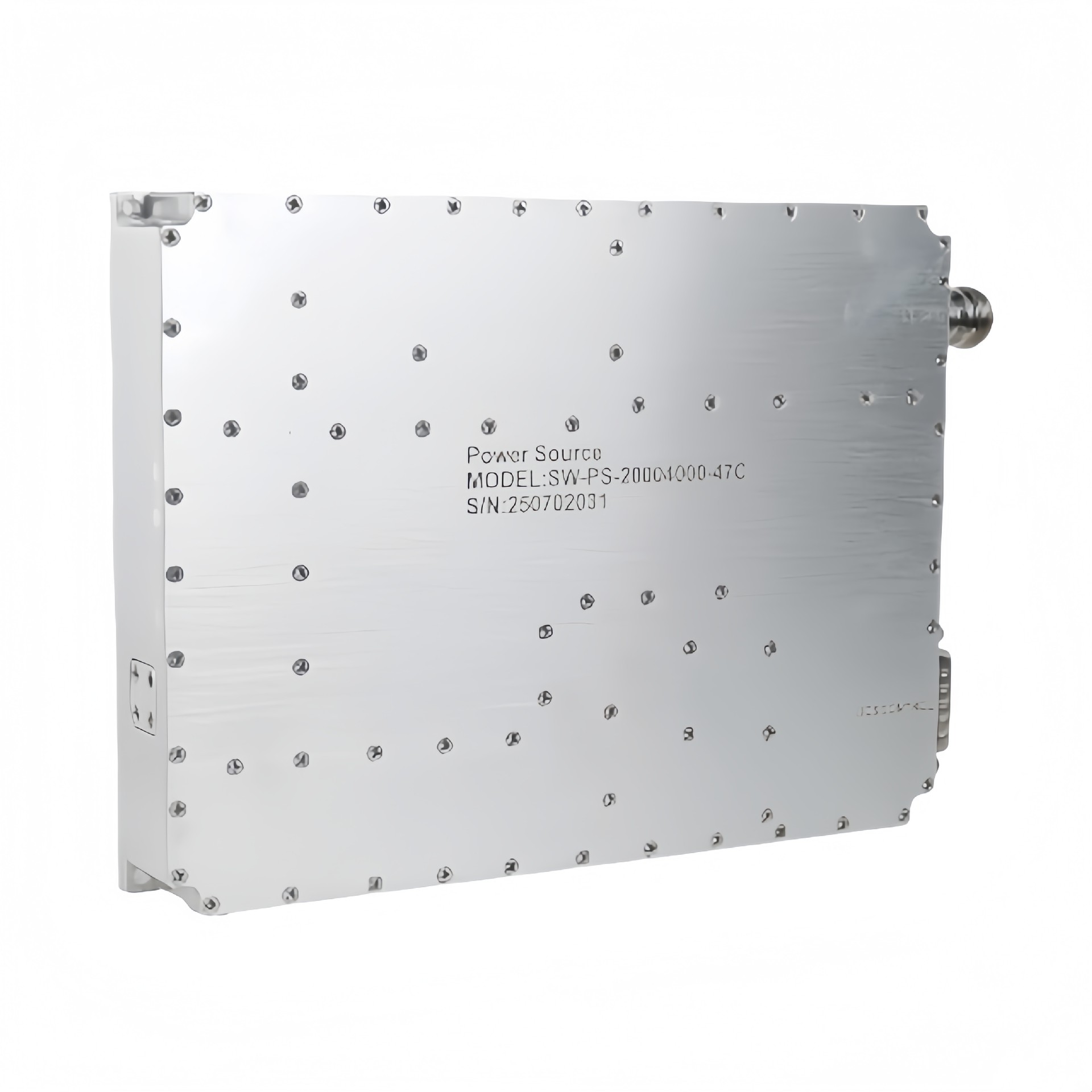

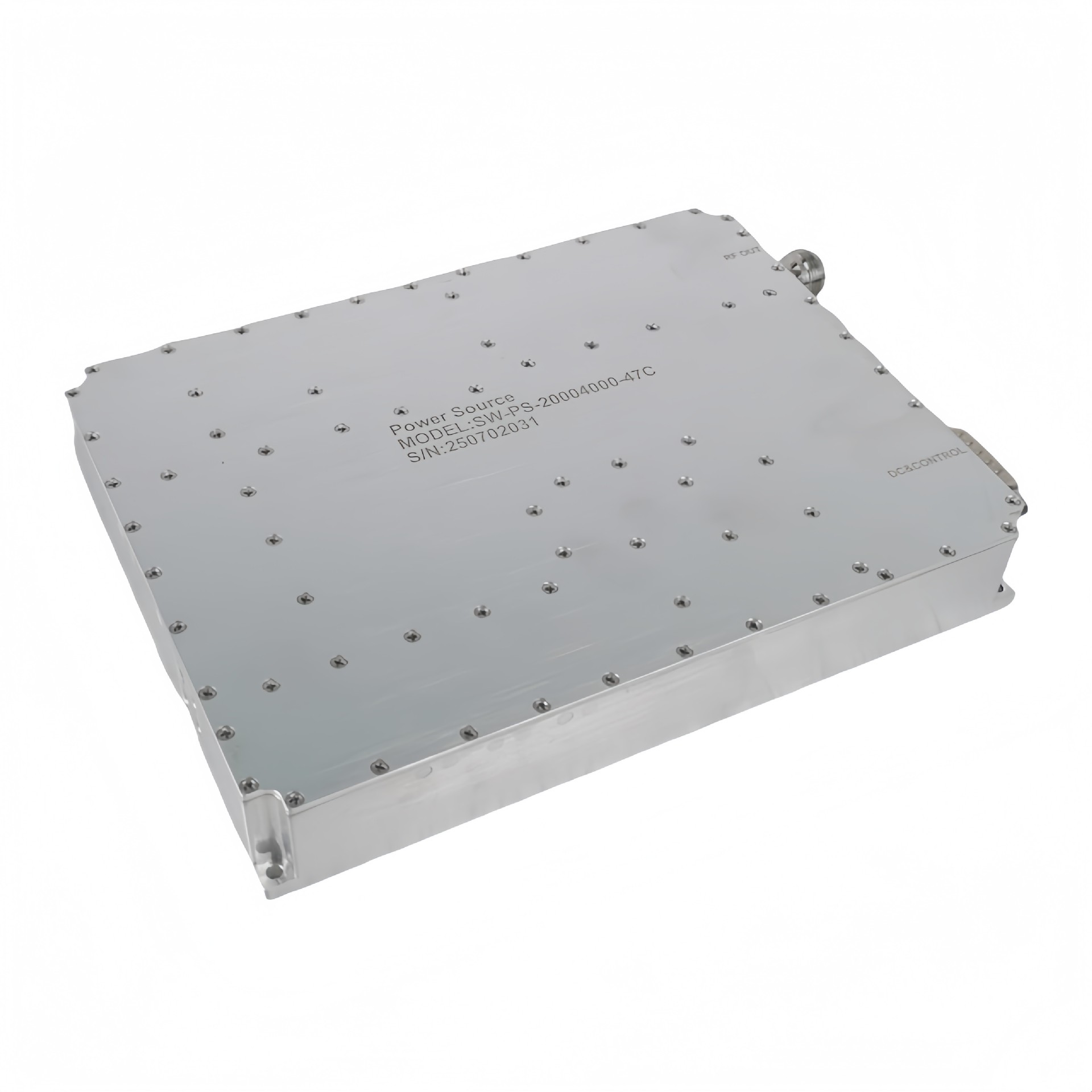

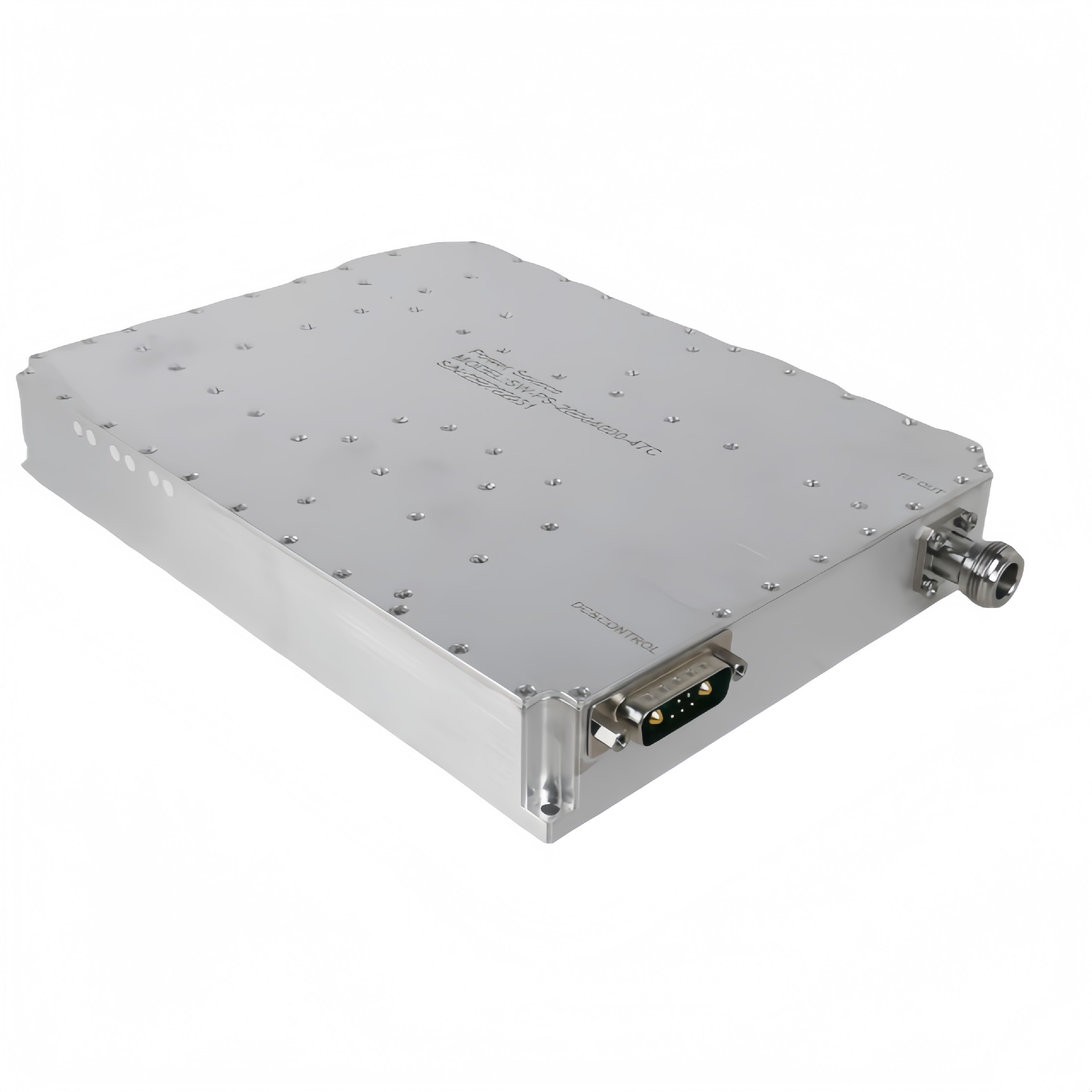

50W Power Amplifier Module for Independent Stations Industrial Commercial RF Systems
Place of Origin：China
Brand Name：SWT
Model Number：SW-PS-20004000-47C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 2000 | 4000 | MHz | |
Oeration mode | Sweep frequency source | |||
P-sat Power Output | 46.5 | 47 | dBm | |
Power Gain Flatness | ±2.5 | dB | ||
Input VSWR | 2 | |||
Operating Voltage | 28 | VDC | ||
In-Out impedance | 50 | Ω | ||
Current | 9 | A | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

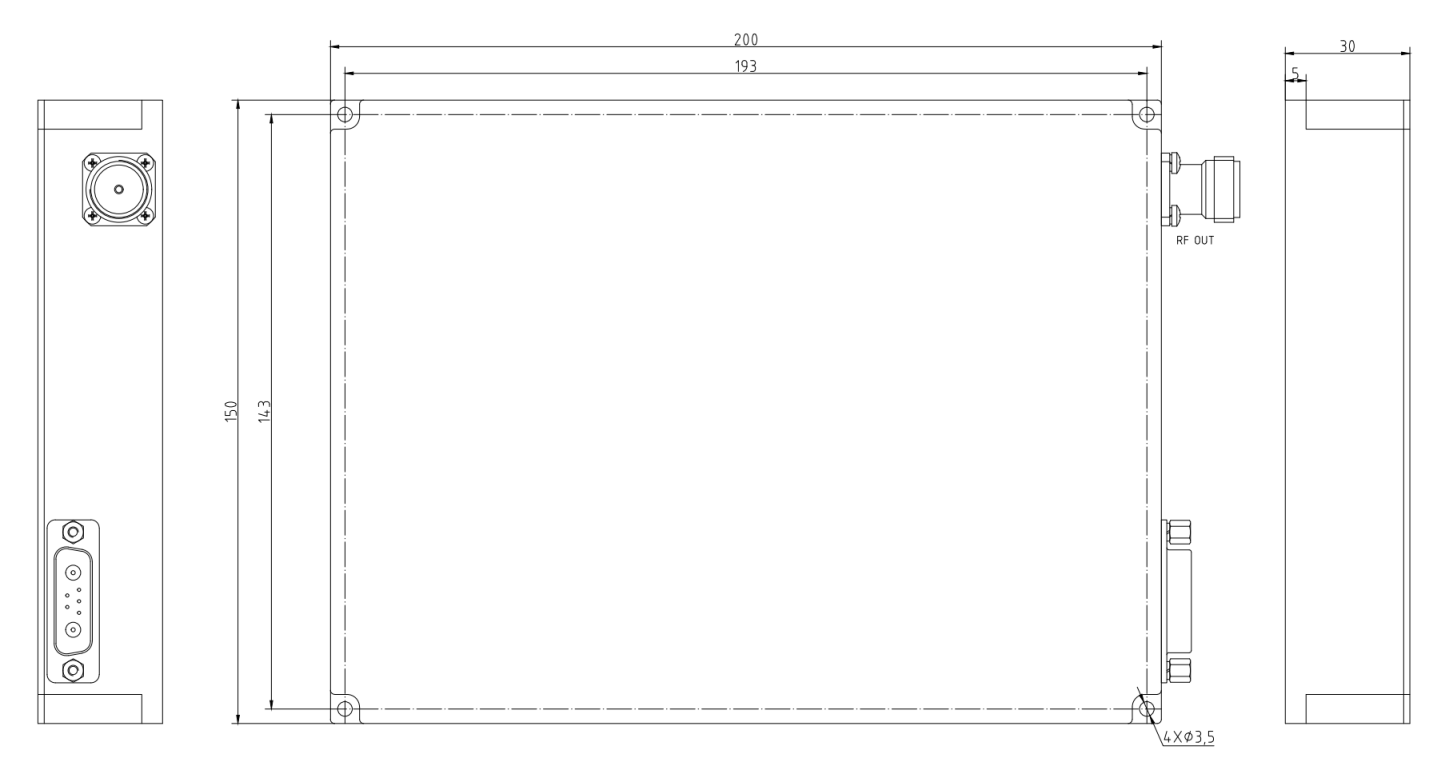

Dimensions (L x W x H) | 200x150x30 | mm |
RF Connectors (Input / Output) | N- KFD | -- |
DC / Control Connector | D SUB 7W2 | -- |
Cooling | Consider heat dissipation with the system | -- |
Mounting | 3-6 Thru Hole | -- |
Weight | ≤1.5 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -40 | +60 | °C |
Humidity Range | 0-100 | % | |
PA Baseplate Shutoff Temperature | + 90 | °C | |
INPUT/OUTPUT PINS | |||
AMPLIFIER CONNECTOR TYPE: | D SUB 7W2 | ||
TRIAD CABLE PART NUMBER: | —— | ||
PIN NUMBER | LABEL | DESCRIPTION | |
A1 | +VDC | +28V | |
A2 | GND | Ground | |
1-2 | NC | NC | |
3 | RS485A | Gain Control and Seep speed Control | |
4 | RS485B | ||
5 | GND | ||
Product Details
Name:
Operating Frequency:
Psat Output Power:
Gain:
Input Vswr:
Power Gain Flatness:
Spurious Signals:
Harmonic Signals:
Operating Temp:
Application:
Transport Package:
Specification:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
