High efficiency 400-500MHz 50W jammer module for drone countermeasure systems
Place of Origin：China
Brand Name：SWT
Model Number：SW-PS-04000500-47C
Price：make request to get price
Product Description
High efficiency 400-500MHz 50W jammer module for drone countermeasure systems

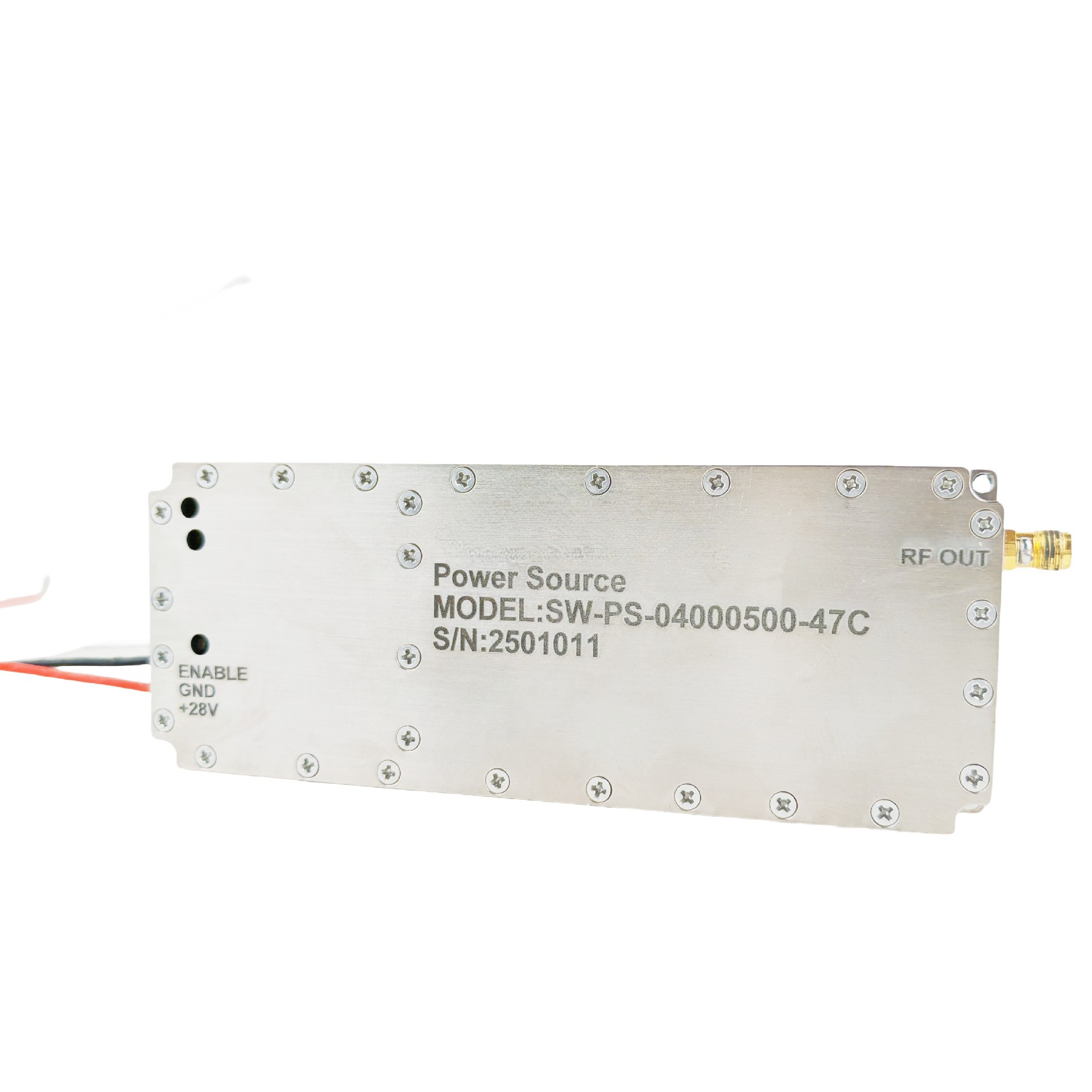

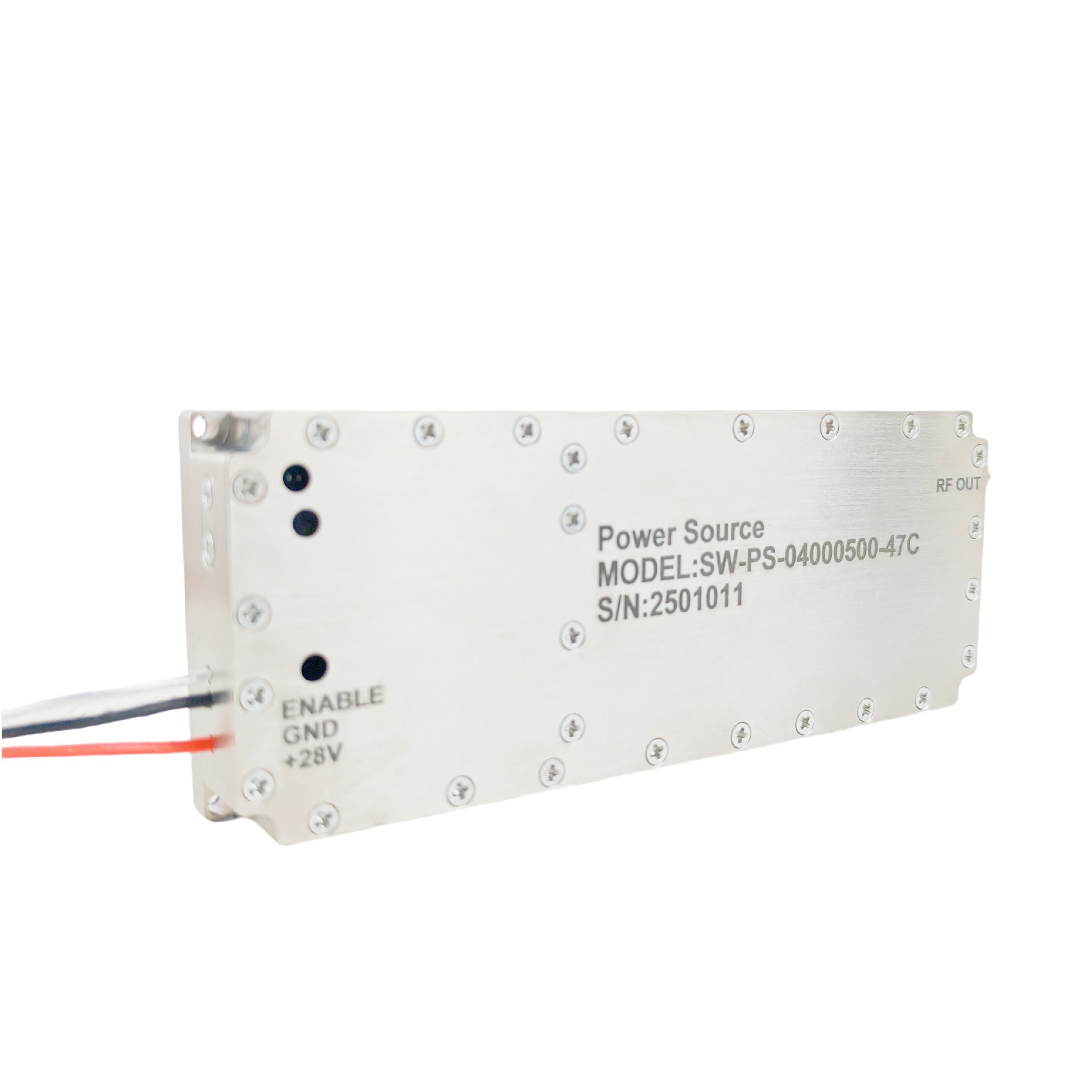

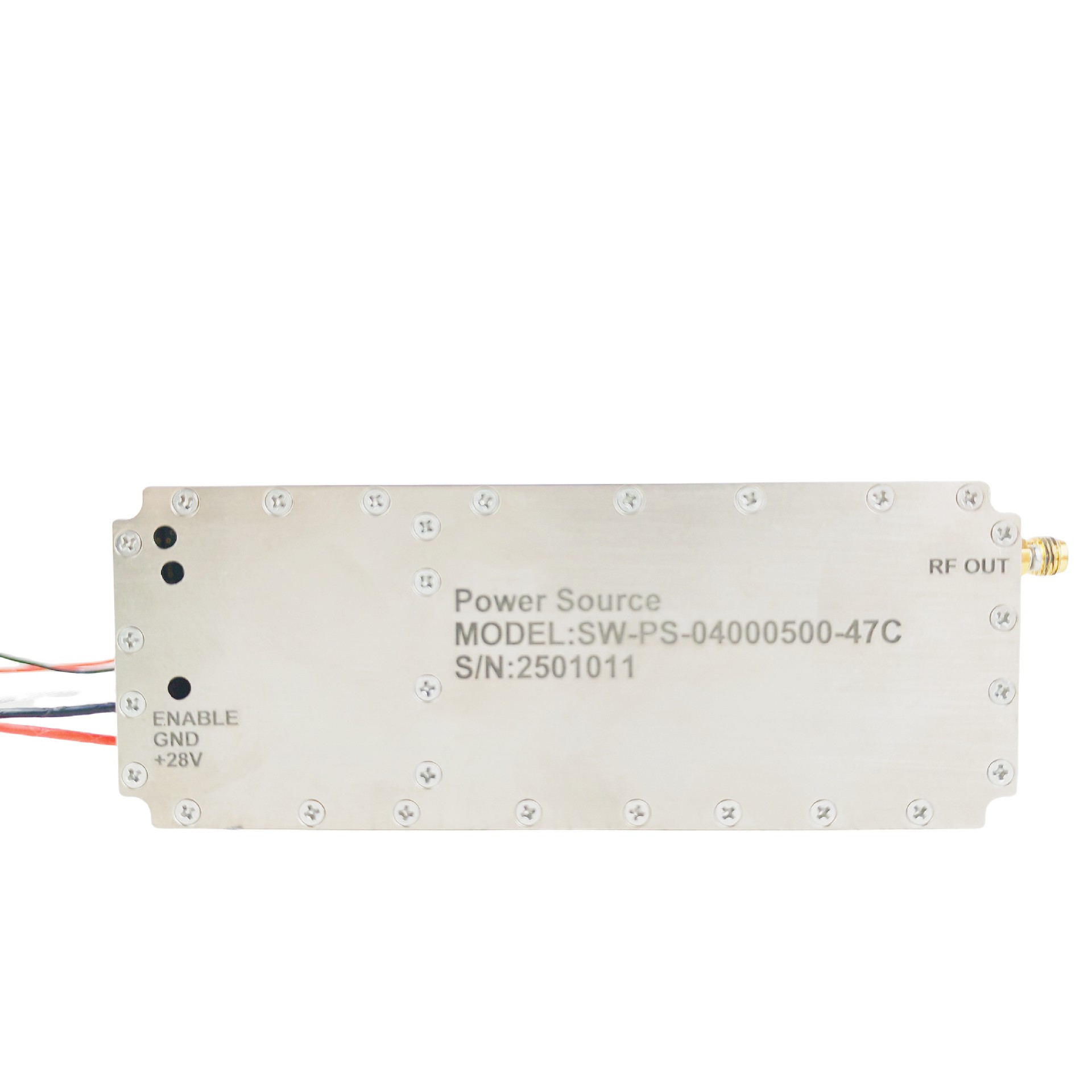

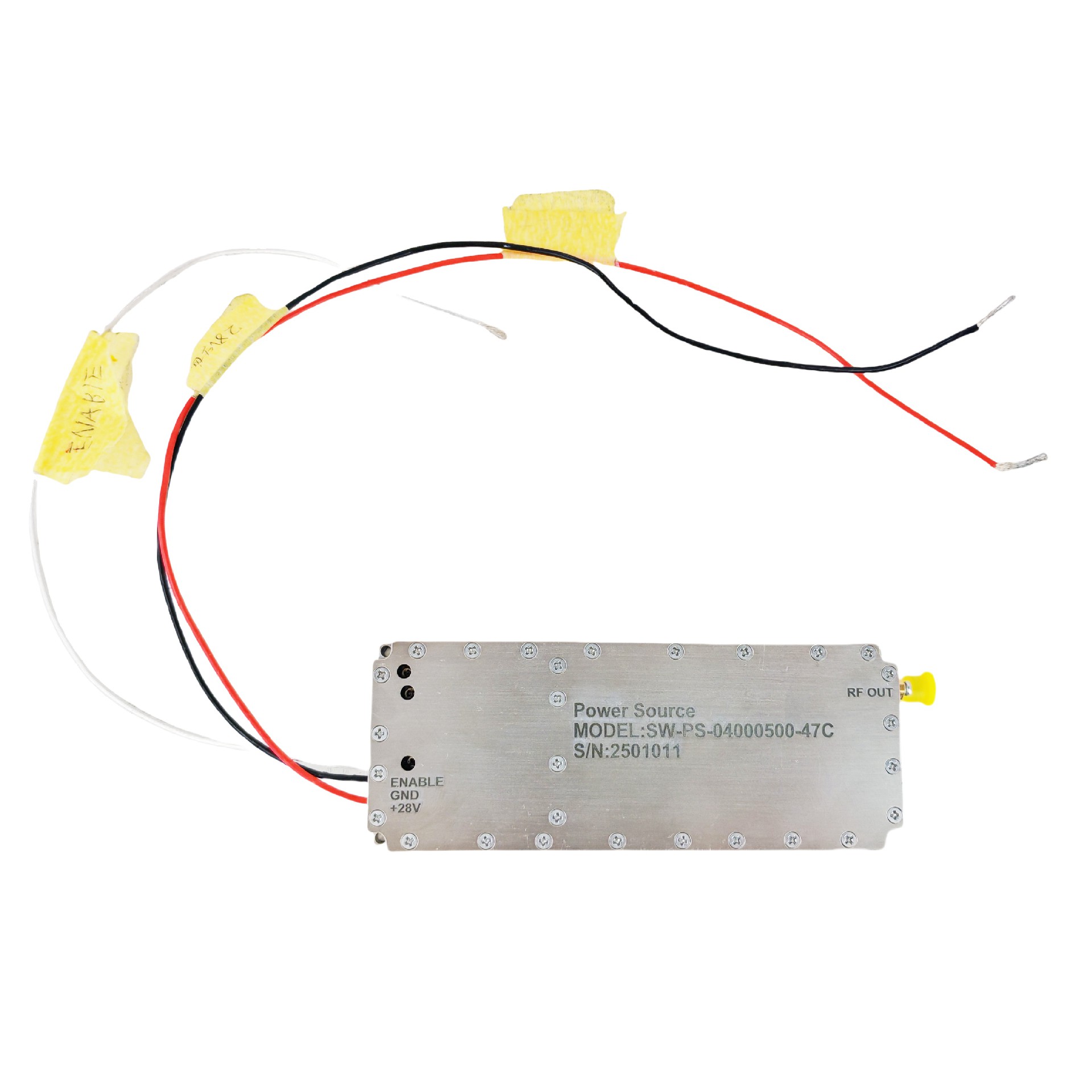

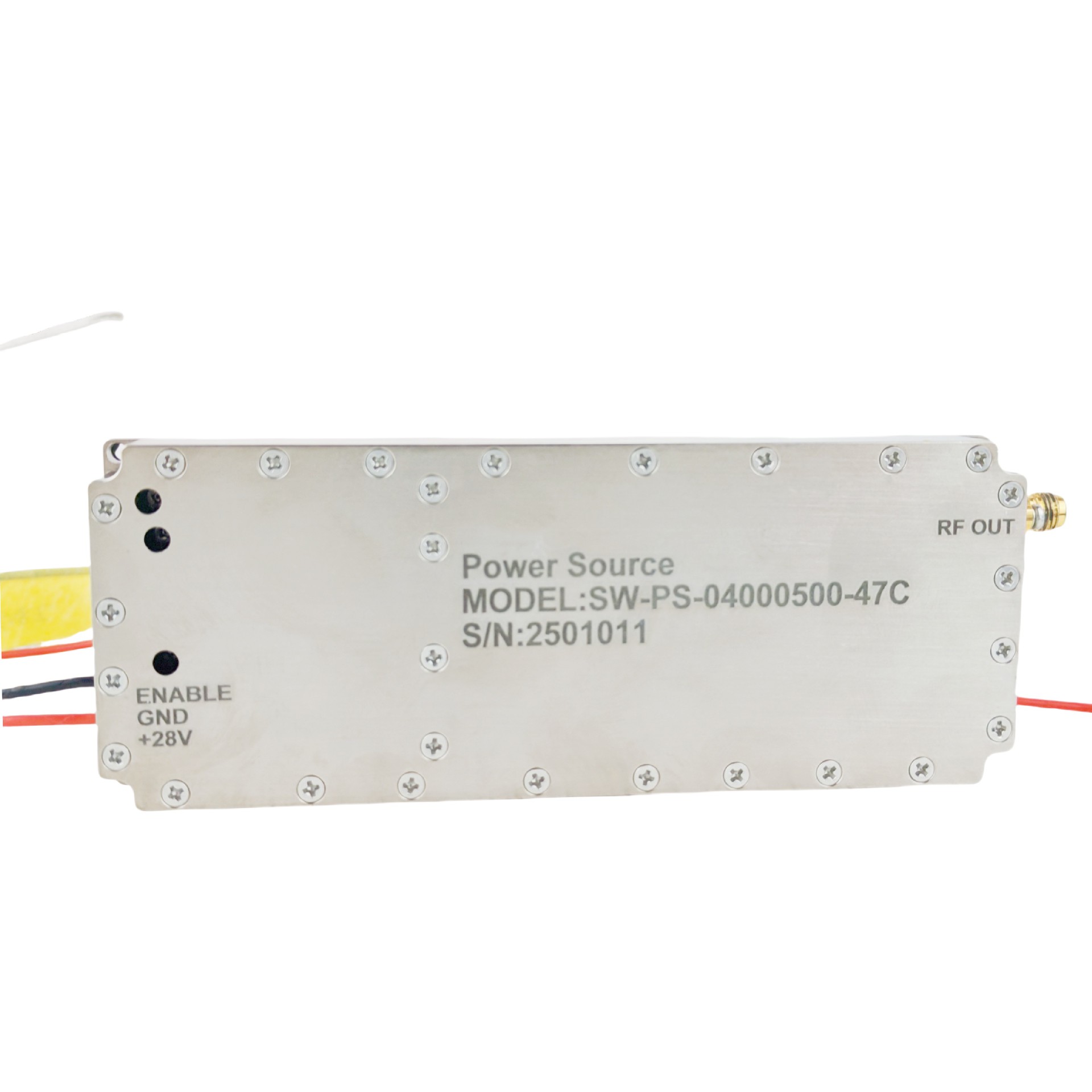

This 400-500MHz 50W drone jamming module features a high-strength metal housing with a finely treated surface. It offers excellent durability and anti-jamming capability. The module is equipped with multiple power wires, including red and black power wires, as well as a white ground wire, making it easy to connect and install. Its design is compact and simple, with excellent heat dissipation performance. The product supports a 28V power input and provides powerful signal jamming through the RF output interface. It is specifically designed for drone protection and jamming operations, effectively disrupting target frequency bands. It is widely used in drone countermeasure systems. This jamming module provides a stable 50W power output, making it an efficient and reliable protective device
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 400 | 500 | MHz | |
P-sat Power Output | 47 | dBm | ||
Power Gain Flatness | ±2 | dB | ||
Input VSWR | 2 | |||
Operating Voltage | 28 | VDC | ||
In-Out impedance | 50 | Ω | ||
Current | 6 | A | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (L x W x H) | 130×61×18 | mm |
RF Connectors (Input / Output) | SMA-KF/SMA-KF | -- |
DC / Control Connector | JL23-8 | -- |
Cooling | External heat dissipation is required | -- |
Mounting | φ3.5-4 Thru Hole | -- |
Weight | ≤0.5 | kg |
Product Details
Name:
400-500MHz jamming module
Operating Frequency:
400-500MHz
Psat Output Power:
47dBm
Gain:
47dB
Input Vswr:
2
Power Gain Flatness:
±2dB
Spurious Signals:
Harmonic Signals:
Operating Temp:
-20~55°C
Application:
UAV
Transport Package:
Carton
Specification:
130×61×18mm
