500-600MHz communication module 50w jammer module for drone protection and jamming operations
Place of Origin：China
Brand Name：SWT
Model Number：SW-PS-05000600-47C
Price：make request to get price
Product Description
500-600MHz communication module 50w jammer module for drone protection and jamming operations

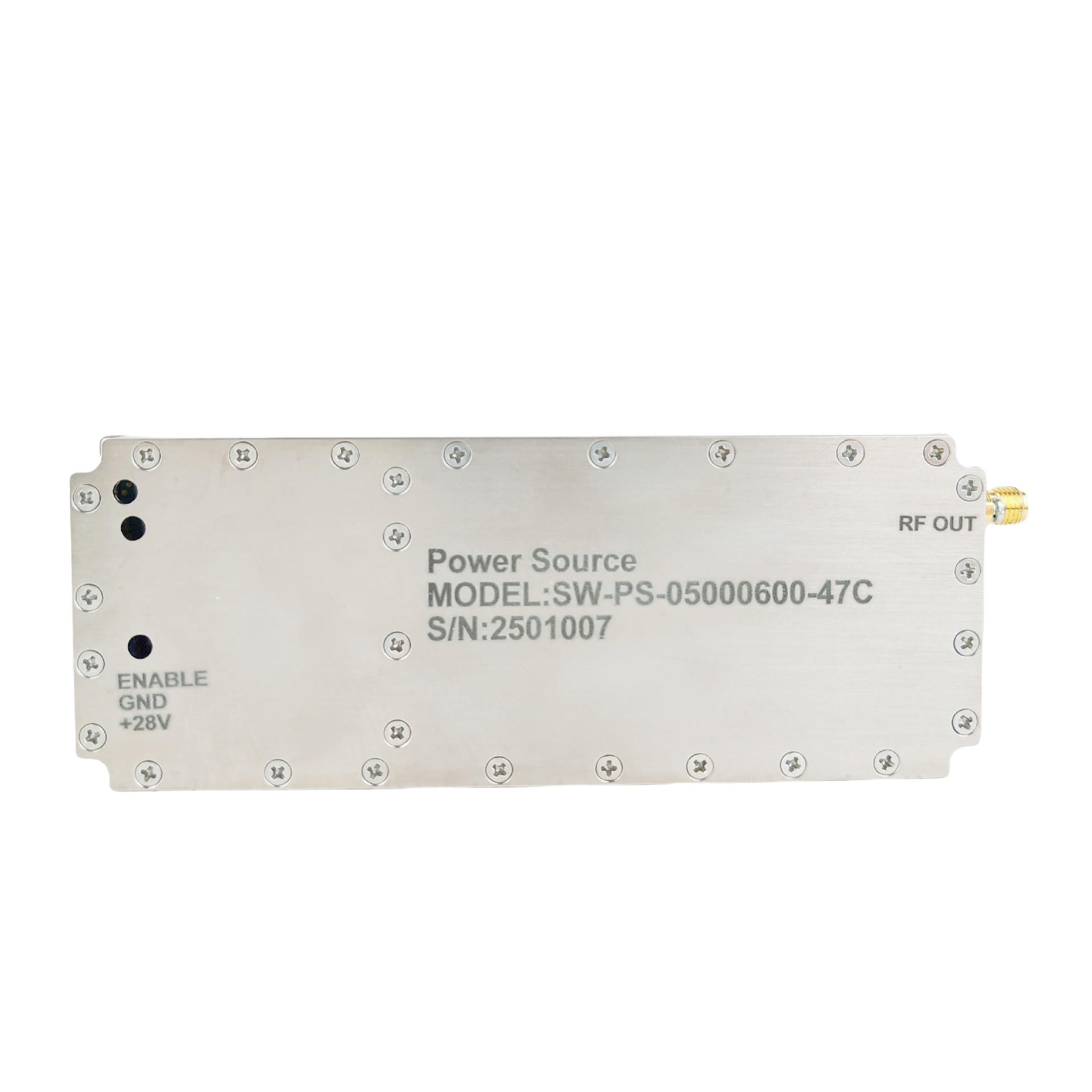

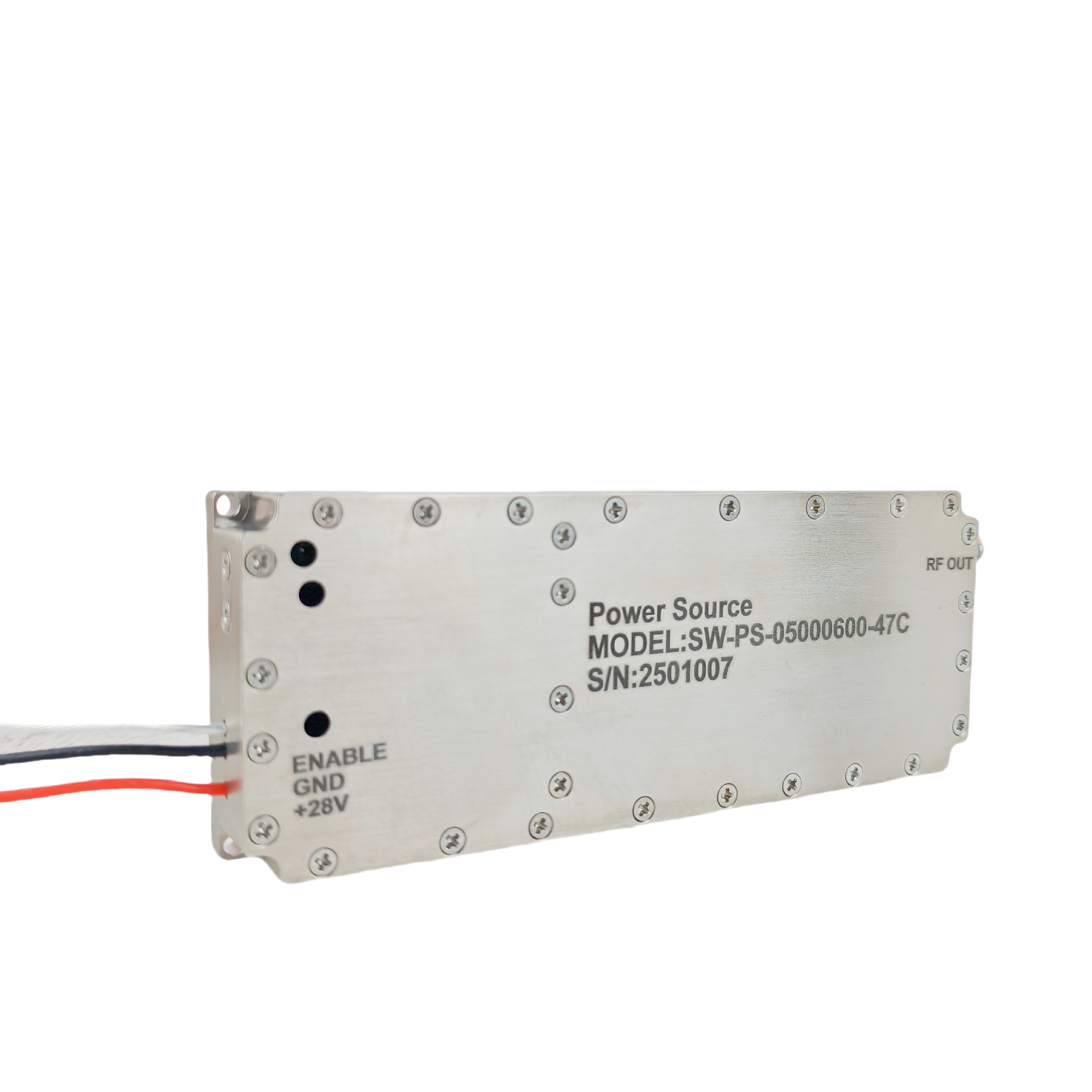

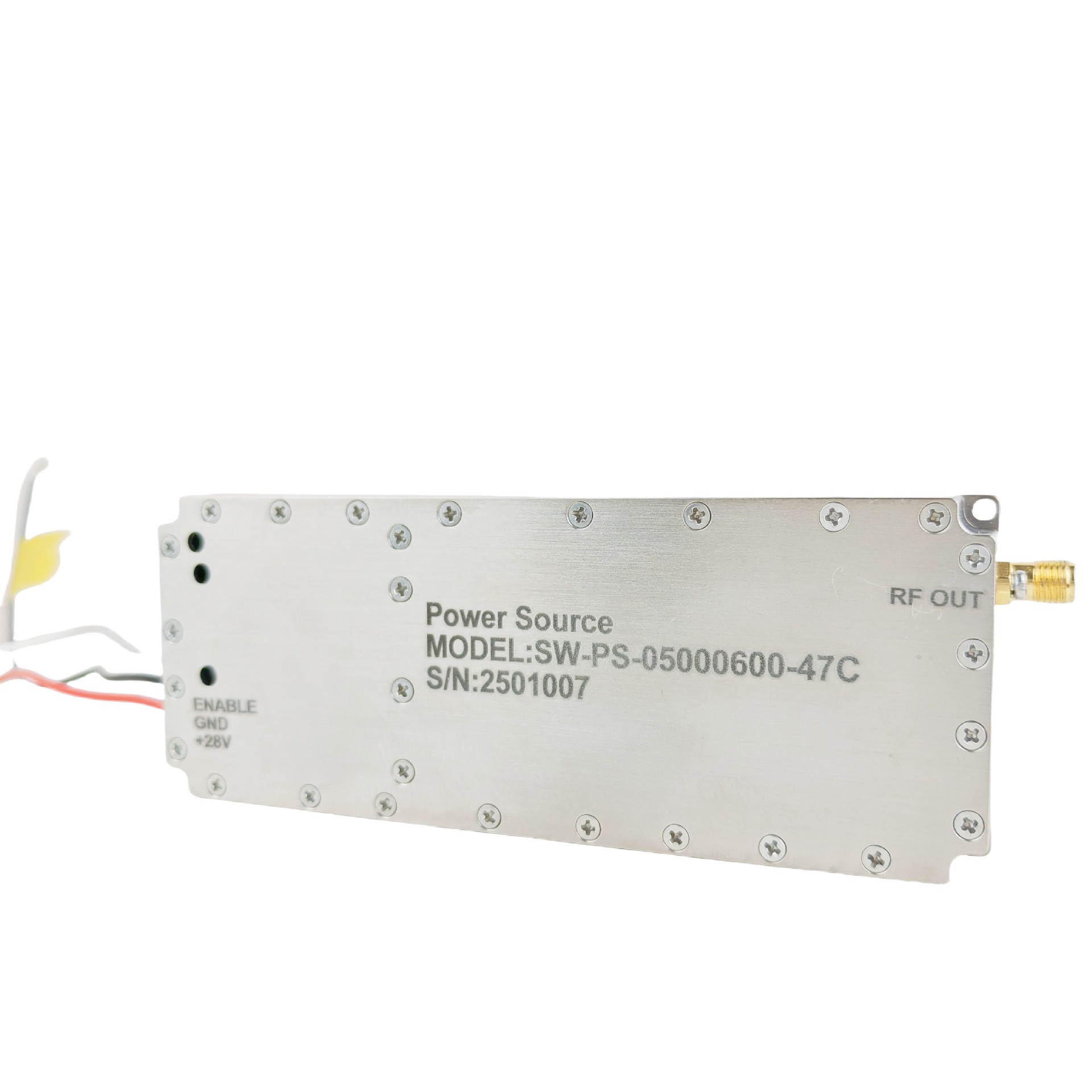

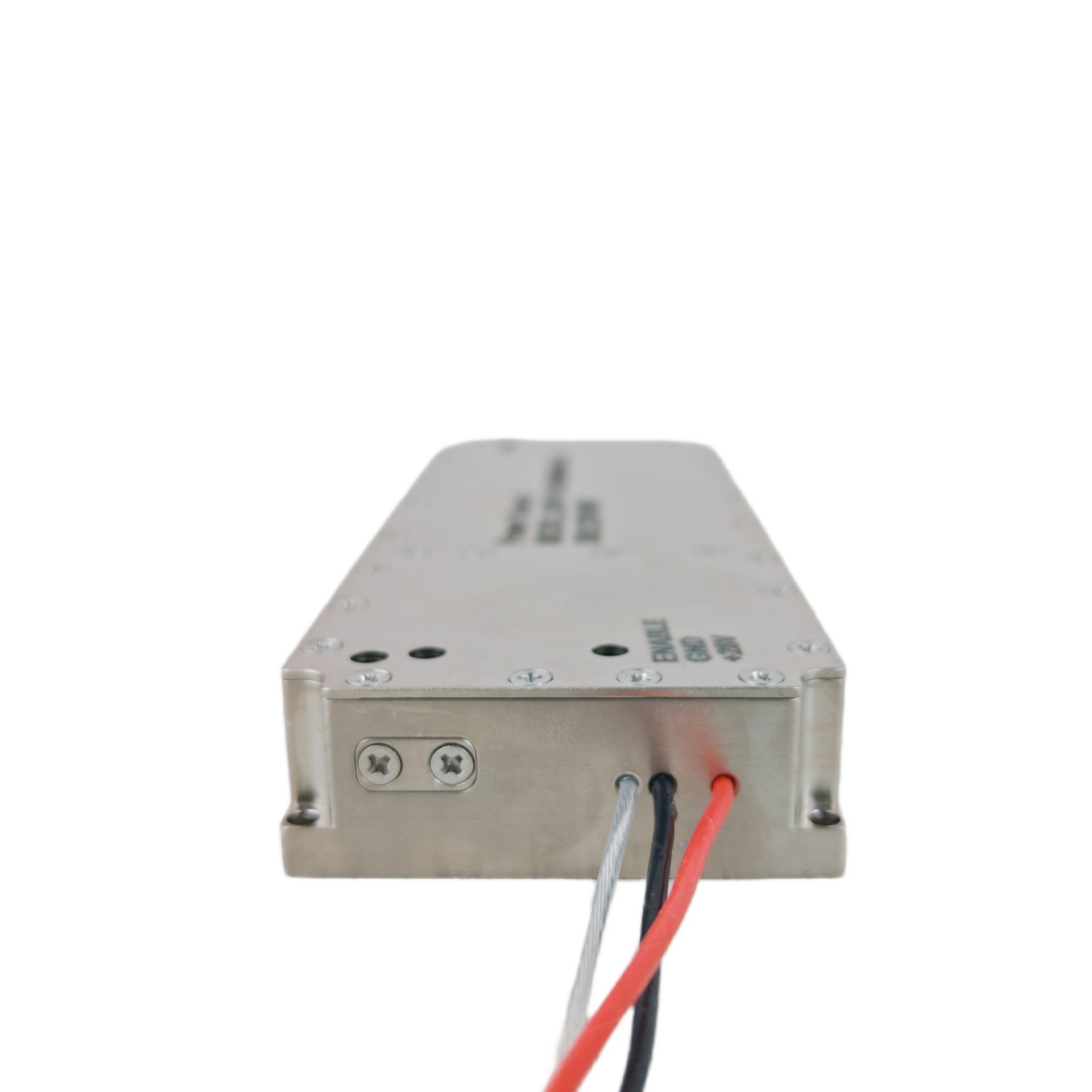

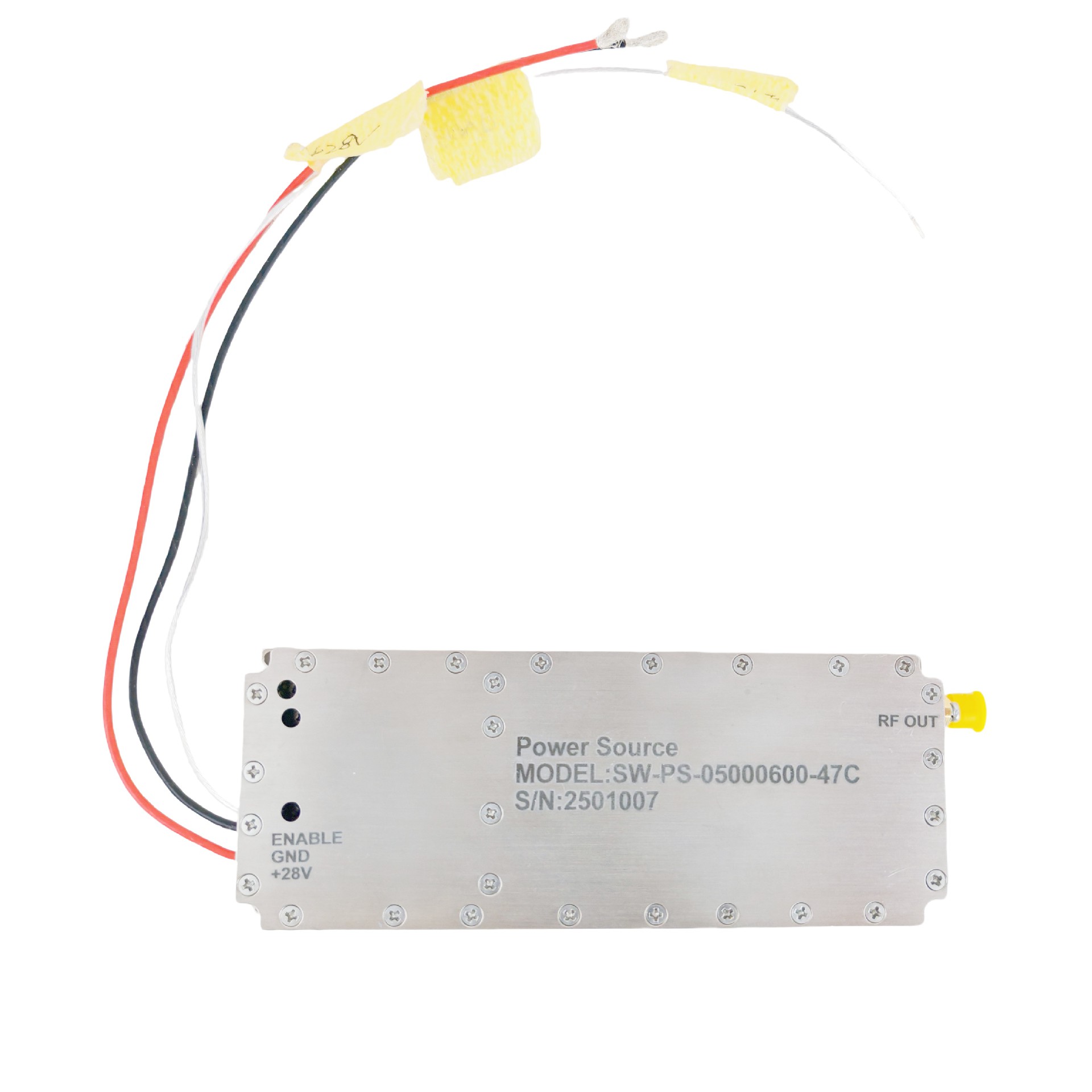

This 500-600MHz 50W drone jamming module features a high-strength metal housing with a finely treated surface. It offers excellent durability and anti-jamming capability. The module is equipped with multiple power wires, including red and black power wires, as well as a white ground wire, making it easy to connect and install. Its design is compact and simple, with excellent heat dissipation performance. The product supports a 28V power input and provides powerful signal jamming through the RF output interface. It is specifically designed for drone protection and jamming operations, effectively disrupting target frequency bands. It is widely used in drone countermeasure systems. This jamming module provides a stable 50W power output, making it an efficient and reliable protective device
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 500 | 600 | MHz | |
P-sat Power Output | 47 | dBm | ||
Power Gain Flatness | ±2 | dB | ||
Input VSWR | 2 | |||
Operating Voltage | 28 | VDC | ||
In-Out impedance | 50 | Ω | ||
Current | 6 | A | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (L x W x H) | 130×61×18 | mm |
RF Connectors (Input / Output) | SMA-KF/SMA-KF | -- |
DC / Control Connector | JL23-8 | -- |
Cooling | External heat dissipation is required | -- |
Mounting | φ3.5-4 Thru Hole | -- |
Weight | ≤0.5 | kg |
Product Details
Name:
500-600MHz jamming module
Operating Frequency:
500-600MHz
Psat Output Power:
47dBm
Gain:
47dB
Input Vswr:
2
Power Gain Flatness:
±2dB
Spurious Signals:
Harmonic Signals:
Operating Temp:
-20~55°C
Application:
UAV
Transport Package:
Carton
Specification:
130×61×18mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
