High precision amplifier module 50W 900-1020MHz jammer module for drone countermeasure systems

Place of Origin:China
Brand Name:SWT
Model Number:SW-PS-09001020-47C
Price:make request to get price
Product Description

High precision amplifier module 50W 900-1020MHz jamming module for drone countermeasure systems

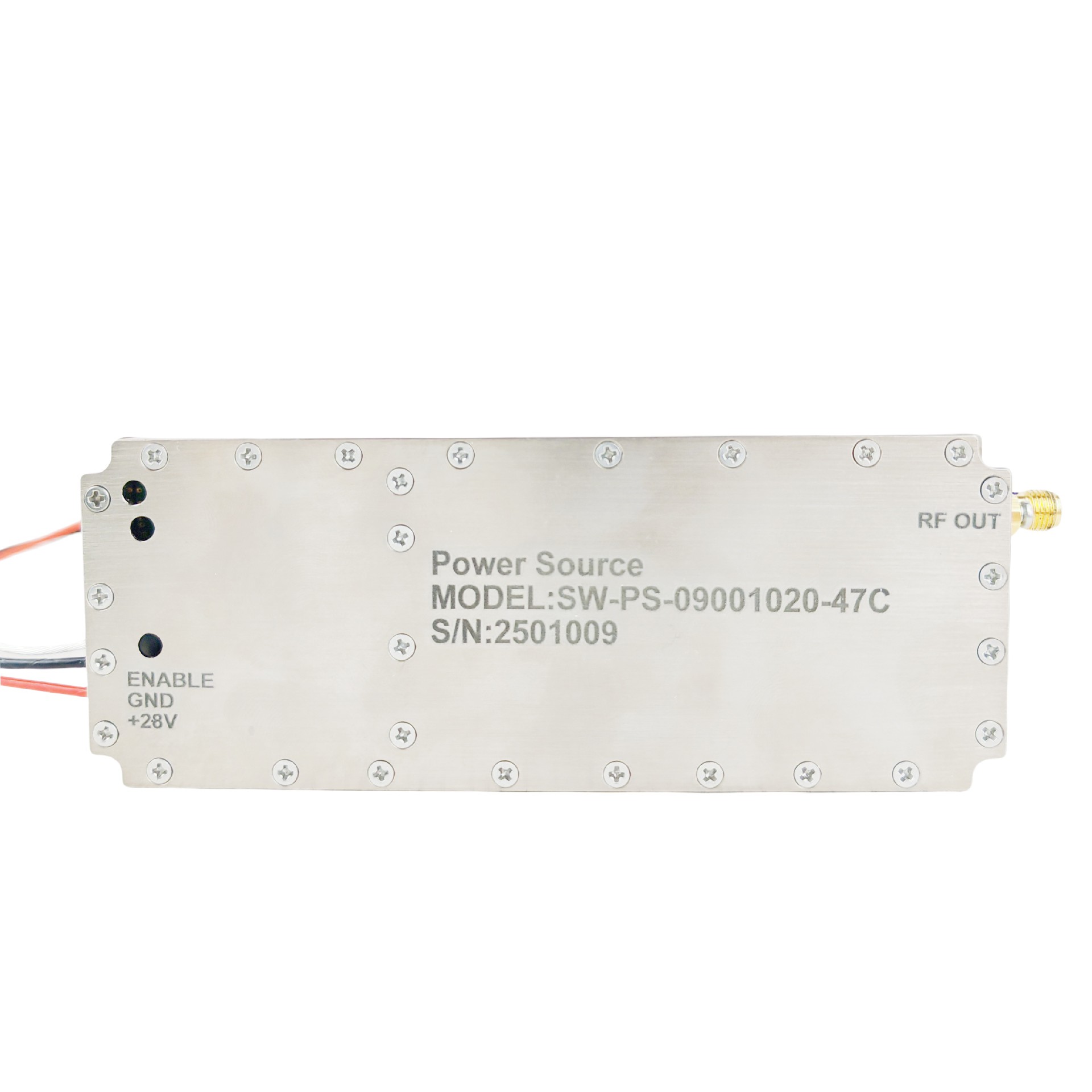

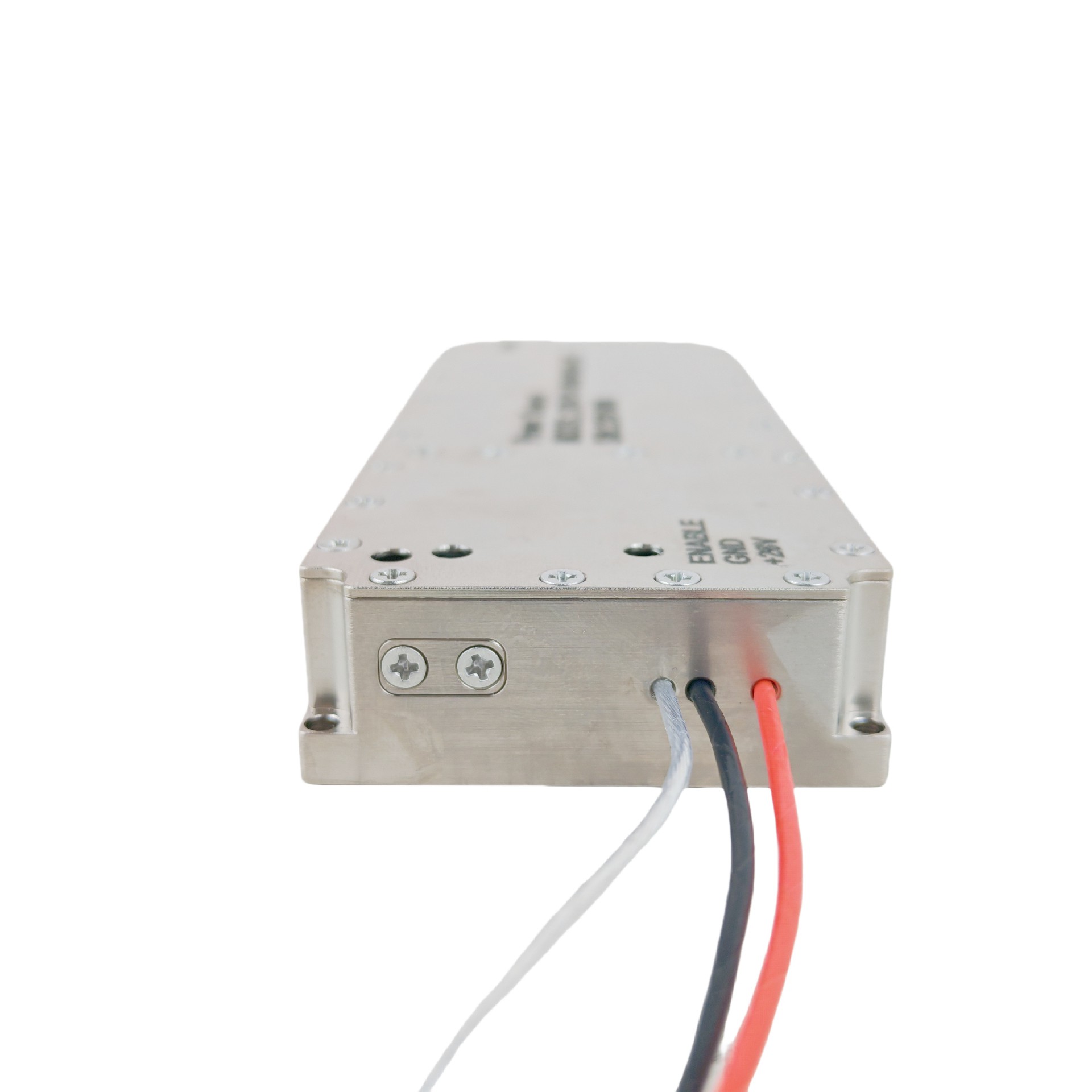

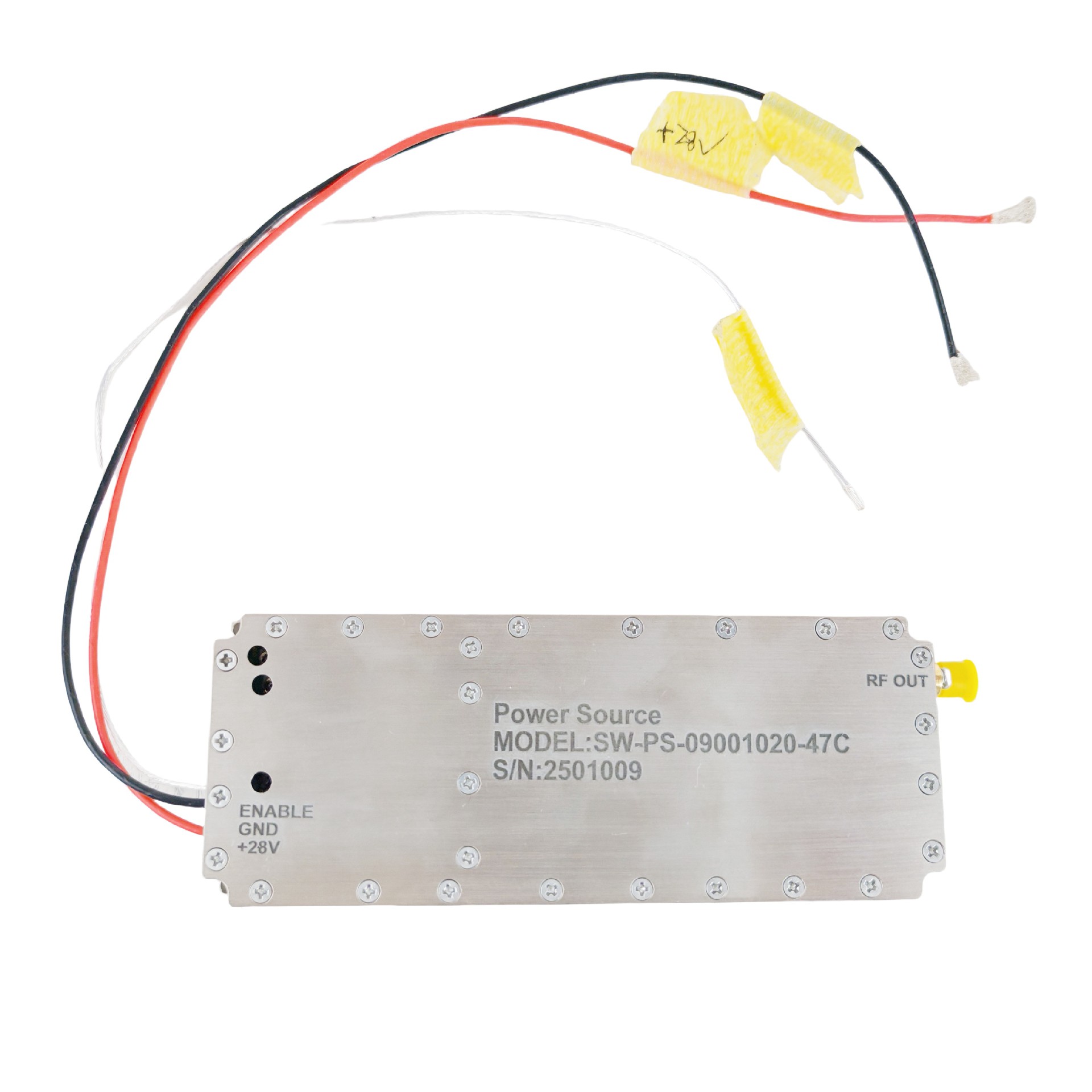

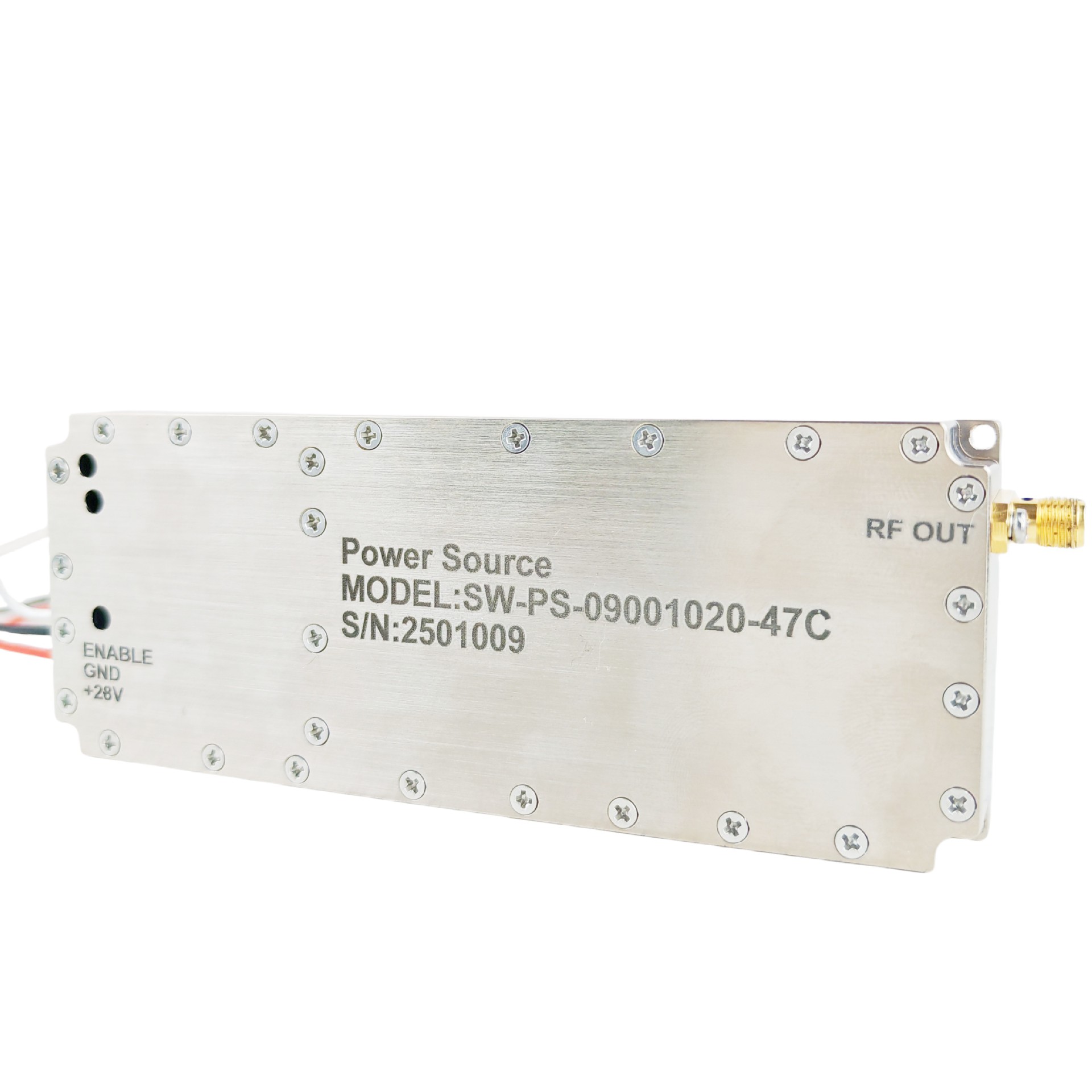

This 800-900MHz 50W drone jamming module features a high-strength metal housing with a finely treated surface. It offers excellent durability and anti-jamming capability. The module is equipped with multiple power wires, including red and black power wires, as well as a white ground wire, making it easy to connect and install. Its design is compact and simple, with excellent heat dissipation performance. The product supports a 28V power input and provides powerful signal jamming through the RF output interface. It is specifically designed for drone protection and jamming operations, effectively disrupting target frequency bands. It is widely used in drone countermeasure systems. This jamming module provides a stable 50W power output, making it an efficient and reliable protective device

RF / ELECTRICAL

PARAMETER

MIN

TYP.

MAX

UNIT

Operating Frequency

900


1020

MHz

P-sat   Power Output


47


dBm

Power Gain Flatness



±2

dB

Input  VSWR



2


Operating Voltage


28


VDC

In-Out impedance


50


Current



6

A

MECHANICAL

PARAMETER

VALUE

UNIT

Dimensions (L x W x H)

130×61×18

mm

RF Connectors (Input / Output)

SMA-KF/SMA-KF

--

DC / Control Connector

JL23-8

--

Cooling

External heat dissipation is required

--

Mounting

φ3.5-4 Thru Hole

--

Weight

0.5

kg

Outline Dimensional Drawing


Product Details
Name:
900-1020MHz jamming module
Operating Frequency:
900-1020MHz
Psat Output Power:
47dBm
Gain:
47dB
Input Vswr:
2
Power Gain Flatness:
±2dB
Spurious Signals:
Harmonic Signals:
Operating Temp:
-20~55°C
Application:
UAV
Transport Package:
Carton
Specification:
130×61×18mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
